Joiners and Feeds

Tool-less mechanical and electrical connectors

Electrical Feeds

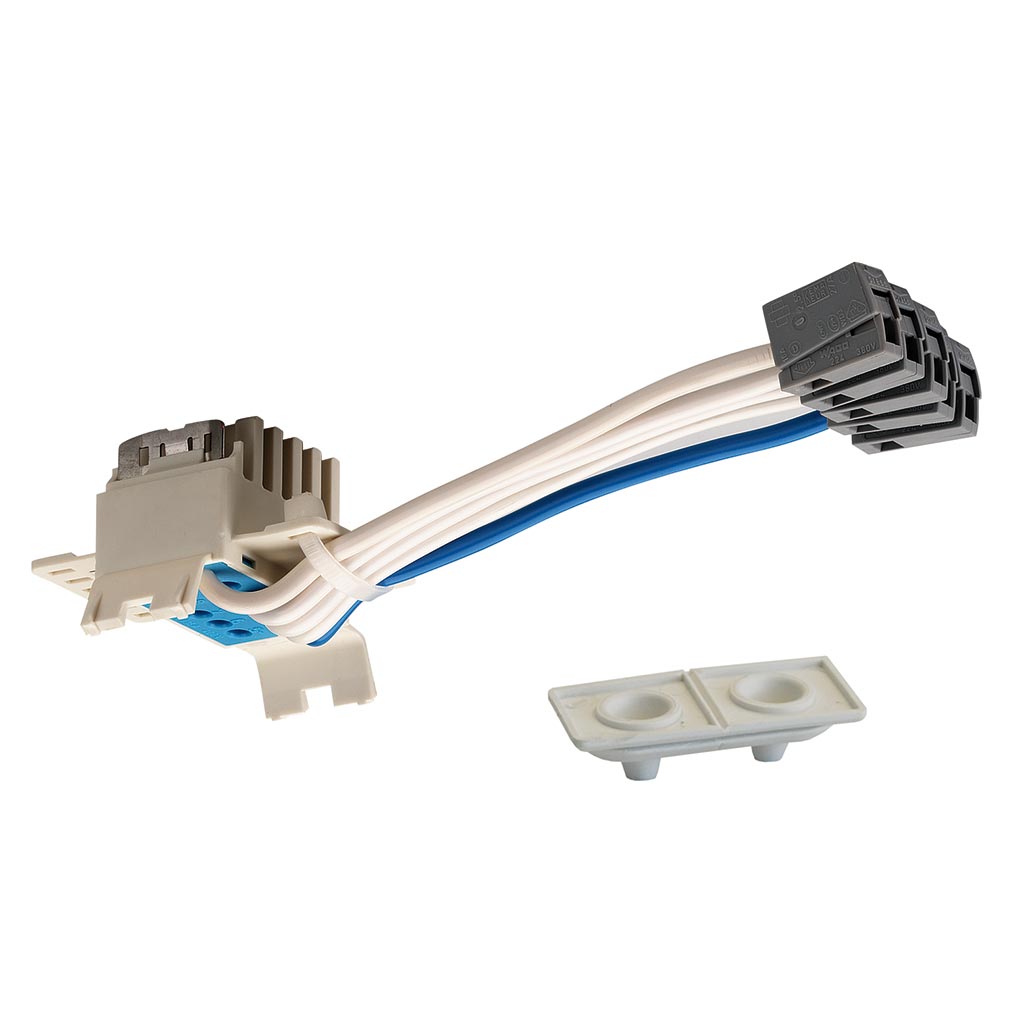

VLNE-XF

Electrical feed unit for up to 5, 7 or 11 cores of stranded or solid cable. Push fit cable connection to trunking with WAGO spring clamp cable connectors.



  • Solid or stranded cable up to 2.5mm2
  • IP54 Cable Gland
  • X = 5, 7 or 11 core version

VLNE-XS

Electrical feed unit for up to 11 cores of stranded or solid cable. Push fit cable connection to trunking with push fit cable connector.



  • Solid core cable 1.0 – 2.5mm2
  • IP54 Cable gland

X=5, 7 or 11 core version

Joiners and Seals

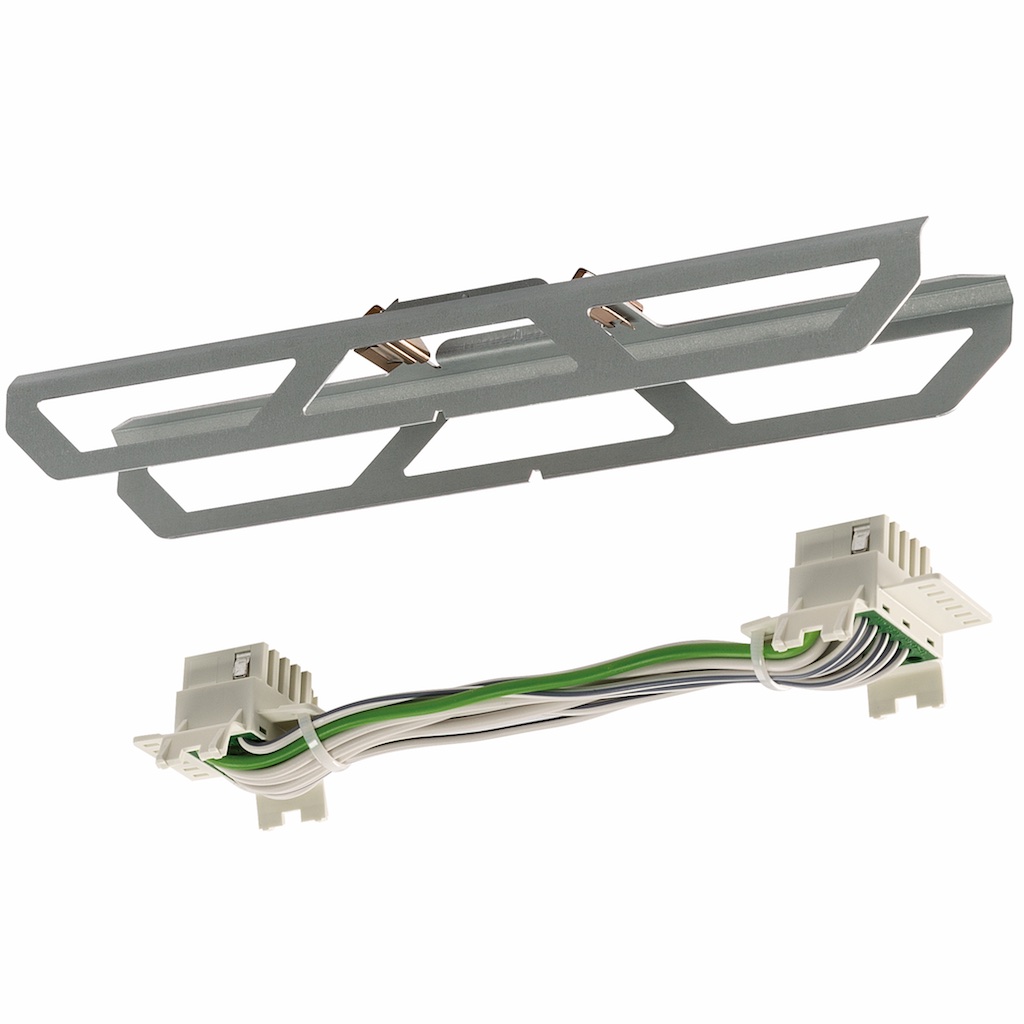

VLTV-X

Mechanical and electrical joining of trunking runs without the need for tools. Rigid steel joiner with intergal forced contacting earth connection. Electrical bridge connector joins one trunking bus-bar to the next.



  • X = 5, 7 or 11 core version

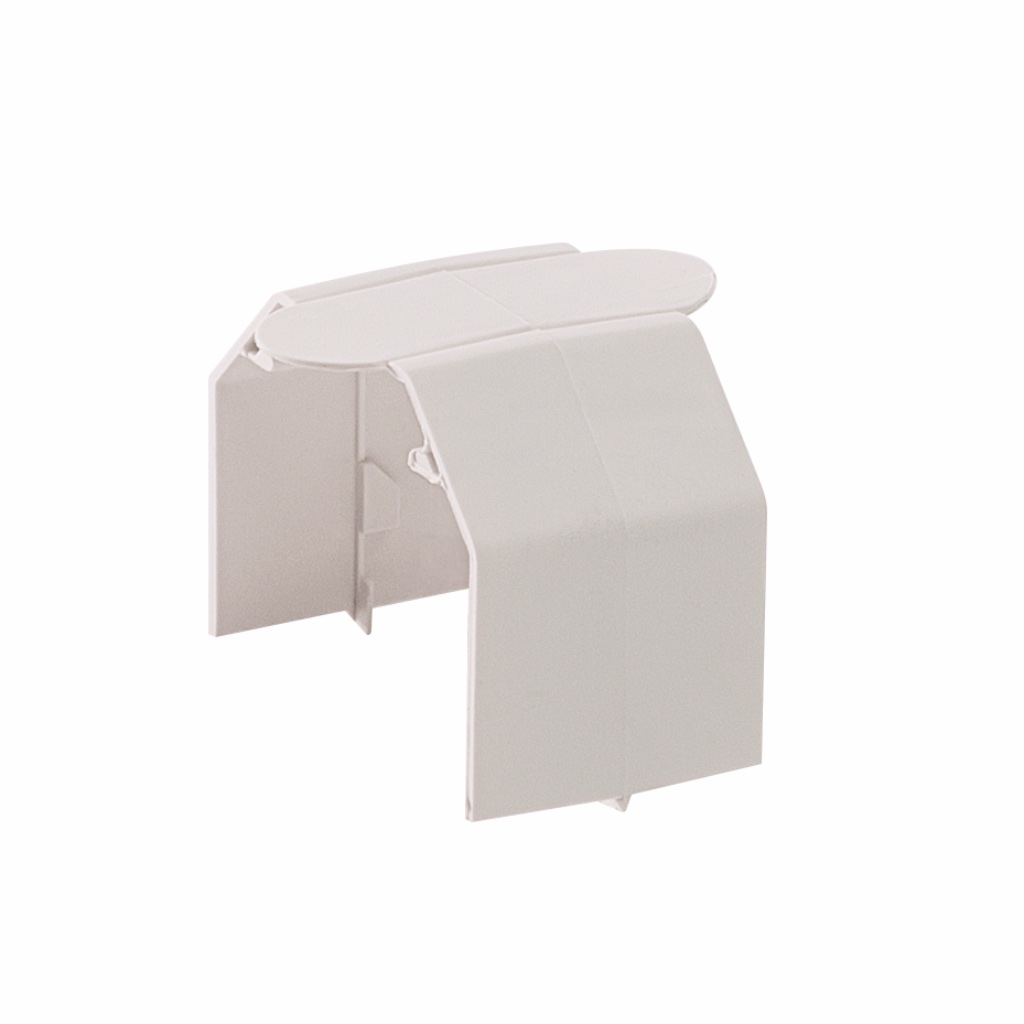

VLTVD

Optional seal sits between trunking joins and provides an ingress protection to IP54.

How to install

Watch the video to see how simple LINIA is to assemble and install.  Step by step breakdown showing how it all goes together.

LINIA is quick and simple to install saving time and money
