Iris

INSPIRED BY NATURE

The annular shape of the iris celebrates its reference to the human eye. The combination of clear transparency, microprismatic light control and diffusely scattering lateral housing surfaces draws the eye through, making Iris less obtrusive than more expected designs. So exposed ceilings are enhanced not hidden by the lighting. Like the human eye, the Iris can be available in various colours shades. These accents are created by replaceable side foils and can for example reflect the corporate design of a company or zone. The pendant version is suspended on near-invisible three-way split power cables as a key design feature.

TRANSPARENT TECHNOLOGY

The transparent housing provides insights into the internal technology. IRIS enables extraordinarily efficient lighting – as a pendant, ceiling, wall or recessed luminaire. Up to 140 lm/W with light colour 840, for example, sets new standards in architectural lighting. Whether in hospitality areas, corridors, foyers or office areas – the prismatic diffuser ensures maximum visual comfort.

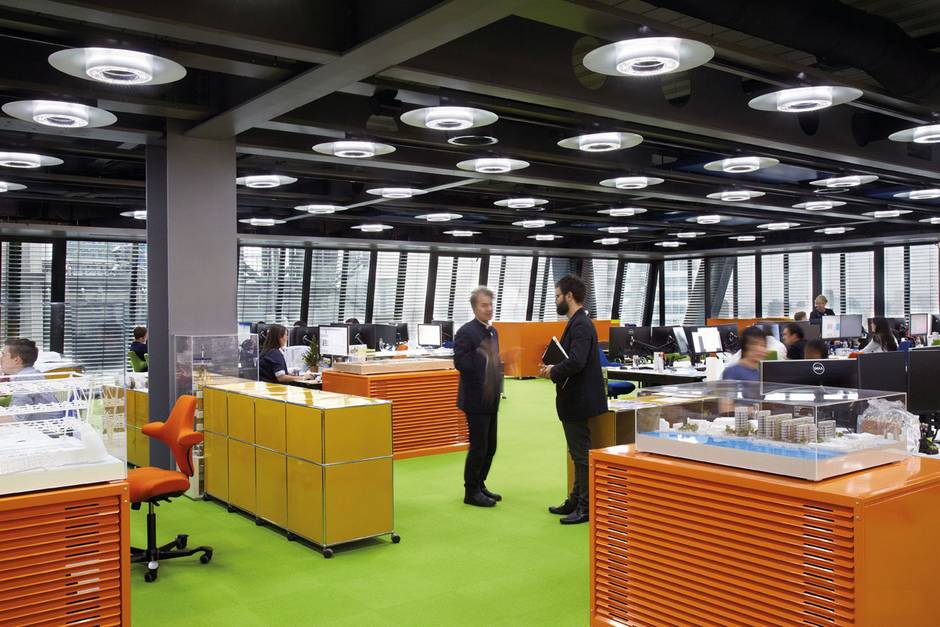

RSH-P Office, Iris 6500K (cool)

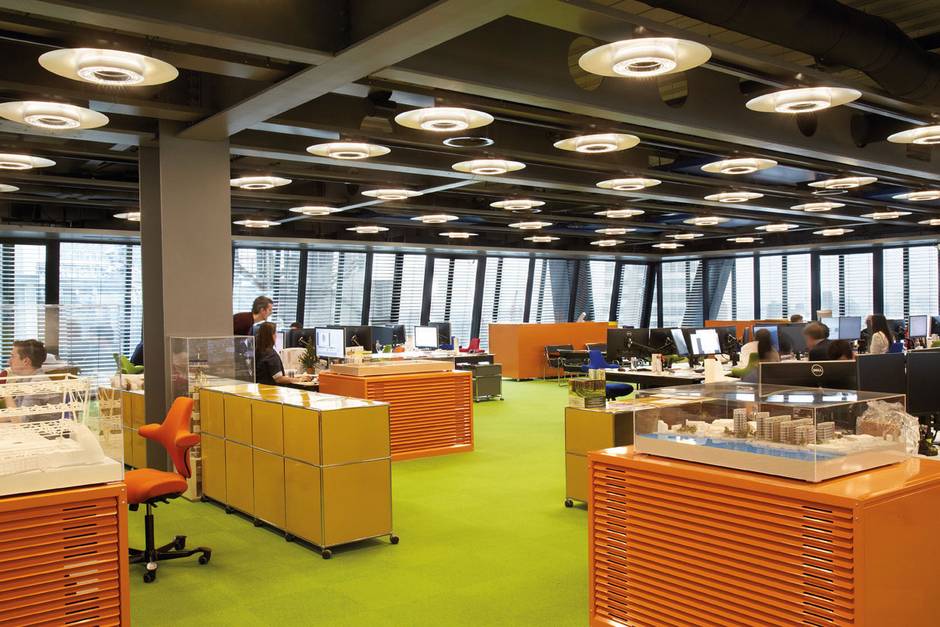

RSH-P Office, Iris 2700K (warm)

TUNABLE WHITE FOR MORE WELL-BEING

The 2-channel circuit boards allow both pure white and tunable white dynamic applications. In the range 2700 to 6500 K, the light colour can be infinitely adjusted by dimming. Thus, for example, the course of the sun’s day can be reproduced via an appropriate control system, as in the project for the London architectural office of RSHP.

THE SIZE IS WHAT COUNTS

The Iris luminaire series comprises three housing sizes: 370, 600 and 950 mm with adapted lumen packages of 5000 (Iris), 10,000 (Iris-L 600) to 20,000 lm (Iris-XL 950). This makes the entire family suitable for a wide variety of applications and leaves plenty of scope for planning. Iris-L 600 and Iris-XL 950 are used in this entrance area. The Iris-XL 950 was supplied with a specially designed 3m diameter sculptural shade made of white screen printed polycarbonate.

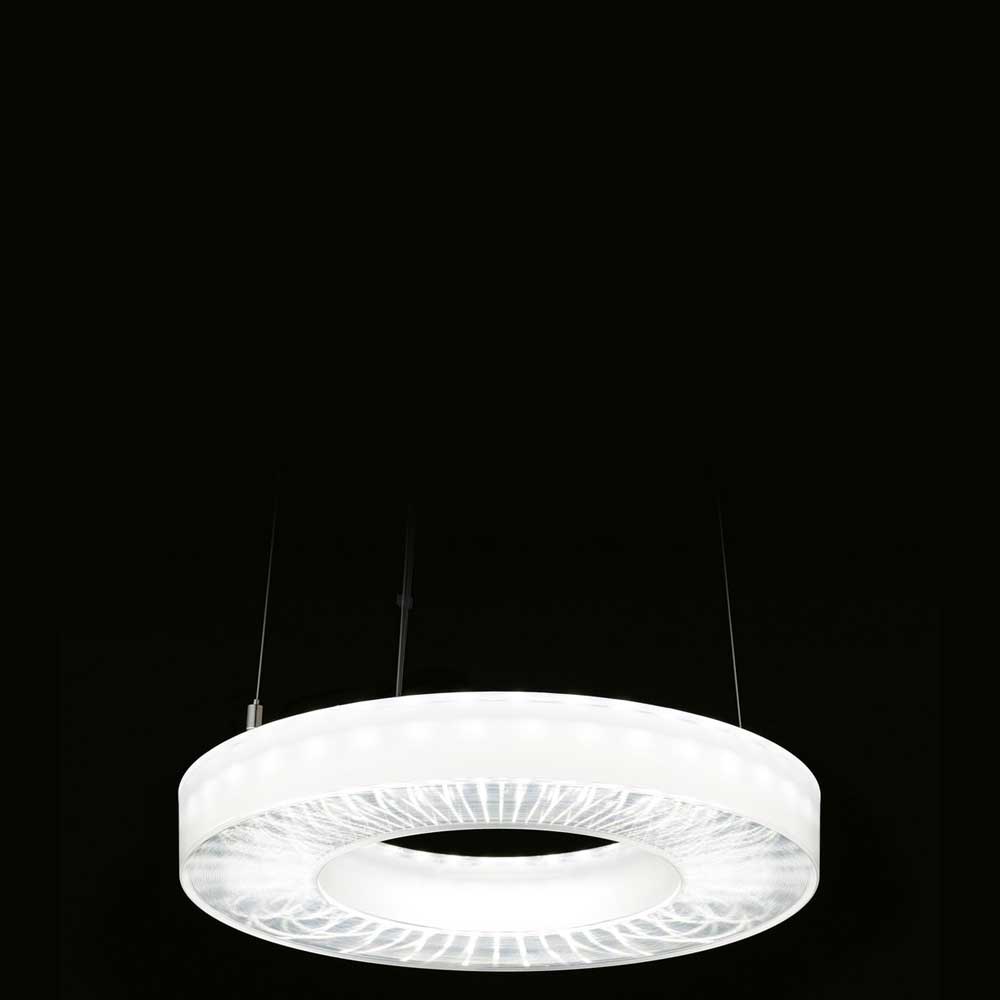

Iris-LED Ø360mm

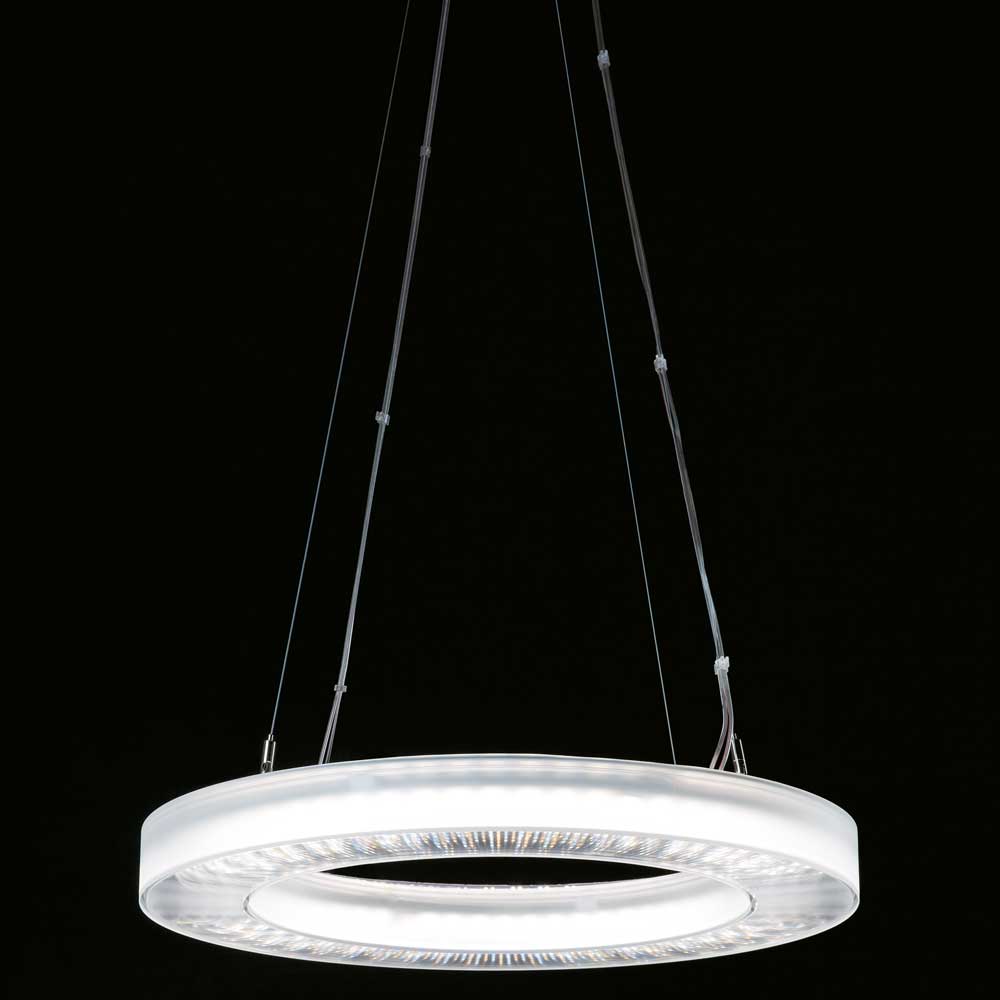

Iris-LED-L Ø600mm

Iris-LED-XL Ø900mm

Download

Technical Information

Iris Pendant

Dimensions:
IRIS Ø375mm x H50mm
IRIS-L Ø606mm x H60mm
Optical Distribution:
Direct, Direct/Indirect
Output (lm):
4,510 – 10,660
Control:
DALI, Non-Dimming

Colour Temperatures:
3,000K 4,000K
2,700 – 6,500K Tuneable White
Colours:
Transparent Opal, Transparent Microprismatic
IP Rating:
IP20

Specific Product Information & Downloads

Downloads - IRIS
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
IRIS-P 4500-830-DA-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P 4500-830-ND-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P 4500-840-DA-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P 4500-840-ND-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P 4500-8TW-DA-O 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-P 5000-830-DA 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P 5000-830-ND 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P 5000-840-DA 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P 5000-840-ND 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P 5000-8TW-DA 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 4500-830-DA-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-830-DA-O-EDP3 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-830-DA-O-EDS3 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-830-ND-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-830-ND-O-EDS3 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-840-DA-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-840-DA-O-EDP3 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-840-DA-O-EDS3 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-840-ND-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-840-ND-O-EDS3 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-8TW-DA-O 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-8TW-DA-O-EDP3 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 4500-8TW-DA-O-EDS3 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-P-BB 5000-830-DA 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-830-DA-EDP3 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-830-DA-EDS3 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-830-ND 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-830-ND-EDS3 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-840-DA 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-840-DA-EDP3 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-840-DA-EDS3 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-840-ND 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-840-ND-EDS3 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-8TW-DA 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-8TW-DA-EDP3 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-P-BB 5000-8TW-DA-EDS3 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-PS 4500-830-DA-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-PS 4500-830-ND-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG

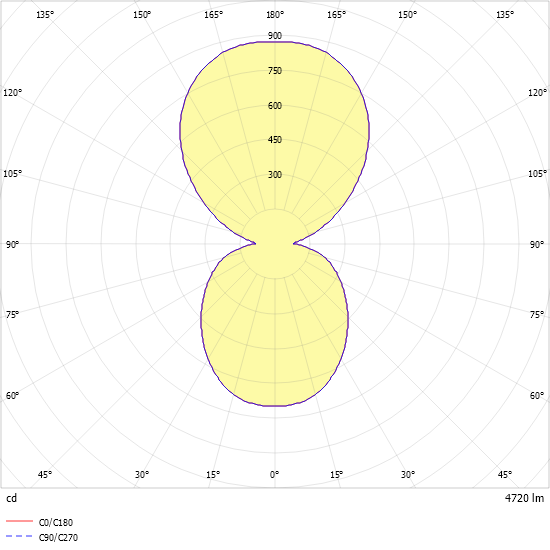

IRIS-PS 4500-840-DA-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-PS 4500-840-ND-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG

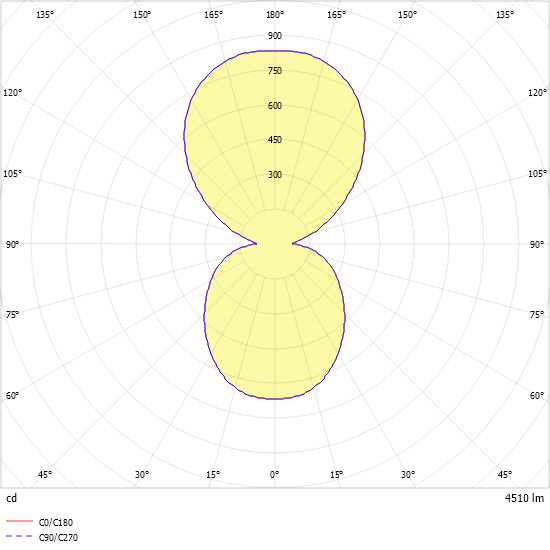

IRIS-PS 4500-8TW-DA-O 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-PS 5000-830-DA 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS 5000-830-ND 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS 5000-840-DA 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-PS 5000-840-ND 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-PS 5000-8TW-DA 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 4500-830-DA-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-830-DA-O-EDP3 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-830-DA-O-EDS3 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-830-ND-O 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-830-ND-O-EDS3 50 mm 375 mm 830 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-840-DA-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-840-DA-O-EDP3 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-840-DA-O-EDS3 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-840-ND-O 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-840-ND-O-EDS3 50 mm 375 mm 840 4720 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-8TW-DA-O 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-8TW-DA-O-EDP3 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 4500-8TW-DA-O-EDS3 50 mm 375 mm 827-865 4510 lm 33 W PDF LDT IMG
IRIS-PS-BB 5000-830-DA 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-830-DA-EDP3 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-830-DA-EDS3 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-830-ND 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-830-ND-EDS3 50 mm 375 mm 830 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-840-DA 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-840-DA-EDP3 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-840-DA-EDS3 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG

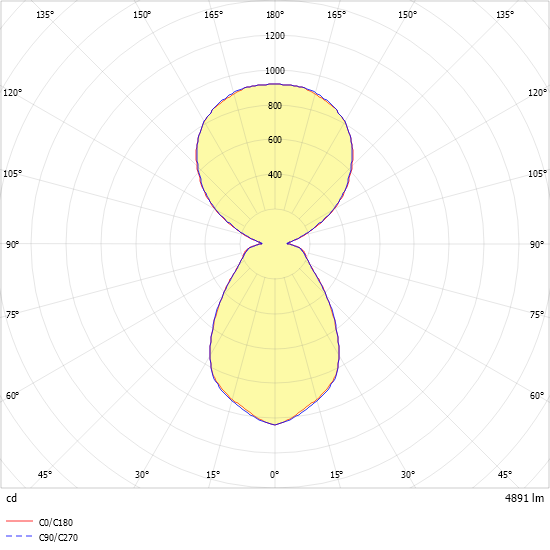

IRIS-PS-BB 5000-840-ND 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-840-ND-EDS3 50 mm 375 mm 840 4890 lm 35 W PDF LDT IMG

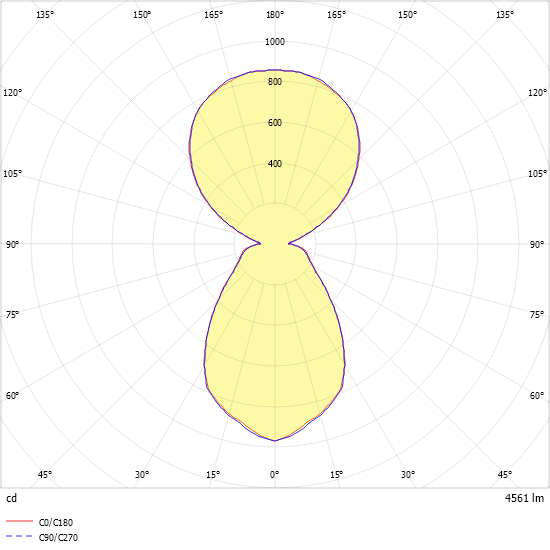

IRIS-PS-BB 5000-8TW-DA 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-8TW-DA-EDP3 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
IRIS-PS-BB 5000-8TW-DA-EDS3 50 mm 375 mm 827-865 4680 lm 35 W PDF LDT IMG
Downloads - IRIS-L
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product

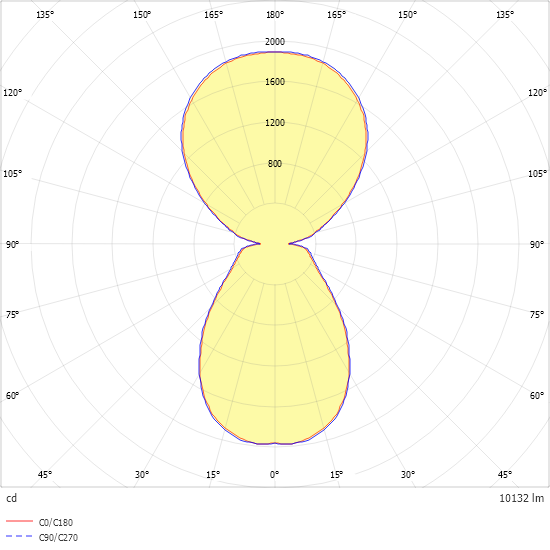

IRIS-L-P 11000-830-DA 60 mm 606 mm 830 10130 lm 78 W PDF LDT IMG
IRIS-L-P 11000-830-ND 60 mm 606 mm 830 10130 lm 78 W PDF LDT IMG

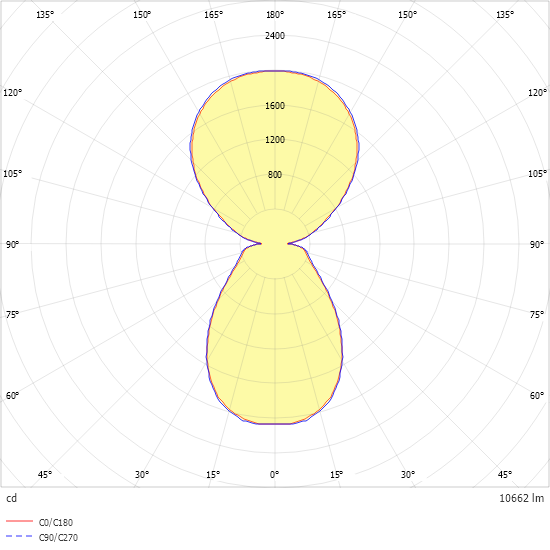

IRIS-L-P 11000-840-DA 60 mm 606 mm 840 10660 lm 78 W PDF LDT IMG
IRIS-L-P 11000-840-ND 60 mm 606 mm 840 10660 lm 78 W PDF LDT IMG

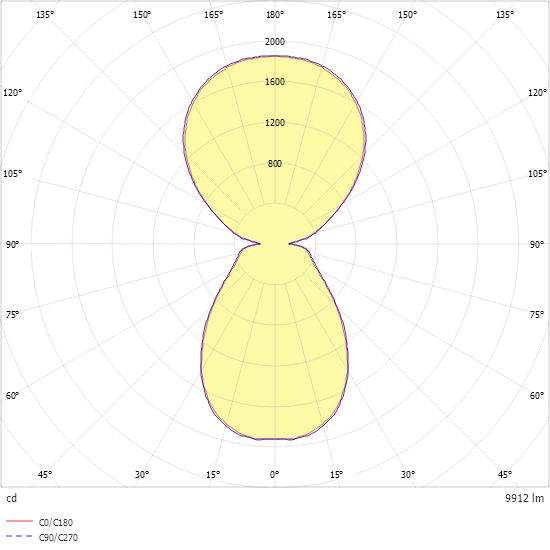

IRIS-L-P 11000-8TW-DA 60 mm 606 mm 827-865 9910 lm 78 W PDF LDT IMG
IRIS-L-PS 11000-830-DA 60 mm 606 mm 830 10130 lm 78 W PDF LDT IMG
IRIS-L-PS 11000-830-ND 60 mm 606 mm 830 10130 lm 78 W PDF LDT IMG
IRIS-L-PS 11000-840-DA 60 mm 606 mm 840 10660 lm 78 W PDF LDT IMG
IRIS-L-PS 11000-840-ND 60 mm 606 mm 840 10660 lm 78 W PDF LDT IMG

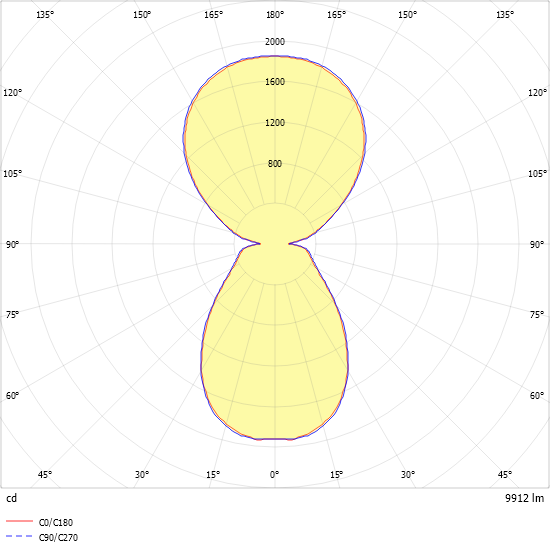

IRIS-L-PS 11000-8TW-DA 60 mm 606 mm 827-865 9910 lm 78 W PDF LDT IMG

Iris Surface

Dimensions:
IRIS Ø375mm x H50mm
IRIS-L Ø606mm x H60mm
Optical Distribution:
Direct, Direct/Indirect
Output (lm):
4,510 – 10,660
Control:
DALI, Non-Dimming

Colour Temperatures:
3,000K 4,000K
2,700 – 6,500K Tuneable White
Colours:
Transparent Opal, Transparent Microprismatic
IP Rating:
IP20

Specific Product Information & Downloads

Downloads - IRIS
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
IRIS-A 4500-830-DA 50 mm 375 mm 830 4510 lm 35 W PDF LDT IMG

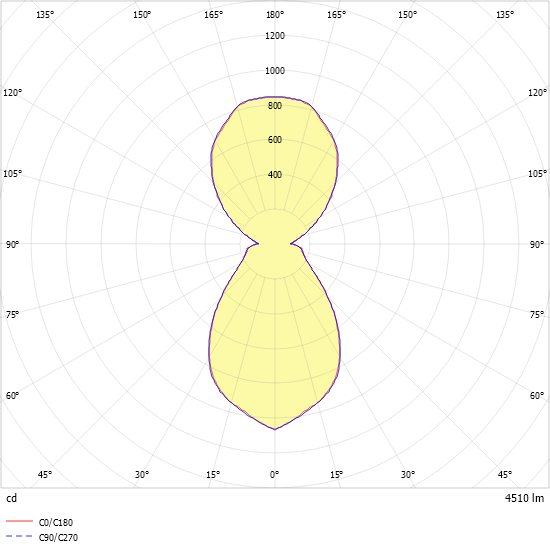

IRIS-A 4500-830-DA-EDP3 50 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-830-DA-EDS3 50 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-830-DA-O 50 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-830-DA-O-EDP3 50 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-830-DA-O-EDS3 50 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-830-ND 50 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-830-ND-EDS3 50 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-830-ND-O 50 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-830-ND-O-EDS3 50 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-840-DA 50 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-A 4500-840-DA-EDP3 50 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-A 4500-840-DA-EDS3 50 mm 375 mm 840 4720 lm 35 W PDF LDT IMG

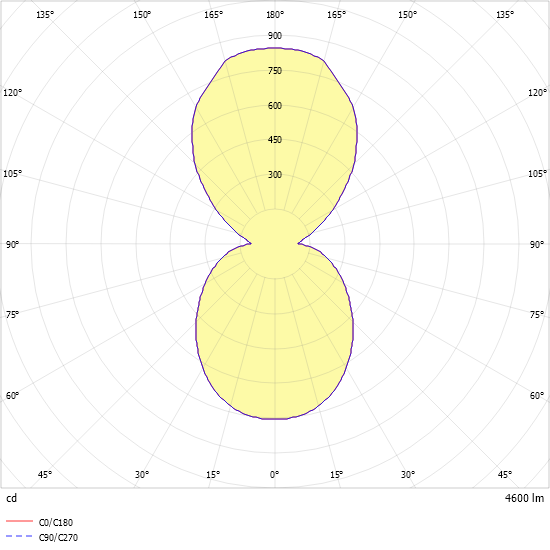

IRIS-A 4500-840-DA-O 50 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-A 4500-840-DA-O-EDP3 50 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-A 4500-840-DA-O-EDS3 50 mm 375 mm 840 4600 lm 33 W PDF LDT IMG

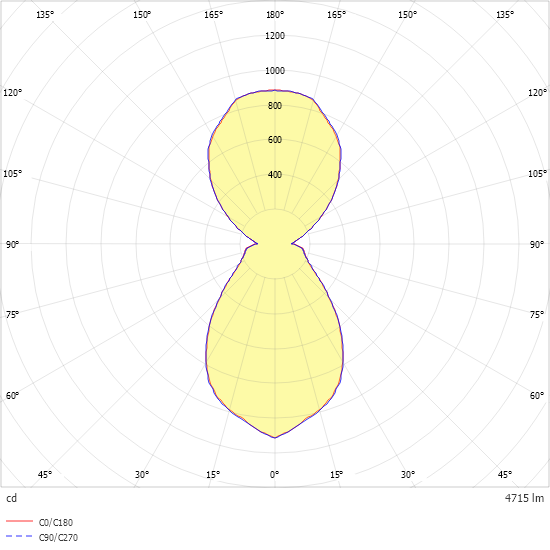

IRIS-A 4500-840-ND 50 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-A 4500-840-ND-EDS3 50 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-A 4500-840-ND-O 50 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-A 4500-840-ND-O-EDS3 50 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-A 4500-8TW-DA 50 mm 375 mm 827-865 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-8TW-DA-EDP3 50 mm 375 mm 827-865 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-8TW-DA-EDS3 50 mm 375 mm 827-865 4510 lm 35 W PDF LDT IMG
IRIS-A 4500-8TW-DA-O 50 mm 375 mm 827-865 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-8TW-DA-O-EDP3 50 mm 375 mm 827-865 4400 lm 33 W PDF LDT IMG
IRIS-A 4500-8TW-DA-O-EDS3 50 mm 375 mm 827-865 4400 lm 33 W PDF LDT IMG
IRIS-A-D 2500-830-DA 50 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-830-DA-EDP3 50 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-830-DA-EDS3 50 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-830-DA-O 50 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-A-D 2500-830-DA-O-EDP3 50 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-A-D 2500-830-DA-O-EDS3 50 mm 375 mm 830 2450 lm 18 W PDF LDT IMG

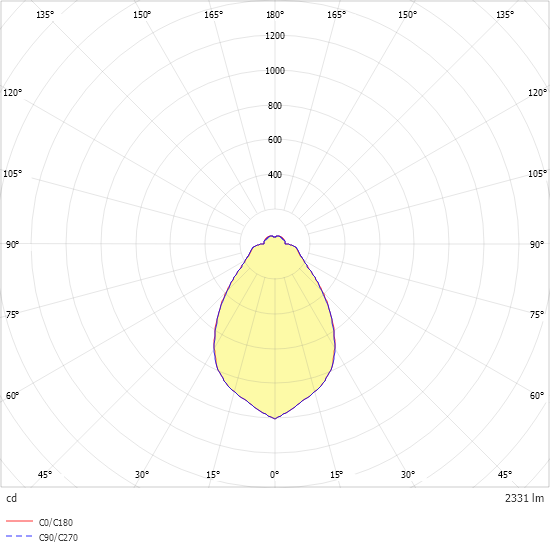

IRIS-A-D 2500-830-ND 50 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-830-ND-EDS3 50 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-830-ND-O 50 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-A-D 2500-830-ND-O-EDS3 50 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-A-D 2500-840-DA 50 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-840-DA-EDP3 50 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-840-DA-EDS3 50 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-840-DA-O 50 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-A-D 2500-840-DA-O-EDP3 50 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-A-D 2500-840-DA-O-EDS3 50 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-A-D 2500-840-ND 50 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-840-ND-EDS3 50 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-840-ND-O 50 mm 375 mm 840 2560 lm 18 W PDF LDT IMG

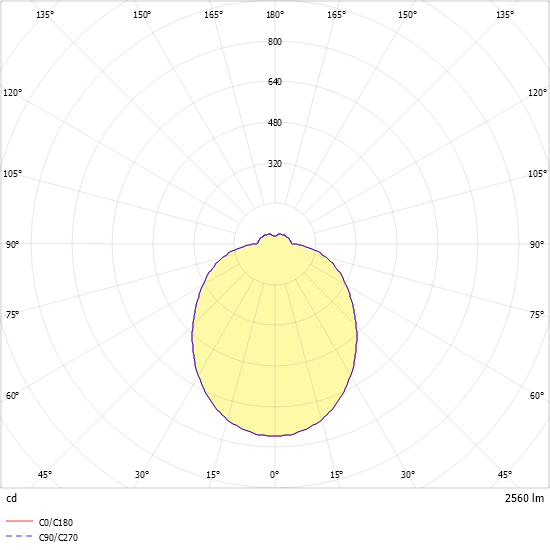

IRIS-A-D 2500-840-ND-O-EDS3 50 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-A-D 2500-8TW-DA 50 mm 375 mm 827-865 2270 lm 17,5 W PDF LDT IMG

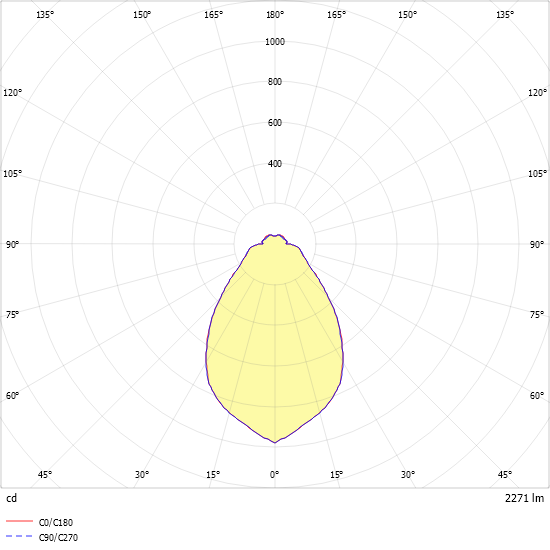

IRIS-A-D 2500-8TW-DA-EDP3 50 mm 375 mm 827-865 2270 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-8TW-DA-EDS3 50 mm 375 mm 827-865 2270 lm 17,5 W PDF LDT IMG
IRIS-A-D 2500-8TW-DA-O 50 mm 375 mm 827-865 2450 lm 18 W PDF LDT IMG
IRIS-A-D 2500-8TW-DA-O-EDP3 50 mm 375 mm 827-865 2450 lm 18 W PDF LDT IMG
IRIS-A-D 2500-8TW-DA-O-EDS3 50 mm 375 mm 827-865 2450 lm 18 W PDF LDT IMG
Downloads - IRIS-L
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
IRIS-L-A 11000-830-DA-T 60 mm 606 mm 830 10130 lm 78 W PDF LDT IMG

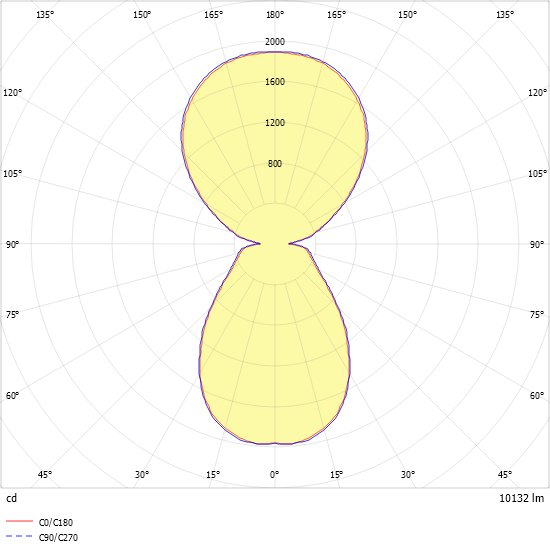

IRIS-L-A 11000-830-ND-T 60 mm 606 mm 830 10130 lm 78 W PDF LDT IMG

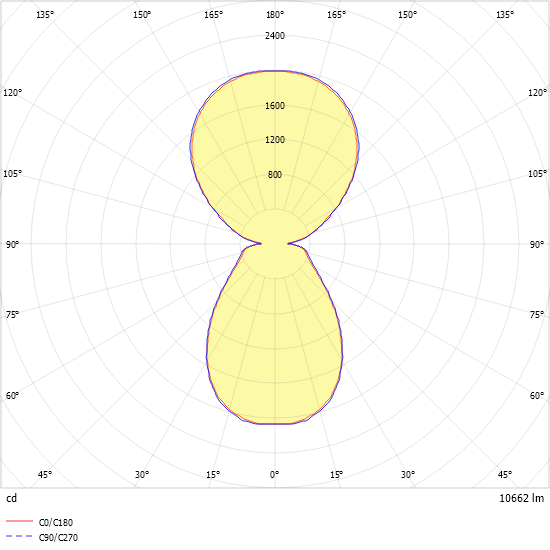

IRIS-L-A 11000-840-DA-T 60 mm 606 mm 840 10660 lm 78 W PDF LDT IMG
IRIS-L-A 11000-840-ND-T 60 mm 606 mm 840 10660 lm 78 W PDF LDT IMG
IRIS-L-A 11000-8TW-DA-T 60 mm 606 mm 827-865 9910 lm 78 W PDF LDT IMG

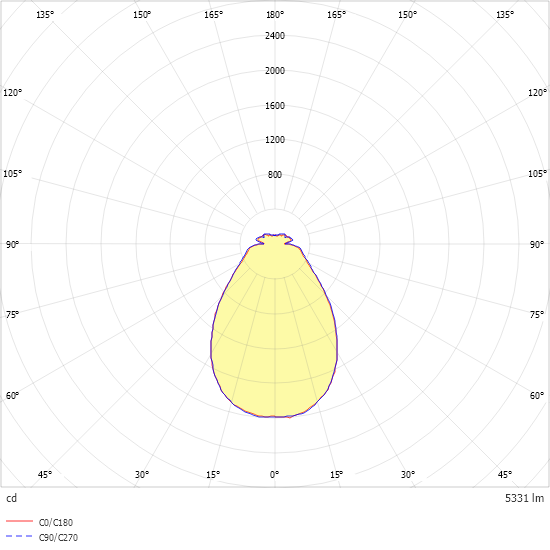

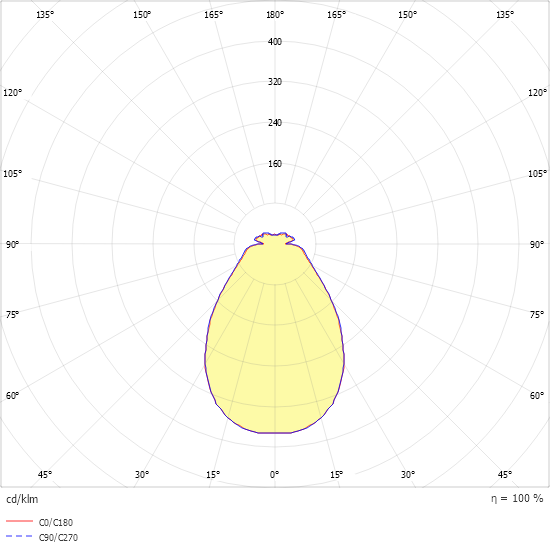

IRIS-L-A-D 5500-830-DA-T 60 mm 606 mm 830 5060 lm 39 W PDF LDT IMG

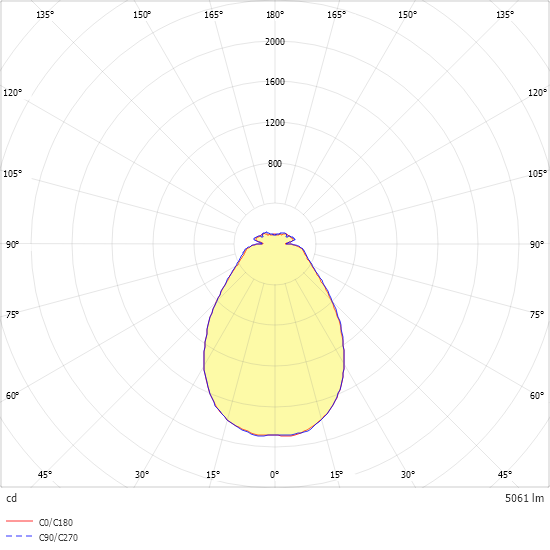

IRIS-L-A-D 5500-830-ND-T 60 mm 606 mm 830 5060 lm 39 W PDF LDT IMG
IRIS-L-A-D 5500-840-DA-T 60 mm 606 mm 840 5330 lm 39 W PDF LDT IMG
IRIS-L-A-D 5500-840-ND-T 60 mm 606 mm 840 5330 lm 39 W PDF LDT IMG
IRIS-L-A-D 5500-8TW-DA-T 60 mm 606 mm 827-865 4960 lm 39 W PDF LDT IMG

Iris Recessed

Dimensions:
IRIS Ø520mm x H115mm
Optical Distribution:
Direct, Direct/Indirect
Output (lm):
3,110 – 3,350
Control:
DALI, Non-Dimming

Colour Temperatures:
3,000K 4,000K
2,700 – 6,500K Tuneable White
Colours:
Transparent Opal, Transparent Microprismatic
IP Rating:
IP20

Specific Product Information & Downloads

Downloads - IRIS
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
IRIS-E 3500-830-DA 115 mm 520 mm 830 3110 lm 33 W PDF LDT IMG
IRIS-E 3500-830-DA-EDP3 130 mm 520 mm 830 3110 lm 33 W PDF LDT IMG
IRIS-E 3500-830-DA-EDS3 130 mm 520 mm 830 3110 lm 33 W PDF LDT IMG
IRIS-E 3500-830-DA-O 115 mm 520 mm 830 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-830-DA-O-EDP3 130 mm 520 mm 830 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-830-DA-O-EDS3 130 mm 520 mm 830 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-830-ND 115 mm 520 mm 830 3110 lm 33 W PDF LDT IMG
IRIS-E 3500-830-ND-EDS3 130 mm 520 mm 830 3110 lm 33 W PDF LDT IMG
IRIS-E 3500-830-ND-O 115 mm 520 mm 830 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-830-ND-O-EDS3 130 mm 520 mm 830 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-840-DA 115 mm 520 mm 840 3280 lm 33 W PDF LDT IMG
IRIS-E 3500-840-DA-EDP3 130 mm 520 mm 840 3280 lm 33 W PDF LDT IMG
IRIS-E 3500-840-DA-EDS3 130 mm 520 mm 840 3280 lm 33 W PDF LDT IMG
IRIS-E 3500-840-DA-O 115 mm 520 mm 840 3350 lm 33 W PDF LDT IMG
IRIS-E 3500-840-DA-O-EDP3 130 mm 520 mm 840 3350 lm 33 W PDF LDT IMG
IRIS-E 3500-840-DA-O-EDS3 130 mm 520 mm 840 3350 lm 33 W PDF LDT IMG
IRIS-E 3500-840-ND 115 mm 520 mm 840 3280 lm 33 W PDF LDT IMG
IRIS-E 3500-840-ND-EDS3 130 mm 520 mm 840 3280 lm 33 W PDF LDT IMG
IRIS-E 3500-840-ND-O 130 mm 520 mm 840 3350 lm 33 W PDF LDT IMG
IRIS-E 3500-840-ND-O-EDS3 130 mm 520 mm 840 3350 lm 33 W PDF LDT IMG
IRIS-E 3500-8TW-DA 115 mm 520 mm 827-865 3030 lm 33 W PDF LDT IMG
IRIS-E 3500-8TW-DA-EDP3 130 mm 520 mm 827-865 3030 lm 33 W PDF LDT IMG
IRIS-E 3500-8TW-DA-EDS3 130 mm 520 mm 827-865 3030 lm 33 W PDF LDT IMG
IRIS-E 3500-8TW-DA-O 115 mm 520 mm 827-865 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-8TW-DA-O-EDP3 130 mm 520 mm 827-865 3200 lm 33 W PDF LDT IMG
IRIS-E 3500-8TW-DA-O-EDS3 130 mm 520 mm 827-865 3200 lm 33 W PDF LDT IMG

Iris Wall Mounted

Dimensions:
IRIS Ø520mm x H94mm
IRIS-L Ø606mm x H113mm

Optical Distribution:
Direct, Direct/Indirect
Output (lm):
2,2700 – 10,660
Control:
DALI, Non-Dimming

Colour Temperatures:
3,000K 4,000K
2,700 – 6,500K Tuneable White
Colours:
Transparent Opal, Transparent Microprismatic
IP Rating:
IP20

Specific Product Information & Downloads

Downloads - IRIS
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
IRIS-W 4500-830-DA 94 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-830-DA-EDP3 94 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-830-DA-EDS3 94 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-830-DA-O 94 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-W 4500-830-DA-O-EDP3 94 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-W 4500-830-DA-O-EDS3 94 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-W 4500-830-ND 94 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-830-ND-EDS3 94 mm 375 mm 830 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-830-ND-O 94 mm 375 mm 830 4400 lm 33 W PDF LDT IMG

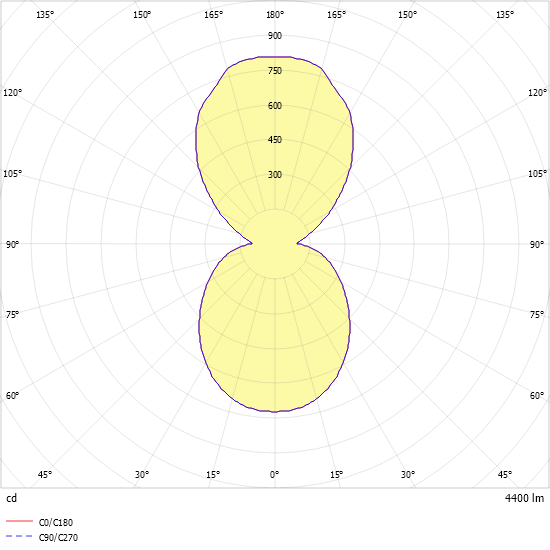

IRIS-W 4500-830-ND-O-EDS3 94 mm 375 mm 830 4400 lm 33 W PDF LDT IMG
IRIS-W 4500-840-DA 94 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-W 4500-840-DA-EDP3 94 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-W 4500-840-DA-EDS3 94 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-W 4500-840-DA-O 94 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-W 4500-840-DA-O-EDP3 94 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-W 4500-840-DA-O-EDS3 94 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-W 4500-840-ND 94 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-W 4500-840-ND-EDS3 94 mm 375 mm 840 4720 lm 35 W PDF LDT IMG
IRIS-W 4500-840-ND-O 94 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-W 4500-840-ND-O-EDS3 94 mm 375 mm 840 4600 lm 33 W PDF LDT IMG
IRIS-W 4500-8TW-DA 94 mm 375 mm 827-865 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-8TW-DA-EDP3 94 mm 375 mm 827-865 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-8TW-DA-EDS3 94 mm 375 mm 827-865 4510 lm 35 W PDF LDT IMG
IRIS-W 4500-8TW-DA-O 94 mm 375 mm 827-865 4400 lm 33 W PDF LDT IMG
IRIS-W 4500-8TW-DA-O-EDP3 94 mm 375 mm 827-865 4400 lm 33 W PDF LDT IMG
IRIS-W 4500-8TW-DA-O-EDS3 94 mm 375 mm 827-865 4400 lm 33 W PDF LDT IMG
IRIS-W-D 2500-830-DA 94 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG

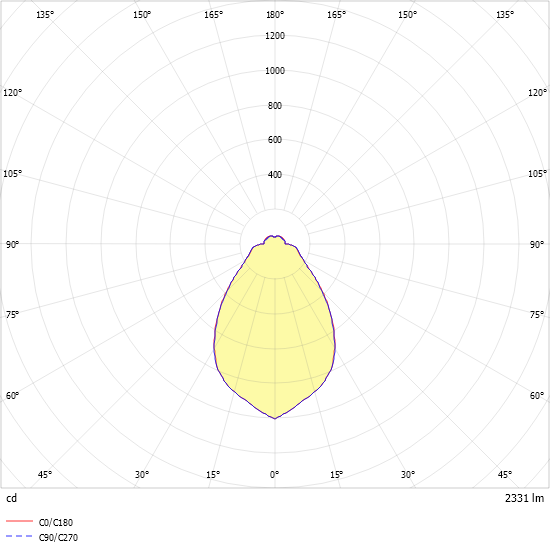

IRIS-W-D 2500-830-DA-EDP3 94 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-830-DA-EDS3 94 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-830-DA-O 94 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-W-D 2500-830-DA-O-EDP3 94 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-W-D 2500-830-DA-O-EDS3 94 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-W-D 2500-830-ND 94 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-830-ND-EDS3 94 mm 375 mm 830 2330 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-830-ND-O 94 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-W-D 2500-830-ND-O-EDS3 94 mm 375 mm 830 2450 lm 18 W PDF LDT IMG
IRIS-W-D 2500-840-DA 94 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-840-DA-EDP3 94 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-840-DA-EDS3 94 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-840-DA-O 94 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-W-D 2500-840-DA-O-EDP3 94 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-W-D 2500-840-DA-O-EDS3 94 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-W-D 2500-840-ND 94 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG

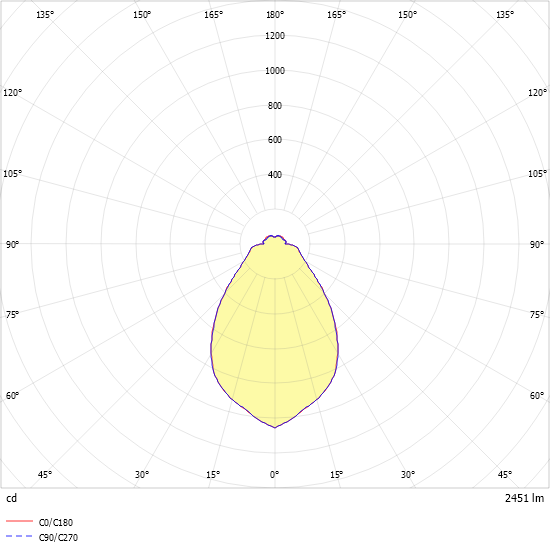

IRIS-W-D 2500-840-ND-EDS3 94 mm 375 mm 840 2450 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-840-ND-O 94 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-W-D 2500-840-ND-O-EDS3 94 mm 375 mm 840 2560 lm 18 W PDF LDT IMG
IRIS-W-D 2500-8TW-DA 94 mm 375 mm 827-865 2270 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-8TW-DA-EDP3 94 mm 375 mm 827-865 2270 lm 17,5 W PDF LDT IMG
IRIS-W-D 2500-8TW-DA-EDS3 94 mm 375 mm 827-865 2270 lm 17,5 W PDF LDT IMG

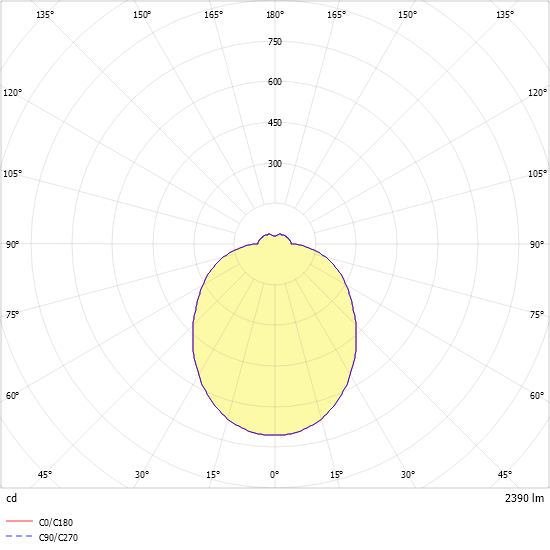

IRIS-W-D 2500-8TW-DA-O 94 mm 375 mm 827-865 2390 lm 18 W PDF LDT IMG
IRIS-W-D 2500-8TW-DA-O-EDP3 94 mm 375 mm 827-865 2390 lm 18 W PDF LDT IMG
IRIS-W-D 2500-8TW-DA-O-EDS3 94 mm 375 mm 827-865 2390 lm 18 W PDF LDT IMG
Downloads - IRIS-L
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
IRIS-L-W 11000-830-DA-T 113 mm 606 mm 830 10130 lm 78 W PDF LDT IMG
IRIS-L-W 11000-830-ND-T 113 mm 606 mm 830 10130 lm 78 W PDF LDT IMG
IRIS-L-W 11000-840-DA-T 113 mm 606 mm 840 10660 lm 78 W PDF LDT IMG
IRIS-L-W 11000-840-ND-T 113 mm 606 mm 840 10660 lm 78 W PDF LDT IMG
IRIS-L-W 11000-8TW-DA-T 113 mm 606 mm 827-865 9910 lm 78 W PDF LDT IMG
IRIS-L-W-D 5500-830-DA-T 113 mm 606 mm 830 5060 lm 39 W PDF LDT IMG
IRIS-L-W-D 5500-830-ND-T 113 mm 606 mm 830 5060 lm 39 W PDF LDT IMG
IRIS-L-W-D 5500-840-DA-T 113 mm 606 mm 840 5330 lm 39 W PDF LDT IMG
IRIS-L-W-D 5500-840-ND-T 113 mm 606 mm 840 5330 lm 39 W PDF LDT IMG

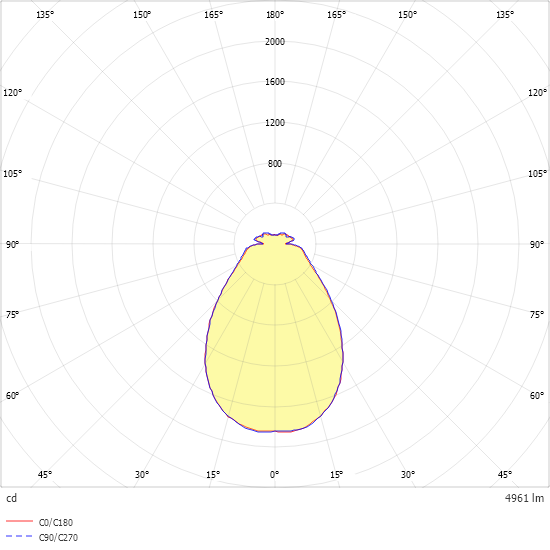

IRIS-L-W-D 5500-8TW-DA-T 113 mm 606 mm 827-865 4960 lm 39 W PDF LDT IMG

Projects Featuring Iris

EDF Energy, London Eye

EDF Energy, London Eye

Form and function are perfectly combined in a brand new installation of IRIS luminaires from Spectral. The newly ...
Rogers Stirk Harbour +Partners (RSHP) 122 Leadenhall Street

Rogers Stirk Harbour +Partners (RSHP) 122 Leadenhall Street

Rogers Stirk Harbour and Partners chose Spectral IRIS to light their new offices on the fourteenth floor of the ...
Mill Hill Synagogue

Mill Hill Synagogue

Mill Hill Synagogue in London has completed the construction of a new community centre to replace a pre-existing ...
The international Quarter building 5

The international Quarter building 5

Spectral Lighting are delighted to be connected with one of London’s landmark projects, The International Quarter ...
1

Pin It on Pinterest

Share This
