VL2 .. GPS
LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.
Linear Fresnel optics for efficiency and glare control. Sealed to IP54.
Select & Performance
Choose from two LED technology tiers
Select: Extra Long Lifetime, 100,000hrs
Performance: Extreme Efficiency and 100,000hrs Lifetime
Lighting Distributions
VL2-GPS is offered with three linear Fresnel options
*O available soon
Available with RIDI xFlex
Adjust output onsite to give just the right light level and energy usage.
Technical Data and Downloads
Product Filters
| Length (mm) |
Optic Type |
CRI (Ra) |
Light Colour |
Output (lm) |
Lm/W | UGR Rating |
Driver Type |
CBAT Use |
Body Finish |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image | Part Code Article Number |
Length (mm) |
Optic Type |
CRI (Ra) |
Light Colour |
Output (lm) |
Lm/W |
UGR Rating |
Driver Type |
CBAT Use |
Body Finish |
Data | LDT | Polar | BIM |
 | VL2S-GPS150-7DAWS840B0900 2560052 | 1500 mm | wide beam | ≥ 80 | 4000 K | 9000 lm | 174,7 lm/W | > 25 | DALI-2 | Yes | White |  |  |  |  |
| VL2S-GPS150-7DAWS840B1200 2560054 | 1500 mm | wide beam | ≥ 80 | 4000 K | 12500 lm | 173,3 lm/W | > 25 | DALI-2 | Yes | White | | |  | |

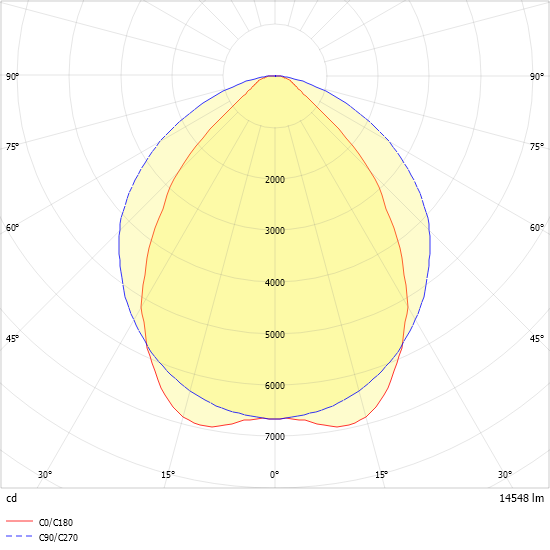

| VL2S-GPS200-7DAWS840B1500 2560099 | 2000 mm | wide beam | ≥ 80 | 4000 K | 14500 lm | 173,2 lm/W | > 25 | DALI-2 | Yes | White | | |  | |
 | VL2P-GPS150-5FLWS840B1000 2550042 | 1500 mm | wide beam | ≥ 80 | 4000 K | 10250 lm | 173,4 lm/W | > 25 | xFlex | Yes | White | | |  | |
| VL2P-GPS200-5FLWS840B1400 2550044 | 2000 mm | wide beam | ≥ 80 | 4000 K | 13750 lm | 177,0 lm/W | > 25 | xFlex | Yes | White | | |  | |

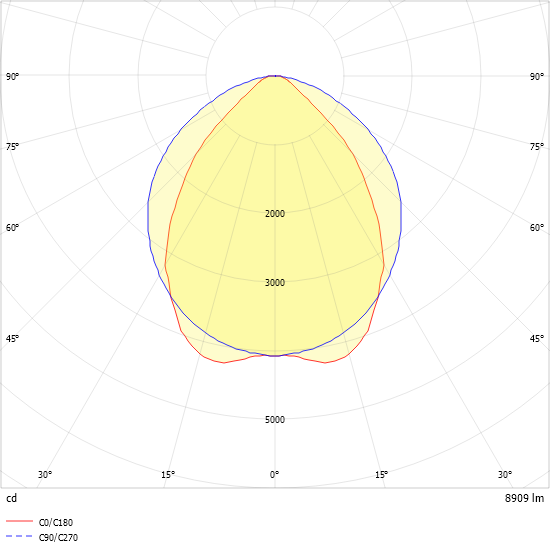

| VL2S-GPS150-5FLWS840B0900 2550052 | 1500 mm | wide beam | ≥ 80 | 4000 K | 9000 lm | 178,2 lm/W | > 25 | xFlex | Yes | White | | |  | |

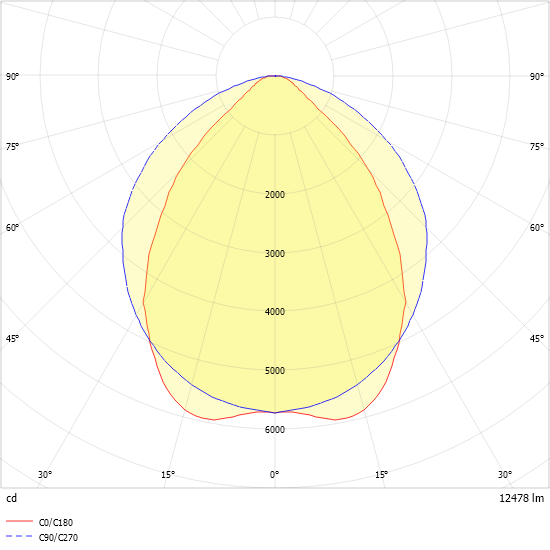

| VL2S-GPS150-5FLWS840B1200 2550054 | 1500 mm | wide beam | ≥ 80 | 4000 K | 12500 lm | 171,0 lm/W | > 25 | xFlex | Yes | White | | |  | |
| VL2S-GPS150-5FLWS865B0900 2550105 | 1500 mm | wide beam | ≥ 80 | 6500 K | 8750 lm | 174,6 lm/W | > 25 | xFlex | Yes | White | | |  | |

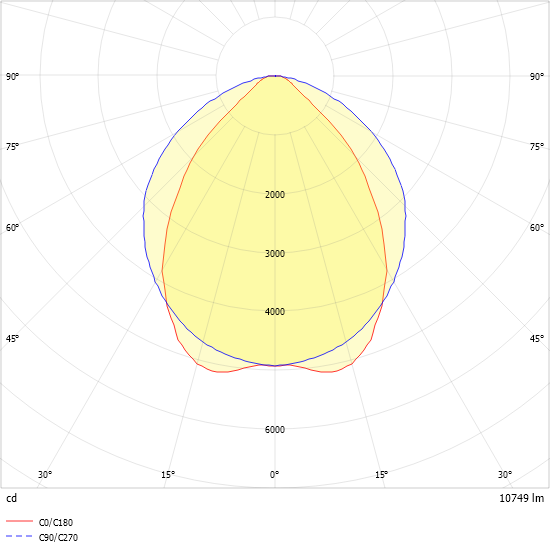

| VL2S-GPS150-5FLWS865B1200 2550057 | 1500 mm | wide beam | ≥ 80 | 6500 K | 12250 lm | 165,1 lm/W | > 25 | xFlex | Yes | White | | |  | |
| VL2S-GPS200-5FLWS840B1200 2550033 | 2000 mm | wide beam | ≥ 80 | 4000 K | 12000 lm | 174,7 lm/W | > 25 | xFlex | Yes | White | | |  | |

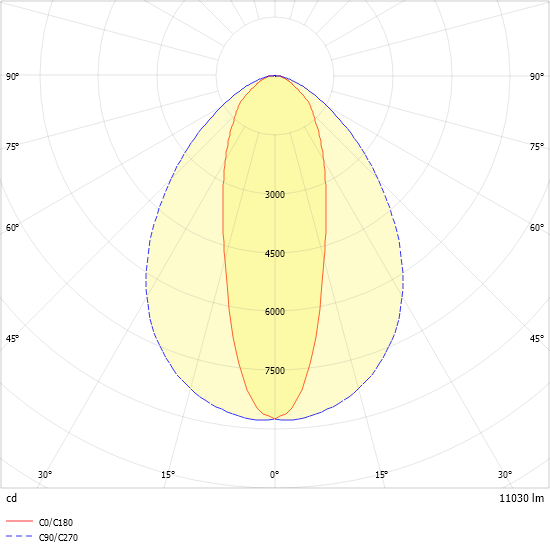

| VL2S-GPS150-7DAWS840E1100 2560098 | 1500 mm | narrow beam | ≥ 80 | 4000 K | 11000 lm | 169,7 lm/W | > 25 | DALI-2 | Yes | White | | |  | |
| VL2S-GPS200-7DAWS840E1500 2560100 | 2000 mm | narrow beam | ≥ 80 | 4000 K | 14750 lm | 175,1 lm/W | > 25 | DALI-2 | Yes | White | | |  | |
| VL2P-GPS150-5FLWS840E1000 2550043 | 1500 mm | narrow beam | ≥ 80 | 4000 K | 10250 lm | 175,3 lm/W | > 25 | xFlex | Yes | White | | |  | |
| VL2P-GPS200-5FLWS840E1400 2550045 | 2000 mm | narrow beam | ≥ 80 | 4000 K | 13750 lm | 179,0 lm/W | > 25 | xFlex | Yes | White | | |  | |
| VL2S-GPS150-5FLWS840E0900 2550032 | 1500 mm | narrow beam | ≥ 80 | 4000 K | 9000 lm | 180,2 lm/W | > 25 | xFlex | Yes | White | | |  | |

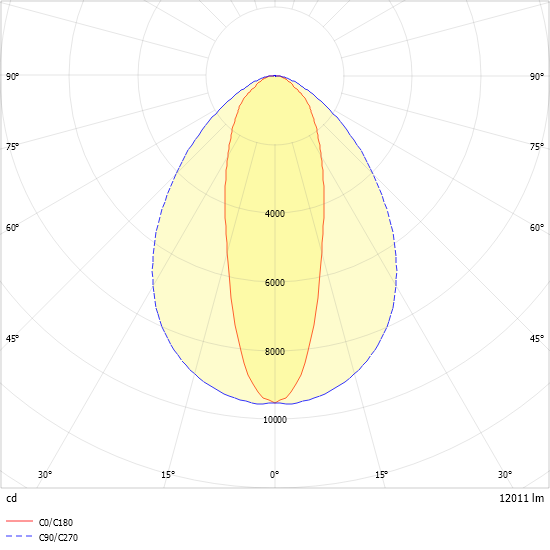

| VL2S-GPS200-5FLWS840E1200 2550034 | 2000 mm | narrow beam | ≥ 80 | 4000 K | 12000 lm | 176,6 lm/W | > 25 | xFlex | Yes | White | | |  | |
