VLMF-CIRQUA

The CIRQUA spotlight system has been developed in association with the famous architectural firm, blocher partners, to meet all the requirements for lighting goods and exhibits. Modern lighting technology, a variety of colours and beam angles, attractive light distribution packages, efficiency and sustainability (in the form of fast light module replacement/changing) have all been taken into account in the design.

Product Selection

Product Filters

		Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Optic	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM

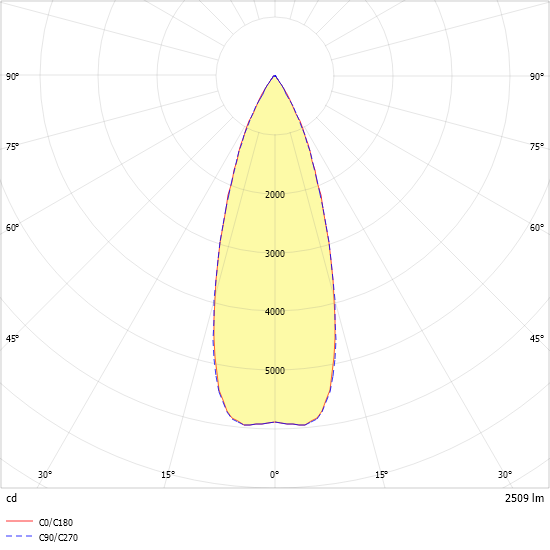

	VLMF-CIRQUA-L 1X2600-930 F 0321976//691	500 mm	Flood	2510 lm	3000 K	≥ 90	96,5 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X2600-930 F-SW 0321976SW691	500 mm	Flood	2510 lm	3000 K	≥ 90	96,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X2600-930 M 0321975//691	500 mm	Medium	2600 lm	3000 K	≥ 90	100,0 lm/W	≤ 16	On/Off	White

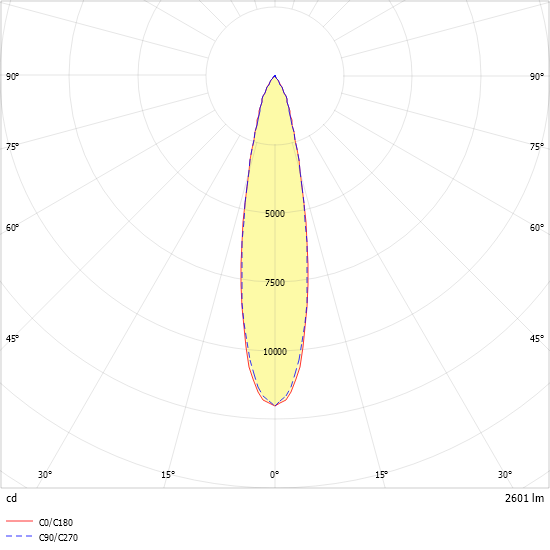

	VLMF-CIRQUA-L 1X2600-930 M-SW 0321975SW691	500 mm	Medium	2600 lm	3000 K	≥ 90	100,0 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X2600-930 S 0321974//691	500 mm	Spot	2650 lm	3000 K	≥ 90	101,9 lm/W	≤ 16	On/Off	White

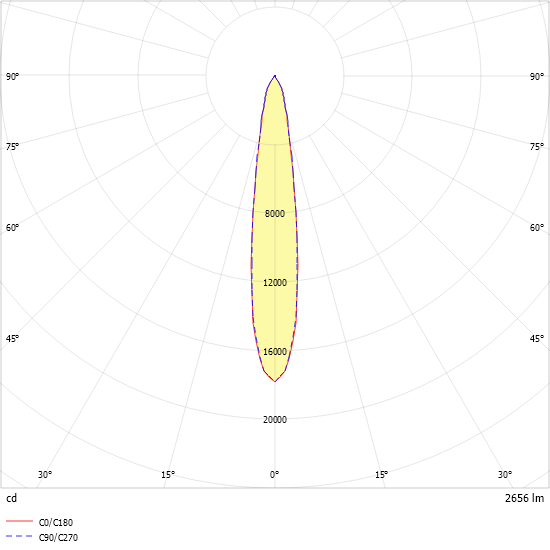

	VLMF-CIRQUA-L 1X2600-930 S-SW 0321974SW691	500 mm	Spot	2650 lm	3000 K	≥ 90	101,9 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X2600-930 SF 0321977//691	500 mm	Super Flood	2640 lm	3000 K	≥ 90	101,5 lm/W	≤ 19	On/Off	White

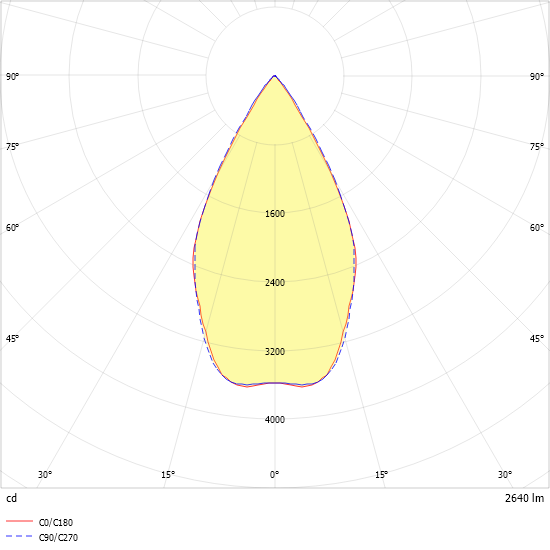

	VLMF-CIRQUA-L 1X2600-930 SF-SW 0321977SW691	500 mm	Super Flood	2640 lm	3000 K	≥ 90	101,5 lm/W	≤ 19	On/Off	Black

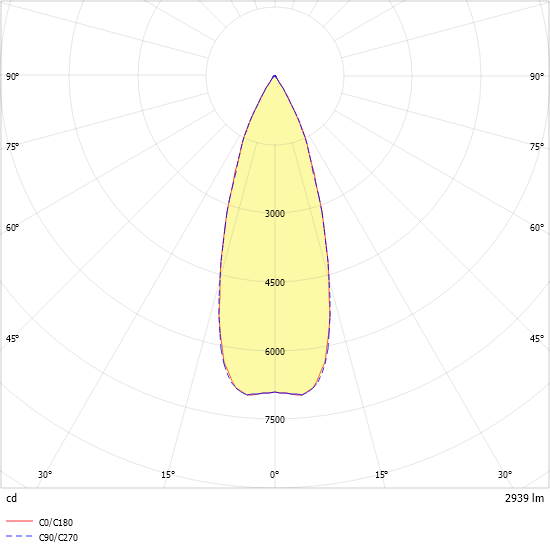

	VLMF-CIRQUA-L 1X3000-830 F 0321964//691	500 mm	Flood	2940 lm	3000 K	≥ 80	113,1 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3000-830 F-SW 0321964SW691	500 mm	Flood	2940 lm	3000 K	≥ 80	113,1 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3000-830 M 0321963//691	500 mm	Medium	3030 lm	3000 K	≥ 80	116,5 lm/W	≤ 16	On/Off	White

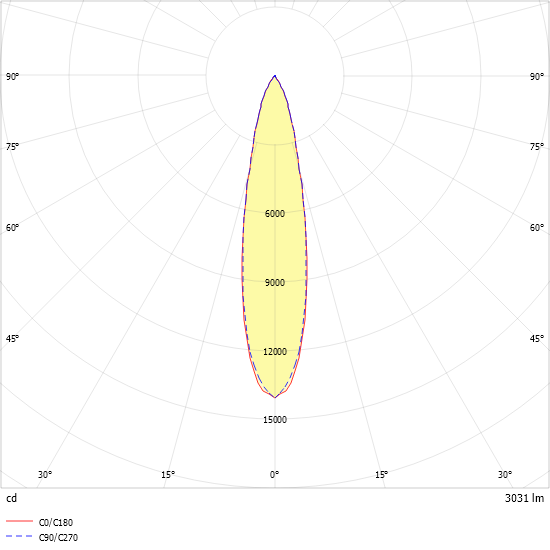

	VLMF-CIRQUA-L 1X3000-830 M-SW 0321963SW691	500 mm	Medium	3030 lm	3000 K	≥ 80	116,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3000-830 S 0321962//691	500 mm	Spot	3080 lm	3000 K	≥ 80	118,5 lm/W	≤ 16	On/Off	White

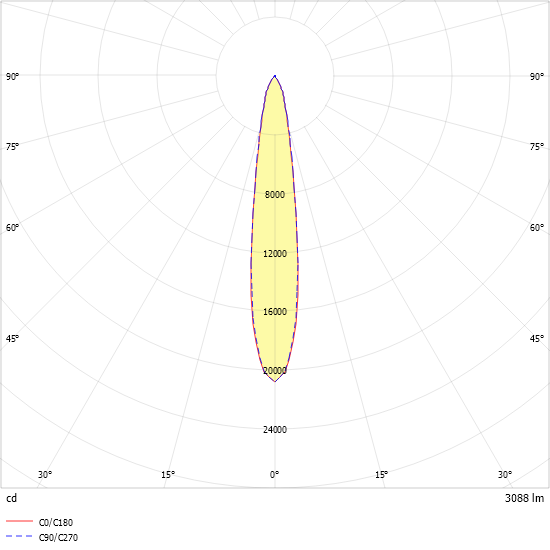

	VLMF-CIRQUA-L 1X3000-830 S-SW 0321962SW691	500 mm	Spot	3080 lm	3000 K	≥ 80	118,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3000-830 SF 0321965//691	500 mm	Super Flood	3080 lm	3000 K	≥ 80	118,5 lm/W	≤ 19	On/Off	White

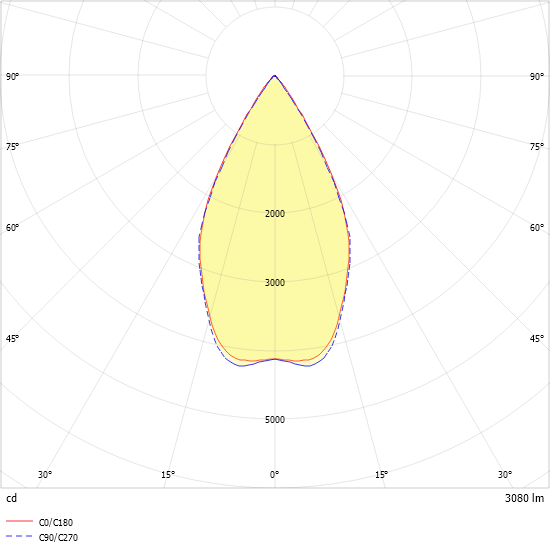

	VLMF-CIRQUA-L 1X3000-830 SF-SW 0321965SW691	500 mm	Super Flood	3080 lm	3000 K	≥ 80	118,5 lm/W	≤ 19	On/Off	Black
	VLMF-CIRQUA-L 1X3100-930 F 0321980//691	500 mm	Flood	2990 lm	3000 K	≥ 90	87,9 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3100-930 F-DA 0331980//691	500 mm	Flood	2990 lm	3000 K	≥ 90	87,9 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3100-930 F-DA 0331980SW691	500 mm	Flood	2990 lm	3000 K	≥ 90	87,9 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3100-930 F-SW 0321980SW691	500 mm	Flood	2990 lm	3000 K	≥ 90	87,9 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3100-930 M 0321979//691	500 mm	Medium	3090 lm	3000 K	≥ 90	90,9 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3100-930 M-DA 0331979//691	500 mm	Medium	3090 lm	3000 K	≥ 90	90,9 lm/W	≤ 16	DALI	White

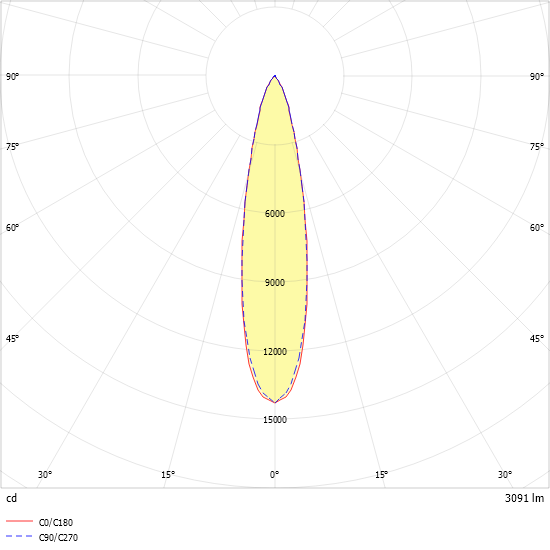

	VLMF-CIRQUA-L 1X3100-930 M-DA 0331979SW691	500 mm	Medium	3090 lm	3000 K	≥ 90	90,9 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3100-930 M-SW 0321979SW691	500 mm	Medium	3090 lm	3000 K	≥ 90	90,9 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3100-930 S 0321978//691	500 mm	Spot	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3100-930 S-DA 0331978//691	500 mm	Spot	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3100-930 S-DA 0331978SW691	500 mm	Spot	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3100-930 S-SW 0321978SW691	500 mm	Spot	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3100-930 SF 0321981//691	500 mm	Super Flood	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 22	On/Off	White
	VLMF-CIRQUA-L 1X3100-930 SF-DA 0331981//691	500 mm	Super Flood	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 22	DALI	White
	VLMF-CIRQUA-L 1X3100-930 SF-DA 0331981SW691	500 mm	Super Flood	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 22	DALI	Black
	VLMF-CIRQUA-L 1X3100-930 SF-SW 0321981SW691	500 mm	Super Flood	3140 lm	3000 K	≥ 90	92,4 lm/W	≤ 22	On/Off	Black

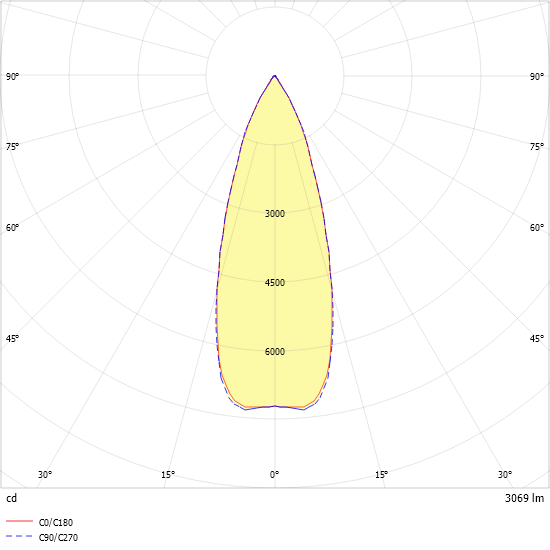

	VLMF-CIRQUA-L 1X3200-840 F 0321952//691	500 mm	Flood	3070 lm	4000 K	≥ 80	118,1 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3200-840 F-SW 0321952SW691	500 mm	Flood	3070 lm	4000 K	≥ 80	118,1 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3200-840 M 0321951//691	500 mm	Medium	3190 lm	4000 K	≥ 80	122,7 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3200-840 M-SW 0321951SW691	500 mm	Medium	3190 lm	4000 K	≥ 80	122,7 lm/W	≤ 16	On/Off	Black

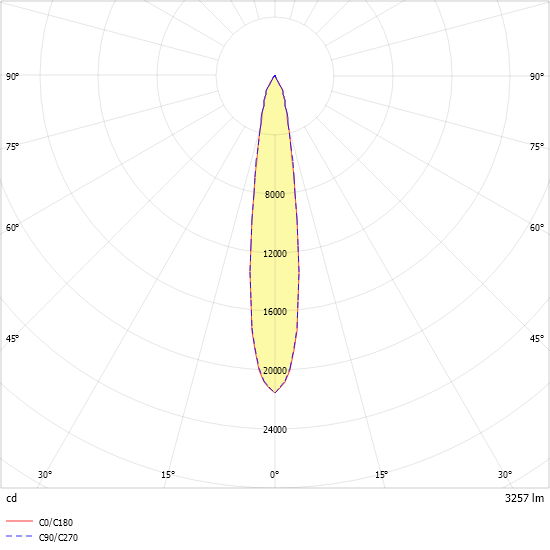

	VLMF-CIRQUA-L 1X3200-840 S 0321950//691	500 mm	Spot	3250 lm	4000 K	≥ 80	125,0 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3200-840 S-SW 0321950SW691	500 mm	Spot	3250 lm	4000 K	≥ 80	125,0 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3200-840 SF 0321953//691	500 mm	Super Flood	3270 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	On/Off	White

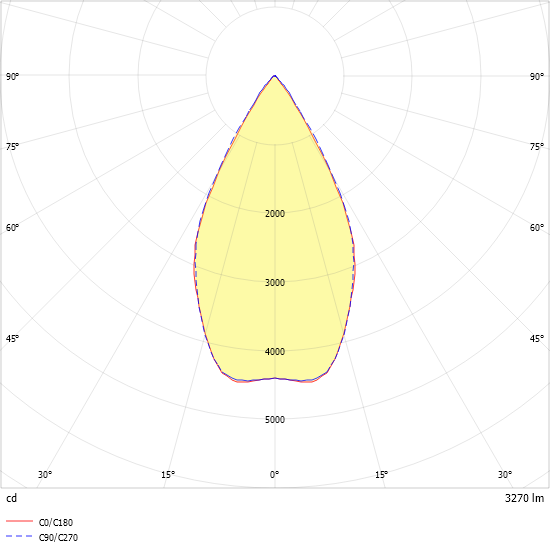

	VLMF-CIRQUA-L 1X3200-840 SF-SW 0321953SW691	500 mm	Super Flood	3270 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	On/Off	Black
	VLMF-CIRQUA-L 1X3600-830 F 0321968//691	500 mm	Flood	3470 lm	3000 K	≥ 80	102,1 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3600-830 F-DA 0331968//691	500 mm	Flood	3460 lm	3000 K	≥ 80	101,8 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3600-830 F-DA 0331968SW691	500 mm	Flood	3460 lm	3000 K	≥ 80	101,8 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3600-830 F-SW 0321968SW691	500 mm	Flood	3470 lm	3000 K	≥ 80	102,1 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3600-830 M 0321967//691	500 mm	Medium	3580 lm	3000 K	≥ 80	105,3 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3600-830 M-DA 0331967//691	500 mm	Medium	3580 lm	3000 K	≥ 80	105,3 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3600-830 M-DA 0331967SW691	500 mm	Medium	3580 lm	3000 K	≥ 80	105,3 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3600-830 M-SW 0321967SW691	500 mm	Medium	3580 lm	3000 K	≥ 80	105,3 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3600-830 S 0321966//691	500 mm	Spot	3650 lm	3000 K	≥ 80	107,4 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3600-830 S-DA 0331966//691	500 mm	Spot	3620 lm	3000 K	≥ 80	106,5 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3600-830 S-DA 0331966SW691	500 mm	Spot	3620 lm	3000 K	≥ 80	106,5 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3600-830 S-SW 0321966SW691	500 mm	Spot	3650 lm	3000 K	≥ 80	107,4 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3600-830 SF 0321969//691	500 mm	Super Flood	3650 lm	3000 K	≥ 80	107,4 lm/W	≤ 19	On/Off	White
	VLMF-CIRQUA-L 1X3600-830 SF-DA 0331969//691	500 mm	Super Flood	3650 lm	3000 K	≥ 80	107,4 lm/W	≤ 22	DALI	White
	VLMF-CIRQUA-L 1X3600-830 SF-DA 0331969SW691	500 mm	Super Flood	3650 lm	3000 K	≥ 80	107,4 lm/W	≤ 22	DALI	Black
	VLMF-CIRQUA-L 1X3600-830 SF-SW 0321969SW691	500 mm	Super Flood	3650 lm	3000 K	≥ 80	107,4 lm/W	≤ 19	On/Off	Black

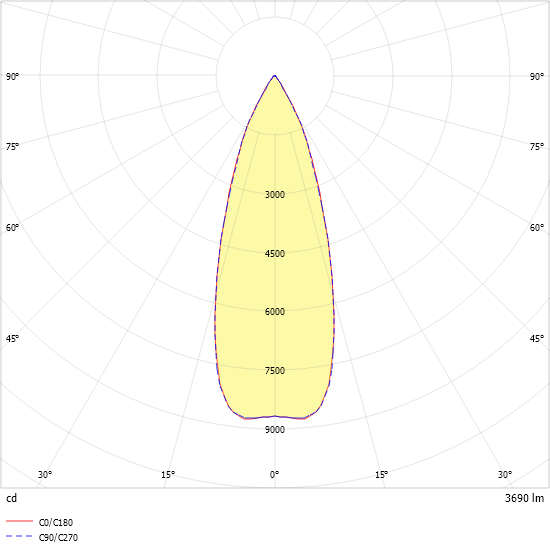

	VLMF-CIRQUA-L 1X3800-840 F 0321956//691	500 mm	Flood	3690 lm	4000 K	≥ 80	108,5 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3800-840 F-DA 0331956//691	500 mm	Flood	3680 lm	4000 K	≥ 80	108,2 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3800-840 F-DA 0331956SW691	500 mm	Flood	3680 lm	4000 K	≥ 80	108,2 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3800-840 F-SW 0321956SW691	500 mm	Flood	3690 lm	4000 K	≥ 80	108,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3800-840 M 0321955//691	500 mm	Medium	3790 lm	4000 K	≥ 80	111,5 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3800-840 M-DA 0331955//691	500 mm	Medium	3780 lm	4000 K	≥ 80	111,2 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3800-840 M-DA 0331955SW691	500 mm	Medium	3780 lm	4000 K	≥ 80	111,2 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3800-840 M-SW 0321955SW691	500 mm	Medium	3790 lm	4000 K	≥ 80	111,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3800-840 S 0321954//691	500 mm	Spot	3880 lm	4000 K	≥ 80	114,1 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 1X3800-840 S-DA 0331954//691	500 mm	Spot	3840 lm	4000 K	≥ 80	112,9 lm/W	≤ 16	DALI	White
	VLMF-CIRQUA-L 1X3800-840 S-DA 0331954SW691	500 mm	Spot	3840 lm	4000 K	≥ 80	112,9 lm/W	≤ 16	DALI	Black
	VLMF-CIRQUA-L 1X3800-840 S-SW 0321954SW691	500 mm	Spot	3880 lm	4000 K	≥ 80	114,1 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 1X3800-840 SF 0321957//691	500 mm	Super Flood	3890 lm	4000 K	≥ 80	114,4 lm/W	≤ 19	On/Off	White

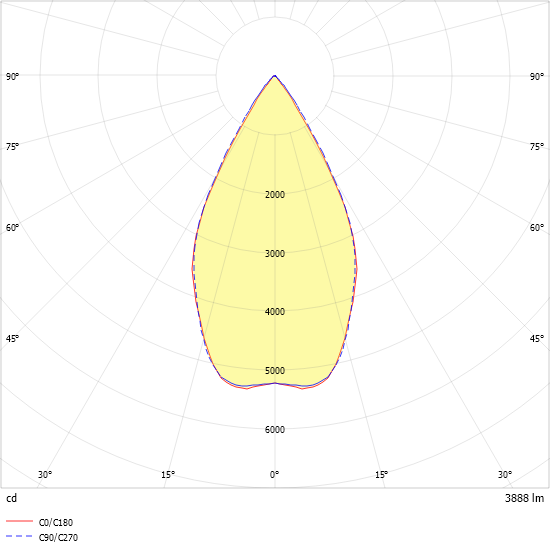

	VLMF-CIRQUA-L 1X3800-840 SF-DA 0331957//691	500 mm	Super Flood	3890 lm	4000 K	≥ 80	114,4 lm/W	≤ 19	DALI	White
	VLMF-CIRQUA-L 1X3800-840 SF-DA 0331957SW691	500 mm	Super Flood	3890 lm	4000 K	≥ 80	114,4 lm/W	≤ 19	DALI	Black
	VLMF-CIRQUA-L 1X3800-840 SF-SW 0321957SW691	500 mm	Super Flood	3890 lm	4000 K	≥ 80	114,4 lm/W	≤ 19	On/Off	Black
	VLMF-CIRQUA-L 2X2600-930 F 0321984//691	500 mm	Flood	5020 lm	3000 K	≥ 90	96,5 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X2600-930 F-SW 0321984SW691	500 mm	Flood	5020 lm	3000 K	≥ 90	96,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X2600-930 M 0321983//691	500 mm	Medium	5200 lm	3000 K	≥ 90	100,0 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X2600-930 M-SW 0321983SW691	500 mm	Medium	5200 lm	3000 K	≥ 90	100,0 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X2600-930 S 0321982//691	500 mm	Spot	5300 lm	3000 K	≥ 90	101,9 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X2600-930 S-SW 0321982SW691	500 mm	Spot	5300 lm	3000 K	≥ 90	101,9 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X2600-930 SF 0321985//691	500 mm	Super Flood	5280 lm	3000 K	≥ 90	101,5 lm/W	≤ 19	On/Off	White
	VLMF-CIRQUA-L 2X2600-930 SF-SW 0321985SW691	500 mm	Super Flood	5280 lm	3000 K	≥ 90	101,5 lm/W	≤ 19	On/Off	Black
	VLMF-CIRQUA-L 2X3000-830 F 0321972//691	500 mm	Flood	5880 lm	3000 K	≥ 80	113,1 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X3000-830 F-SW 0321972SW691	500 mm	Flood	5880 lm	3000 K	≥ 80	113,1 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X3000-830 M 0321971//691	500 mm	Medium	6060 lm	3000 K	≥ 80	116,5 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X3000-830 M-SW 0321971SW691	500 mm	Medium	6060 lm	3000 K	≥ 80	116,5 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X3000-830 S 0321970//691	500 mm	Spot	6160 lm	3000 K	≥ 80	118,5 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X3000-830 S-SW 0321970SW691	500 mm	Spot	6160 lm	3000 K	≥ 80	118,5 lm/W	≤ 16	On/Off	Black

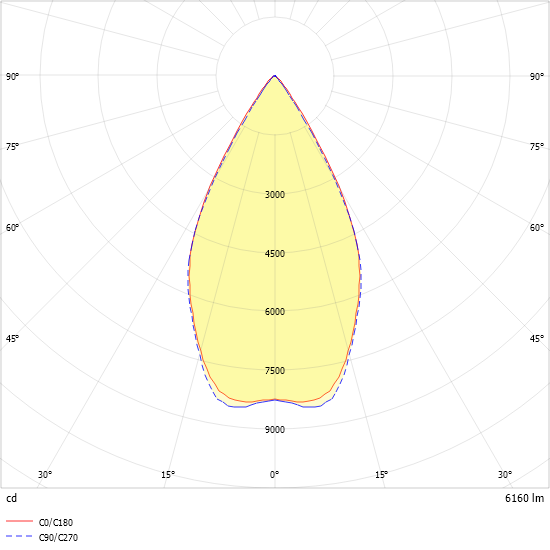

	VLMF-CIRQUA-L 2X3000-830 SF 0321973//691	500 mm	Super Flood	6160 lm	3000 K	≥ 80	118,5 lm/W	≤ 22	On/Off	White
	VLMF-CIRQUA-L 2X3000-830 SF-SW 0321973SW691	500 mm	Super Flood	6160 lm	3000 K	≥ 80	118,5 lm/W	≤ 19	On/Off	Black
	VLMF-CIRQUA-L 2X3200-840 F 0321960//691	500 mm	Flood	6140 lm	4000 K	≥ 80	118,1 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X3200-840 F-SW 0321960SW691	500 mm	Flood	6140 lm	4000 K	≥ 80	118,1 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X3200-840 M 0321959//691	500 mm	Medium	6380 lm	4000 K	≥ 80	122,7 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X3200-840 M-SW 0321959SW691	500 mm	Medium	6380 lm	4000 K	≥ 80	122,7 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X3200-840 S 0321958//691	500 mm	Spot	6500 lm	4000 K	≥ 80	125,0 lm/W	≤ 16	On/Off	White
	VLMF-CIRQUA-L 2X3200-840 S-SW 0321958SW691	500 mm	Spot	6500 lm	4000 K	≥ 80	125,0 lm/W	≤ 16	On/Off	Black
	VLMF-CIRQUA-L 2X3200-840 SF 0321961//691	500 mm	Super Flood	6540 lm	4000 K	≥ 80	125,8 lm/W	≤ 22	On/Off	White
	VLMF-CIRQUA-L 2X3200-840 SF-SW 0321961SW691	500 mm	Super Flood	6540 lm	4000 K	≥ 80	125,8 lm/W	≤ 22	On/Off	Black
