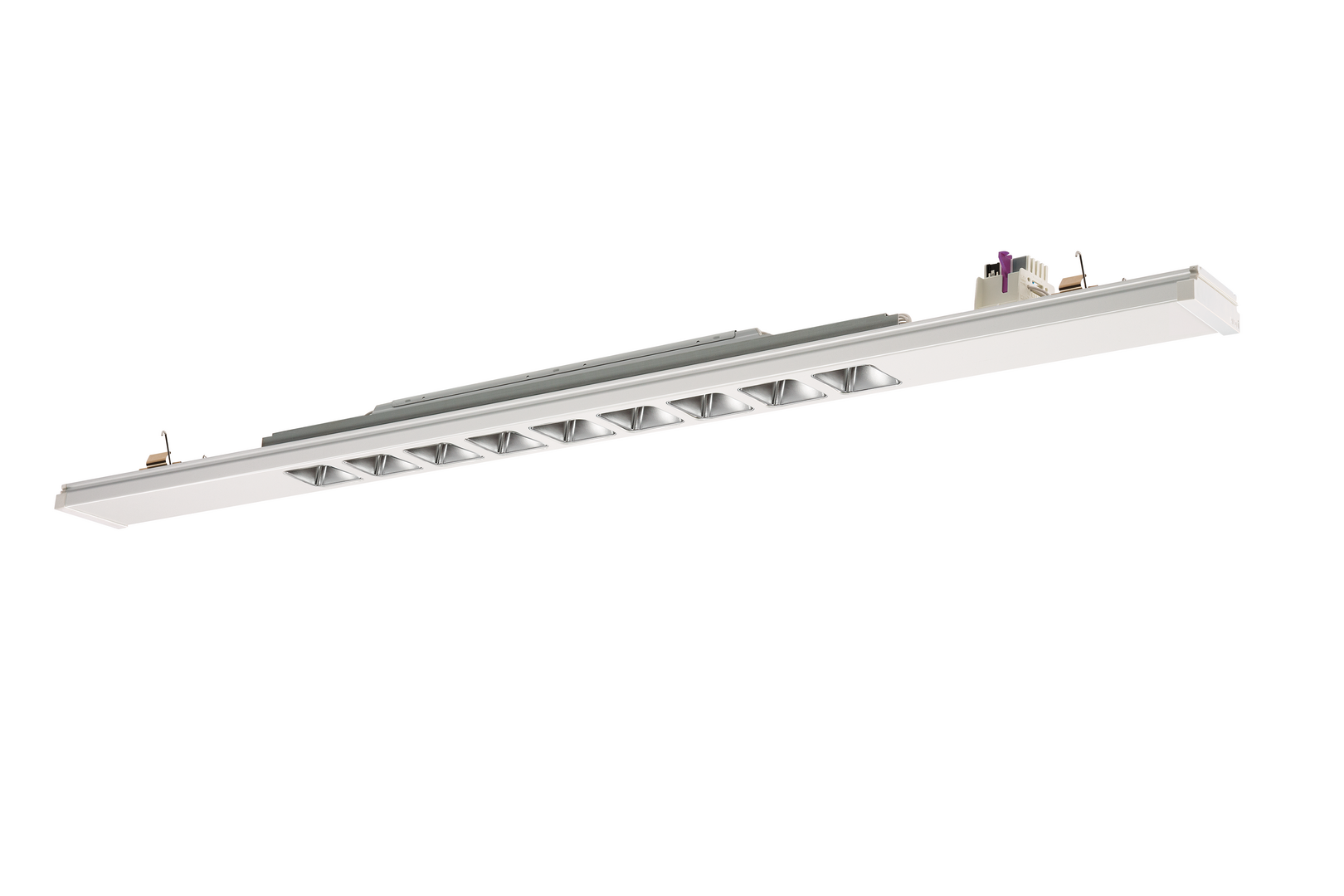

VLG-MRM
Highly efficient low glare lensless reflector system.
MRM
Mini Reflector Matt
The latest lighting multi-tool reflector system by RIDI that perfectly complements the driver@optic® range. The MRM (made in Germany) is a highly efficient low glare reflector system that delivers accurate and efficient light with minimal waste.
It offers excellent levels of glare control in a modern package and is finished in a satin matt aluminium finish for a bit of visual brightness.
The MRM reflector has a contemporary look with its neat compact square design and discrete rounded corners. The system can be supplied in a continuous run of reflectors or in clusters of 3 with breaks for better visual interest.
MRM ultimately offers customers something different from conventional linear runs of opalescent light and suits the mood of modern exposed services buildings.
3000K, 4000K,
Tuneable White
122 Lumens per Watt
DALI or Fixed Output
3600 – 4800 Lumens
1000mm or 1500mm Lengths
Black or White Finish
Technical Information
VLG-MRM
Optics:
Low Glare Mirror Cell
Lengths:
1000, 1500mm
Output (lm):
3135 – 4180lm
Control:
DALI – DA
Non Dimming – ND
Colour Temperatures:
3,000K, 4,000K
Tuneable White – TW
Colour:
White, Black
IP Rating:
IP40
Specific Product Information & Downloads
VLG-MRM D - 5 Core - Non Dimming
| Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Revit File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|

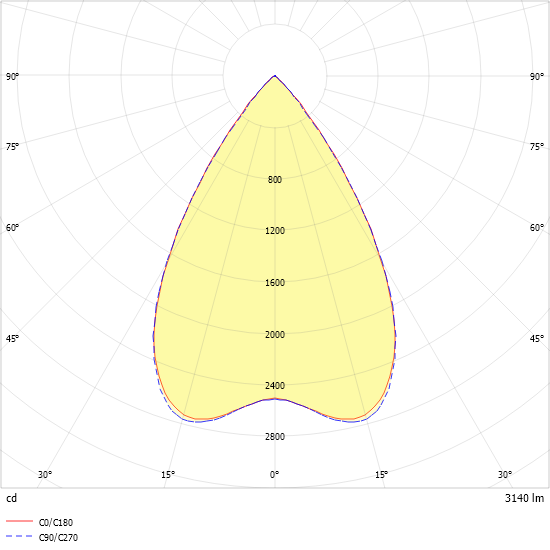

| VLG-MRM1000-5NDSW840-0300 (black) / 1522538SW | 1000 mm | 67 mm | 64 mm | 840 K | 3135 lm | 22 W | LDT | RFA |  |
|

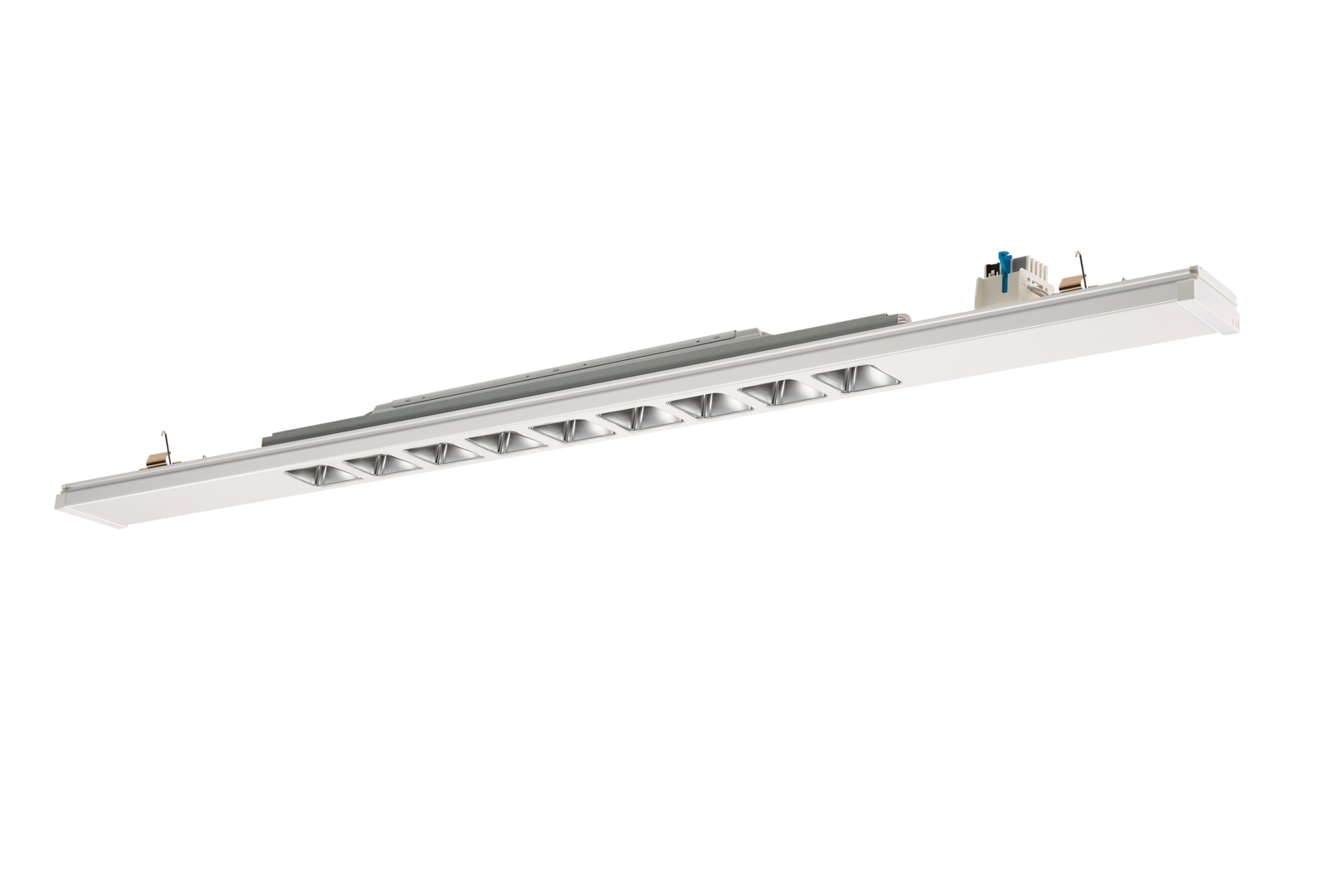

| VLG-MRM1000-5NDWS840-0300 / 1522538 | 1000 mm | 67 mm | 64 mm | 840 K | 3135 lm | 22 W | LDT | RFA |  |
|

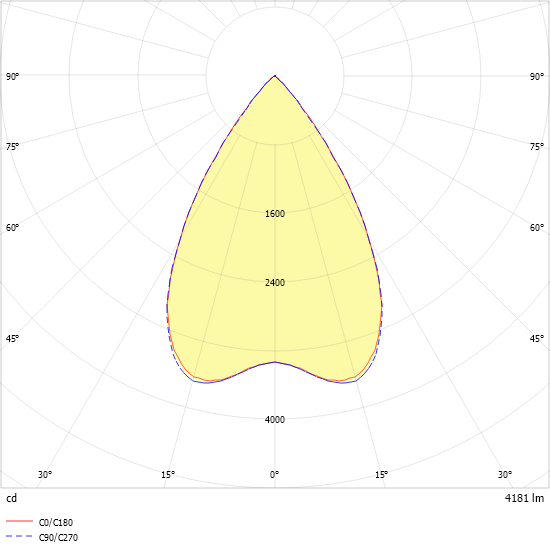

| VLG-MRM1500-5NDSW840-0400 (black) / 1522542SW | 1500 mm | 67 mm | 64 mm | 840 K | 4180 lm | 29 W | LDT | RFA |  |
|

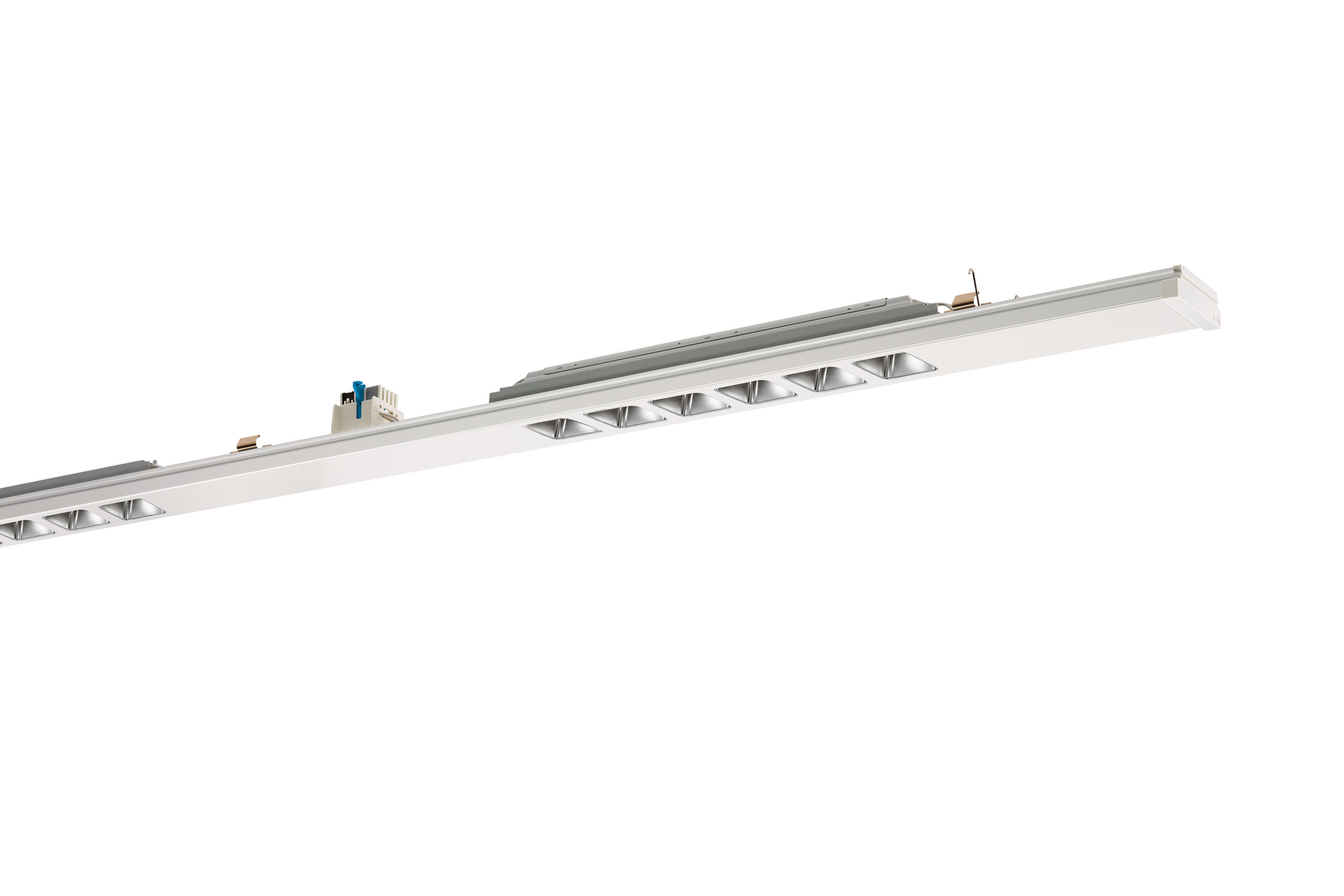

| VLG-MRM1500-5NDWS840-0400 / 1522542 | 1500 mm | 67 mm | 64 mm | 840 K | 4180 lm | 29 W | LDT | RFA |  |
VLG-MRM D - 7 Core - DALI
| Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Revit File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|

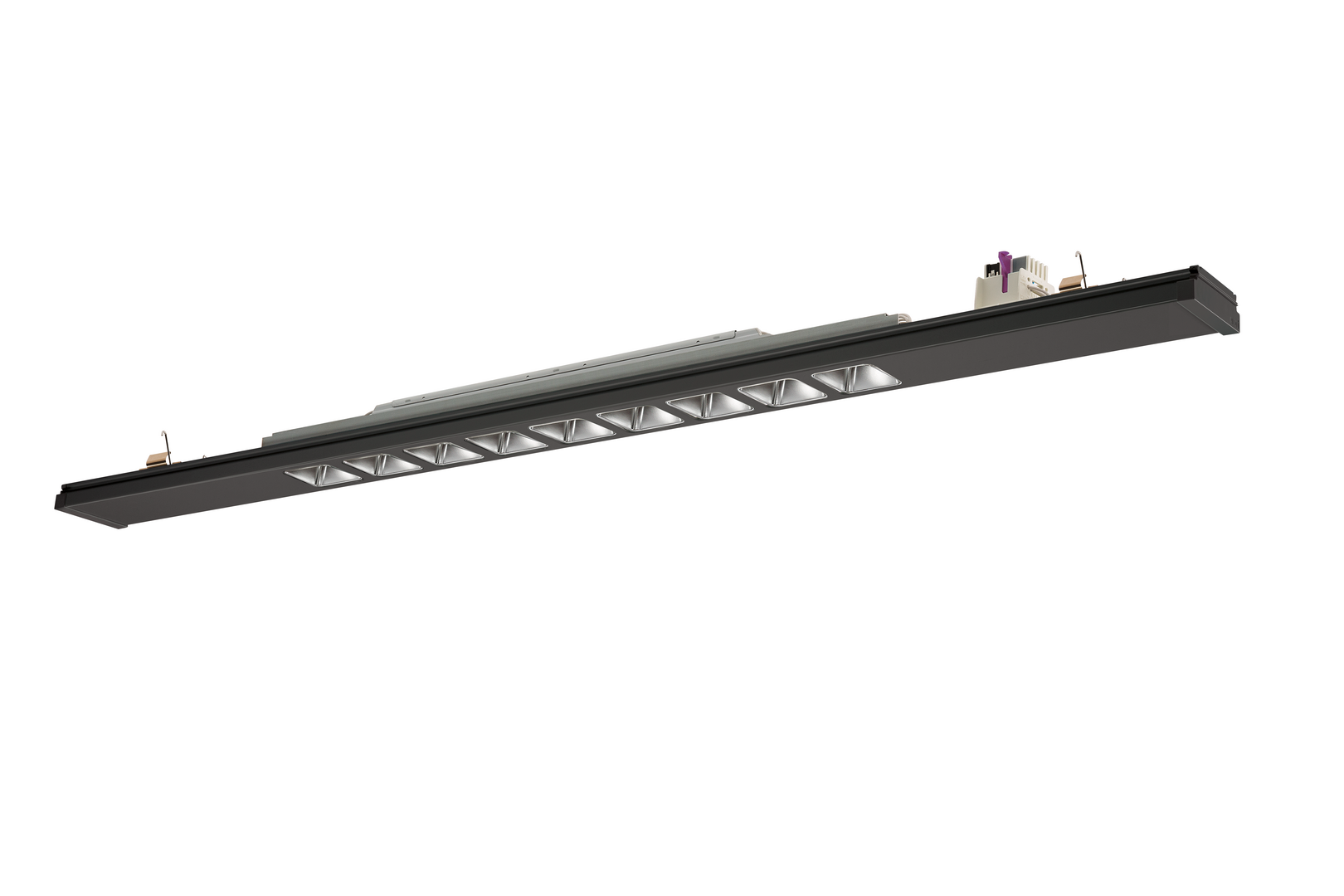

| VLG-MRM1000-7DASW840-0300 (black) / 1532538SW | 1000 mm | 67 mm | 64 mm | 840 K | 3135 lm | 22 W | LDT | RFA |  |
|
| VLG-MRM1000-7DAWS840-0300 / 1532538 | 1000 mm | 67 mm | 64 mm | 840 K | 3135 lm | 22 W | LDT | RFA |  |
|

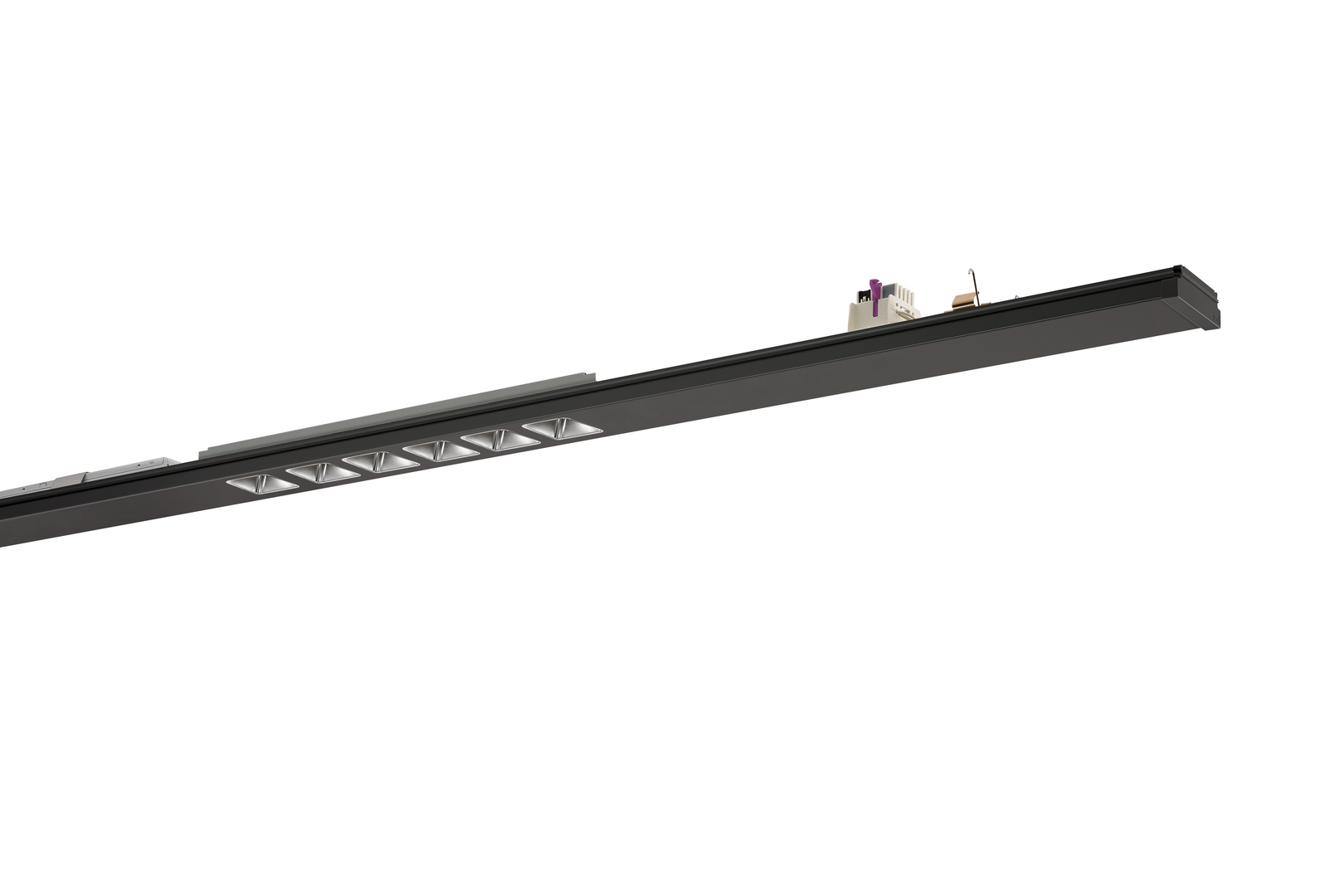

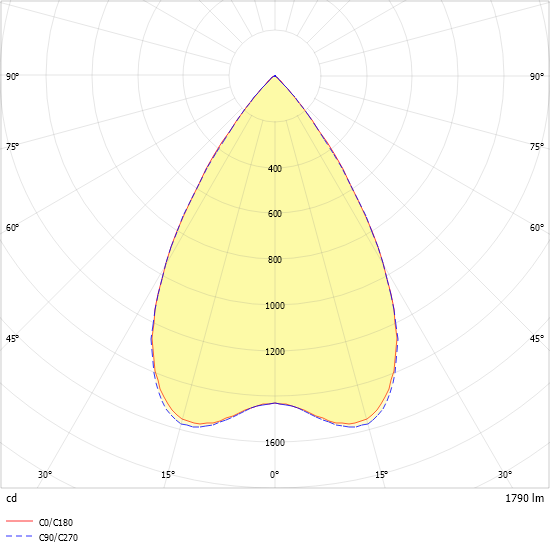

| VLG-MRM1500-7DASW-TW-0200 (black) / 1532545SW | 1500 mm | 67 mm | 64 mm | 827-865 K | 1790 lm | 14 W | LDT | RFA |  |
|
| VLG-MRM1500-7DASW840-0400 (black) / 1532542SW | 1500 mm | 67 mm | 64 mm | 840 K | 4180 lm | 29 W | LDT | RFA |  |
|

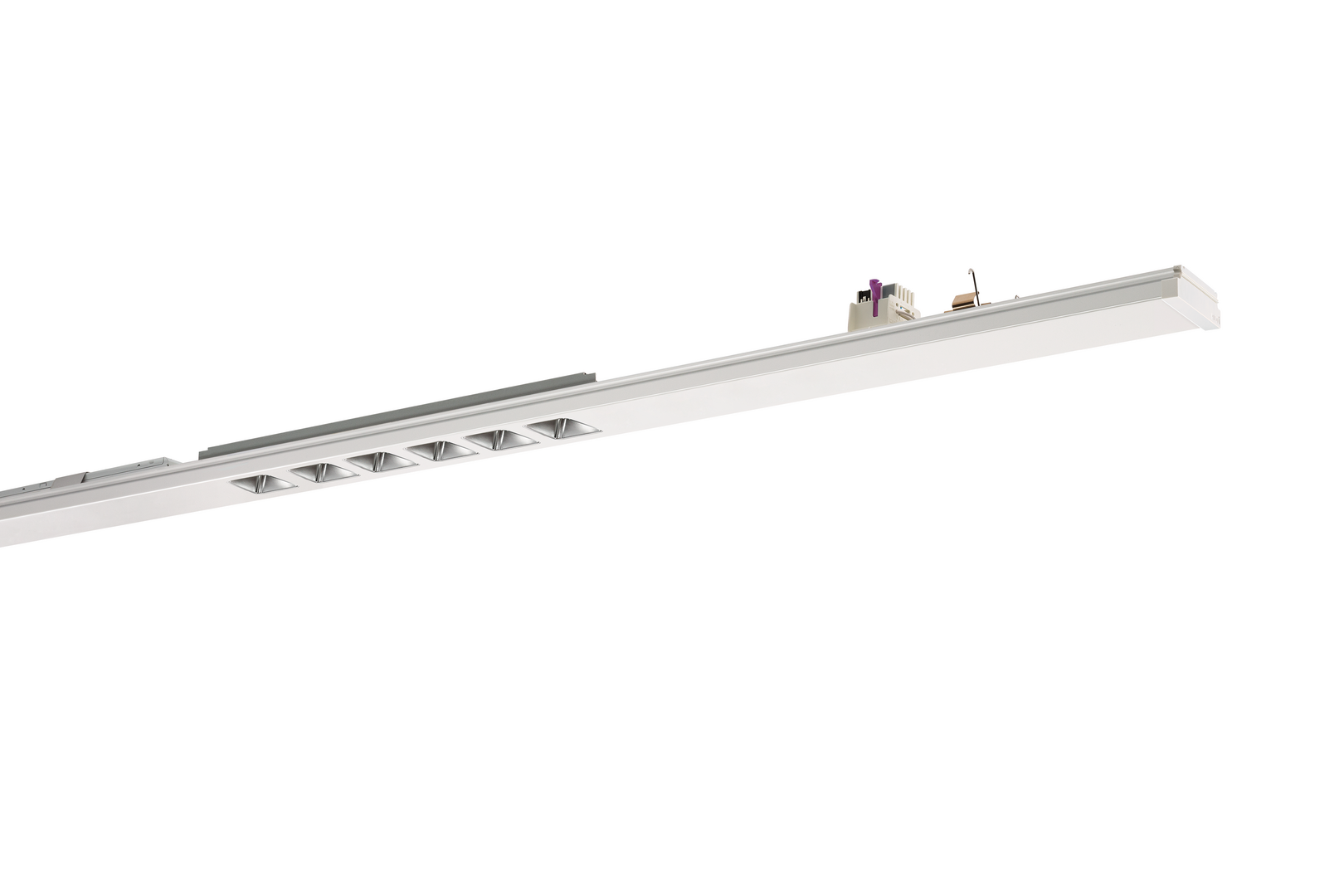

| VLG-MRM1500-7DAWS-TW-0200 / 1532545 | 1500 mm | 67 mm | 64 mm | 827-865 K | 1790 lm | 14 W | LDT | RFA |  |
|
| VLG-MRM1500-7DAWS840-0400 / 1532542 | 1500 mm | 67 mm | 64 mm | 840 K | 4180 lm | 29 W | LDT | RFA |  |
%
