VLDF

Compact LED Strip

Slim Design

Only 36mm wide and 50mm tall, VLDF is compact and unobtrusive but still robust and easy to install.

Maximum Efficiency

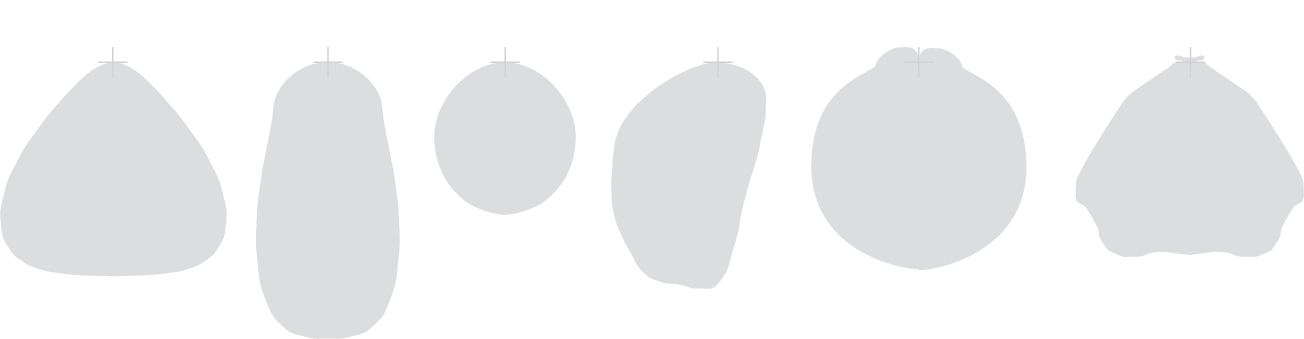

VLDF uses RIDI Group’s in house LED boards and a choice of six different optics

Three Standard Colours

White , Silver and Structured Black as standard.

Any RAL colour you like as a special order.

Technical Information

VLDF-F with flush optics

Compact linear LED luminaire for suspending or surface mounting with broad, narrow, opal or asymmetric light distributions from linear prisms

Lengths:
600mm 900mm 1200mm 1500mm
Output (lm):
1,500 – 6,300lm
Distribution:
Broad, Narrow, Opal, Asymmetric
Control:
Non-Dimming, DALI

Colour Temperatures:
3,000K 4,000K
Colours:
White, Silver, Black
IP Rating:
IP20

Specific Product Information and Downloads

VLDF-F .. B - Broad Distribution
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DASI-160B830 (silver) / 0532501SI 500 mm 36 mm 50 mm 830 1482 lm 10 W PDF LDT IMG
VLDF-F124DASI-170B840 (silver) / 0532505SI 500 mm 36 mm 50 mm 840 1574 lm 10 W PDF LDT IMG
VLDF-F124DAWS-160B830 / 0532501 500 mm 36 mm 50 mm 830 1482 lm 10 W PDF LDT IMG
VLDF-F124DAWS-170B840 / 0532505 500 mm 36 mm 50 mm 840 1574 lm 10 W PDF LDT IMG
VLDF-F124NDSI-160B830 (silver) / 0522501SI 500 mm 36 mm 50 mm 830 1482 lm 10 W PDF LDT IMG
VLDF-F124NDSI-170B840 (silver) / 0522505SI 500 mm 36 mm 50 mm 840 1574 lm 10 W PDF LDT IMG
VLDF-F124NDWS-160B830 / 0522501 500 mm 36 mm 50 mm 830 1482 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170B840 / 0522505 500 mm 36 mm 50 mm 840 1574 lm 10 W PDF LDT IMG
VLDF-F139DASI-280B830 (silver) / 0532509SI 888 mm 36 mm 50 mm 830 2593 lm 19 W PDF LDT IMG
VLDF-F139DASI-300B840 (silver) / 0532513SI 888 mm 36 mm 50 mm 840 2778 lm 19 W PDF LDT IMG
VLDF-F139DAWS-280B830 / 0532509 888 mm 36 mm 50 mm 830 2593 lm 19 W PDF LDT IMG
VLDF-F139DAWS-300B840 / 0532513 888 mm 36 mm 50 mm 840 2778 lm 19 W PDF LDT IMG
VLDF-F139NDSI-280B830 (silver) / 0522509SI 888 mm 36 mm 50 mm 830 2593 lm 19 W PDF LDT IMG
VLDF-F139NDSI-300B840 (silver) / 0522513SI 888 mm 36 mm 50 mm 840 2778 lm 19 W PDF LDT IMG
VLDF-F139NDWS-280B830 / 0522509 888 mm 36 mm 50 mm 830 2593 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300B840 / 0522513 888 mm 36 mm 50 mm 840 2778 lm 19 W PDF LDT IMG
VLDF-F149DASI-470B830 (silver) / 0532517SI 1488 mm 36 mm 50 mm 830 4352 lm 31 W PDF LDT IMG
VLDF-F149DASI-500B840 (silver) / 0532521SI 1488 mm 36 mm 50 mm 840 4630 lm 31 W PDF LDT IMG
VLDF-F149DAWS-470B830 / 0532517 1488 mm 36 mm 50 mm 830 4352 lm 31 W PDF LDT IMG
VLDF-F149DAWS-500B840 / 0532521 1488 mm 36 mm 50 mm 840 4630 lm 31 W PDF LDT IMG
VLDF-F149NDSI-470B830 (silver) / 0522517SI 1488 mm 36 mm 50 mm 830 4352 lm 31 W PDF LDT IMG
VLDF-F149NDSI-500B840 (silver) / 0522521SI 1488 mm 36 mm 50 mm 840 4630 lm 31 W PDF LDT IMG
VLDF-F149NDWS-470B830 / 0522517 1488 mm 36 mm 50 mm 830 4352 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500B840 / 0522521 1488 mm 36 mm 50 mm 840 4630 lm 31 W PDF LDT IMG
VLDF-F154DASI-380B830 (silver) / 0532525SI 1188 mm 36 mm 50 mm 830 3519 lm 25 W PDF LDT IMG
VLDF-F154DASI-400B840 (silver) / 0532529SI 1188 mm 36 mm 50 mm 840 3704 lm 25 W PDF LDT IMG
VLDF-F154DAWS-380B830 / 0532525 1188 mm 36 mm 50 mm 830 3519 lm 25 W PDF LDT IMG
VLDF-F154DAWS-400B840 / 0532529 1188 mm 36 mm 50 mm 840 3704 lm 25 W PDF LDT IMG
VLDF-F154NDSI-380B830 (silver) / 0522525SI 1188 mm 36 mm 50 mm 830 3519 lm 25 W PDF LDT IMG
VLDF-F154NDSI-400B840 (silver) / 0522529SI 1188 mm 36 mm 50 mm 840 3704 lm 25 W PDF LDT IMG
VLDF-F154NDWS-380B830 / 0522525 1188 mm 36 mm 50 mm 830 3519 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400B840 / 0522529 1188 mm 36 mm 50 mm 840 3704 lm 25 W PDF LDT IMG
VLDF-F180DASI-650B830 (silver) / 0532533SI 1488 mm 36 mm 50 mm 830 6019 lm 44 W PDF LDT IMG
VLDF-F180DASI-680B840 (silver) / 0532538SI 1488 mm 36 mm 50 mm 840 6297 lm 44 W PDF LDT IMG
VLDF-F180DAWS-650B830 / 0532533 1488 mm 36 mm 50 mm 830 6019 lm 44 W PDF LDT IMG
VLDF-F180DAWS-680B840 / 0532538 1488 mm 36 mm 50 mm 840 6297 lm 44 W PDF LDT IMG
VLDF-F180NDSI-650B830 (silver) / 0522533SI 1488 mm 36 mm 50 mm 830 6019 lm 44 W PDF LDT IMG
VLDF-F180NDSI-680B840 (silver) / 0522538SI 1488 mm 36 mm 50 mm 840 6297 lm 44 W PDF LDT IMG
VLDF-F180NDWS-650B830 / 0522533 1488 mm 36 mm 50 mm 830 6019 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680B840 / 0522538 1488 mm 36 mm 50 mm 840 6297 lm 44 W PDF LDT IMG
VLDF-F .. T - Narrow Distribution
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DASI-160T830 (silver) / 0532503SI 500 mm 36 mm 50 mm 830 1374 lm 10 W PDF LDT IMG
VLDF-F124DASI-170T840 (silver) / 0532507SI 500 mm 36 mm 50 mm 840 1460 lm 10 W PDF LDT IMG
VLDF-F124DAWS-160T830 / 0532503 500 mm 36 mm 50 mm 830 1374 lm 10 W PDF LDT IMG
VLDF-F124DAWS-170T840 / 0532507 500 mm 36 mm 50 mm 840 1460 lm 10 W PDF LDT IMG
VLDF-F124NDSI-160T830 (silver) / 0522503SI 500 mm 36 mm 50 mm 830 1374 lm 10 W PDF LDT IMG
VLDF-F124NDSI-170T840 (silver) / 0522507SI 500 mm 36 mm 50 mm 840 1460 lm 10 W PDF LDT IMG
VLDF-F124NDWS-160T830 / 0522503 500 mm 36 mm 50 mm 830 1374 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170T840 / 0522507 500 mm 36 mm 50 mm 840 1460 lm 10 W PDF LDT IMG
VLDF-F139DASI-280T830 (silver) / 0532511SI 888 mm 36 mm 50 mm 830 2405 lm 19 W PDF LDT IMG
VLDF-F139DASI-300T840 (silver) / 0532515SI 888 mm 36 mm 50 mm 840 2577 lm 19 W PDF LDT IMG
VLDF-F139DAWS-280T830 / 0532511 888 mm 36 mm 50 mm 830 2405 lm 19 W PDF LDT IMG
VLDF-F139DAWS-300T840 / 0532515 888 mm 36 mm 50 mm 840 2577 lm 19 W PDF LDT IMG
VLDF-F139NDSI-280T830 (silver) / 0522511SI 888 mm 36 mm 50 mm 830 2405 lm 19 W PDF LDT IMG
VLDF-F139NDSI-300T840 (silver) / 0522515SI 888 mm 36 mm 50 mm 840 2577 lm 19 W PDF LDT IMG
VLDF-F139NDWS-280T830 / 0522511 888 mm 36 mm 50 mm 830 2405 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300T840 / 0522515 888 mm 36 mm 50 mm 840 2577 lm 19 W PDF LDT IMG
VLDF-F149DASI-470T830 (silver) / 0532519SI 1488 mm 36 mm 50 mm 830 4037 lm 31 W PDF LDT IMG
VLDF-F149DASI-470T830 (silver) / 0532519SI 1488 mm 36 mm 50 mm 830 4037 lm 31 W PDF LDT IMG
VLDF-F149DAWS-470T830 / 0532519 1488 mm 36 mm 50 mm 830 4037 lm 31 W PDF LDT IMG
VLDF-F149DAWS-500T840 / 0532523 1488 mm 36 mm 50 mm 840 4295 lm 31 W PDF LDT IMG
VLDF-F149NDSI-470T830 (silver) / 0522519SI 1488 mm 36 mm 50 mm 830 4037 lm 31 W PDF LDT IMG
VLDF-F149NDSI-500T840 (silver) / 0522523SI 1488 mm 36 mm 50 mm 840 4295 lm 31 W PDF LDT IMG
VLDF-F149NDWS-470T830 / 0522519 1488 mm 36 mm 50 mm 830 4037 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500T840 / 0522523 1488 mm 36 mm 50 mm 840 4295 lm 31 W PDF LDT IMG
VLDF-F154DASI-380T830 (silver) / 0532527SI 1188 mm 36 mm 50 mm 830 3264 lm 25 W PDF LDT IMG
VLDF-F154DASI-400T840 (silver) / 0532531SI 1188 mm 36 mm 50 mm 840 3436 lm 25 W PDF LDT IMG
VLDF-F154DAWS-380T830 / 0532527 1188 mm 36 mm 50 mm 830 3264 lm 25 W PDF LDT IMG
VLDF-F154DAWS-400T840 / 0532531 1188 mm 36 mm 50 mm 840 3436 lm 25 W PDF LDT IMG
VLDF-F154NDSI-380T830 (silver) / 0522527SI 1188 mm 36 mm 50 mm 830 3264 lm 25 W PDF LDT IMG
VLDF-F154NDSI-400T840 (silver) / 0522531SI 1188 mm 36 mm 50 mm 840 3436 lm 25 W PDF LDT IMG
VLDF-F154NDWS-380T830 / 0522527 1188 mm 36 mm 50 mm 830 3264 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400T840 / 0522531 1188 mm 36 mm 50 mm 840 3436 lm 25 W PDF LDT IMG
VLDF-F180DASI-650T830 (silver) / 0532535SI 1488 mm 36 mm 50 mm 830 5584 lm 44 W PDF LDT IMG
VLDF-F180DASI-680T840 (silver) / 0532539SI 1488 mm 36 mm 50 mm 840 5841 lm 44 W PDF LDT IMG
VLDF-F180DAWS-650T830 / 0532535 1488 mm 36 mm 50 mm 830 5584 lm 44 W PDF LDT IMG
VLDF-F180DAWS-680T840 / 0532539 1488 mm 36 mm 50 mm 840 5841 lm 44 W PDF LDT IMG
VLDF-F180NDSI-650T830 (silver) / 0522535SI 1488 mm 36 mm 50 mm 830 5584 lm 44 W PDF LDT IMG
VLDF-F180NDSI-680T840 (silver) / 0522539SI 1488 mm 36 mm 50 mm 840 5841 lm 44 W PDF LDT IMG
VLDF-F180NDWS-650T830 / 0522535 1488 mm 36 mm 50 mm 830 5584 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680T840 / 0522539 1488 mm 36 mm 50 mm 840 5841 lm 44 W PDF LDT IMG
VLDF-F .. O - Opal Distribution
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DASI-160O830 (silver) / 0532502SI 500 mm 36 mm 50 mm 830 1245 lm 10 W PDF LDT IMG
VLDF-F124DASI-170O840 (silver) / 0532506SI 500 mm 36 mm 50 mm 840 1323 lm 10 W PDF LDT IMG
VLDF-F124DAWS-160O830 / 0532502 500 mm 36 mm 50 mm 830 1245 lm 10 W PDF LDT IMG
VLDF-F124DAWS-170O840 / 0532506 500 mm 36 mm 50 mm 840 1323 lm 10 W PDF LDT IMG
VLDF-F124NDSI-160O830 (silver) / 0522502SI 500 mm 36 mm 50 mm 830 1245 lm 10 W PDF LDT IMG
VLDF-F124NDSI-170O840 (silver) / 0522506SI 500 mm 36 mm 50 mm 840 1323 lm 10 W PDF LDT IMG
VLDF-F124NDWS-160O830 / 0522502 500 mm 36 mm 50 mm 830 1245 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170O840 / 0522506 500 mm 36 mm 50 mm 840 1323 lm 10 W PDF LDT IMG
VLDF-F139DASI-280O830 (silver) / 0532510SI 888 mm 36 mm 50 mm 830 2178 lm 19 W PDF LDT IMG
VLDF-F139DASI-300O840 (silver) / 0532514SI 888 mm 36 mm 50 mm 840 2334 lm 19 W PDF LDT IMG
VLDF-F139DAWS-280O830 / 0532510 888 mm 36 mm 50 mm 830 2178 lm 19 W PDF LDT IMG
VLDF-F139DAWS-300O840 / 0532514 888 mm 36 mm 50 mm 840 2334 lm 19 W PDF LDT IMG
VLDF-F139NDSI-280O830 (silver) / 0522510SI 888 mm 36 mm 50 mm 830 2178 lm 19 W PDF LDT IMG
VLDF-F139NDSI-300O840 (silver) / 0522514SI 888 mm 36 mm 50 mm 840 2334 lm 19 W PDF LDT IMG
VLDF-F139NDWS-280O830 / 0522510 888 mm 36 mm 50 mm 830 2178 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300O840 / 0522514 888 mm 36 mm 50 mm 840 2334 lm 19 W PDF LDT IMG
VLDF-F149DASI-470O830 (silver) / 0532518SI 1488 mm 36 mm 50 mm 830 3657 lm 31 W PDF LDT IMG
VLDF-F149DASI-500O840 (silver) / 0532522SI 1488 mm 36 mm 50 mm 840 3890 lm 31 W PDF LDT IMG
VLDF-F149DAWS-470O830 / 0532518 1488 mm 36 mm 50 mm 830 3657 lm 31 W PDF LDT IMG
VLDF-F149DAWS-500O840 / 0532522 1488 mm 36 mm 50 mm 840 3890 lm 31 W PDF LDT IMG
VLDF-F149NDSI-470O830 (silver) / 0522518SI 1488 mm 36 mm 50 mm 830 3657 lm 31 W PDF LDT IMG
VLDF-F149NDSI-500O840 (silver) / 0522522SI 1488 mm 36 mm 50 mm 840 3890 lm 31 W PDF LDT IMG
VLDF-F149NDWS-470O830 / 0522518 1488 mm 36 mm 50 mm 830 3657 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500O840 / 0522522 1488 mm 36 mm 50 mm 840 3890 lm 31 W PDF LDT IMG
VLDF-F154DASI-380O830 (silver) / 0532526SI 1188 mm 36 mm 50 mm 830 2956 lm 25 W PDF LDT IMG
VLDF-F154DASI-400O840 (silver) / 0532530SI 1188 mm 36 mm 50 mm 840 3112 lm 25 W PDF LDT IMG
VLDF-F154DAWS-380O830 / 0532526 1188 mm 36 mm 50 mm 830 2956 lm 25 W PDF LDT IMG
VLDF-F154DAWS-400O840 / 0532530 1188 mm 36 mm 50 mm 840 3112 lm 25 W PDF LDT IMG
VLDF-F154NDSI-380O830 (silver) / 0522526SI 1188 mm 36 mm 50 mm 830 2956 lm 25 W PDF LDT IMG
VLDF-F154NDSI-400O840 (silver) / 0522530SI 1188 mm 36 mm 50 mm 840 3112 lm 25 W PDF LDT IMG
VLDF-F154NDWS-380O830 / 0522526 1188 mm 36 mm 50 mm 830 2956 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400O840 / 0522530 1188 mm 36 mm 50 mm 840 3112 lm 25 W PDF LDT IMG
VLDF-F180DASI-650O830 (silver) / 0532534SI 1488 mm 36 mm 50 mm 830 5057 lm 44 W PDF LDT IMG
VLDF-F180DASI-680O840 (silver) / 0532537SI 1488 mm 36 mm 50 mm 840 5290 lm 44 W PDF LDT IMG
VLDF-F180DAWS-650O830 / 0532534 1488 mm 36 mm 50 mm 830 5057 lm 44 W PDF LDT IMG
VLDF-F180DAWS-680O840 / 0532537 1488 mm 36 mm 50 mm 840 5290 lm 44 W PDF LDT IMG
VLDF-F180NDSI-650O830 (silver) / 0522534SI 1488 mm 36 mm 50 mm 830 5057 lm 44 W PDF LDT IMG
VLDF-F180NDSI-680O840 (silver) / 0522537SI 1488 mm 36 mm 50 mm 840 5290 lm 44 W PDF LDT IMG
VLDF-F180NDWS-650O830 / 0522534 1488 mm 36 mm 50 mm 830 5057 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680O840 / 0522537 1488 mm 36 mm 50 mm 840 5290 lm 44 W PDF LDT IMG
VLDF-F .. A - Asymmetric Distribution
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DASI-160A830 (silver) / 0532500SI 500 mm 36 mm 50 mm 830 1381 lm 10 W PDF LDT IMG
VLDF-F124DASI-170A840 (silver) / 0532504SI 500 mm 36 mm 50 mm 840 1467 lm 10 W PDF LDT IMG
VLDF-F124DAWS-160A830 / 0532500 500 mm 36 mm 50 mm 830 1381 lm 10 W PDF LDT IMG
VLDF-F124DAWS-170A840 / 0532504 500 mm 36 mm 50 mm 840 1467 lm 10 W PDF LDT IMG
VLDF-F124NDSI-160A830 (silver) / 0522500SI 500 mm 36 mm 50 mm 830 1381 lm 10 W PDF LDT IMG
VLDF-F124NDSI-170A840 (silver) / 0522504SI 500 mm 36 mm 50 mm 840 1467 lm 10 W PDF LDT IMG
VLDF-F124NDWS-160A830 / 0522500 500 mm 36 mm 50 mm 830 1381 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170A840 / 0522504 500 mm 36 mm 50 mm 840 1467 lm 10 W PDF LDT IMG
VLDF-F139DASI-280A830 (silver) / 0532508SI 888 mm 36 mm 50 mm 830 2416 lm 19 W PDF LDT IMG
VLDF-F139DASI-300A840 (silver) / 0532512SI 888 mm 36 mm 50 mm 840 2589 lm 19 W PDF LDT IMG
VLDF-F139DAWS-280A830 / 0532508 888 mm 36 mm 50 mm 830 2416 lm 19 W PDF LDT IMG
VLDF-F139DAWS-300A840 / 0532512 888 mm 36 mm 50 mm 840 2589 lm 19 W PDF LDT IMG
VLDF-F139NDSI-280A830 (silver) / 0522508SI 888 mm 36 mm 50 mm 830 2416 lm 19 W PDF LDT IMG
VLDF-F139NDSI-300A840 (silver) / 0522512SI 888 mm 36 mm 50 mm 840 2589 lm 19 W PDF LDT IMG
VLDF-F139NDWS-280A830 / 0522508 888 mm 36 mm 50 mm 830 2416 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300A840 / 0522512 888 mm 36 mm 50 mm 840 2589 lm 19 W PDF LDT IMG
VLDF-F149DASI-470A830 (silver) / 0532516SI 1488 mm 36 mm 50 mm 830 4056 lm 31 W PDF LDT IMG
VLDF-F149DASI-500A840 (silver) / 0532520SI 1488 mm 36 mm 50 mm 840 4315 lm 31 W PDF LDT IMG
VLDF-F149DAWS-470A830 / 0532516 1488 mm 36 mm 50 mm 830 4056 lm 31 W PDF LDT IMG
VLDF-F149DAWS-500A840 / 0532520 1488 mm 36 mm 50 mm 840 4315 lm 31 W PDF LDT IMG
VLDF-F149NDSI-470A830 (silver) / 0522516SI 1488 mm 36 mm 50 mm 830 4056 lm 31 W PDF LDT IMG
VLDF-F149NDSI-500A840 (silver) / 0522520SI 1488 mm 36 mm 50 mm 840 4315 lm 31 W PDF LDT IMG
VLDF-F149NDWS-470A830 / 0522516 1488 mm 36 mm 50 mm 830 4056 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500A840 / 0522520 1488 mm 36 mm 50 mm 840 4315 lm 31 W PDF LDT IMG
VLDF-F154DASI-380A830 (silver) / 0532524SI 1188 mm 36 mm 50 mm 830 3279 lm 25 W PDF LDT IMG
VLDF-F154DASI-400A840 (silver) / 0532528SI 1188 mm 36 mm 50 mm 840 3452 lm 25 W PDF LDT IMG
VLDF-F154DAWS-380A830 / 0532524 1188 mm 36 mm 50 mm 830 3279 lm 25 W PDF LDT IMG
VLDF-F154DAWS-400A840 / 0532528 1188 mm 36 mm 50 mm 840 3452 lm 25 W PDF LDT IMG
VLDF-F154NDSI-380A830 (silver) / 0522524SI 1188 mm 36 mm 50 mm 830 3279 lm 25 W PDF LDT IMG
VLDF-F154NDSI-400A840 (silver) / 0522528SI 1188 mm 36 mm 50 mm 840 3452 lm 25 W PDF LDT IMG
VLDF-F154NDWS-380A830 / 0522524 1188 mm 36 mm 50 mm 830 3279 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400A840 / 0522528 1188 mm 36 mm 50 mm 840 3452 lm 25 W PDF LDT IMG
VLDF-F180DASI-650A830 (silver) / 0532532SI 1488 mm 36 mm 50 mm 830 5610 lm 44 W PDF LDT IMG
VLDF-F180DASI-680A840 (silver) / 0532536SI 1488 mm 36 mm 50 mm 840 5868 lm 44 W PDF LDT IMG
VLDF-F180DAWS-650A830 / 0532532 1488 mm 36 mm 50 mm 830 5610 lm 44 W PDF LDT IMG
VLDF-F180DAWS-680A840 / 0532536 1488 mm 36 mm 50 mm 840 5868 lm 44 W PDF LDT IMG
VLDF-F180NDSI-650A830 (silver) / 0522532SI 1488 mm 36 mm 50 mm 830 5610 lm 44 W PDF LDT IMG
VLDF-F180NDSI-680A840 (silver) / 0522536SI 1488 mm 36 mm 50 mm 840 5868 lm 44 W PDF LDT IMG
VLDF-F180NDWS-650A830 / 0522532 1488 mm 36 mm 50 mm 830 5610 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680A840 / 0522536 1488 mm 36 mm 50 mm 840 5868 lm 44 W PDF LDT IMG

VLDF-F with drop optics

Compact linear LED luminaire for suspending or surface mounting with diffuse or low glare light distributions from drop optics

Lengths:
600mm 900mm 1200mm 1500mm
Output (lm):
1,500 – 6,300lm
Distribution:
Diffuse, Low Glare
Control:
Non-Dimming, DALI

Colour Temperatures:
3,000K 4,000K
Colours:
White, Silver, Black
IP Rating:
IP20

Specific Product Information and Downloads

VLDF-F .. LPO - Drop Opal Optics
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DASI-160LPO830 (silver) / 0532541SI 500 mm 36 mm 65 mm 830 1307 lm 10 W PDF LDT IMG
VLDF-F124DASI-170LPO840 (silver) / 0532543SI 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F124DAWS-160LPO830 / 0532541 500 mm 36 mm 65 mm 830 1307 lm 10 W PDF LDT IMG
VLDF-F124DAWS-170LPO840 / 0532543 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F124NDSI-160LPO830 (silver) / 0522541SI 500 mm 36 mm 65 mm 830 1307 lm 10 W PDF LDT IMG
VLDF-F124NDSI-170LPO840 (silver) / 0522543SI 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F124NDWS-160LPO830 / 0522541 500 mm 36 mm 65 mm 830 1307 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170LPO840 / 0522543 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170LPO840 / 0522543 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F139DASI-300LPO840 (silver) / 0532547SI 888 mm 36 mm 65 mm 840 2451 lm 19 W PDF LDT IMG
VLDF-F139DAWS-280LPO830 / 0532545 888 mm 36 mm 65 mm 830 2288 lm 19 W PDF LDT IMG
VLDF-F139DAWS-300LPO840 / 0532547 888 mm 36 mm 65 mm 840 2451 lm 19 W PDF LDT IMG
VLDF-F139NDSI-280LPO830 (silver) / 0522545SI 888 mm 36 mm 65 mm 830 2288 lm 19 W PDF LDT IMG
VLDF-F139NDSI-300LPO840 (silver) / 0522547SI 888 mm 36 mm 65 mm 840 2451 lm 19 W PDF LDT IMG
VLDF-F139NDWS-280LPO830 / 0522545 888 mm 36 mm 65 mm 830 2288 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300LPO840 / 0522547 888 mm 36 mm 65 mm 840 2451 lm 19 W PDF LDT IMG
VLDF-F149DASI-470LPO830 (silver) / 0532549SI 1488 mm 36 mm 65 mm 830 3840 lm 31 W PDF LDT IMG
VLDF-F149DASI-500LPO840 (silver) / 0532551SI 1488 mm 36 mm 65 mm 840 4085 lm 31 W PDF LDT IMG
VLDF-F149DAWS-470LPO830 / 0532549 1488 mm 36 mm 65 mm 830 3840 lm 31 W PDF LDT IMG
VLDF-F149DAWS-500LPO840 / 0532551 1488 mm 36 mm 65 mm 840 4085 lm 31 W PDF LDT IMG
VLDF-F149NDSI-470LPO830 (silver) / 0522549SI 1488 mm 36 mm 65 mm 830 3840 lm 31 W PDF LDT IMG
VLDF-F149NDSI-500LPO840 (silver) / 0522551SI 1488 mm 36 mm 65 mm 840 4085 lm 31 W PDF LDT IMG
VLDF-F149NDWS-470LPO830 / 0522549 1488 mm 36 mm 65 mm 830 3840 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500LPO840 / 0522551 1488 mm 36 mm 65 mm 840 4085 lm 31 W PDF LDT IMG
VLDF-F154DASI-380LPO830 (silver) / 0532553SI 1188 mm 36 mm 65 mm 830 3105 lm 25 W PDF LDT IMG
VLDF-F154DASI-400LPO840 (silver) / 0532555SI 1188 mm 36 mm 65 mm 840 3268 lm 25 W PDF LDT IMG
VLDF-F154DAWS-380LPO830 / 0532553 1188 mm 36 mm 65 mm 830 3105 lm 25 W PDF LDT IMG
VLDF-F154DAWS-400LPO840 / 0532555 1188 mm 36 mm 65 mm 840 3268 lm 25 W PDF LDT IMG
VLDF-F154NDSI-380LPO830 (silver) / 0522553SI 1188 mm 36 mm 65 mm 830 3105 lm 25 W PDF LDT IMG
VLDF-F154NDSI-400LPO840 (silver) / 0522555SI 1188 mm 36 mm 65 mm 840 3268 lm 25 W PDF LDT IMG
VLDF-F154NDWS-380LPO830 / 0522553 1188 mm 36 mm 65 mm 830 3105 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400LPO840 / 0522555 1188 mm 36 mm 65 mm 840 3268 lm 25 W PDF LDT IMG
VLDF-F180DASI-650LPO830 (silver) / 0532557SI 1488 mm 36 mm 65 mm 830 5311 lm 44 W PDF LDT IMG
VLDF-F180DASI-680LPO840 (silver) / 0532559SI 1488 mm 36 mm 65 mm 840 5556 lm 44 W PDF LDT IMG
VLDF-F180DAWS-650LPO830 / 0532557 1488 mm 36 mm 65 mm 830 5311 lm 44 W PDF LDT IMG
VLDF-F180DAWS-680LPO840 / 0532559 1488 mm 36 mm 65 mm 840 5556 lm 44 W PDF LDT IMG
VLDF-F180NDSI-650LPO830 (silver) / 0522557SI 1488 mm 36 mm 65 mm 830 5311 lm 44 W PDF LDT IMG
VLDF-F180NDSI-680LPO840 (silver) / 0522559SI 1488 mm 36 mm 65 mm 840 5556 lm 44 W PDF LDT IMG
VLDF-F180NDWS-650LPO830 / 0522557 1488 mm 36 mm 65 mm 830 5311 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680LPO840 / 0522559 1488 mm 36 mm 65 mm 840 5556 lm 44 W PDF LDT IMG
VLDF-F .. LPT - Drop Low Glare Linear Prismatic Optics
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DASI-160LPT830 (silver) / 0532540SI 500 mm 36 mm 65 mm 830 1480 lm 10 W PDF LDT IMG
VLDF-F124DASI-170LPT840 (silver) / 0532542SI 500 mm 36 mm 65 mm 840 1573 lm 10 W PDF LDT IMG
VLDF-F124DAWS-160LPT830 / 0532540 500 mm 36 mm 65 mm 830 1480 lm 10 W PDF LDT IMG
VLDF-F124DAWS-170LPT840 / 0532542 500 mm 36 mm 65 mm 840 1573 lm 10 W PDF LDT IMG
VLDF-F124NDSI-160LPT830 (silver) / 0522540SI 500 mm 36 mm 65 mm 830 1480 lm 10 W PDF LDT IMG
VLDF-F124NDSI-170LPT840 (silver) / 0522542SI 500 mm 36 mm 65 mm 840 1573 lm 10 W PDF LDT IMG
VLDF-F124NDWS-160LPT830 / 0522540 500 mm 36 mm 65 mm 830 1480 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170LPT840 / 0522542 500 mm 36 mm 65 mm 840 1573 lm 10 W PDF LDT IMG
VLDF-F139DASI-280LPT830 (silver) / 0532544SI 888 mm 36 mm 65 mm 830 2590 lm 19 W PDF LDT IMG
VLDF-F139DASI-300LPT840 (silver) / 0532546SI 888 mm 36 mm 65 mm 840 2775 lm 19 W PDF LDT IMG
VLDF-F139DAWS-280LPT830 / 0532544 888 mm 36 mm 65 mm 830 2590 lm 19 W PDF LDT IMG
VLDF-F139DAWS-300LPT840 / 0532546 888 mm 36 mm 65 mm 840 2775 lm 19 W PDF LDT IMG
VLDF-F139NDSI-280LPT830 (silver) / 0522544SI 888 mm 36 mm 65 mm 830 2590 lm 19 W PDF LDT IMG
VLDF-F139NDSI-300LPT840 (silver) / 0522546SI 888 mm 36 mm 65 mm 840 2775 lm 19 W PDF LDT IMG
VLDF-F139NDWS-280LPT830 / 0522544 888 mm 36 mm 65 mm 830 2590 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300LPT840 / 0522546 888 mm 36 mm 65 mm 840 2775 lm 19 W PDF LDT IMG
VLDF-F149DASI-470LPT830 (silver) / 0532548SI 1488 mm 36 mm 65 mm 830 4348 lm 31 W PDF LDT IMG
VLDF-F149DASI-500LPT840 (silver) / 0532550SI 1488 mm 36 mm 65 mm 840 4625 lm 31 W PDF LDT IMG
VLDF-F149DAWS-470LPT830 / 0532548 1488 mm 36 mm 65 mm 830 4348 lm 31 W PDF LDT IMG
VLDF-F149DAWS-500LPT840 / 0532550 1488 mm 36 mm 65 mm 840 4625 lm 31 W PDF LDT IMG
VLDF-F149NDSI-470LPT830 (silver) / 0522548SI 1488 mm 36 mm 65 mm 830 4348 lm 31 W PDF LDT IMG
VLDF-F149NDSI-500LPT840 (silver) / 0522550SI 1488 mm 36 mm 65 mm 840 4625 lm 31 W PDF LDT IMG
VLDF-F149NDWS-470LPT830 / 0522548 1488 mm 36 mm 65 mm 830 4348 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500LPT840 / 0522550 1488 mm 36 mm 65 mm 840 4625 lm 31 W PDF LDT IMG
VLDF-F154DASI-380LPT830 (silver) / 0532552SI 1188 mm 36 mm 65 mm 830 3515 lm 25 W PDF LDT IMG
VLDF-F154DASI-400LPT840 (silver) / 0532554SI 1188 mm 36 mm 65 mm 840 3700 lm 25 W PDF LDT IMG
VLDF-F154DAWS-380LPT830 / 0532552 1188 mm 36 mm 65 mm 830 3515 lm 25 W PDF LDT IMG
VLDF-F154DAWS-400LPT840 / 0532554 1188 mm 36 mm 65 mm 840 3700 lm 25 W PDF LDT IMG
VLDF-F154NDSI-380LPT830 (silver) / 0522552SI 1188 mm 36 mm 65 mm 830 3515 lm 25 W PDF LDT IMG
VLDF-F154NDSI-400LPT840 (silver) / 0522554SI 1188 mm 36 mm 65 mm 840 3700 lm 25 W PDF LDT IMG
VLDF-F154NDWS-380LPT830 / 0522552 1188 mm 36 mm 65 mm 830 3515 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400LPT840 / 0522554 1188 mm 36 mm 65 mm 840 3700 lm 25 W PDF LDT IMG
VLDF-F180DASI-650LPT830 (silver) / 0532556SI 1488 mm 36 mm 65 mm 830 6013 lm 44 W PDF LDT IMG
VLDF-F180DASI-680LPT840 (silver) / 0532558SI 1488 mm 36 mm 65 mm 840 6290 lm 44 W PDF LDT IMG
VLDF-F180DAWS-650LPT830 / 0532556 1488 mm 36 mm 65 mm 830 6013 lm 44 W PDF LDT IMG
VLDF-F180DAWS-680LPT840 / 0532558 1488 mm 36 mm 65 mm 840 6290 lm 44 W PDF LDT IMG
VLDF-F180NDSI-650LPT830 (silver) / 0522556SI 1488 mm 36 mm 65 mm 830 6013 lm 44 W PDF LDT IMG
VLDF-F180NDSI-680LPT840 (silver) / 0522558SI 1488 mm 36 mm 65 mm 840 6290 lm 44 W PDF LDT IMG
VLDF-F180NDWS-650LPT830 / 0522556 1488 mm 36 mm 65 mm 830 6013 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680LPT840 / 0522558 1488 mm 36 mm 65 mm 840 6290 lm 44 W PDF LDT IMG

VLDF-F .. DV for continuous mounting

Compact linear LED luminaire for suspending or surface mounting with broad or asymmetric light distributions from linear prisms or diffuse or low glare light distributions from drop optics.  VLDF-DV includes plug and socket system allowing rapid continuous lighting installations.

Lengths:
1200mm 1500mm
Output (lm):
1,700 – 6,300lm
Distribution:
Broad, Asymmetric, Diffuse, Low Glare
Control:
Non-Dimming, DALI

Colour Temperatures:
3,000K 4,000K
Colours:
White, Silver, Black
IP Rating:
IP20

Specific Product Information and Downloads

VLDF-F ..DV .. B - Broad Distribution
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DAWS-170B840-DV5 / 0532505//411 500 mm 36 mm 49,5 mm 840 1574 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170B840-DV3 / 0522505//412 500 mm 36 mm 49,5 mm 840 1574 lm 10 W PDF LDT IMG
VLDF-F139DAWS-300B840-DV5 / 0532513//411 888 mm 36 mm 49,5 mm 840 2778 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300B840-DV3 / 0522513//412 888 mm 36 mm 49,5 mm 840 2778 lm 19 W PDF LDT IMG
VLDF-F149DAWS-500B840-DV5 / 0532521//411 1488 mm 36 mm 49,5 mm 840 4630 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500B840-DV3 / 0522521//412 1488 mm 36 mm 49,5 mm 840 4630 lm 31 W PDF LDT IMG
VLDF-F154DAWS-400B840-DV5 / 0532529//411 1188 mm 36 mm 49,5 mm 840 3704 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400B840-DV3 / 0522529//412 1188 mm 36 mm 49,5 mm 840 3704 lm 25 W PDF LDT IMG
VLDF-F180DAWS-680B840-DV5 / 0532538//411 1488 mm 36 mm 49,5 mm 840 6297 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680B840-DV3 / 0522538//412 1488 mm 36 mm 49,5 mm 840 6297 lm 44 W PDF LDT IMG
VLDF-F ..DV .. A - Asymmetric Distribution
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DAWS-170A840-DV5 / 0532504//411 500 mm 36 mm 49,5 mm 840 1467 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170A840-DV3 / 0522504//412 500 mm 36 mm 49,5 mm 840 1467 lm 10 W PDF LDT IMG
VLDF-F139DAWS-300A840-DV5 / 0532512//411 888 mm 36 mm 49,5 mm 840 2589 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300A840-DV3 / 0522512//412 888 mm 36 mm 49,5 mm 840 2589 lm 19 W PDF LDT IMG
VLDF-F149DAWS-500A840-DV5 / 0532520//411 1488 mm 36 mm 49,5 mm 840 4315 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500A840-DV3 / 0522520//412 1488 mm 36 mm 49,5 mm 840 4315 lm 31 W PDF LDT IMG
VLDF-F154DAWS-400A840-DV5 / 0532528//411 1188 mm 36 mm 49,5 mm 840 3452 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400A840-DV3 / 0522528//412 1188 mm 36 mm 49,5 mm 840 3452 lm 25 W PDF LDT IMG
VLDF-F180DAWS-680A840-DV5 / 0532536//411 1488 mm 36 mm 49,5 mm 840 5868 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680A840-DV3 / 0522536//412 1488 mm 36 mm 49,5 mm 840 5868 lm 44 W PDF LDT IMG
VLDF-F ..DV .. LPO - Drop Opal Optics
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DAWS-170LPO840-DV5 / 0532543//411 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170LPO840-DV3 / 0522543//412 500 mm 36 mm 65 mm 840 1389 lm 10 W PDF LDT IMG
VLDF-F139DAWS-300LPO840-DV5 / 0532547//411 888 mm 36 mm 65 mm 840 2451 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300LPO840-DV3 / 0522547//412 888 mm 36 mm 65 mm 840 2451 lm 19 W PDF LDT IMG
VLDF-F149DAWS-500LPO840-DV5 / 0532551//411 1488 mm 36 mm 65 mm 840 4085 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500LPO840-DV3 / 0522551//412 1488 mm 36 mm 65 mm 840 4085 lm 31 W PDF LDT IMG
VLDF-F154DAWS-400LPO840-DV5 / 0532555//411 1188 mm 36 mm 65 mm 840 3268 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400LPO840-DV3 / 0522555//412 1188 mm 36 mm 65 mm 840 3268 lm 25 W PDF LDT IMG
VLDF-F180DAWS-680LPO840-DV5 / 0532559//411 1488 mm 36 mm 65 mm 840 5556 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680LPO840-DV3 / 0522559//412 1488 mm 36 mm 65 mm 840 5556 lm 44 W PDF LDT IMG
VLDF-F ..DV .. LPT - Drop Low Glare Linear Prismatic Optics
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
VLDF-F124DAWS-170LPT840-DV5 / 0532542//411 500 mm 36 mm 65 mm 840 1573 lm 10 W PDF LDT IMG
VLDF-F124NDWS-170LPT840-DV3 / 0522542//412 500 mm 36 mm 65 mm 840 1573 lm 10 W PDF LDT IMG
VLDF-F139DAWS-300LPT840-DV5 / 0532546//411 888 mm 36 mm 65 mm 840 2775 lm 19 W PDF LDT IMG
VLDF-F139NDWS-300LPT840-DV3 / 0522546//412 888 mm 36 mm 65 mm 840 2775 lm 19 W PDF LDT IMG
VLDF-F149DAWS-500LPT840-DV5 / 0532550//411 1488 mm 36 mm 65 mm 840 4625 lm 31 W PDF LDT IMG
VLDF-F149NDWS-500LPT840-DV3 / 0522550//412 1488 mm 36 mm 65 mm 840 4625 lm 31 W PDF LDT IMG
VLDF-F154DAWS-400LPT840-DV5 / 0532554//411 1188 mm 36 mm 65 mm 840 3700 lm 25 W PDF LDT IMG
VLDF-F154NDWS-400LPT840-DV3 / 0522554//412 1188 mm 36 mm 65 mm 840 3700 lm 25 W PDF LDT IMG
VLDF-F180DAWS-680LPT840-DV5 / 0532558//411 1488 mm 36 mm 65 mm 840 6290 lm 44 W PDF LDT IMG
VLDF-F180NDWS-680LPT840-DV3 / 0522558//412 1488 mm 36 mm 65 mm 840 6290 lm 44 W PDF LDT IMG
1

Pin It on Pinterest

Share This
