VL2 .. Multilens Premium
LED Gear tray for RIDI LINIA-EVO continuous pre-wired BusBar system.
RIDI Multilens Premium optics for extremely high optical efficiency and low glare,
Multilens Premium
We use the highest specification LED chips behind specially designed indiviudal lens units recessed into a semi-specular reflector.
The result is extremely high optical efficiency, accurate beam forming and low visual glare.
Higher CRI
VL2-ML Premium is available with optional >90 CRI LEDs for improved colour rendering and visual acuity
Available with RIDI xFlex
Adjust output onsite to give just the right light level and energy usage.
Technical Data and Downloads
Product Filters
| Length (mm) |
Optic Type |
CRI (Ra) |
Light Colour |
Output (lm) |
Lm/W | UGR Rating |
Driver Type |
CBAT Use |
Body Finish |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image | Part Code Article Number |
Length (mm) |
Optic Type |
CRI (Ra) |
Light Colour |
Output (lm) |
Lm/W |
UGR Rating |
Driver Type |
CBAT Use |
Body Finish |

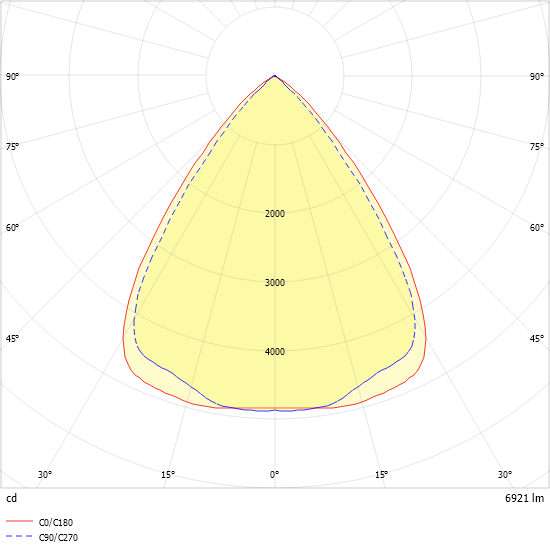

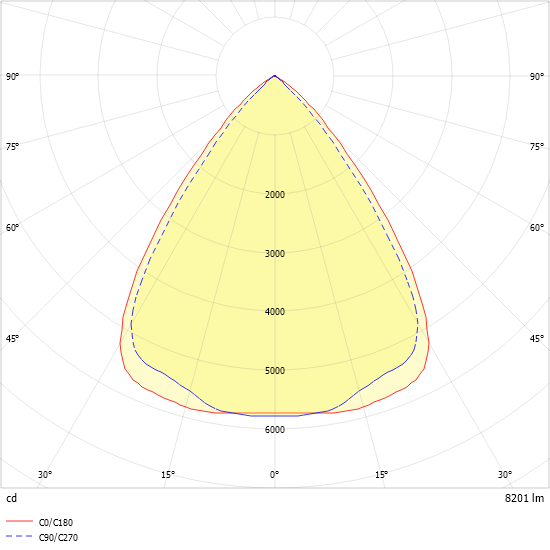

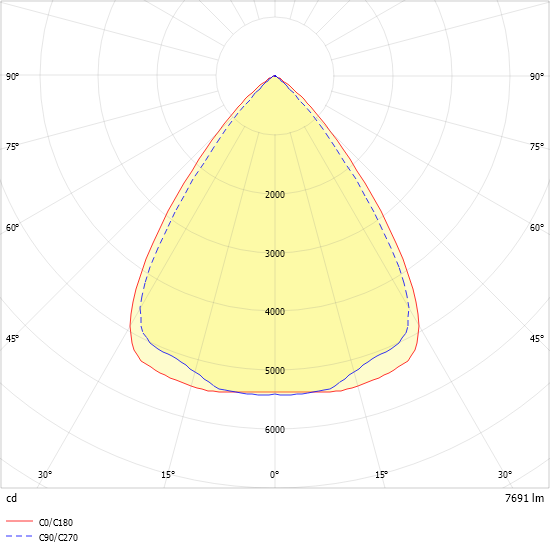

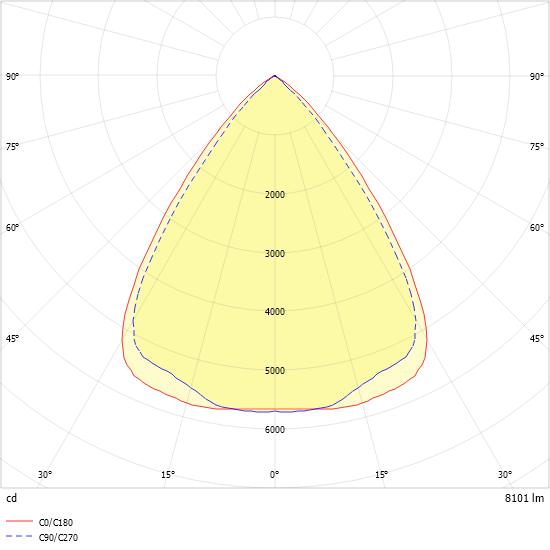

Data | LDT | Polar | BIM |
 | VL2P-ML150-7DASI840M9P0800 / 2560012SI | 1500 mm | wide beam | ≥ 80 | 4000 K | 8000 lm | 162,0 lm/W | ≤ 19 | DALI-2 | Yes | Silver | NA |  |  |  |
| VL2P-ML150-7DASI940M9P0700 / 2560014SI | 1500 mm | wide beam | ≥ 90 | 4000 K | 7000 lm | 138,4 lm/W | ≤ 19 | DALI-2 | Yes | Silver | NA | |  | |
 | VL2P-ML150-7DASW840M9P0800 / 2560012SW | 1500 mm | wide beam | ≥ 80 | 4000 K | 8000 lm | 162,0 lm/W | ≤ 19 | DALI-2 | Yes | Black | NA | |  | |
| VL2P-ML150-7DASW940M9P0700 / 2560014SW | 1500 mm | wide beam | ≥ 90 | 4000 K | 7000 lm | 138,4 lm/W | ≤ 19 | DALI-2 | Yes | Black | NA | |  | |
 | VL2P-ML150-7DAWS830M9P0750 / 2560013 | 1500 mm | wide beam | ≥ 80 | 3000 K | 7750 lm | 153,8 lm/W | ≤ 19 | DALI-2 | Yes | White | NA | |  | |
| VL2P-ML150-7DAWS840M9P0800 / 2560012 | 1500 mm | wide beam | ≥ 80 | 4000 K | 8000 lm | 162,0 lm/W | ≤ 19 | DALI-2 | Yes | White | NA | |  | |
| VL2P-ML150-7DAWS940M9P0700 / 2560014 | 1500 mm | wide beam | ≥ 90 | 4000 K | 7000 lm | 138,4 lm/W | ≤ 19 | DALI-2 | Yes | White | NA | |  | |
 | VL2P-ML150-5FLSI840M9P0800 / 2550012SI | 1500 mm | wide beam | ≥ 80 | 4000 K | 8250 lm | 164,0 lm/W | ≤ 19 | xFlex | Yes | Silver | NA | |  | |
| VL2P-ML150-5FLSI940M9P0700 / 2550014SI | 1500 mm | wide beam | ≥ 90 | 4000 K | 7000 lm | 138,0 lm/W | ≤ 19 | xFlex | Yes | Silver | NA | |  | |
 | VL2P-ML150-5FLSW840M9P0800 / 2550012SW | 1500 mm | wide beam | ≥ 80 | 4000 K | 8250 lm | 164,0 lm/W | ≤ 19 | xFlex | Yes | Black | NA | |  | |
| VL2P-ML150-5FLSW940M9P0700 / 2550014SW | 1500 mm | wide beam | ≥ 90 | 4000 K | 7000 lm | 138,0 lm/W | ≤ 19 | xFlex | Yes | Black | NA | |  | |
 | VL2P-ML150-5FLWS830M9P0800 / 2550013 | 1500 mm | wide beam | ≥ 80 | 3000 K | 7750 lm | 156,0 lm/W | ≤ 19 | xFlex | Yes | White | NA | |  | |
| VL2P-ML150-5FLWS840M9P0800 / 2550012 | 1500 mm | wide beam | ≥ 80 | 4000 K | 8250 lm | 164,0 lm/W | ≤ 19 | xFlex | Yes | White | NA | |  | |
| VL2P-ML150-5FLWS940M9P0700 / 2550014 | 1500 mm | wide beam | ≥ 90 | 4000 K | 7000 lm | 138,0 lm/W | ≤ 19 | xFlex | Yes | White | NA | |  | |
