SURVIVOR
Survivor by name…
Survivor is a premium quality vandal and shock resistant luminaire designed for public spaces.
As used on rail networks throughout the world
London Underground | Docklands Light Railway | Network Rail | Deutsche Bahn | U-Bahn Germany | SL Metro Sweden | Queensland Rail Australia
Survivor 510 is fire resisitant for use on the Underground
Fit and Forget
Survivor has a high resistance to dust and water and features tool-less removal of the light component for convenient connection or maintenance.
Modular Design
Surface Mounted. Suspended. Corner Mounted.
Add speaker modules, camera modules, mitred angles that follow the architecture. Media trunking system provides sufficient space for cabling.
Brochure
Technical Information
Survivor – DALI
Optics:
Clear Diffuser – K
Satin Diffuser – S
Lengths:
690, 1300, 1600mm
Output (lm):
2780 – 7330lm
Control:
DALI – DA
Colour Temperatures:
3,000, 4,000K
Colour:
White
IP Rating:
IP66
Specific Product Information and Downloads
Downloads - K - Clear diffuser
Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
---|---|---|---|---|---|---|---|---|---|
SURVIVOR069DAWS830K0250 / 0632202 | 690 mm | 240 mm | 73 mm | 830 | 2780 lm | 19 W | LDT | IMG | |
SURVIVOR069DAWS840K0300 / 0632206 | 690 mm | 240 mm | 73 mm | 840 | 2930 lm | 19 W | LDT | IMG | |
SURVIVOR130DAWS830K0500 / 0632210 | 1300 mm | 240 mm | 73 mm | 830 | 5560 lm | 35 W | LDT | IMG | |
SURVIVOR130DAWS840K0550 / 0632214 | 1300 mm | 240 mm | 73 mm | 840 | 5860 lm | 35 W | LDT | IMG | |
SURVIVOR160DAWS830K0650 / 0632218 | 1600 mm | 240 mm | 73 mm | 830 | 6950 lm | 43 W | LDT | IMG | |
SURVIVOR160DAWS840K0700 / 0632222 | 1600 mm | 240 mm | 73 mm | 840 | 7330 lm | 43 W | LDT | IMG |
Downloads - S - Satin finish diffuser
Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
---|---|---|---|---|---|---|---|---|---|
SURVIVOR069DAWS830S0250 / 0632203 | 690 mm | 240 mm | 73 mm | 830 | 2600 lm | 19 W | LDT | IMG | |
SURVIVOR069DAWS840S0250 / 0632207 | 690 mm | 240 mm | 73 mm | 840 | 2740 lm | 19 W | LDT | IMG | |
SURVIVOR130DAWS830S0500 / 0632211 | 1300 mm | 240 mm | 73 mm | 830 | 5190 lm | 35 W | LDT | IMG | |
SURVIVOR130DAWS840S0500 / 0632215 | 1300 mm | 240 mm | 73 mm | 840 | 5480 lm | 35 W | LDT | IMG | |
SURVIVOR160DAWS830S0600 / 0632219 | 1600 mm | 240 mm | 73 mm | 830 | 6490 lm | 43 W | LDT | IMG | |
SURVIVOR160DAWS840S0650 / 0632223 | 1600 mm | 240 mm | 73 mm | 840 | 6840 lm | 43 W | LDT | IMG |
Survivor – ResFlex
Output is adjustable on site by adjustment of potentiometer within the luminaire
Optics:
Clear Diffuser – K
Satin Diffuser – S
Lengths:
690, 1300, 1600mm
Output (lm):
2780 – 7330lm
Control:
DALI – DA
Colour Temperatures:
3,000, 4,000K
Colour:
White
IP Rating:
IP66
Specific Product Information and Downloads
Downloads - K - Clear diffuser
Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |

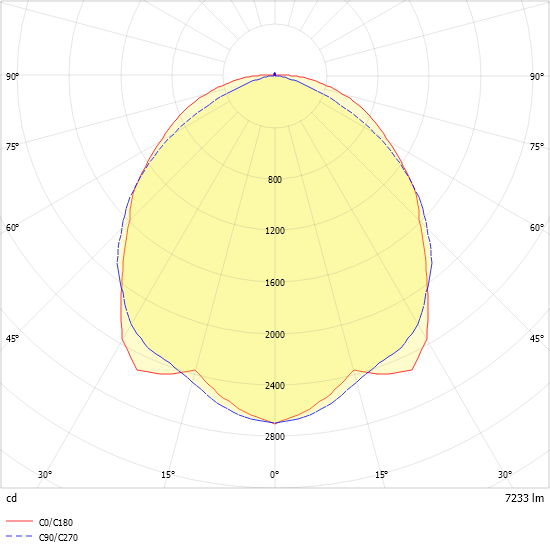

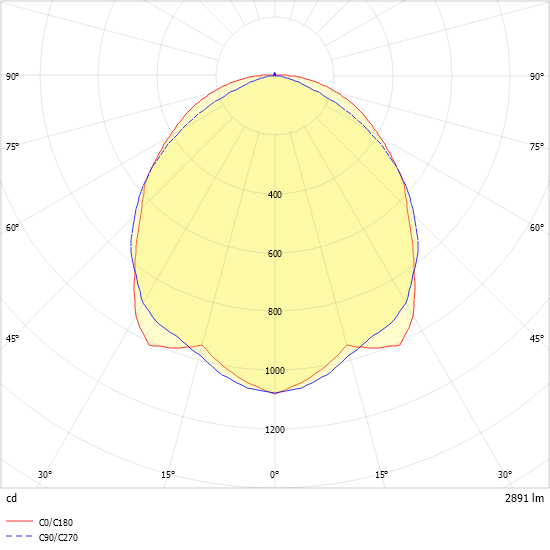

Photometric Data |
Product Image |
---|---|---|---|---|---|---|---|---|---|
SURVIVOR069NDWS830K0250-RF / 0622202//420 | 690 mm | 240 mm | 73 mm | 830 | 2780 lm | 19 W | LDT | IMG | |
SURVIVOR069NDWS840K0300-RF / 0622206//420 | 690 mm | 240 mm | 73 mm | 840 | 2930 lm | 19 W | LDT | IMG | |

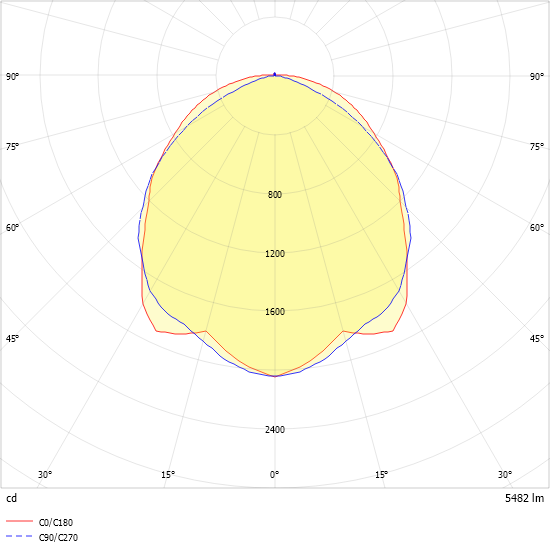

SURVIVOR130NDWS830K0500-RF / 0622210//420 | 1300 mm | 240 mm | 73 mm | 830 | 5560 lm | 35 W | LDT | IMG | |
SURVIVOR130NDWS840K0550-RF / 0622214//420 | 1300 mm | 240 mm | 73 mm | 840 | 5860 lm | 35 W | LDT | IMG | |
SURVIVOR160NDWS830K0650-RF / 0622218//420 | 1600 mm | 240 mm | 73 mm | 830 | 6950 lm | 43 W | LDT | IMG | |
SURVIVOR160NDWS840K0700-RF / 0622222//420 | 1600 mm | 240 mm | 73 mm | 840 | 7330 lm | 43 W | LDT | IMG |
Downloads - S - Satin finish diffuser
Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |

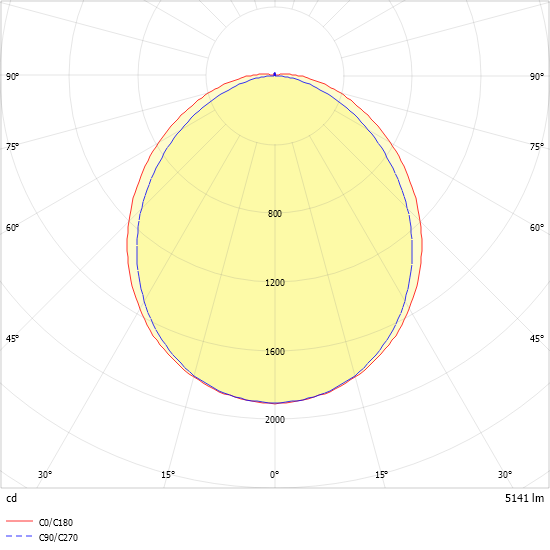

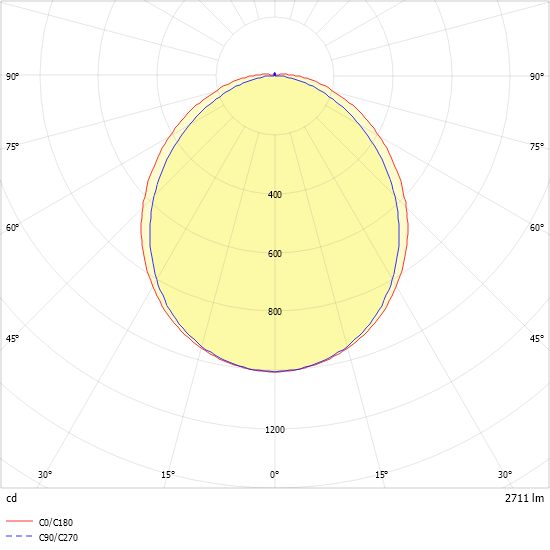

Photometric Data |
Product Image |
---|---|---|---|---|---|---|---|---|---|
SURVIVOR069NDWS830S0250-RF / 0622203//420 | 690 mm | 240 mm | 73 mm | 830 | 2600 lm | 19 W | LDT | IMG | |
SURVIVOR069NDWS840S0250-RF / 0622207//420 | 690 mm | 240 mm | 73 mm | 840 | 2740 lm | 19 W | LDT | IMG | |
SURVIVOR130NDWS830S0500-RF / 0622211//420 | 1300 mm | 240 mm | 73 mm | 830 | 5190 lm | 35 W | LDT | IMG | |
SURVIVOR130NDWS840S0500-RF / 0622215//420 | 1300 mm | 240 mm | 73 mm | 840 | 5480 lm | 35 W | LDT | IMG | |

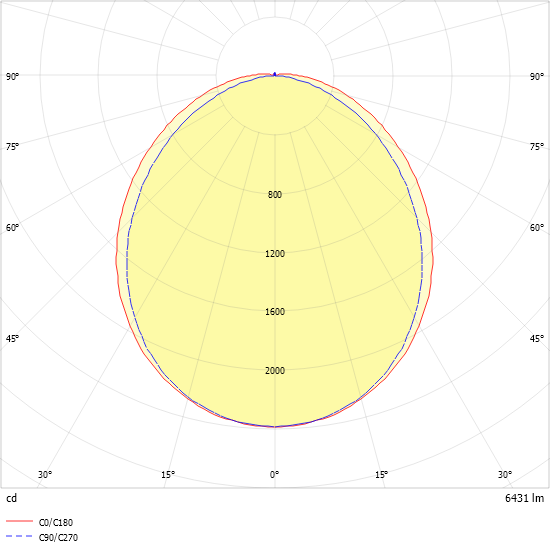

SURVIVOR160NDWS830S0600-RF / 0622219//420 | 1600 mm | 240 mm | 73 mm | 830 | 6490 lm | 43 W | LDT | IMG | |
SURVIVOR160NDWS840S0650-RF / 0622223//420 | 1600 mm | 240 mm | 73 mm | 840 | 6840 lm | 43 W | LDT | IMG |
