Stora
VISUAL COMFORT IN ALL SHAPES
A spectrum of opportunity. Whether used as a classic wall luminaire, a pendant low glare linear workplace luminaire, a feature ceiling design, Stora offers countless options. Scale your lighting to suit the space by using sizes from 420mm to 950mm diameter and lengths from 580 to 1550mm.
LARGE AREAS OF LIGHT
Large luminous surface areas of light offer very good glare control. Many installations across the world have used Stora to achieve large surfaces of light. Increased glare control is possible by specifying prismatic optical panels. By opting for the optional indirect component, a balance can be drawn and light contrast reduced. Tuneable white variants offer the ability to control the light in the circadian principles encouraged in latest well being standards.
LOW PROFILE
Ring shapes (Stora K and Stora LK) are formed with precision using CNC techniques. Stora rings are manufactured in one piece so no light escapes at the joints – diffusers have milled steps in the opal panels to allow thermal expansion but no light bleed. Available in diameters 650, 950, 1200 and 1500mm. The new low profile Stora K allows designers freedom to form a unique unobtrusive lighting language to any space.
Technical Information
Stora Pendant
Rectangular / Square
Dimensions:
L1070mm x W330mm x H75mm
L1565mm x W330mm x H75mm
L580mm x W580mm x H75mm
Output (lm):
3,660 – 5,590lm
Control:
DALI, Non-Dimming
Optics:
Opal, Microprismatic
Colour:
White
Colour Temperatures:
3,000K 4,000K
IP Rating:
IP20
Round
Dimensions:
Ø420mm x H50mm
Ø500mm x H50mm
Ø650mm x H50mm
Output (lm):
3,130 – 5,430lm
Control:
DALI, Non-Dimming
Optics:
Opal, Microprismatic
Colour:
White
Colour Temperatures:
3,000K 4,000K
IP Rating:
IP20
Specific Product Information & Downloads
Downloads - Rectangular / Square
| Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|---|
| STORA-P-LED 5000/830 MPS | 1070 mm | 330 mm | 75 mm | 830 | 3660 lm | 32 W | LDT | IMG | |
| STORA-P-LED 5000/830 MPS-DA | 1070 mm | 330 mm | 75 mm | 830 | 3660 lm | 32 W | LDT | IMG | |
| STORA-P-LED 5200/840 MPS | 1070 mm | 330 mm | 75 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-P-LED 5200/840 MPS-DA | 1070 mm | 330 mm | 75 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-P-LED 5200/840 OS-DA | 1070 mm | 330 mm | 75 mm | 840 | 3720 lm | 32 W | LDT | IMG | |
| STORA-P-LED 7800/840 MPS-DA | 1565 mm | 330 mm | 75 mm | 840 | 5710 lm | 48 W | LDT | IMG | |
| STORA-P-LED 7800/840 OS-DA | 1565 mm | 330 mm | 75 mm | 840 | 5590 lm | 48 W | LDT | IMG | |
| STORA-QP-LED 5000/830 MPS | 580 mm | 580 mm | 75 mm | 830 | 3660 lm | 32 W | LDT | IMG | |
| STORA-QP-LED 5000/830 MPS-DA | 580 mm | 580 mm | 75 mm | 830 | 3660 lm | 32 W | LDT | IMG | |
| STORA-QP-LED 5200/840 MPS | 580 mm | 580 mm | 75 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-QP-LED 5200/840 MPS-DA | 580 mm | 580 mm | 75 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-QP-LED 5200/840 OS-DA | 580 mm | 580 mm | 75 mm | 840 | 3720 lm | 32 W | LDT | IMG |
Downloads - Round
| Product Code | H mm |
Ø mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|
| STORA-RP 420 4300/840 MPS-DA | 50 mm | 420 mm | 840 | 3130 lm | 31 W | LDT | IMG | |
| STORA-RP 420 4300/840 OS | 50 mm | 420 mm | 840 | 3900 lm | 29 W | LDT | IMG | |
| STORA-RP 420 4300/840 OS-DA | 50 mm | 420 mm | 840 | 3900 lm | 29 W | LDT | IMG | |
| STORA-RP 500 4000/830 DPS | 50 mm | 500 mm | 830 | 4430 lm | 34 W | LDT | IMG | |
| STORA-RP 500 4000/840 DPS | 50 mm | 500 mm | 840 | 4650 lm | 34 W | LDT | IMG | |
| STORA-RP 500 DAFWS830DPS0430 | 50 mm | 500 mm | 830 | 4430 lm | 34 W | LDT | IMG | |
| STORA-RP 500 DAFWS830OS0430 | 50 mm | 500 mm | 830 | 3880 lm | 34 W | LDT | IMG | |
| STORA-RP 500 DAFWS840DPS0450 | 50 mm | 500 mm | 840 | 4650 lm | 34 W | LDT | IMG | |
| STORA-RP 500 DAFWS840OS0450 | 50 mm | 500 mm | 840 | 4080 lm | 34 W | LDT | IMG | |
| STORA-RP 500 NDFWS830OS0430 | 50 mm | 500 mm | 830 | 3880 lm | 34 W | LDT | IMG | |
| STORA-RP 500 NDFWS840OS0450 | 50 mm | 500 mm | 840 | 4080 lm | 34 W | LDT | IMG | |
| STORA-RP 650 6000/830 DPS | 50 mm | 650 mm | 830 | 5170 lm | 36,5 W | LDT | IMG | |
| STORA-RP 650 6000/830 DPS-DA | 50 mm | 650 mm | 830 | 5170 lm | 36,5 W | LDT | IMG | |
| STORA-RP 650 6000/830 OS | 50 mm | 650 mm | 830 | 4380 lm | 36,5 W | LDT | IMG | |
| STORA-RP 650 6000/840 DPS | 50 mm | 650 mm | 840 | 5430 lm | 36,5 W | LDT | IMG | |
| STORA-RP 650 6000/840 DPS-DA | 50 mm | 650 mm | 840 | 5430 lm | 36,5 W | LDT | IMG | |
| STORA-RP 650 6000/840 OS | 50 mm | 650 mm | 840 | 4600 lm | 36,5 W | LDT | IMG | |
| STORA-RP 650 6000/840 OS-DA | 50 mm | 650 mm | 840 | 4880 lm | 36 W | LDT | IMG | |
| STORA-RP 650 DAFWS830OS | 50 mm | 650 mm | 830 | 4380 lm | 36,5 W | LDT | IMG |
Stora Surface
Rectangular / Square
Dimensions:
L1070mm x W330mm x H85mm
L1565mm x W330mm x H85mm
L312mm x W312mm x H85mm
L580mm x W580mm x H75mm
Output (lm):
1,900 – 5,710lm
Control:
DALI, Non-Dimming
Optics:
Opal, Microprismatic
Colour:
White
Colour Temperatures:
3,000K 4,000K
IP Rating:
IP20
Round
Dimensions:
Ø420mm x H80mm
Ø500mm x H80mm
Ø650mm x H80mm
Output (lm):
3,130 – 5,170lm
Control:
DALI, Non-Dimming
Optics:
Opal, Microprismatic
Colour:
White
Colour Temperatures:
3,000K 4,000K
IP Rating:
IP20
Specific Product Information & Downloads
Downloads - Rectangular / Square
| Product Code | L mm |
W mm |
H mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|---|
| STORA-PA-LED 5000/830 MPS-SI | 1070 mm | 330 mm | 85 mm | 830 | 3660 lm | 32 W | LDT | IMG | |
| STORA-PA-LED 5000/830 MPS-SI | 1070 mm | 330 mm | 85 mm | 830 | 3660 lm | 32 W | LDT | IMG | |
| STORA-PA-LED 5200/840 MPS | 1070 mm | 330 mm | 85 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-PA-LED 5200/840 MPS-DA | 1070 mm | 330 mm | 85 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-PA-LED 5200/840 OS-DA | 1070 mm | 330 mm | 85 mm | 840 | 3720 lm | 32 W | LDT | IMG | |
| STORA-PA-LED 7800/840 MPS-DA | 1565 mm | 330 mm | 85 mm | 840 | 5710 lm | 48 W | LDT | IMG | |
| STORA-PA-LED 7800/840 OS-DA | 1565 mm | 330 mm | 85 mm | 840 | 5590 lm | 48 W | LDT | IMG | |
| STORA-QA-LED 2600/840 MPS-DA | 312 mm | 312 mm | 80 mm | 840 | 1900 lm | 16 W | LDT | IMG | |
| STORA-QA-LED 2600/840 OS | 312 mm | 312 mm | 80 mm | 840 | 1860 lm | 16 W | LDT | IMG | |
| STORA-QA-LED 2600/840 OS-DA | 312 mm | 312 mm | 80 mm | 840 | 1860 lm | 16 W | LDT | IMG | |
| STORA-QA-LED 5200/840 MPS | 580 mm | 580 mm | 95 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-QA-LED 5200/840 MPS-DA | 580 mm | 580 mm | 95 mm | 840 | 3810 lm | 32 W | LDT | IMG | |
| STORA-QA-LED 5200/840 OS-DA | 580 mm | 580 mm | 95 mm | 840 | 3720 lm | 32 W | LDT | IMG |
Downloads - Round
| Product Code | H mm |
Ø mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|
| STORA-RA 420 4300/840 OS | 80 mm | 420 mm | 840 | 3600 lm | 29 W | LDT | IMG | |
| STORA-RA 420 4300/840 OS-DA | 80 mm | 420 mm | 840 | 3600 lm | 29 W | LDT | IMG | |
| STORA-RA 500 4000/830 DPS | 80 mm | 500 mm | 830 | 4430 lm | 34 W | LDT | IMG | |
| STORA-RA 500 4000/840 DPS | 80 mm | 500 mm | 840 | 4650 lm | 34 W | LDT | IMG | |
| STORA-RA 500 DAFWS830DPS0430 | 80 mm | 500 mm | 830 | 4430 lm | 34 W | LDT | IMG | |
| STORA-RA 500 DAFWS830OS0430 | 80 mm | 500 mm | 830 | 4230 lm | 34 W | LDT | IMG | |
| STORA-RA 500 DAFWS840DPS0450 | 80 mm | 500 mm | 840 | 4650 lm | 34 W | LDT | IMG | |
| STORA-RA 500 DAFWS840OS0450 | 80 mm | 500 mm | 840 | 4430 lm | 34 W | LDT | IMG | |
| STORA-RA 500 NDFWS830OS0430 | 80 mm | 500 mm | 830 | 4230 lm | 34 W | LDT | IMG | |
| STORA-RA 500 NDFWS840OS0450 | 80 mm | 500 mm | 840 | 4430 lm | 34 W | LDT | IMG | |
| STORA-RA 650 6000/830 DPS | 80 mm | 650 mm | 830 | 5170 lm | 36,5 W | LDT | IMG | |
| STORA-RA 650 6000/830 DPS-DA | 80 mm | 650 mm | 830 | 5170 lm | 36,5 W | LDT | IMG | |
| STORA-RA 650 6000/830 OS | 80 mm | 650 mm | 830 | 4640 lm | 36 W | LDT | IMG | |
| STORA-RA 650 6000/830 OS-DA | 80 mm | 650 mm | 830 | 4640 lm | 36 W | LDT | IMG | |
| STORA-RA 650 6000/840 DPS | 80 mm | 650 mm | 840 | 5430 lm | 36,5 W | LDT | IMG | |
| STORA-RA 650 6000/840 DPS-DA | 80 mm | 650 mm | 840 | 5430 lm | 36,5 W | LDT | IMG | |
| STORA-RA 650 6000/840 OS | 80 mm | 650 mm | 840 | 4880 lm | 36 W | LDT | IMG | |
| STORA-RA 650 6000/840 OS-DA | 80 mm | 650 mm | 840 | 4880 lm | 36 W | LDT | IMG | |
| STORA-RA-LED 4300/840 MPS-DA | 80 mm | 420 mm | 840 | 3130 lm | 31 W | LDT | IMG |
Projects Featuring Stora
The international Quarter building 5
Spectral Lighting are delighted to be connected with one of London’s landmark projects, The International Quarter ...
Taboola – 33 Aldgate
Since 2007 Taboola have been building the world’s largest and most advanced ‘discovery platform’ — or “search ...

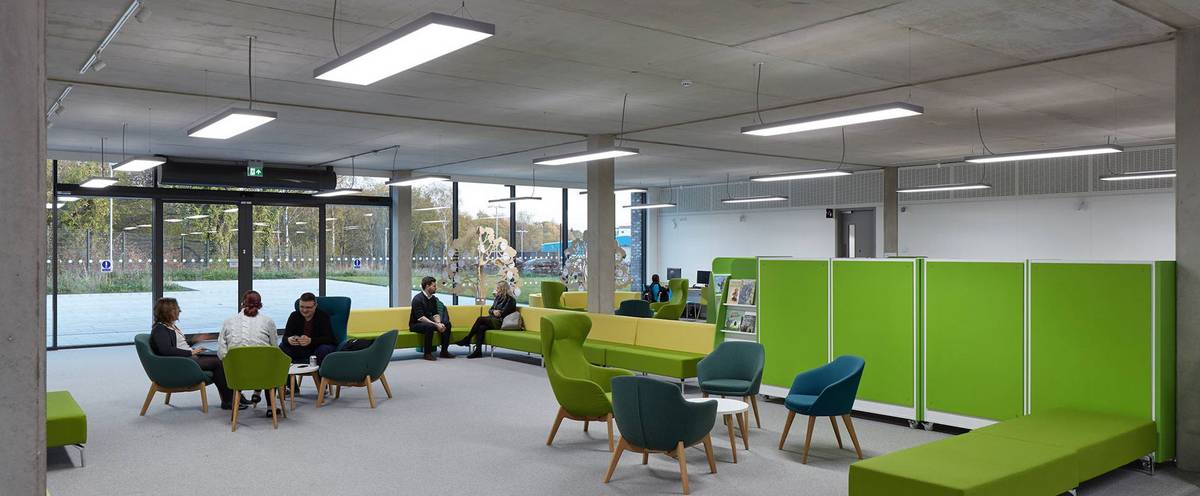

TouchBase Pears, Birmingham
