PURELIGHT

Purelight is a high performance yet homogenous light with gentle glare free distribution and timeless style.

PURE. LIGHT.

Visual light is important for our basic visual performance. The balance between ambient and task illumination is a key factor in our day to day tasks. Good eye comfort and the reduction of glare is essential for our well-being. Purelight has a soft and diffuse light that that emits good all-round balanced light on all surrounding surfaces which in turn reduces the perceived visual brightness of the luminaire. This is in turn helps achieve a low UGR rating.

PURE. WELLBEING.

Purelight can be specified with controllable colour temperature range from 2700 Kelvin to 6500 Kelvin to mirror our circadian daily cycle. This is an important and popular way to meet the requirements of Well Standards. However, the luminaire design is often overlooked and Purelight’s good all-round balanced light makes for a perfectly tranquil and pleasing work environment.

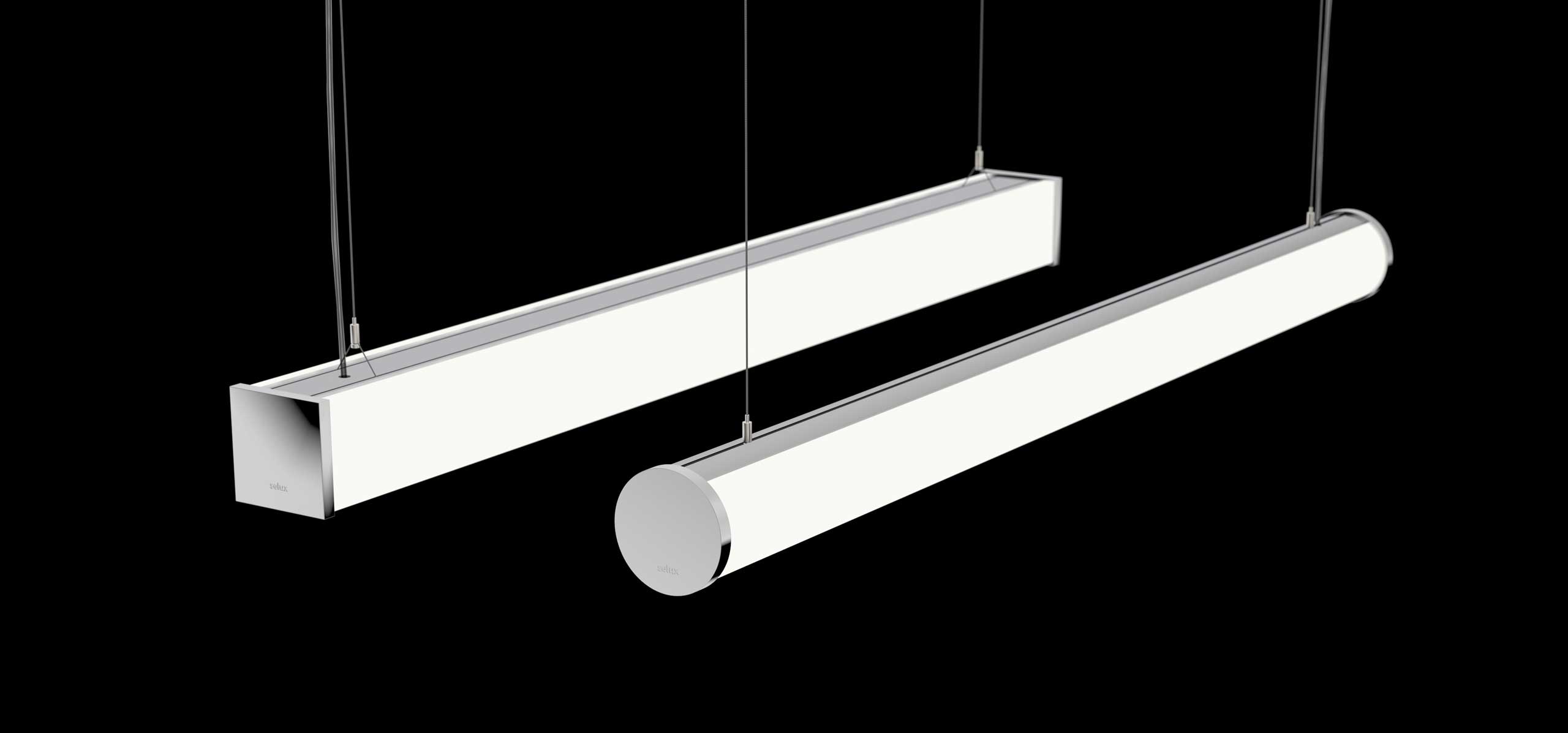

PURE AND MINIMALIST

Purelight can be specified as a 90mm tubular or square section in standard lengths up to 2.4m and to special order up to 4.7 metres long.

PROJECT SPECIFIC

Due to the timeless geometric shapes, Purelight offers many opportunities for unique projects.

UP TO 4.7M LONG

Technical Information

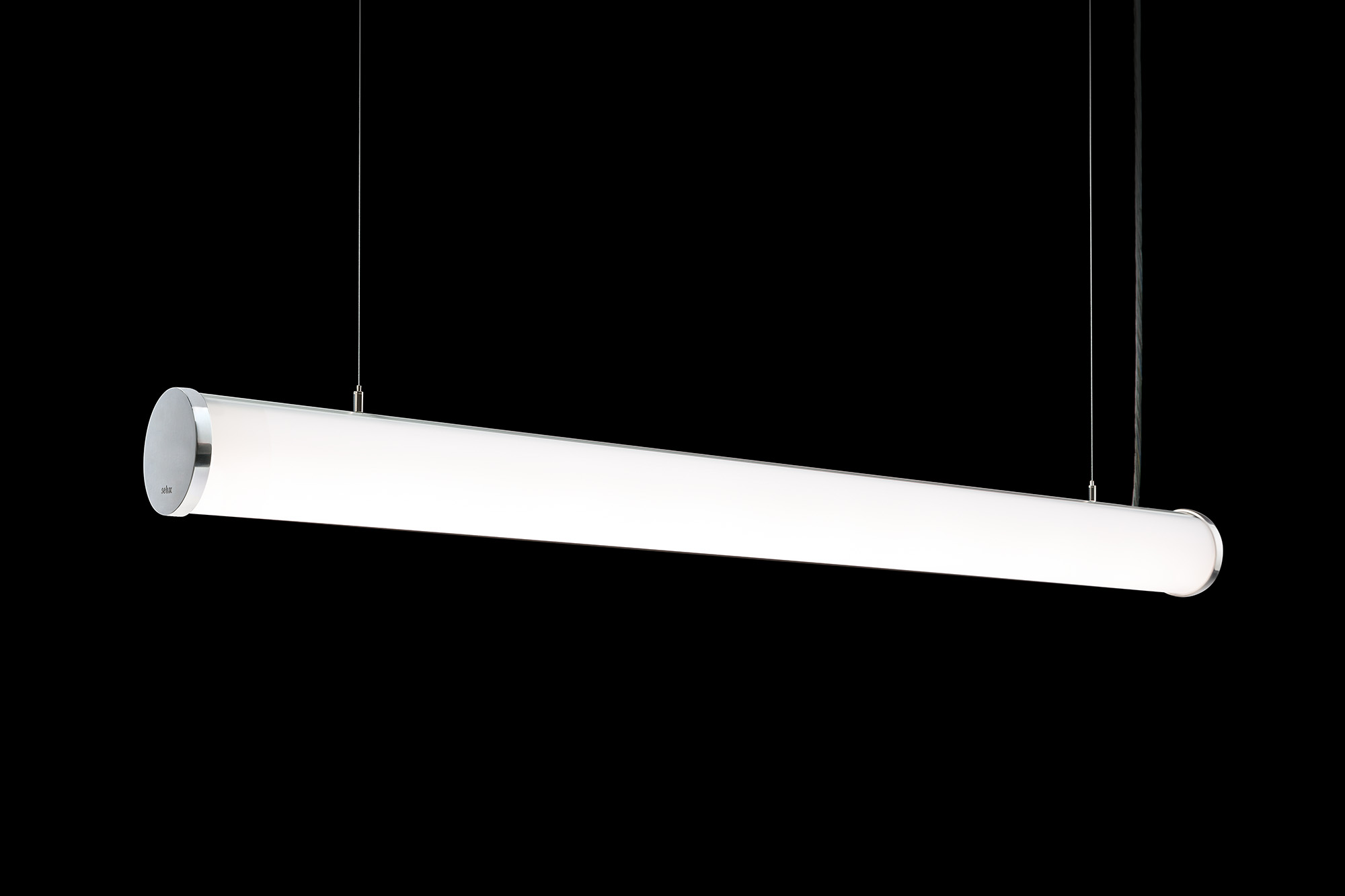

Purelight Round

Dimensions:

Ø: 95mm
L: 900mm, 1,200mm, 1,500m, 1,800mm, 2,400mm
Optics:
(O) Opal
Output (lm):
3,340 – 10,020 lm
Control:
(DA) DALI

Colour Temperatures:
(830) 3,000K
(840) 4,000K
(TW) 2,700 – 6,500K Tuneable White
Colours:
(MC) Polished & lacquered metal end caps
(SI) Silver powder coated end caps
(WS) White powder coated end caps
IP Rating:
IP20

Pendant (RP) - Product Information & Downloads
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
PURELIGHT-RP090 DAMC830O0350 903 mm 95 mm 95 mm 830 3570 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DAMC840O0400 903 mm 95 mm 95 mm 840 3760 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DAMC8TWO0350 903 mm 95 mm 95 mm 927-965 3340 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DASI830O0350 903 mm 95 mm 95 mm 830 3570 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DASI840O0400 903 mm 95 mm 95 mm 840 3760 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DASI8TWO0350 903 mm 95 mm 95 mm 927-965 3340 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DAWS830O0350 903 mm 95 mm 95 mm 830 3570 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DAWS840O0400 903 mm 95 mm 95 mm 840 3760 lm 26 W PDF LDT IMG
PURELIGHT-RP090 DAWS8TWO0350 903 mm 95 mm 95 mm 927-965 3340 lm 26 W PDF LDT IMG
PURELIGHT-RP120 DAMC830O0500 1198 mm 95 mm 95 mm 830 4750 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DAMC840O0500 1198 mm 95 mm 95 mm 840 5010 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DAMC8TWO0450 1198 mm 95 mm 95 mm 927-965 4470 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DASI830O0500 1198 mm 95 mm 95 mm 830 4750 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DASI840O0500 1198 mm 95 mm 95 mm 840 5010 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DASI8TWO0450 1198 mm 95 mm 95 mm 927-965 4470 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DAWS830O0500 1198 mm 95 mm 95 mm 830 4750 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DAWS840O0500 1198 mm 95 mm 95 mm 840 5010 lm 35 W PDF LDT IMG
PURELIGHT-RP120 DAWS8TWO0450 1198 mm 95 mm 95 mm 927-965 4470 lm 35 W PDF LDT IMG
PURELIGHT-RP149 DAMC830O0600 1494 mm 95 mm 95 mm 830 5940 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DAMC840O0650 1494 mm 95 mm 95 mm 840 6260 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DAMC8TWO0550 1494 mm 95 mm 95 mm 927-965 5580 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DASI830O0600 1494 mm 95 mm 95 mm 830 5940 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DASI840O0650 1494 mm 95 mm 95 mm 840 6260 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DASI8TWO0550 1494 mm 95 mm 95 mm 927-965 5580 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DAWS830O0600 1494 mm 95 mm 95 mm 830 5940 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DAWS840O0650 1494 mm 95 mm 95 mm 840 6260 lm 44 W PDF LDT IMG
PURELIGHT-RP149 DAWS8TWO0550 1494 mm 95 mm 95 mm 927-965 5580 lm 44 W PDF LDT IMG
PURELIGHT-RP179 DAMC830O0700 1789 mm 95 mm 95 mm 830 7130 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DAMC840O0750 1789 mm 95 mm 95 mm 840 7520 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DAMC8TWO0650 1789 mm 95 mm 95 mm 927-965 6700 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DASI830O0700 1789 mm 95 mm 95 mm 830 7130 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DASI840O0750 1789 mm 95 mm 95 mm 840 7520 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DASI8TWO0650 1789 mm 95 mm 95 mm 927-965 6700 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DAWS830O0700 1789 mm 95 mm 95 mm 830 7130 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DAWS840O0750 1789 mm 95 mm 95 mm 840 7520 lm 53 W PDF LDT IMG
PURELIGHT-RP179 DAWS8TWO0650 1789 mm 95 mm 95 mm 927-965 6700 lm 53 W PDF LDT IMG
PURELIGHT-RP238 DAMC830O0950 2380 mm 95 mm 95 mm 830 9510 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DAMC840O1000 2380 mm 95 mm 95 mm 840 10020 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DAMC8TWO0900 2380 mm 95 mm 95 mm 927-965 8930 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DASI830O0950 2380 mm 95 mm 95 mm 830 9510 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DASI840O1000 2380 mm 95 mm 95 mm 840 10020 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DASI8TWO0900 2380 mm 95 mm 95 mm 927-965 8930 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DAWS830O0950 2380 mm 95 mm 95 mm 830 9510 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DAWS840O1000 2380 mm 95 mm 95 mm 840 10020 lm 70 W PDF LDT IMG
PURELIGHT-RP238 DAWS8TWO0900 2380 mm 95 mm 95 mm 927-965 8930 lm 70 W PDF LDT IMG
Surface (RA) - Product Information & Downloads
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
PURELIGHT-RA090 DAMC830O0350 903 mm 95 mm 114 mm 830 3570 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DAMC840O0400 903 mm 95 mm 114 mm 840 3760 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DAMC8TWO0350 903 mm 95 mm 114 mm 927-965 3340 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DASI830O0350 903 mm 95 mm 114 mm 830 3570 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DASI840O0400 903 mm 95 mm 114 mm 840 3760 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DASI8TWO0350 903 mm 95 mm 114 mm 927-965 3340 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DAWS830O0350 903 mm 95 mm 114 mm 830 3570 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DAWS840O0400 903 mm 95 mm 114 mm 840 3760 lm 26 W PDF LDT IMG
PURELIGHT-RA090 DAWS8TWO0350 903 mm 95 mm 114 mm 927-965 3340 lm 26 W PDF LDT IMG
PURELIGHT-RA120 DAMC830O0500 1198 mm 95 mm 114 mm 830 4750 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DAMC840O0500 1198 mm 95 mm 114 mm 840 5010 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DAMC8TWO0450 1198 mm 95 mm 114 mm 927-965 4470 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DASI830O0500 1198 mm 95 mm 114 mm 830 4750 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DASI840O0500 1198 mm 95 mm 114 mm 840 5010 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DASI8TWO0450 1198 mm 95 mm 114 mm 927-965 4470 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DAWS830O0500 1198 mm 95 mm 114 mm 830 4750 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DAWS840O0500 1198 mm 95 mm 114 mm 840 5010 lm 35 W PDF LDT IMG
PURELIGHT-RA120 DAWS8TWO0450 1198 mm 95 mm 114 mm 927-965 4470 lm 35 W PDF LDT IMG
PURELIGHT-RA149 DAMC830O0600 1494 mm 95 mm 114 mm 830 5940 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DAMC840O0650 1494 mm 95 mm 114 mm 840 6260 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DAMC8TWO0550 1494 mm 95 mm 114 mm 927-965 5580 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DASI830O0600 1494 mm 95 mm 114 mm 830 5940 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DASI840O0650 1494 mm 95 mm 114 mm 840 6260 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DASI8TWO0550 1494 mm 95 mm 114 mm 927-965 5580 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DAWS830O0600 1494 mm 95 mm 114 mm 830 5940 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DAWS840O0650 1494 mm 95 mm 114 mm 840 6260 lm 44 W PDF LDT IMG
PURELIGHT-RA149 DAWS8TWO0550 1494 mm 95 mm 114 mm 927-965 5580 lm 44 W PDF LDT IMG
PURELIGHT-RA179 DAMC830O0700 1789 mm 95 mm 114 mm 830 7130 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DAMC840O0750 1789 mm 95 mm 114 mm 840 7520 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DAMC8TWO0650 1789 mm 95 mm 114 mm 927-965 6700 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DASI830O0700 1789 mm 95 mm 114 mm 830 7130 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DASI840O0750 1789 mm 95 mm 114 mm 840 7520 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DASI8TWO0650 1789 mm 95 mm 114 mm 927-965 6700 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DAWS830O0700 1789 mm 95 mm 114 mm 830 7130 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DAWS840O0750 1789 mm 95 mm 114 mm 840 7520 lm 53 W PDF LDT IMG
PURELIGHT-RA179 DAWS8TWO0650 1789 mm 95 mm 114 mm 927-965 6700 lm 53 W PDF LDT IMG
PURELIGHT-RA238 DAMC830O0950 2380 mm 95 mm 114 mm 830 9510 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DAMC840O1000 2380 mm 95 mm 114 mm 840 10020 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DAMC8TWO0900 2380 mm 95 mm 114 mm 927-965 8930 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DASI830O0950 2380 mm 95 mm 114 mm 830 9510 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DASI840O1000 2380 mm 95 mm 114 mm 840 10020 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DASI8TWO0900 2380 mm 95 mm 114 mm 927-965 8930 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DAWS830O0950 2380 mm 95 mm 114 mm 830 9510 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DAWS840O1000 2380 mm 95 mm 114 mm 840 10020 lm 70 W PDF LDT IMG
PURELIGHT-RA238 DAWS8TWO0900 2380 mm 95 mm 114 mm 927-965 8930 lm 70 W PDF LDT IMG

Purelight Square

Dimensions:

Ø: 95mm
L: 900mm, 1,200mm, 1,500m, 1,800mm, 2,400mm
Optics:
(O) Opal
Output (lm):
2,290 – 9,660 lm
Control:
(DA) DALI

Colour Temperatures:
(830) 3,000K
(840) 4,000K
(TW) 2,700 – 6,500K Tuneable White
Colours:
(MC) Polished & lacquered metal end caps
(SI) Silver powder coated end caps
(WS) White powder coated end caps
IP Rating:
IP20

Pendant (QP) - Product Information & Downloads
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
PURELIGHT-QP061 DAMC830O0250 616 mm 95 mm 95 mm 830 2290 lm 18 W PDF LDT IMG
PURELIGHT-QP061 DAMC840O0250 616 mm 95 mm 95 mm 840 2290 lm 18 W PDF LDT IMG
PURELIGHT-QP061 DAMC8TWO0225 616 mm 95 mm 95 mm 927-965 2150 lm 18 W PDF LDT IMG
PURELIGHT-QP090 DAMC830O0350 912 mm 95 mm 95 mm 830 3440 lm 26 W PDF LDT IMG
PURELIGHT-QP090 DAMC840O0350 912 mm 95 mm 95 mm 840 3620 lm 26 W PDF LDT IMG
PURELIGHT-QP090 DAMC8TWO0300 912 mm 95 mm 95 mm 927-965 3220 lm 26 W PDF LDT IMG
PURELIGHT-QP120 DAMC830O0450 1207 mm 95 mm 95 mm 830 4580 lm 35 W PDF LDT IMG
PURELIGHT-QP120 DAMC840O0500 1207 mm 95 mm 95 mm 840 4830 lm 35 W PDF LDT IMG
PURELIGHT-QP120 DAMC8TWO0450 1207 mm 95 mm 95 mm 927-965 4310 lm 35 W PDF LDT IMG
PURELIGHT-QP149 DAMC830O0550 1503 mm 95 mm 95 mm 830 5730 lm 44 W PDF LDT IMG
PURELIGHT-QP149 DAMC840O0600 1503 mm 95 mm 95 mm 840 6040 lm 44 W PDF LDT IMG
PURELIGHT-QP149 DAMC8TWO0550 1503 mm 95 mm 95 mm 927-965 5380 lm 44 W PDF LDT IMG
PURELIGHT-QP179 DAMC830O0700 1798 mm 95 mm 95 mm 830 6880 lm 53 W PDF LDT IMG
PURELIGHT-QP179 DAMC840O0700 1798 mm 95 mm 95 mm 840 7250 lm 53 W PDF LDT IMG
PURELIGHT-QP179 DAMC8TWO0650 1798 mm 95 mm 95 mm 927-965 6460 lm 53 W PDF LDT IMG
PURELIGHT-QP238 DAMC830O0900 2389 mm 95 mm 95 mm 830 9170 lm 70 W PDF LDT IMG
PURELIGHT-QP238 DAMC840O0950 2389 mm 95 mm 95 mm 840 9660 lm 70 W PDF LDT IMG
PURELIGHT-QP238 DAMC8TWO0850 2389 mm 95 mm 95 mm 927-965 8610 lm 70 W PDF LDT IMG
Surface (QA) - Product Information & Downloads
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
PURELIGHT-QA061 DAMC830O0250 616 mm 95 mm 114 mm 830 2290 lm 18 W PDF LDT IMG
PURELIGHT-QA061 DAMC840O0250 616 mm 95 mm 114 mm 840 2420 lm 18 W PDF LDT IMG
PURELIGHT-QA061 DAMC8TWO0225 616 mm 95 mm 114 mm 927-965 2150 lm 18 W PDF LDT IMG
PURELIGHT-QA090 DAMC830O0350 912 mm 95 mm 114 mm 830 3440 lm 26 W PDF LDT IMG
PURELIGHT-QA090 DAMC840O0350 912 mm 95 mm 114 mm 840 3620 lm 26 W PDF LDT IMG
PURELIGHT-QA090 DAMC8TWO0300 912 mm 95 mm 114 mm 927-965 3220 lm 26 W PDF LDT IMG
PURELIGHT-QA120 DAMC830O0450 1207 mm 95 mm 114 mm 830 4580 lm 35 W PDF LDT IMG
PURELIGHT-QA120 DAMC840O0500 1207 mm 95 mm 114 mm 840 4830 lm 35 W PDF LDT IMG
PURELIGHT-QA120 DAMC8TWO0450 1207 mm 95 mm 114 mm 927-965 4310 lm 35 W PDF LDT IMG
PURELIGHT-QA149 DAMC830O0550 1503 mm 95 mm 114 mm 830 5730 lm 44 W PDF LDT IMG
PURELIGHT-QA149 DAMC840O0600 1503 mm 95 mm 114 mm 840 6040 lm 44 W PDF LDT IMG
PURELIGHT-QA149 DAMC8TWO0550 1503 mm 95 mm 114 mm 927-965 5380 lm 44 W PDF LDT IMG
PURELIGHT-QA179 DAMC830O0700 1798 mm 95 mm 114 mm 830 6880 lm 53 W PDF LDT IMG
PURELIGHT-QA179 DAMC840O0700 1798 mm 95 mm 114 mm 840 7250 lm 53 W PDF LDT IMG
PURELIGHT-QA179 DAMC8TWO0650 1798 mm 95 mm 114 mm 927-965 6460 lm 53 W PDF LDT IMG
PURELIGHT-QA238 DAMC830O0900 2389 mm 95 mm 114 mm 830 9170 lm 70 W PDF LDT IMG
PURELIGHT-QA238 DAMC840O0950 2389 mm 95 mm 114 mm 840 9660 lm 70 W PDF LDT IMG
PURELIGHT-QA238 DAMC8TWO0850 2389 mm 95 mm 114 mm 927-965 8610 lm 70 W PDF LDT IMG

Download

Projects Featuring Purelight

Freiburg University Library

Freiburg University Library

Freiburg University Library is one of the largest scientific libraries in Germany. The design of the building was done by Degelo Architects office in Basel.
