LIGHTING AND ACOUSTICS

With the trend for refurbishing our older buildings and stripping the ceilings back to more raw exposed structures and services, the potential problem surrounding acoustic attenuation is often neglected. PixL by Spectral provides an innovative background lighting solution that can either be configured to supplement the main lighting scheme or be the major part of the scheme – depending on look and lighting level requirements. The PixL rafts provide a high level of acoustic absorption and can be configured to take addition items such as sensors and other peripheral services

Discrete and stylish

The multi-cellular LED optics remain invisible when turned off but reveal themselves in a starlight effect when turned on. The holes form gentle cylindrical reflectors due to the thickness of the acoustic material and this gives a gentle and controlled downward light, making it thoroughly comfortable for office use. The system also works well in AV rooms and theatres to add a sense of drama to the room.

Sustainable

PixL offers a fully sustainable approach to future maintenance by offering parts that can be dropped in and out for replacement or repair. All electronic items are modular and fully accessible for servicing and are supported by RIDI Groups 10 year parts minimum commitment.

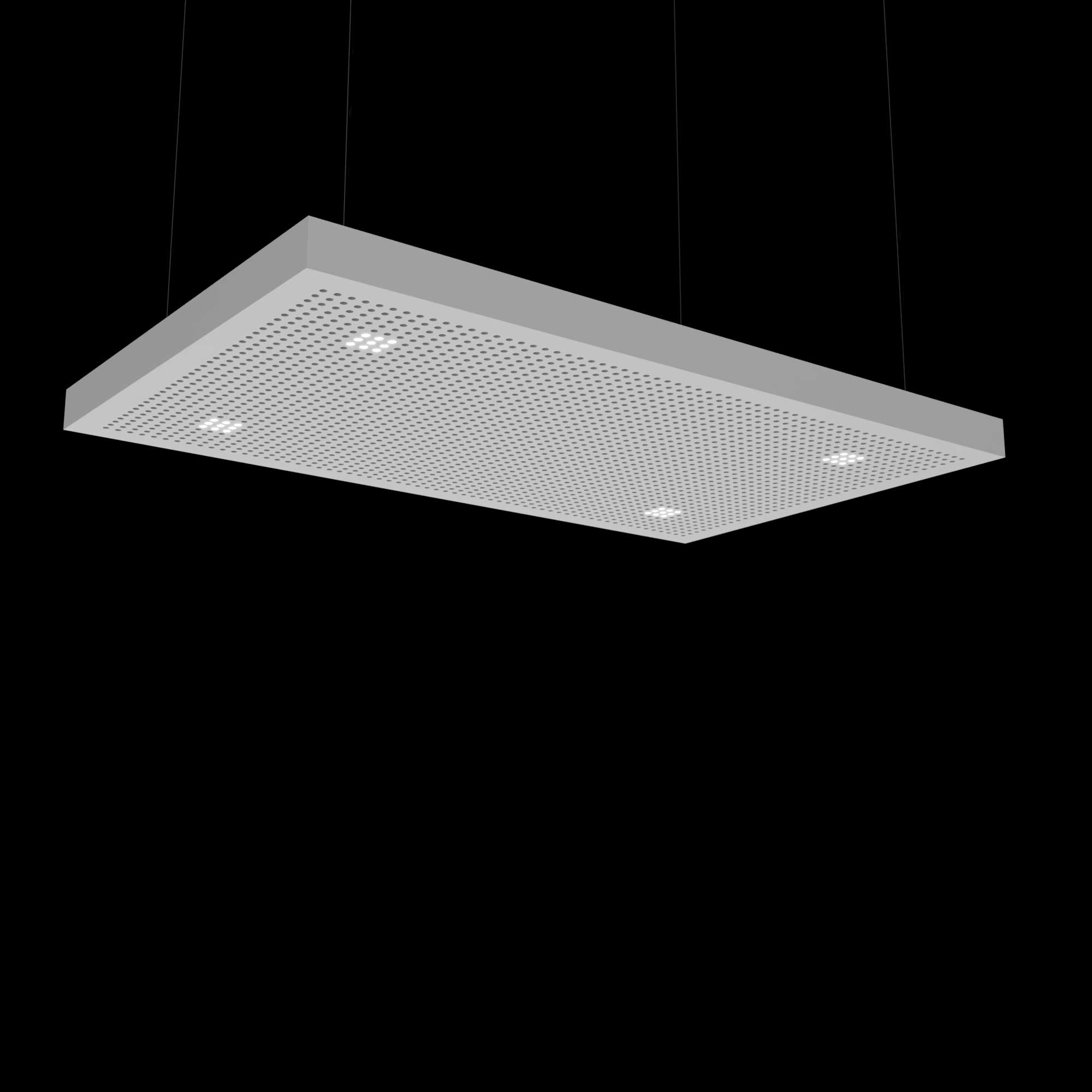

PixL

Dimensions:
L: 1980mm
W: 1200mm
D: 75mmmm
Output (lm):
4,120 – 14,720 lm
Control:
DALI
Casambi Wireless
Non-Dimming

Colour Temperatures:
4,000K
Colours:
White, Can be painted on site
IP Rating:
IP20

Specific Product Information
Product Code L
mm		 W
mm		 H
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 Product
PixL 4 DAWS840HE044 1980 mm 1200 mm 75 mm 840 4,120 lm 36 PDF TBA
PixL 4 DAWS840HO080 1980 mm 1200 mm 75 mm 840 7,360 lm 75 PDF TBA
PixL 5 DAWS840HE055 1980 mm 1200 mm 75 mm 840 5,150 lm 45 PDF TBA
PixL 5 DAWS840HO100 1980 mm 1200 mm 75 mm 840 9,200 lm 93 PDF TBA
PixL 6 DAWS840HE066 1980 mm 1200 mm 75 mm 840 6,180 lm 54 PDF TBA
PixL 6 DAWS840HO120 1980 mm 1200 mm 75 mm 840 11,040 lm 112 PDF TBA
PixL 8 DAWS840HE088 1980 mm 1200 mm 75 mm 840 8,240 lm 72 PDF TBA
PixL 8 DAWS840HO160 1980 mm 1200 mm 75 mm 840 14,720 lm 149 PDF TBA
