PFLO

  • IP66
  • GRP Body
  • Polycarbonate Diffuser
  • Stainless Steel Clips
  • Integral 3hr Emergency Version

Technical Information

PFLO

IP66 Vapourproof luminaire for surface mounting or suspending

Lengths:
600mm 1200mm 1500mm
Output (lm):
2000 – 10,500lm
Distribution:
Opal Prismatic
Options:
ND Non-Dimming
DA DALI
EDS3 Self Test Emergency

Colour Temperatures:
4,000K
Colours:
Grey
IP Rating:
IP66

Specific Product Information and Downloads

PFLO .. O - Polycarbonate Opal Diffuser High Output
Product Code L
mm</th”>		 W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
PFLO-1270DAKG840O0850 / 0931256 1270 mm 110 mm 100 mm 840 8580 lm 59,6 W PDF LDT

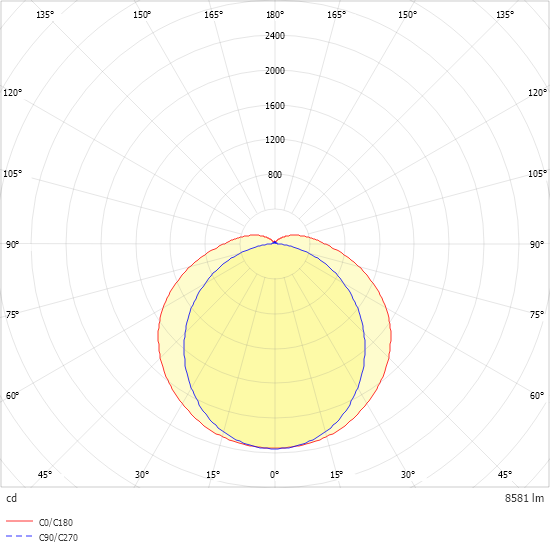

PFLO-1270NDKG840O0850 / 0921256 1270 mm 110 mm 100 mm 840 8580 lm 59,6 W PDF LDT

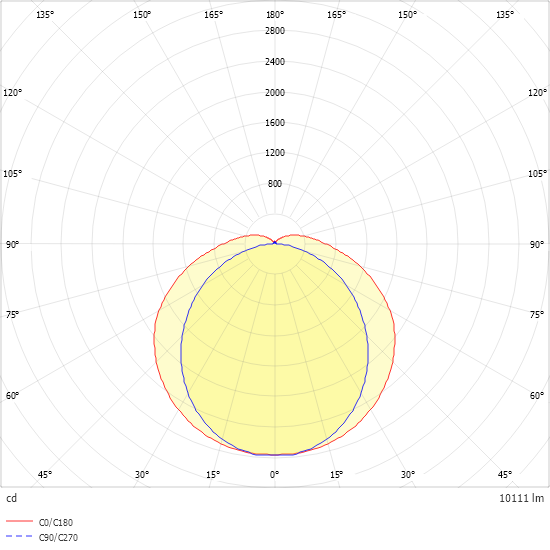

PFLO-1570DAKG840O1000 / 0931248 1570 mm 110 mm 100 mm 840 10110 lm 69,5 W PDF LDT
PFLO-1570NDKG840O1000 / 0921248 1570 mm 110 mm 100 mm 840 10110 lm 69,5 W PDF LDT
PFZO-NP .. O Polycarbonate Opal Diffuser
Product Code L
mm</th”>		 W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
PFLO-NP0660DAKG840O0350 / 0931235 660 mm 110 mm 100 mm 840 3620 lm 23 W PDF

LDT
PFLO-NP0660NDKG840O0350 / 0921235 660 mm 110 mm 100 mm 840 3620 lm 23 W PDF

LDT
PFLO-NP1270DAKG840O0450 / 0931236 1270 mm 110 mm 100 mm 840 4520 lm 33,9 W PDF

LDT
PFLO-NP1270NDKG840O0450 / 0921236 1270 mm 110 mm 100 mm 840 4520 lm 33,9 W PDF

LDT
PFLO-NP1570DAKG840O0600 / 0931237 1570 mm 110 mm 100 mm 840 6020 lm 43,7 W PDF

LDT
PFLO-NP1570NDKG840O0600 / 0921237 1570 mm 110 mm 100 mm 840 6020 lm 43,7 W PDF

LDT
PFLO-NP1270DAKG840O0450-EDS3 / 0931249 1270 mm 110 mm 100 mm 840 4520 lm 33,9 W PDF

LDT
PFLO-NP1270NDKG840O0450-EDS3 / 0921249 1270 mm 110 mm 100 mm 840 4520 lm 33,9 W PDF

LDT
PFLO-NP1570DAKG840O0600-EDS3 / 0931250 1570 mm 110 mm 100 mm 840 6020 lm 43,7 W PDF

LDT
PFLO-NP1570NDKG840O0600-EDS3 / 0921250 1570 mm 110 mm 100 mm 840 6020 lm 43,7 W PDF

LDT
PFLOA .. O - Acrylic Opal Diffuser High Output
Product Code L
mm</th”>		 W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
PFLOA-1270DAKG840O0900 / 0931257 1270 mm 110 mm 100 mm 840 8850 lm 59,6 W PDF

LDT

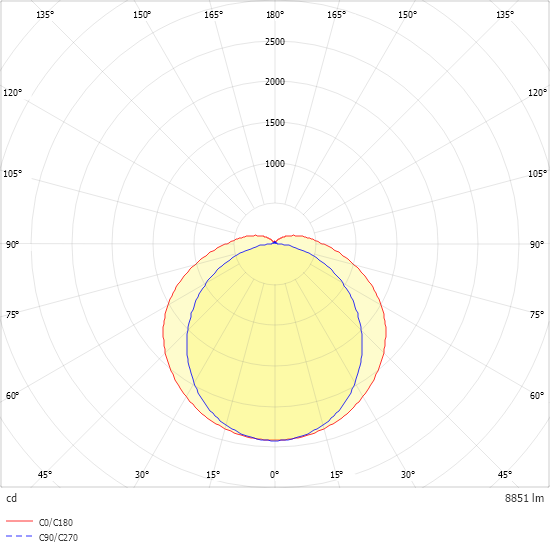

PFLOA-1270NDKG840O0900 / 0921257 1270 mm 110 mm 100 mm 840 8850 lm 59,6 W PDF

LDT
PFLOA-1570DAKG840O1000 / 0931247 1570 mm 110 mm 100 mm 840 10460 lm 69,5 W PDF

LDT

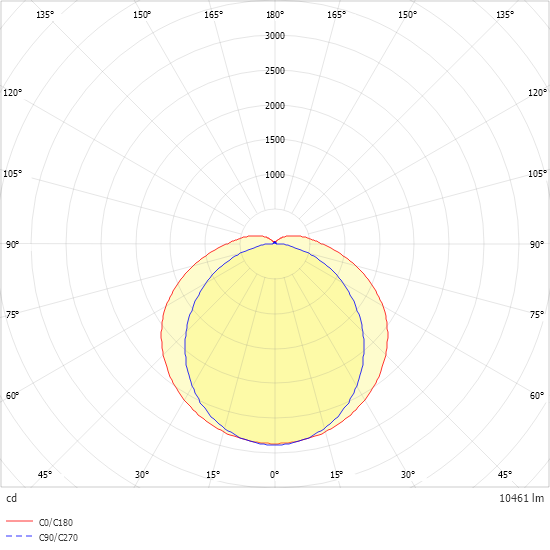

PFLOA-1570NDKG840O1000 / 0921247 1570 mm 110 mm 100 mm 840 10460 lm 69,5 W PDF

LDT
PFLOA-NP .. O - Acrylic Opal Diffuser
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
PFLOA-NP0660DAKG840O0350 / 0931244 660 mm 110 mm 100 mm 840 3740 lm 23 W PDF LDT
PFLOA-NP0660NDKG840O0350 / 0921244 660 mm 110 mm 100 mm 840 3740 lm 23 W PDF LDT
PFLOA-NP1270DAKG840O0500 / 0931245 1270 mm 110 mm 100 mm 840 4630 lm 34 W PDF LDT
PFLOA-NP1270NDKG840O0500 / 0921245 1270 mm 110 mm 100 mm 840 4630 lm 34 W PDF LDT
PFLOA-NP1570DAKG840O0650 / 0931246 1570 mm 110 mm 100 mm 840 6210 lm 43,8 W PDF LDT
PFLOA-NP1570NDKG840O0650 / 0921246 1570 mm 110 mm 100 mm 840 6210 lm 43,8 W PDF LDT
PFLOA-NP1270DAKG840O0500-EDS3 / 0931251 1270 mm 110 mm 100 mm 840 4630 lm 34 W PDF LDT
PFLOA-NP1270NDKG840O0500-EDS3 / 0921251 1270 mm 110 mm 100 mm 840 4630 lm 34 W PDF LDT
PFLOA-NP1570DAKG840O0650-EDS3 / 0931252 1570 mm 110 mm 100 mm 840 6210 lm 43,8 W PDF LDT
PFLOA-NP1570NDKG840O0650-EDS3 / 0921252 1570 mm 110 mm 100 mm 840 6210 lm 43,8 W PDF LDT
