Orto

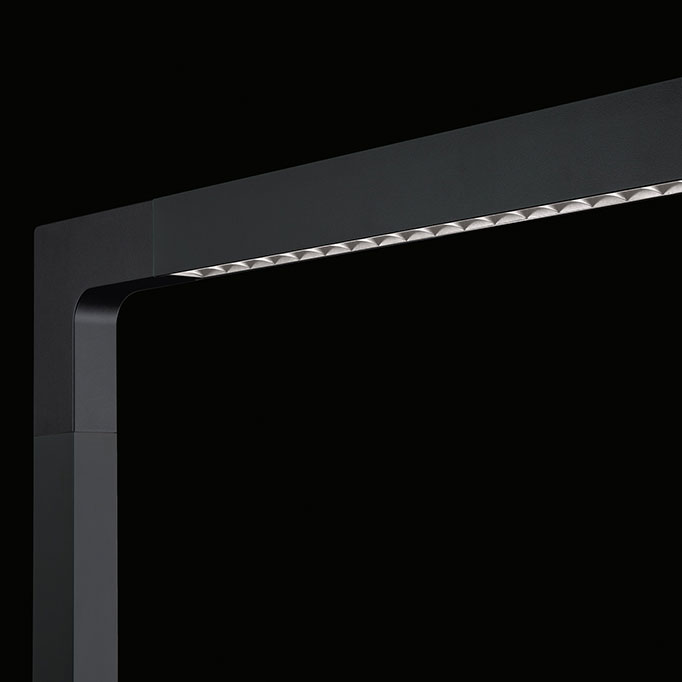

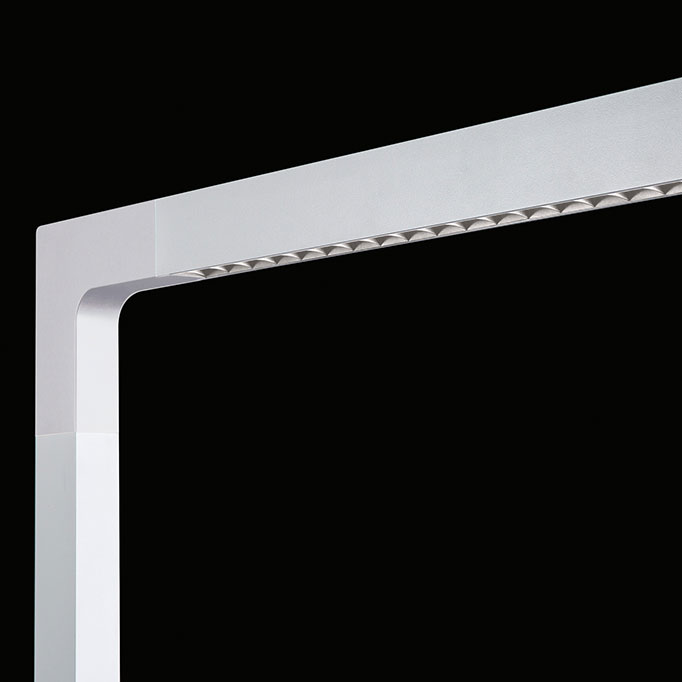

ANGULAR STRENGTH

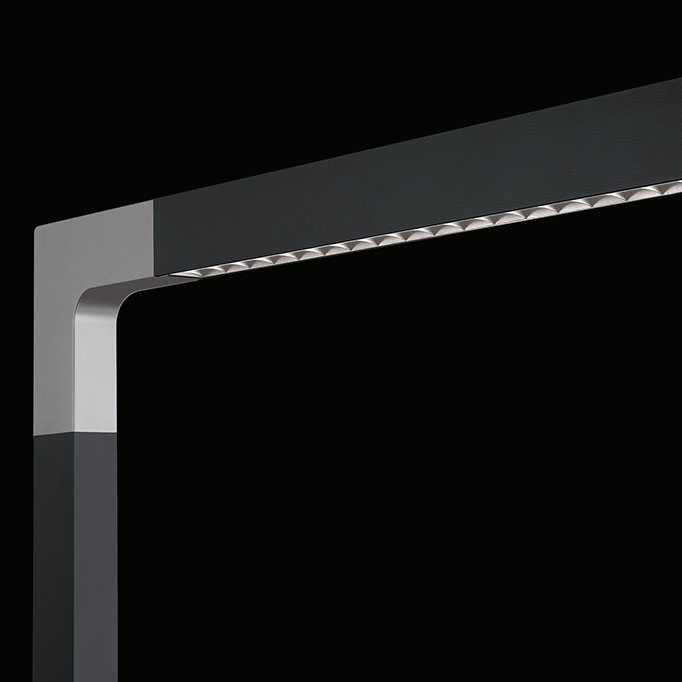

Spectral engineered specially designed die cast corner joints which are not only extremely stable but, in celebration, add a design feature, enabling you to choose from a range of finishes; select chrome, matt nickel-plated or in a contrast colour to suit the corporate colour palette of the project – the possibilities for individualisation are many.

THE RIGHT LIGHT AT ANY HEIGHT

At Spectral we spend a lot of development time working on what we term “the right light for the task”. What is optimum illumination? How do we affect eye comfort? Where would it be concentrated? How can we achieve this for height adjustable desks? As part of a family of products, Orto Desk features a robust clamp to allow it to attach to any desk system. In addition, it means that the distance between the light source and the desk surface remains a constant, even if the table is raised to its maximum position. The right light at any height.

ORTO MINI

Libraries, reading rooms, and some open-plan and individual offices may benefit from a fixed robust light, capable of being switched and controlled by the individual when sat at a workstation. Orto Mini offers a simple elegant solution with a high standard of light and withstand constant and varied usage.

Technical Information

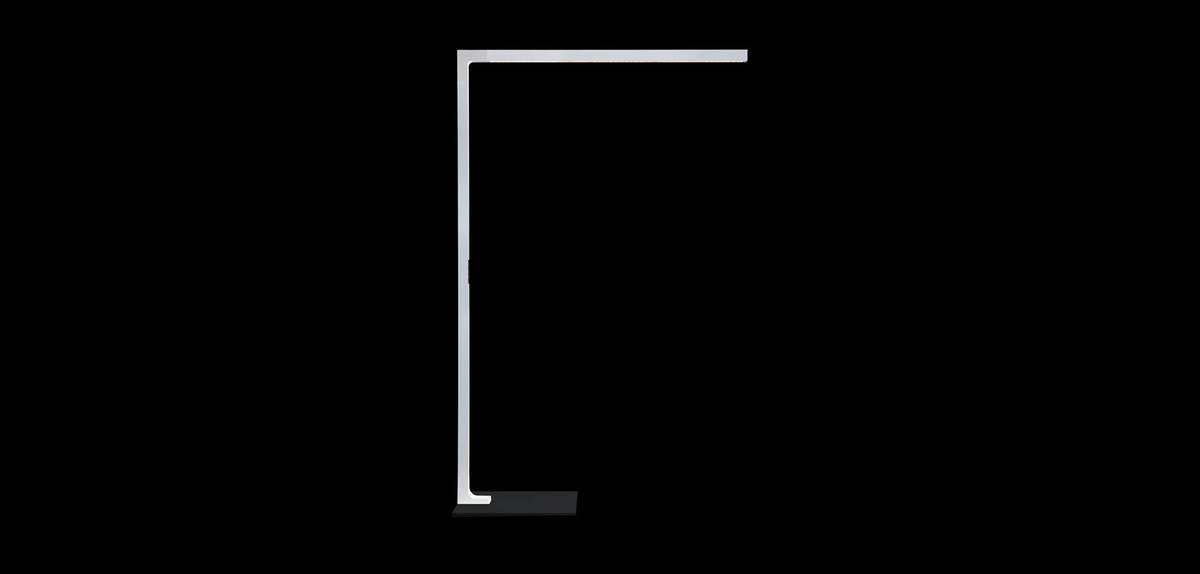

Orto Floorstanding

Dimensions:
L1314 x W350 x H2142mm
L1400 x W350 x H2142mm

Optics:
Opal, Louvre
Output (lm):
8,020 – 9,530lm
Control:
DALI, Integrated Sensor

Colour Temperatures:
4,000K
Colours:
White, Black
IP Rating:
IP20

Specific Product Information & Downloads
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
ORTO-S DAFSW/NM840SR0850 1314 mm 350 mm 2142 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-S DAFSW/NM840SR0850-SEN 1400 mm 350 mm 2142 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-S DAFSW840MR0950 1314 mm 350 mm 2142 mm 840 9170 lm 79 W PDF LDT IMG
ORTO-S DAFSW840MR0950-SEN 1400 mm 350 mm 2142 mm 840 9170 lm 79 W PDF LDT IMG
ORTO-S DAFSW840SR0850 1314 mm 350 mm 2142 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-S DAFSW840SR0850-SEN 1400 mm 350 mm 2142 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-S DAFWS840MR0950 1314 mm 350 mm 2142 mm 840 9530 lm 79 W PDF LDT IMG
ORTO-S DAFWS840MR0950-SEN 1400 mm 350 mm 2142 mm 840 9530 lm 79 W PDF LDT IMG
ORTO-S DAFWS840SR0850 1314 mm 350 mm 2142 mm 840 8380 lm 79 W PDF LDT IMG
ORTO-S DAFWS840SR0850-SEN 1400 mm 350 mm 2142 mm 840 8380 lm 79 W PDF LDT IMG

Orto Desktop

Dimensions:
L455 x W135mm x H509mm
Optics:
Opal
Output (lm):
560lm
Control:
Non-Dimming

Colour Temperatures:
4,000K
Colours:
White, Black
IP Rating:
IP20

Specific Product Information & Downloads
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
ORTO-SM NDFSW840O0060 455 mm 135 mm 509 mm 840 560 lm 5 W PDF LDT IMG
ORTO-SM NDFWS840O0060 455 mm 135 mm 509 mm 840 560 lm 5 W PDF LDT IMG
ORTO-SM NDSI840O0060 455 mm 135 mm 509 mm 840 560 lm 5 W PDF LDT IMG

Orto Desk Mount Small

Dimensions:
L455 x W60 x H570mm
Optics:
Opal
Output (lm):
560lm
Control:
Non-Dimming

Colour Temperatures:
4,000K
Colours:
White, Black, Silver
IP Rating:
IP20

Specific Product Information & Downloads
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
ORTO-TM NDFSW840O0060 455 mm 60 mm 570 mm 840 560 lm 5 W PDF LDT IMG
ORTO-TM NDFWS840O0060 455 mm 60 mm 570 mm 840 560 lm 5 W PDF LDT IMG
ORTO-TM NDSI840O0060 455 mm 60 mm 570 mm 840 560 lm 5 W PDF LDT IMG

Orto Desk Mount Large

Dimensions:
L1314 x W62 x H1460mm
L1400 x W62 x H1460mm

Optics:
Opal, Louvre
Output (lm):
8,020 – 9,530lm
Control:
DALI, Integrated Sensor

Colour Temperatures:
4,000K
Colours:
White, Black, Silver
IP Rating:
IP20

Specific Product Information & Downloads
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
ORTO-T DAFSW/NM840SR0850 1314 mm 62 mm 1460 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-T DAFSW/NM840SR0850-SEN 1400 mm 62 mm 1460 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-T DAFSW840MR0950 1314 mm 62 mm 1460 mm 840 9170 lm 79 W PDF LDT IMG
ORTO-T DAFSW840MR0950-SEN 1400 mm 62 mm 1460 mm 840 9170 lm 79 W PDF LDT IMG
ORTO-T DAFSW840SR0850 1314 mm 62 mm 1460 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-T DAFSW840SR0850-SEN 1400 mm 62 mm 1460 mm 840 8020 lm 79 W PDF LDT IMG
ORTO-T DAFWS840MR0950 1314 mm 62 mm 1460 mm 840 9530 lm 79 W PDF LDT IMG
ORTO-T DAFWS840MR0950-SEN 1400 mm 62 mm 1460 mm 840 9530 lm 79 W PDF LDT IMG
ORTO-T DAFWS840SR0850 1314 mm 62 mm 1460 mm 840 8380 lm 79 W PDF LDT IMG
ORTO-T DAFWS840SR0850-SEN 1400 mm 62 mm 1460 mm 840 8380 lm 79 W PDF LDT IMG

Projects Featuring Orto

KRESINGS Architektur, Münster

KRESINGS Architektur, Münster

Spectral supplied Orto floorstanding direct/indirect luminaires to Kresings Architektur GmbH for their offices in ...
