Norea-Sky

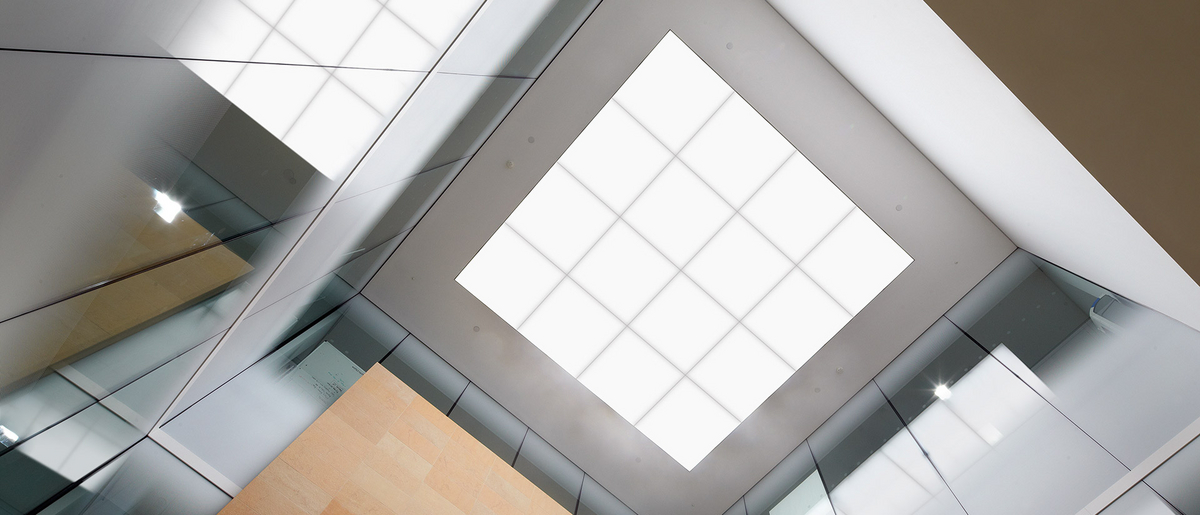

Norea-Sky is a highly stable edge to edge large-area lighting solution with high-quality and efficient LEDs. Engineered to facilitate simple installation and for ease of both assembly and maintenance, the textile membrane can be replaced without tools.

HUMAN-CENTRIC-LIGHTING



Norea Sky can be scaled to suit the building. Standard sizes of up to 4 square meters are possible. Human centric lighting (Circadian lighting) aims at providing a type of ‘daylight progression’ that Norea-Sky is able to emulate. Should you want to add colour features 5 channel versions can be specified for RGB-TW solutions

The Rowe
Central House, London

ACOUSTIC SUPPRESSION



The expansive fabric diffuser is porous to sound waves, and traps ambient sounds within the body of the luminaire, reducing the reverbation times for the room.  The result is a calmer and less harsh acoustic signature for areas that employ Norea Sky.

MAINTAINABLE

In keeping with our ethos of resposible light, Norea Sky is designed and produced for longevity, easy maintainability and, ultimately, its ability to be easily recycled at end of life.

The fabric diffusers are easily removed for cleaning and can be just as easily replaced if damaged.

Everything in the luminaire can be accessed for easy maintenence from behind the fabric diffuser without having to demount the unit from the ceiling. Both the LED boards and the Control gear can be replaced using standard tools. Spares are available for at least 10 years under our replacement part promise.

All the components are fixed using screws, no glues or composites, making it easy to dissasamble for recycling.

All the components are fixed using screws, no glues or composites, making it easy to dissasamble for recycling.

STANDARD SIZES

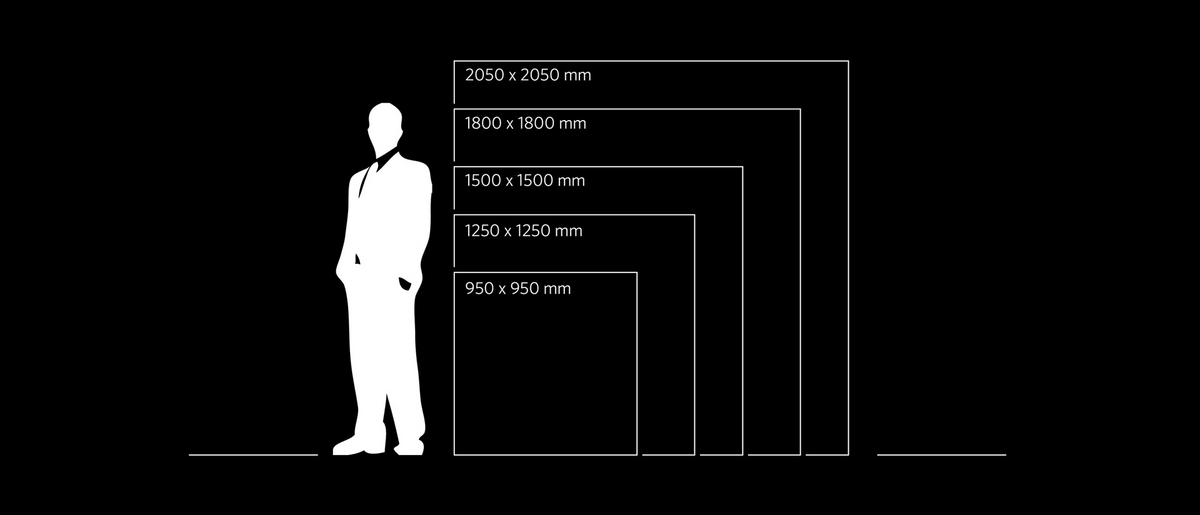

Standard dimensions from 950 x 950 mm up to 2050 x 2050 mm enable a wide range of applications. Foyer areas, conference rooms, sales areas or rooms that receive little or no daylight are perfect for Norea-Sky. Please refer to our lookbook for further details.

Product Selection

Product Filters

Size
(mm)
Mounting
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W UGR
Rating
Driver
Type
Body
Colour
Image Part Code
Article Number
Size
(mm)
Mounting
Lumen
Output
Light
Colour
CRI
(Ra)
Lm/W
UGR
Rating
Driver
Type
Body
Colour
Data LDT BIM
Product ImageNOREA-SKY QA1250/2200/TWDA
SPT0000193
1250 mmSurface11440 lm2700–6500 K≥ 8084,7 lm/W≤ 22DALI-2 PDFEulumdatEulumdat
Product ImageNOREA-SKY QA1250/2400/840DA
SPT0000192
1250 mmSurface12500 lm4000 K≥ 8083,3 lm/W≤ 22DALI-2 PDFEulumdatEulumdat
Product ImageNOREA-SKY QP1250/2200/TWDA
SPT0000195
1250 mmPendant11440 lm2700–6500 K≥ 8084,7 lm/W≤ 22DALI-2 PDFEulumdatEulumdat
Product ImageNOREA-SKY QP1250/2400/840DA
SPT0000194
1250 mmPendant12500 lm4000 K≥ 8083,3 lm/W≤ 22DALI-2 PDFEulumdatEulumdat
