Multilens SE-M9S
Better Light

We are energised by intensity and quality of light We are surrounded by light each and every day, and the ways in which it improves our lives are countless. Many of us spend a large part of our lives at the office. Multilens makes working and the time we spend in modern offices a comfortable experience.

Key Features

Greater energy saving over
conventional LED flat panels

Made in Germany for a lower
and controlled carbon footprint

Exceptional value combined
with contemporary design

Low Glare suitable for Well Standard

Fully serviceable,
fully integrated construction

Most people respond better to some form of intensity of light. It brings out vibrancy in materials, textures and colours. It also brings out better 3D modelling – It’s what we respond better to. The SE-M9S delivers a quality of light that differentiates itself from a conventional flat opalescent panels in this way. We consider the difference akin to comparing a cloudy bright day with a sunny day.

Stone Grey Surface

This new lens optic has been designed to ignite and create a natural appearance like sunlight on natural stone. It delivers a more human and interesting light that makes interiors less bland than a flat opalescent optic.

Comfortable
Low Glare Light

Control of glare on screens is also an element overlooked in recent times but the reality is we should achieve UGR ratings of under 19 and in fact the Well Standard is requiring glare control levels at 17.

Our range of Multilens products are both highly efficient and ergonomic. Energy reduction is essential for us to be part of the global movement for the reduction of Co2. This combines with a focused light approach of delivering light to the task. It is estimated that the M9S Multilens system will save around 20% energy over a conventional flat panel.

Fully integrated construction

Multilens SE-M9S is supplied as a single integrated unit, with the LED driver enclosed in the slimline 33mm deep housing. luminaire housing. This negates the need for additional connecting boxes to be sited elsewhere. The rear mounted loop-in, loop-out terminal block means no opening up of the luminaire is needed.

For special variations, the construction could also easily accommodate sensors and even offer air-handling slots on request.

Emergency versions are also supplied fully integrated with batteries, emergency driver and indicator LED pre-fitted for a neat and tidy installation..

Flexible construction for grid ceilings

Multilens SE-EQ M9S can be made to special order to suit most popular exposed and concealed grid ceiling systems. The system can be made for ceilings like SAS130 but also for 1200×300 systems like SAS330 for example. Check with RIDI Group for exact specification requirements.

Flexible construction for grid ceilings

Multilens SE-EQ M9S can be made to special order to suit most popular exposed and concealed grid ceiling systems. The system can be made for ceilings like SAS130 but also for 1200×300 systems like SAS330 for example. Check with RIDI Group for exact specification requirements.

Significant Energy Reduction

145lm/W Energy efficiency

Consumption 4.3 W/M² at 500 lux

Multilens SE-EQ energy efficiency is around 20% higher than typical flat panel luminaires.

2.4 x2.4m Grid illustration. 0.8 Maintenance factor. 2.8m Ceiling height. dimmed to 500lux.
SE-EQ achieves a consumption of 4.3 W/M²

Circular Economy

RIDI Group luminaires are manufactured to be as maintainable as possible. Replacement of the LED modules and driver at the end of their service life is possible using standard hand tools.

Nothing in the product is glued or bonded, meaning when the product finally goes for recycling, it can be separated into electrical, metal and plastic components for easy recycling.

Why SE-EQ Multilens
is the best workplace solution



Only 25.89W total energy consumption. Saves significantly over standard flat panels.



Low Glare. Genuine UGR19 in many cases down to UGR17 for wellbeing standards.



Efficient and visually interesting delivery of light to task area.



Circular economy sustainability. Able to refurbish the product in the future.



Contemporary grey optic. Creates natural light with a natural intensity of light to enhance the space.



3714 lumens standard output.



Integrated design.
No external driver and cable.



Can be constructed and resized to fit any lay-in and concealed grid ceilings.



Integral emergency.



5 year Warranty
10 Year Commitment to Parts



Made in Germany for a lower and controlled carbon footprint.



Available from UK Stock

Product Selection

Product Filters

		Size (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour

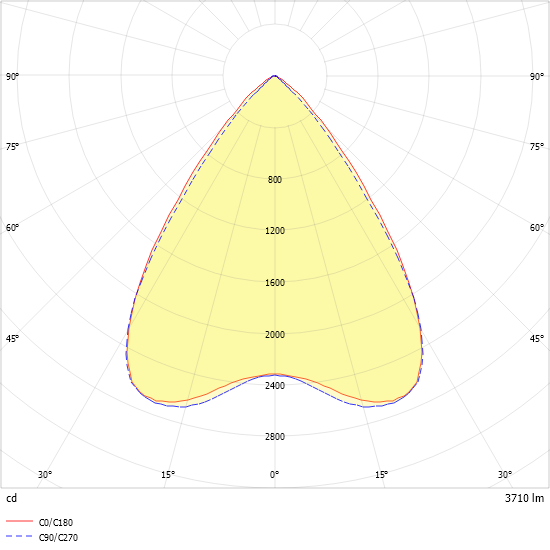

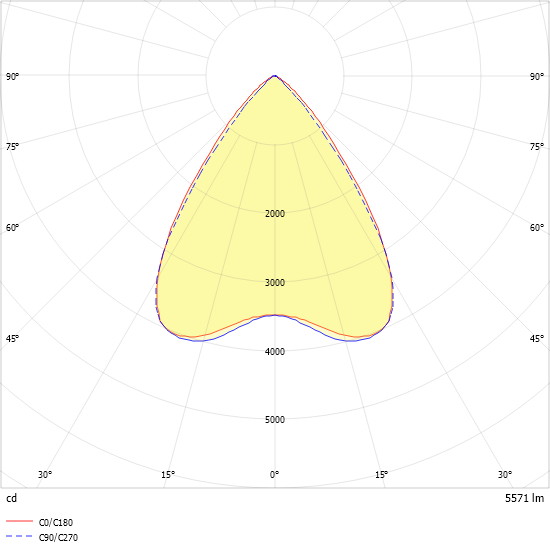

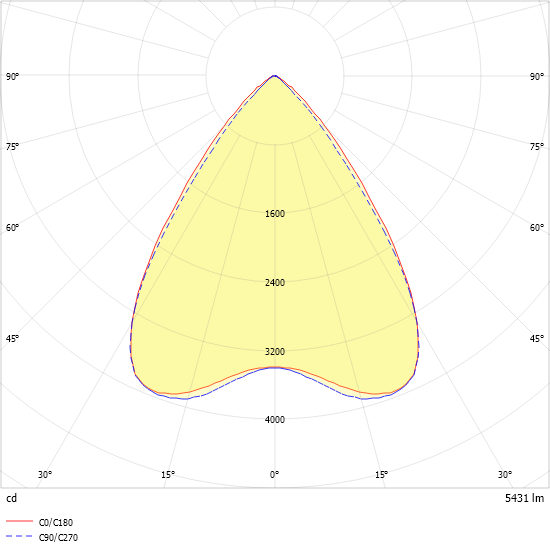

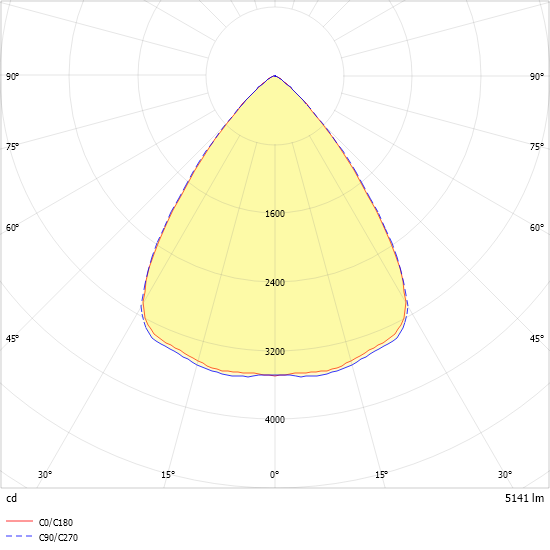

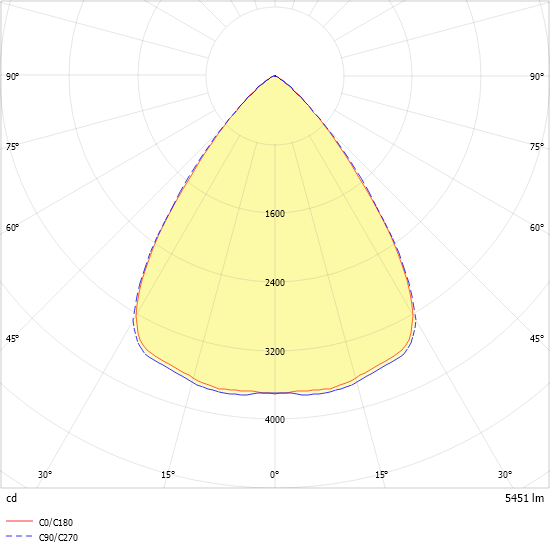

Image	Part Code Article Number	Size (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	SE-EQ0600DAWS840M5P0550 0838117	597 mm	5450 lm	4000 K	≥ 80	164,7 lm/W	≤ 19	DALI-2	White
	SE-EQ0600DAWS840M9S0350 0838113	597 mm	3710 lm	4000 K	≥ 80	143,2 lm/W	≤ 19	DALI-2	White
	SE-EQ0600DAWS840M9S0550 0838115	597 mm	5570 lm	4000 K	≥ 80	147,0 lm/W	≤ 19	DALI-2	White
	SE-EQ0600DAWS940M5P0500 0838118	597 mm	5140 lm	4000 K	≥ 90	138,2 lm/W	≤ 19	DALI-2	White
	SE-EQ0600NDWS840M9S0350 0828113	597 mm	3710 lm	4000 K	≥ 80	144,9 lm/W	≤ 19	On/Off	White
	SE-EQ0600RFWS840M9S0550 0828115	597 mm	5600 lm	4000 K	≥ 80	147,8 lm/W	≤ 19	xFlex	White
