MIREFA: A LIGHTING TOOL

Mirefa is a family of very low glare modular light products that has been designed to respond to the scale of any space. The shape and output are scalable. Particularly applicable for refurbishment projects, traditional lamp sources can be replaced by a highly efficient LED mini reflector system.

ADVANTAGE: REFLECTOR SYSTEM.

Mirefa is a reflector system that does not use traditional lens technology. Its impressively efficient. It was conceived to be a highly versatile lighting tool and therefore is as applicable in modern work spaces as it is for general lighting of corridors, halls or foyers.

PREMIUM LIGHT

An attractive premium looking solution, Mirefa has been tirelessly engineered to also deliver premium light. It has no sharp “cut off ” at the edges of the light cone but characterises soft scattered light. Over 1000 lm of glare-free UGRREF (4H / 8H) <19 can be generated per unit of 3 reflectors.

STANDARD RANGE: DOWNLIGHTERS.

Choose from square, circular or linear recessed options as well as neat, very low profile surface-mounted variants in outputs to suit the space – all suitable for the illumination where screen based activities take place.

Technical Information

Mirefa Downlighters

Versions:
Surface – Round, Square
Recessed – Linear, Square, Round
Optics:
Mirefa – MiniReflector
Output (lm):
1,150 – 4,000 lm
Control:
DALI, Non-Dimming

Colour Temperatures:
4,000K
3,000K
2,700L – 6,500K Tuneable White
Colours:
Black, White, Silver
IP Rating:
IP20

Specific Product Data - Mirefa Surface Square
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
MIREFA-ADQ-2X2 DAFSW830MRG0150 185 mm 185 mm 57 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 DAFSW840MRG0150 185 mm 185 mm 57 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 DAFWS830MRG0150 185 mm 185 mm 57 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 DAFWS840MRG0150 185 mm 185 mm 57 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 NDFSW830MRG0150 185 mm 185 mm 57 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 NDFSW840MRG0150 185 mm 185 mm 57 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 NDFWS830MRG0150 185 mm 185 mm 57 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-ADQ-2X2 NDFWS840MRG0150 185 mm 185 mm 57 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-ADQ-3X3 DAFSW830MRG0300 245 mm 245 mm 57 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 DAFSW840MRG0300 245 mm 245 mm 57 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 DAFWS830MRG0300 245 mm 245 mm 57 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 DAFWS840MRG0300 245 mm 245 mm 57 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 NDFSW830MRG0300 245 mm 245 mm 57 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 NDFSW840MRG0300 245 mm 245 mm 57 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 NDFWS830MRG0300 245 mm 245 mm 57 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-ADQ-3X3 NDFWS840MRG0300 245 mm 245 mm 57 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-ADQ-4X3 DAFSW830MRG0400 305 mm 305 mm 57 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 DAFSW840MRG0400 305 mm 305 mm 57 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 DAFWS830MRG0400 305 mm 305 mm 57 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 DAFWS840MRG0400 305 mm 305 mm 57 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 NDFSW830MRG0400 305 mm 305 mm 57 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 NDFSW840MRG0400 305 mm 305 mm 57 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 NDFWS830MRG0400 305 mm 305 mm 57 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-ADQ-4X3 NDFWS840MRG0400 305 mm 305 mm 57 mm 840 4000 lm 34 W PDF LDT IMG
Specific Product Data - Mirefa Recessed Linear
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
MIREFA-EDL-1X3 DAFSW830B0097 240 mm 80 mm 60 mm 830 1150 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 DAFSW840B0100 240 mm 80 mm 60 mm 927-965 1200 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 DAFWS830B0097 240 mm 80 mm 60 mm 830 1150 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 DAFWS840B0100 240 mm 80 mm 60 mm 927-965 1200 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 NDFSW830B0097 240 mm 80 mm 60 mm 830 1150 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 NDFSW840B0100 240 mm 80 mm 60 mm 840 1200 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 NDFWS830B0097 240 mm 80 mm 60 mm 830 1150 lm 11 W PDF LDT IMG
MIREFA-EDL-1X3 NDFWS840B0100 240 mm 80 mm 60 mm 840 1200 lm 11 W PDF LDT IMG
MIREFA-EDL-1X6 DAFSW830B0195 420 mm 80 mm 60 mm 830 2300 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 DAFSW840B0200 420 mm 80 mm 60 mm 840 2400 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 DAFWS830B0195 420 mm 80 mm 60 mm 830 2300 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 DAFWS840B0200 420 mm 80 mm 60 mm 840 2400 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 NDFSW830B0195 420 mm 80 mm 60 mm 830 2300 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 NDFSW840B0200 420 mm 80 mm 60 mm 840 2400 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 NDFWS830B0195 420 mm 80 mm 60 mm 830 2300 lm 21 W PDF LDT IMG
MIREFA-EDL-1X6 NDFWS840B0200 420 mm 80 mm 60 mm 840 2400 lm 21 W PDF LDT IMG
MIREFA-EDL-1X9 DAFSW830B0293 600 mm 80 mm 60 mm 830 3450 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 DAFSW840B0300 600 mm 80 mm 60 mm 840 3600 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 DAFWS830B0293 600 mm 80 mm 60 mm 830 3450 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 DAFWS840B0300 600 mm 80 mm 60 mm 840 3600 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 NDFSW830B0293 600 mm 80 mm 60 mm 830 3450 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 NDFSW840B0300 600 mm 80 mm 60 mm 840 3600 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 NDFWS830B0293 600 mm 80 mm 60 mm 830 3450 lm 31 W PDF LDT IMG
MIREFA-EDL-1X9 NDFWS840B0300 600 mm 80 mm 60 mm 840 3600 lm 31 W PDF LDT IMG
Specific Product Data - Mirefa Recessed Square
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
MIREFA-EDQ-2X2 DAFSW830MRG0150 160 mm 160 mm 60 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 DAFSW840MRG0150 160 mm 160 mm 60 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 DAFSWTWB0158 160 mm 160 mm 60 mm 927-965 TBA TBA PDF LDT IMG
MIREFA-EDQ-2X2 DAFWS830MRG0150 160 mm 160 mm 60 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 DAFWS840MRG0150 160 mm 160 mm 60 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 DAFWSTWB0158 160 mm 160 mm 60 mm 927-965 TBA TBA PDF LDT IMG
MIREFA-EDQ-2X2 NDFSW830MRG0150 160 mm 160 mm 60 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 NDFSW840MRG0150 160 mm 160 mm 60 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 NDFWS830MRG0150 160 mm 160 mm 60 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDQ-2X2 NDFWS840MRG0150 160 mm 160 mm 60 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDQ-3X3 DAFSW830MRG0300 220 mm 220 mm 60 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 DAFSW840MRG0300 220 mm 220 mm 60 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 DAFWS830MRG0300 220 mm 220 mm 60 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 DAFWS840MRG0300 220 mm 220 mm 60 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 NDFSW830MRG0300 220 mm 220 mm 60 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 NDFSW840MRG0300 220 mm 220 mm 60 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 NDFWS830MRG0300 220 mm 220 mm 60 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDQ-3X3 NDFWS840MRG0300 220 mm 220 mm 60 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDQ-4X3 DAFSW830MRG0400 280 mm 280 mm 60 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 DAFSW840MRG0400 280 mm 280 mm 60 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 DAFWS830MRG0400 280 mm 280 mm 60 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 DAFWS840MRG0400 280 mm 280 mm 60 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 NDFSW830MRG0400 280 mm 280 mm 60 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 NDFSW840MRG0400 280 mm 280 mm 60 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 NDFWS830MRG0400 280 mm 280 mm 60 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDQ-4X3 NDFWS840MRG0400 280 mm 280 mm 60 mm 840 4000 lm 34 W PDF LDT IMG

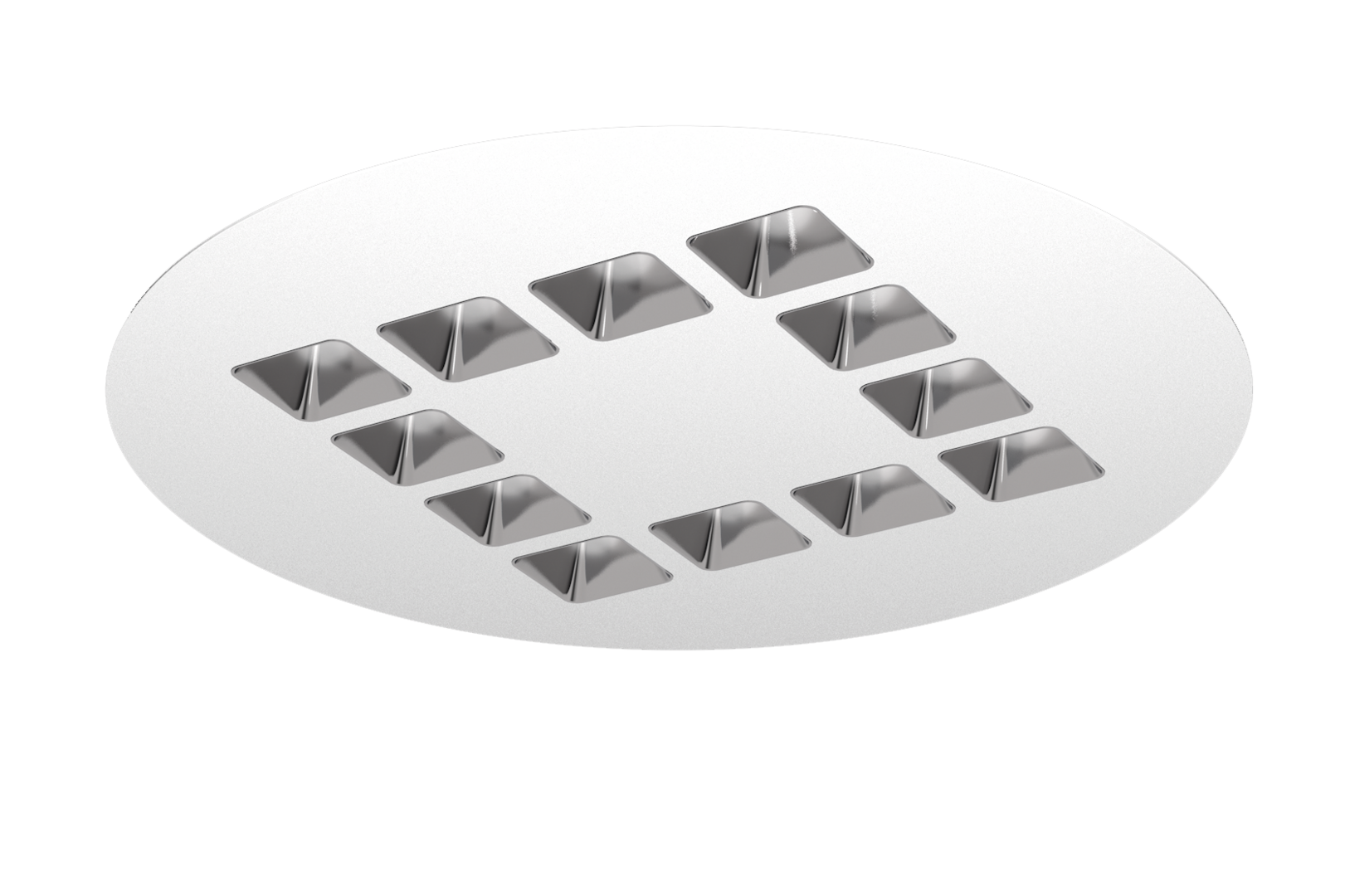

Specific Product Data - Mirefa Recessed Round
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
MIREFA-EDR-2X2 DAFSW830B0130 60 mm 200 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 DAFSW840B0135 60 mm 200 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 DAFSWTWB0158 60 mm 200 mm 927-965 TBA TBA PDF LDT IMG
MIREFA-EDR-2X2 DAFWS830B0130 60 mm 200 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 DAFWS840B0135 60 mm 200 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 DAFWSTWB0158 60 mm 200 mm 927-965 TBA TBA PDF LDT IMG
MIREFA-EDR-2X2 NDFSW830B0130 60 mm 200 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 NDFSW840B0135 60 mm 200 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 NDFWS830B0130 60 mm 200 mm 830 1440 lm 13 W PDF LDT IMG
MIREFA-EDR-2X2 NDFWS840B0135 60 mm 200 mm 840 1500 lm 13 W PDF LDT IMG
MIREFA-EDR-3X3 DAFSW830B0293 60 mm 200 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 DAFSW840B0300 60 mm 200 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 DAFWS830B0293 60 mm 200 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 DAFWS840B0300 60 mm 200 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 NDFSW830B0293 60 mm 200 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 NDFSW840B0300 60 mm 200 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 NDFWS830B0293 60 mm 200 mm 830 2880 lm 25 W PDF LDT IMG
MIREFA-EDR-3X3 NDFWS840B0300 60 mm 200 mm 840 3000 lm 25 W PDF LDT IMG
MIREFA-EDR-4X3 DAFSW830B0390 60 mm 200 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 DAFSW840B0400 60 mm 200 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 DAFWS830B0390 60 mm 200 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 DAFWS840B0400 60 mm 200 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 NDFSW830B0390 60 mm 200 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 NDFSW840B0400 60 mm 200 mm 840 4000 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 NDFWS830B0390 60 mm 200 mm 830 3840 lm 34 W PDF LDT IMG
MIREFA-EDR-4X3 NDFWS840B0400 60 mm 200 mm 840 4000 lm 34 W PDF LDT IMG

Download

Mirefa Lookbook

Mirefa is also available as a module in H80 Profil

H80-Profil

H80-Profil

The H80 profile consists of two mirrored T-profile aluminium extrusions, which are joined by special connectors to form an extremely stable H construct.
