F-LINE

5G Innovation Centre
University of Surrey

Find Out More

Exceptional Value

F-LINE is a well made, stylish direct/indirect LED pendant at a competitive price

Choice of Three Optics

R-TUBE 360 | Multilens | Microprism

Cumnor House School
Haywards Heath

Find Out More

MULTILENS

Designed for Ultimate Efficiency,
Glare Control and Maintainability

F-Line with Multilens offers Up to 160lm/W

RT360

RIDI Group’s unique R-Tube 360 light source.

Direct/indirect and replaceable as easily as a conventional fluorescent lamp

ResFlex

Set the output onsite by adjusting the internal potentiometer to give just the right light level and just the right energy usage.

Product Selection

Product Filters

		Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Length (mm)	Optic Type	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	F-LINE-PD1190DASI840M9P0500 0637885SI		wide beam	5090 lm	4000 K	≥ 80	159,1 lm/W	≤ 19	DALI-2	Silver
	F-LINE-PD1190DASI940M9P0450 0637887SI		wide beam	4310 lm	4000 K	≥ 90	134,7 lm/W	≤ 19	DALI-2	Silver
	F-LINE-PD1190DAWS840M9P0500 0637885		wide beam	5090 lm	4000 K	≥ 80	159,1 lm/W	≤ 19	DALI-2	White
	F-LINE-PD1190DAWS940M9P0450 0637887		wide beam	4310 lm	4000 K	≥ 90	134,7 lm/W	≤ 19	DALI-2	White
	F-LINE-PD1190RFSI840M9P0500 0627885SI420		wide beam	5100 lm	4000 K	≥ 80	164,5 lm/W	≤ 19	xFlex	Silver
	F-LINE-PD1190RFSI940M9P0450 0627887SI420		wide beam	4300 lm	4000 K	≥ 90	138,7 lm/W	≤ 19	xFlex	Silver
	F-LINE-PD1190RFWS840M9P0500 0627885//420		wide beam	5100 lm	4000 K	≥ 80	164,5 lm/W	≤ 19	xFlex	White
	F-LINE-PD1190RFWS940M9P0450 0627887//420		wide beam	4300 lm	4000 K	≥ 90	138,7 lm/W	≤ 19	xFlex	White
	F-LINE-PD1550DASI840M9P0700 0637886SI		wide beam	6790 lm	4000 K	≥ 80	165,6 lm/W	≤ 19	DALI-2	Silver
	F-LINE-PD1550DASI940M9P0550 0637888SI		wide beam	5750 lm	4000 K	≥ 90	140,2 lm/W	≤ 19	DALI-2	Silver
	F-LINE-PD1550DAWS840M9P0700 0637886		wide beam	6790 lm	4000 K	≥ 80	165,6 lm/W	≤ 19	DALI-2	White
	F-LINE-PD1550DAWS940M9P0550 0637888		wide beam	5750 lm	4000 K	≥ 90	140,2 lm/W	≤ 19	DALI-2	White
	F-LINE-PD1550RFSI840M9P0700 0627886SI420		wide beam	6800 lm	4000 K	≥ 80	165,9 lm/W	≤ 19	xFlex	Silver
	F-LINE-PD1550RFSI940M9P0550 0627888SI420		wide beam	5750 lm	4000 K	≥ 90	140,2 lm/W	≤ 19	xFlex	Silver
	F-LINE-PD1550RFWS840M9P0700 0627886//420		wide beam	6800 lm	4000 K	≥ 80	165,9 lm/W	≤ 19	xFlex	White
	F-LINE-PD1550RFWS940M9P0550 0627888//420		wide beam	5750 lm	4000 K	≥ 90	140,2 lm/W	≤ 19	xFlex	White
	F-LINE-PDI1190DASI840M9P0600 0637889SI		wide beam	5930 lm	4000 K	≥ 80	160,3 lm/W	≤ 19	DALI-2	Silver
	F-LINE-PDI1190DASI940M9P0500 0637891SI		wide beam	5020 lm	4000 K	≥ 90	135,7 lm/W	≤ 16	DALI-2	Silver
	F-LINE-PDI1190DAWS840M9P0600 0637889		wide beam	5930 lm	4000 K	≥ 80	160,3 lm/W	≤ 19	DALI-2	White

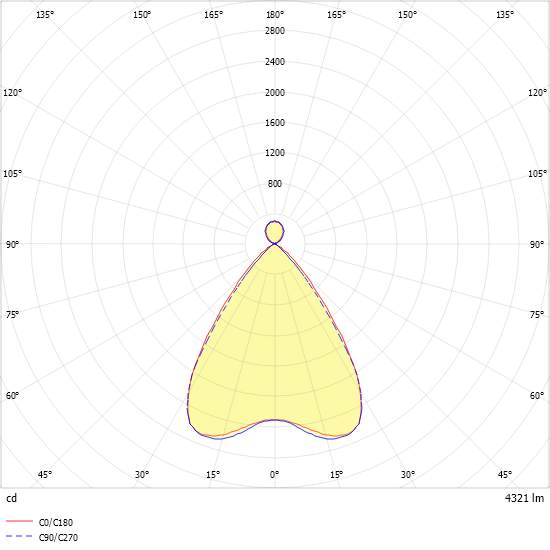

	F-LINE-PDI1190DAWS840M9S0450 0637883		wide beam	4320 lm	4000 K	≥ 80	143,5 lm/W	≤ 16	DALI-2	White
	F-LINE-PDI1190DAWS940M9P0500 0637891		wide beam	5020 lm	4000 K	≥ 90	135,7 lm/W	≤ 16	DALI-2	White
	F-LINE-PDI1190NDWS840M9S0450 0627883		wide beam	4320 lm	4000 K	≥ 80	140,3 lm/W	≤ 16	On/Off	White
	F-LINE-PDI1190RFSI840M9P0600 0627889SI420		wide beam	6000 lm	4000 K	≥ 80	162,2 lm/W	≤ 19	xFlex	Silver
	F-LINE-PDI1190RFSI940M9P0500 0627891SI420		wide beam	5000 lm	4000 K	≥ 90	135,1 lm/W	≤ 16	xFlex	Silver
	F-LINE-PDI1190RFWS840M9P0600 0627889//420		wide beam	6000 lm	4000 K	≥ 80	162,2 lm/W	≤ 19	xFlex	White
	F-LINE-PDI1190RFWS940M9P0500 0627891//420		wide beam	5000 lm	4000 K	≥ 90	135,1 lm/W	≤ 16	xFlex	White
	F-LINE-PDI1220DAWS840MPO0550 0637868		wide beam	5520 lm	4000 K	≥ 80	149,2 lm/W	≤ 19	DALI-2	White
	F-LINE-PDI1220NDWS840MPO0550 0627868		wide beam	5520 lm	4000 K	≥ 80	149,2 lm/W	≤ 19	On/Off	White
	F-LINE-PDI1500DAWS840MPO0650 0637869		wide beam	6520 lm	4000 K	≥ 80	151,6 lm/W	≤ 19	DALI-2	White
	F-LINE-PDI1500NDWS840MPO0650 0627869		wide beam	6520 lm	4000 K	≥ 80	151,6 lm/W	≤ 19	On/Off	White
	F-LINE-PDI1550DASI840M9P0850 0637890SI		wide beam	8470 lm	4000 K	≥ 80	159,8 lm/W	≤ 16	DALI-2	Silver
	F-LINE-PDI1550DASI940M9P0700 0637892SI		wide beam	7170 lm	4000 K	≥ 90	135,3 lm/W	≤ 16	DALI-2	Silver
	F-LINE-PDI1550DAWS840M9P0850 0637890		wide beam	8470 lm	4000 K	≥ 80	159,8 lm/W	≤ 16	DALI-2	White

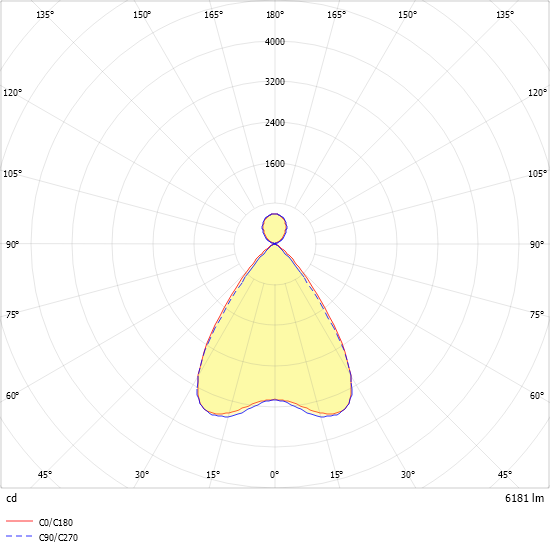

	F-LINE-PDI1550DAWS840M9S0600 0637884		wide beam	6180 lm	4000 K	≥ 80	145,4 lm/W	≤ 16	DALI-2	White
	F-LINE-PDI1550DAWS840M9S0600-S 0637884//429		wide beam	6180 lm	4000 K	≥ 80	145,4 lm/W	≤ 16	DALI-2	White
	F-LINE-PDI1550DAWS940M9P0700 0637892		wide beam	7170 lm	4000 K	≥ 90	135,3 lm/W	≤ 16	DALI-2	White
	F-LINE-PDI1550NDWS840M9S0600 0627884		wide beam	6180 lm	4000 K	≥ 80	143,4 lm/W	≤ 16	On/Off	White
	F-LINE-PDI1550RFSI840M9P0850 0627890SI420		wide beam	8500 lm	4000 K	≥ 80	160,4 lm/W	≤ 16	xFlex	Silver
	F-LINE-PDI1550RFSI940M9P0700 0627892SI420		wide beam	7200 lm	4000 K	≥ 90	135,8 lm/W	≤ 16	xFlex	Silver
	F-LINE-PDI1550RFWS840M9P0850 0627890//420		wide beam	8500 lm	4000 K	≥ 80	160,4 lm/W	≤ 16	xFlex	White
	F-LINE-PDI1550RFWS940M9P0700 0627892//420		wide beam	7200 lm	4000 K	≥ 90	135,8 lm/W	≤ 16	xFlex	White

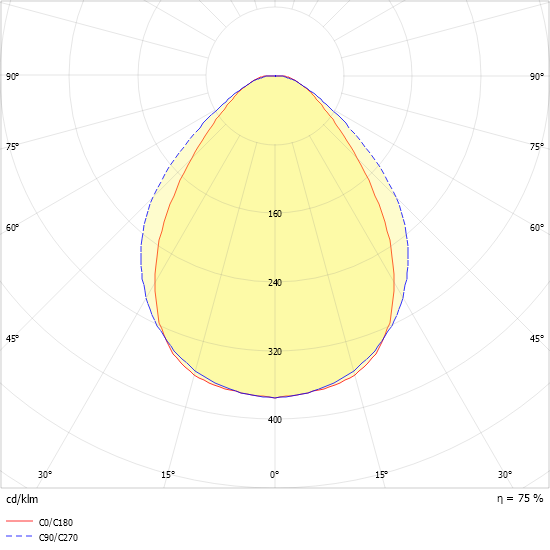

	F-LINE-R1X115/30DA-MPS 0660241SI		wide beam	3590 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	DALI	Silver
	F-LINE-R1X115/30DA-MPS 0660241		wide beam	3590 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	DALI	White

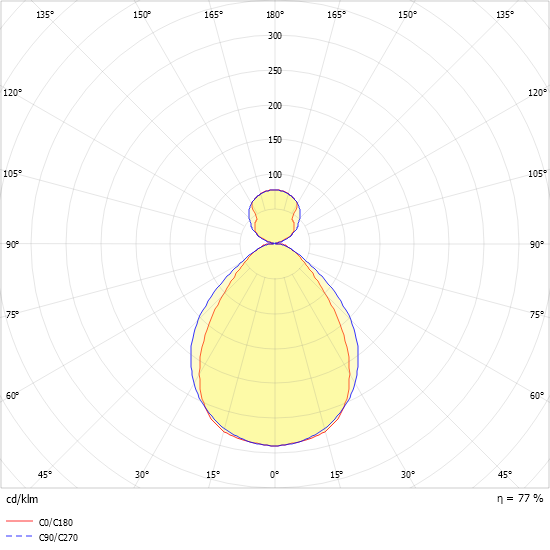

	F-LINE-R1X115/30DA-MPS-I840 0667411		wide beam	3700 lm	4000 K	≥ 80	108,8 lm/W	≤ 22	DALI	White

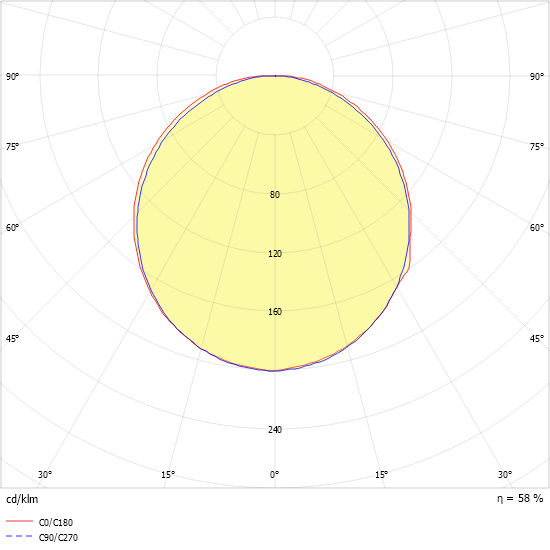

	F-LINE-R1X115/30DA-O 0660240SI		extremely wide beam	2770 lm	4000 K	≥ 80	81,5 lm/W	≤ 25	DALI	Silver
	F-LINE-R1X115/30DA-O 0660240		extremely wide beam	2770 lm	4000 K	≥ 80	81,5 lm/W	≤ 25	DALI	White
	F-LINE-R1X115/30DA-SM 0660210		wide beam	3110 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	DALI	White
	F-LINE-R1X115/30DA-SM 0660210SI		wide beam	3110 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	DALI	Silver
	F-LINE-R1X115/30ND-MPS 0650241		wide beam	3590 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	On/Off	White
	F-LINE-R1X115/30ND-MPS 0650241SI		wide beam	3590 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	On/Off	Silver
	F-LINE-R1X115/30ND-O 0650240		extremely wide beam	2770 lm	4000 K	≥ 80	81,5 lm/W	≤ 25	On/Off	White
	F-LINE-R1X115/30ND-O 0650240SI		extremely wide beam	2770 lm	4000 K	≥ 80	81,5 lm/W	≤ 25	On/Off	Silver
	F-LINE-R1X115/30ND-SM 0650210SI		wide beam	3110 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	On/Off	Silver
	F-LINE-R1X115/30ND-SM 0650210		wide beam	3110 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	On/Off	White
	F-LINE-R1X145/45DA-MPS 0660245		wide beam	5070 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	DALI	White
	F-LINE-R1X145/45DA-MPS 0660245SI		wide beam	5070 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	DALI	Silver

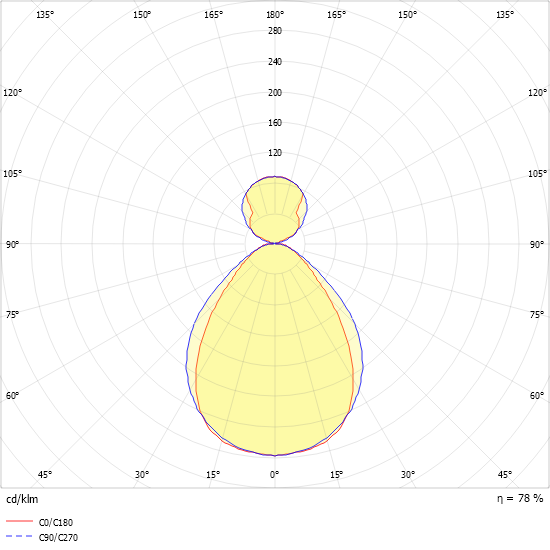

	F-LINE-R1X145/45DA-MPS-I840 0667417		wide beam	3550 lm	4000 K	≥ 80	110,9 lm/W	≤ 22	DALI	White

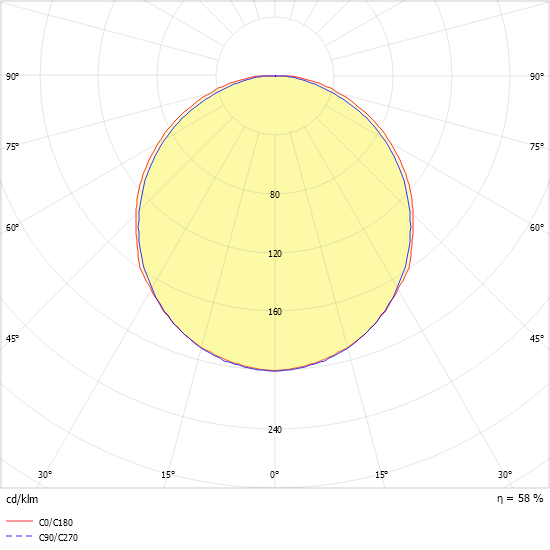

	F-LINE-R1X145/45DA-O 0660244SI		extremely wide beam	3920 lm	4000 K	≥ 80	81,7 lm/W	> 25	DALI	Silver
	F-LINE-R1X145/45DA-O 0660244		extremely wide beam	3920 lm	4000 K	≥ 80	81,7 lm/W	> 25	DALI	White
	F-LINE-R1X145/45DA-SM 0660211SI		wide beam	4390 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	DALI	Silver
	F-LINE-R1X145/45DA-SM 0660211		wide beam	4390 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	DALI	White
	F-LINE-R1X145/45ND-MPS 0650245SI		wide beam	5070 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	On/Off	Silver
	F-LINE-R1X145/45ND-MPS 0650245		wide beam	5070 lm	4000 K	≥ 80	105,6 lm/W	≤ 25	On/Off	White
	F-LINE-R1X145/45ND-O 0650244SI		extremely wide beam	3920 lm	4000 K	≥ 80	81,7 lm/W	> 25	On/Off	Silver
	F-LINE-R1X145/45ND-O 0650244		extremely wide beam	3920 lm	4000 K	≥ 80	81,7 lm/W	> 25	On/Off	White
	F-LINE-R1X145/45ND-SM 0650211SI		wide beam	4390 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	On/Off	Silver
	F-LINE-R1X145/45ND-SM 0650211		wide beam	4390 lm	4000 K	≥ 80	91,5 lm/W	≤ 22	On/Off	White

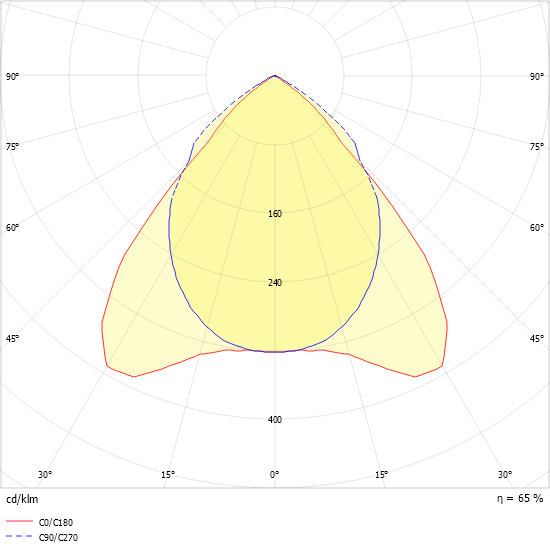

	F-LINE-R2X115/30DA-SM 0660248SI		wide beam	6210 lm	4000 K	≥ 80	91,3 lm/W	≤ 22	DALI	Silver
	F-LINE-R2X115/30DA-SM 0660248		wide beam	6210 lm	4000 K	≥ 80	91,3 lm/W	≤ 22	DALI	White
	F-LINE-R2X115/30ND-SM 0650248SI		wide beam	6210 lm	4000 K	≥ 80	91,3 lm/W	≤ 22	On/Off	Silver
	F-LINE-R2X115/30ND-SM 0650248		wide beam	6210 lm	4000 K	≥ 80	91,3 lm/W	≤ 22	On/Off	White
	F-LINE-R2X145/35DA-SM 0660250SI		wide beam	5930 lm	4000 K	≥ 80	92,7 lm/W	≤ 19	DALI	Silver
	F-LINE-R2X145/35DA-SM 0660250		wide beam	5930 lm	4000 K	≥ 80	92,7 lm/W	≤ 19	DALI	White
	F-LINE-R2X145/35ND-SM 0650250SI		wide beam	5930 lm	4000 K	≥ 80	92,7 lm/W	≤ 19	On/Off	Silver
	F-LINE-R2X145/35ND-SM 0650250		wide beam	5930 lm	4000 K	≥ 80	92,7 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X115/20DA-SM 0660580		wide beam	2610 lm	4000 K	≥ 80	124,3 lm/W	≤ 19	DALI	White
	F-LINE-RT1X115/20DA-SM-SET 0660580SI673683		wide beam	2620 lm	4000 K	≥ 80	124,8 lm/W	≤ 19	DALI	Silver
	F-LINE-RT1X115/20DA-SM-SET 0660580//673683		wide beam	2620 lm	4000 K	≥ 80	124,8 lm/W	≤ 19	DALI	White
	F-LINE-RT1X115/20ND-SM 0650580		wide beam	2610 lm	4000 K	≥ 80	124,3 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X115/20ND-SM-SET 0650580SI673683		wide beam	2620 lm	4000 K	≥ 80	124,8 lm/W	≤ 19	On/Off	Silver
	F-LINE-RT1X115/20ND-SM-SET 0650580//673683		wide beam	2620 lm	4000 K	≥ 80	124,8 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X145/25DA-SM-SET 0660582SI673683		wide beam	3130 lm	4000 K	≥ 80	125,2 lm/W	≤ 19	DALI	Silver
	F-LINE-RT1X145/25DA-SM-SET 0660582//673683		wide beam	3130 lm	4000 K	≥ 80	125,2 lm/W	≤ 19	DALI	White
	F-LINE-RT1X145/25ND-SM-SET 0650582SI673683		wide beam	3130 lm	4000 K	≥ 80	125,2 lm/W	≤ 19	On/Off	Silver
	F-LINE-RT1X145/25ND-SM-SET 0650582//673683		wide beam	3130 lm	4000 K	≥ 80	125,2 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X145/30DA-SM 0660582		wide beam	3980 lm	4000 K	≥ 80	124,4 lm/W	≤ 19	DALI	White
	F-LINE-RT1X145/30DA-SM-SET 0660582//676683		wide beam	3980 lm	4000 K	≥ 80	124,4 lm/W	≤ 19	DALI	White
	F-LINE-RT1X145/30DA-SM-SET 0660582SI676683		wide beam	3980 lm	4000 K	≥ 80	124,4 lm/W	≤ 19	DALI	Silver
	F-LINE-RT1X145/30ND-SM 0650582		wide beam	3980 lm	4000 K	≥ 80	124,4 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X145/30ND-SM-SET 0650582SI676683		wide beam	3980 lm	4000 K	≥ 80	124,4 lm/W	≤ 19	On/Off	Silver
	F-LINE-RT1X145/30ND-SM-SET 0650582//676683		wide beam	3980 lm	4000 K	≥ 80	124,4 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X145/40DA-SM 0660588		wide beam	5120 lm	4000 K	≥ 80	119,1 lm/W	≤ 19	DALI	White

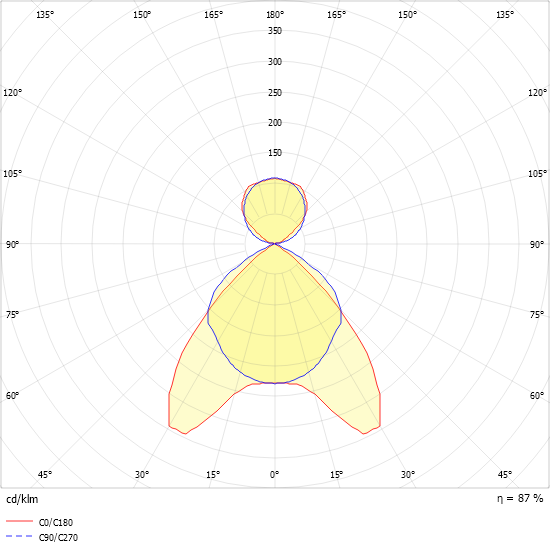

	F-LINE-RT1X145/40ND-SM 0650588		wide beam	5120 lm	4000 K	≥ 80	119,1 lm/W	≤ 19	On/Off	White
	F-LINE-RT1X145/40ND-SM-SET 0650588//673683		wide beam	5120 lm	4000 K	≥ 80	119,1 lm/W	≤ 19	On/Off	White
	F-LINE-RT2X115/20DA-SM 0660581		wide beam	5210 lm	4000 K	≥ 80	124,0 lm/W	≤ 22	DALI	White
	F-LINE-RT2X115/20DA-SM-SET 0660581SI673683		wide beam	5230 lm	4000 K	≥ 80	124,5 lm/W	≤ 22	DALI	Silver
	F-LINE-RT2X115/20DA-SM-SET 0660581//673683		wide beam	5230 lm	4000 K	≥ 80	124,5 lm/W	≤ 22	DALI	White
	F-LINE-RT2X115/20ND-SM 0650581		wide beam	5210 lm	4000 K	≥ 80	124,0 lm/W	≤ 19	On/Off	White
	F-LINE-RT2X115/20ND-SM-SET 0650581//673683		wide beam	5230 lm	4000 K	≥ 80	124,5 lm/W	≤ 19	On/Off	White
	F-LINE-RT2X115/20ND-SM-SET 0650581SI673683		wide beam	5230 lm	4000 K	≥ 80	124,5 lm/W	≤ 22	On/Off	Silver
	F-LINE-RT2X145/25DA-SM-SET 0660583SI673683		wide beam	6340 lm	4000 K	≥ 80	126,8 lm/W	≤ 19	DALI	Silver
	F-LINE-RT2X145/25DA-SM-SET 0660583//673683		wide beam	6340 lm	4000 K	≥ 80	126,8 lm/W	≤ 19	DALI	White
	F-LINE-RT2X145/25ND-SM-SET 0650583//673683		wide beam	6340 lm	4000 K	≥ 80	126,8 lm/W	≤ 19	On/Off	White
	F-LINE-RT2X145/25ND-SM-SET 0650583SI673683		wide beam	6340 lm	4000 K	≥ 80	126,8 lm/W	≤ 19	On/Off	Silver
	F-LINE-RT2X145/30DA-SM 0660583		wide beam	8050 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	DALI	White
	F-LINE-RT2X145/30DA-SM-SET 0660583//676683		wide beam	8050 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	DALI	White
	F-LINE-RT2X145/30DA-SM-SET 0660583SI676683		wide beam	8050 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	DALI	Silver
	F-LINE-RT2X145/30ND-SM 0650583		wide beam	8050 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	On/Off	White
	F-LINE-RT2X145/30ND-SM-SET 0650583SI676683		wide beam	8050 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	On/Off	Silver
	F-LINE-RT2X145/30ND-SM-SET 0650583//676683		wide beam	8050 lm	4000 K	≥ 80	125,8 lm/W	≤ 19	On/Off	White
	F-LINE-LF 128/289A840 0627427		asymmetric beam	2030 lm	4000 K	≥ 80	88,3 lm/W	> 25	On/Off	White
	F-LINE-LF 128/289A840 DA 0637427		asymmetric beam	2030 lm	4000 K	≥ 80	88,3 lm/W	> 25	DALI	White
	F-LINE-LF 128/289A840 SI 0627427SI		asymmetric beam	2030 lm	4000 K	≥ 80	88,3 lm/W	> 25	On/Off	Silver
	F-LINE-LF 128/289A840 SI-DA 0637427SI		asymmetric beam	2030 lm	4000 K	≥ 80	88,3 lm/W	> 25	DALI	Silver
	F-LINE-LF 135/368A840 0627429		asymmetric beam	2580 lm	4000 K	≥ 80	92,1 lm/W	> 25	On/Off	White
	F-LINE-LF 135/368A840 DA 0637429		asymmetric beam	2580 lm	4000 K	≥ 80	92,1 lm/W	> 25	DALI	White
	F-LINE-LF 135/368A840 SI 0627429SI		asymmetric beam	2580 lm	4000 K	≥ 80	92,1 lm/W	> 25	On/Off	Silver
	F-LINE-LF 135/368A840 SI-DA 0637429SI		asymmetric beam	2580 lm	4000 K	≥ 80	92,1 lm/W	> 25	DALI	Silver
	F-LINE-LF 149/475A840 0627430		asymmetric beam	3330 lm	4000 K	≥ 80	97,9 lm/W	> 25	On/Off	White
	F-LINE-LF 149/475A840 DA 0637430		asymmetric beam	3330 lm	4000 K	≥ 80	97,9 lm/W	> 25	DALI	White
	F-LINE-LF 149/475A840 SI 0627430SI		asymmetric beam	3330 lm	4000 K	≥ 80	97,9 lm/W	> 25	On/Off	Silver
	F-LINE-LF 149/475A840 SI-DA 0637430SI		asymmetric beam	3330 lm	4000 K	≥ 80	97,9 lm/W	> 25	DALI	Silver
	F-LINE-LF 154/433A840 0627428		asymmetric beam	3040 lm	4000 K	≥ 80	86,9 lm/W	> 25	On/Off	White

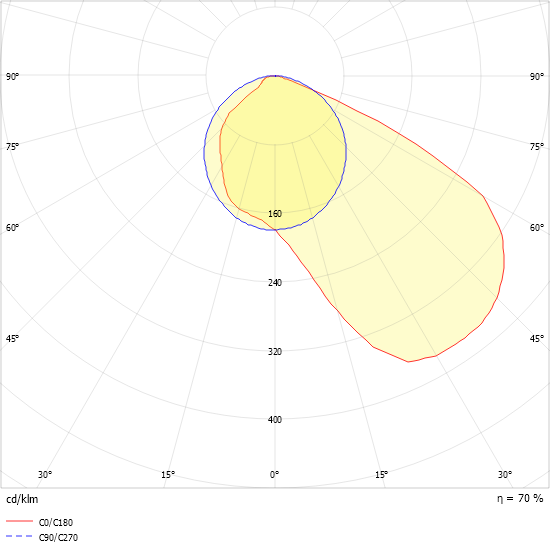

	F-LINE-LF 154/433A840 DA 0637428		asymmetric beam	3040 lm	4000 K	≥ 80	86,9 lm/W	> 25	DALI	White
	F-LINE-LF 154/433A840 SI 0627428SI		asymmetric beam	3040 lm	4000 K	≥ 80	86,9 lm/W	> 25	On/Off	Silver
	F-LINE-LF 154/433A840 SI-DA 0637428SI		asymmetric beam	3040 lm	4000 K	≥ 80	86,9 lm/W	> 25	DALI	Silver
	F-LINE-LF 180/686A840 0627431		asymmetric beam	4810 lm	4000 K	≥ 80	92,5 lm/W	> 25	On/Off	White
	F-LINE-LF 180/686A840 DA 0637431		asymmetric beam	4810 lm	4000 K	≥ 80	92,5 lm/W	> 25	DALI	White
	F-LINE-LF 180/686A840 SI 0627431SI		asymmetric beam	4810 lm	4000 K	≥ 80	92,5 lm/W	> 25	On/Off	Silver
	F-LINE-LF 180/686A840 SI-DA 0637431SI		asymmetric beam	4810 lm	4000 K	≥ 80	92,5 lm/W	> 25	DALI	Silver
