F-EDGE

Low profile suspended luminaire providing even, homogenous illumination with low glare. Optimum working conditions.

Continuous

Both the direct only and direct/indirect versions are suitable for continuous mounting with the VSK coupler

Product Selection

Product Filters

		Size (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	FEDGE2-PDI1200NDWS830-0550 0627632	1201 mm	5730 lm	3000 K	≥ 80	133,3 lm/W	≤ 16	On/Off	White
	FEDGE2-PDI1200NDFSW830-0550 0627632AQ	1201 mm	5730 lm	3000 K	≥ 80	133,3 lm/W	≤ 16	On/Off	Black
	FEDGE2-PDI1200NDSI830-0550 0627632SI	1201 mm	5730 lm	3000 K	≥ 80	133,3 lm/W	≤ 16	On/Off	Silver
	FEDGE2-PDI1200NDWS840-0600 0627633	1201 mm	6020 lm	4000 K	≥ 80	140,0 lm/W	≤ 16	On/Off	White
	FEDGE2-PDI1200NDFSW840-0600 0627633AQ	1201 mm	6020 lm	4000 K	≥ 80	140,0 lm/W	≤ 16	On/Off	Black

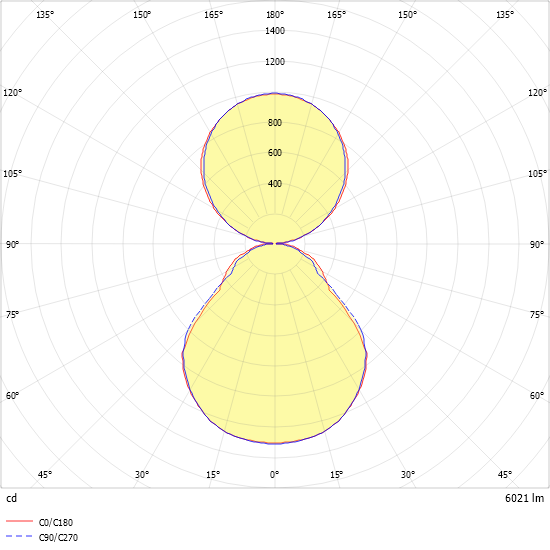

	FEDGE2-PDI1200NDSI840-0600 0627633SI	1201 mm	6020 lm	4000 K	≥ 80	140,0 lm/W	≤ 16	On/Off	Silver
	FEDGE2-PDI1200NDWS850-0600 0627634	1201 mm	6100 lm	5000 K	≥ 80	141,9 lm/W	≤ 16	On/Off	White
	FEDGE2-PDI1200NDFSW850-0600 0627634AQ	1201 mm	6100 lm	5000 K	≥ 80	141,9 lm/W	≤ 16	On/Off	Black
	FEDGE2-PDI1200NDSI850-0600 0627634SI	1201 mm	6100 lm	5000 K	≥ 80	141,9 lm/W	≤ 16	On/Off	Silver
	FEDGE2-PDI1500NDWS830-0700 0627635	1501 mm	7240 lm	3000 K	≥ 80	131,6 lm/W	≤ 16	On/Off	White
	FEDGE2-PDI1500NDFSW830-0700 0627635AQ	1501 mm	7240 lm	3000 K	≥ 80	131,6 lm/W	≤ 16	On/Off	Black
	FEDGE2-PDI1500NDSI830-0700 0627635SI	1501 mm	7240 lm	3000 K	≥ 80	131,6 lm/W	≤ 16	On/Off	Silver
	FEDGE2-PDI1500NDWS840-0750 0627636	1501 mm	7600 lm	4000 K	≥ 80	138,2 lm/W	≤ 16	On/Off	White
	FEDGE2-PDI1500NDFSW840-0750 0627636AQ	1501 mm	7600 lm	4000 K	≥ 80	138,2 lm/W	≤ 16	On/Off	Black

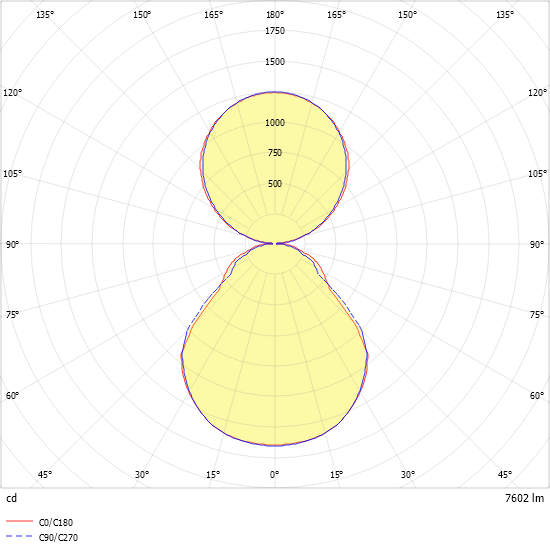

	FEDGE2-PDI1500NDSI840-0750 0627636SI	1501 mm	7600 lm	4000 K	≥ 80	138,2 lm/W	≤ 16	On/Off	Silver
	FEDGE2-PDI1500NDWS850-0750 0627637	1501 mm	7700 lm	5000 K	≥ 80	140,0 lm/W	≤ 16	On/Off	White
	FEDGE2-PDI1500NDFSW850-0750 0627637AQ	1501 mm	7700 lm	5000 K	≥ 80	140,0 lm/W	≤ 16	On/Off	Black
	FEDGE2-PDI1500NDSI850-0750 0627637SI	1501 mm	7700 lm	5000 K	≥ 80	140,0 lm/W	≤ 16	On/Off	Silver
	FEDGE2-PDI1200DAWS830-0550 0637632	1201 mm	5730 lm	3000 K	≥ 80	133,3 lm/W	≤ 16	DALI-2	White
	FEDGE2-PDI1200DAFSW830-0550 0637632AQ	1201 mm	5730 lm	3000 K	≥ 80	133,3 lm/W	≤ 16	DALI-2	Black
	FEDGE2-PDI1200DASI830-0550 0637632SI	1201 mm	5730 lm	3000 K	≥ 80	133,3 lm/W	≤ 16	DALI-2	Silver
	FEDGE2-PDI1200DAWS840-0600 0637633	1201 mm	6020 lm	4000 K	≥ 80	140,0 lm/W	≤ 16	DALI-2	White
	FEDGE2-PDI1200DAFSW840-0600 0637633AQ	1201 mm	6020 lm	4000 K	≥ 80	140,0 lm/W	≤ 16	DALI-2	Black
	FEDGE2-PDI1200DASI840-0600 0637633SI	1201 mm	6020 lm	4000 K	≥ 80	140,0 lm/W	≤ 16	DALI-2	Silver
	FEDGE2-PDI1200DAWS850-0600 0637634	1201 mm	6100 lm	5000 K	≥ 80	141,9 lm/W	≤ 16	DALI-2	White
	FEDGE2-PDI1200DAFSW850-0600 0637634AQ	1201 mm	6100 lm	5000 K	≥ 80	141,9 lm/W	≤ 16	DALI-2	Black
	FEDGE2-PDI1200DASI850-0600 0637634SI	1201 mm	6100 lm	5000 K	≥ 80	141,9 lm/W	≤ 16	DALI-2	Silver
	FEDGE2-PDI1500DAWS830-0700 0637635	1501 mm	7240 lm	3000 K	≥ 80	131,6 lm/W	≤ 16	DALI-2	White
	FEDGE2-PDI1500DAFSW830-0700 0637635AQ	1501 mm	7240 lm	3000 K	≥ 80	131,6 lm/W	≤ 16	DALI-2	Black
	FEDGE2-PDI1500DASI830-0700 0637635SI	1501 mm	7240 lm	3000 K	≥ 80	131,6 lm/W	≤ 16	DALI-2	Silver
	FEDGE2-PDI1500DAWS840-0750 0637636	1501 mm	7600 lm	4000 K	≥ 80	138,2 lm/W	≤ 16	DALI-2	White
	FEDGE2-PDI1500DAFSW840-0750 0637636AQ	1501 mm	7600 lm	4000 K	≥ 80	138,2 lm/W	≤ 16	DALI-2	Black
	FEDGE2-PDI1500DASI840-0750 0637636SI	1501 mm	7600 lm	4000 K	≥ 80	138,2 lm/W	≤ 16	DALI-2	Silver
	FEDGE2-PDI1500DAWS850-0750 0637637	1501 mm	7700 lm	5000 K	≥ 80	140,0 lm/W	≤ 16	DALI-2	White
	FEDGE2-PDI1500DAFSW850-0750 0637637AQ	1501 mm	7700 lm	5000 K	≥ 80	140,0 lm/W	≤ 16	DALI-2	Black
	FEDGE2-PDI1500DASI850-0750 0637637SI	1501 mm	7700 lm	5000 K	≥ 80	140,0 lm/W	≤ 16	DALI-2	Silver
	FEDGE2-PD1200NDWS830-0300 0627626	1201 mm	3110 lm	3000 K	≥ 80	135,2 lm/W	≤ 19	On/Off	White
	FEDGE2-PD1200NDFSW830-0300 0627626AQ	1201 mm	3110 lm	3000 K	≥ 80	135,2 lm/W	≤ 19	On/Off	Black
	FEDGE2-PD1200NDSI830-0300 0627626SI	1201 mm	3110 lm	3000 K	≥ 80	135,2 lm/W	≤ 19	On/Off	Silver
	FEDGE2-PD1200NDWS840-0350 0627627	1201 mm	3270 lm	4000 K	≥ 80	142,2 lm/W	≤ 19	On/Off	White
	FEDGE2-PD1200NDFSW840-0350 0627627AQ	1201 mm	3270 lm	4000 K	≥ 80	142,2 lm/W	≤ 19	On/Off	Black
	FEDGE2-PD1200NDSI840-0350 0627627SI	1201 mm	3270 lm	4000 K	≥ 80	142,2 lm/W	≤ 19	On/Off	Silver
	FEDGE2-PD1200NDWS850-0350 0627628	1201 mm	3310 lm	5000 K	≥ 80	143,9 lm/W	≤ 19	On/Off	White
	FEDGE2-PD1200NDFSW850-0350 0627628AQ	1201 mm	3310 lm	5000 K	≥ 80	143,9 lm/W	≤ 19	On/Off	Black
	FEDGE2-PD1200NDSI850-0350 0627628SI	1201 mm	3310 lm	5000 K	≥ 80	143,9 lm/W	≤ 19	On/Off	Silver
	FEDGE2-PD1500NDWS830-0400 0627629	1501 mm	3890 lm	3000 K	≥ 80	134,1 lm/W	≤ 19	On/Off	White
	FEDGE2-PD1500NDFSW830-0400 0627629AQ	1501 mm	3890 lm	3000 K	≥ 80	134,1 lm/W	≤ 19	On/Off	Black
	FEDGE2-PD1500NDSI830-0400 0627629SI	1501 mm	3890 lm	3000 K	≥ 80	134,1 lm/W	≤ 19	On/Off	Silver
	FEDGE2-PD1500NDWS840-0400 0627630	1501 mm	4080 lm	4000 K	≥ 80	140,7 lm/W	≤ 19	On/Off	White
	FEDGE2-PD1500NDFSW840-0400 0627630AQ	1501 mm	4080 lm	4000 K	≥ 80	140,7 lm/W	≤ 19	On/Off	Black
	FEDGE2-PD1500NDSI840-0400 0627630SI	1501 mm	4080 lm	4000 K	≥ 80	140,7 lm/W	≤ 19	On/Off	Silver
	FEDGE2-PD1500NDWS850-0400 0627631	1501 mm	4140 lm	5000 K	≥ 80	142,8 lm/W	≤ 19	On/Off	White
	FEDGE2-PD1500NDFSW850-0400 0627631AQ	1501 mm	4140 lm	5000 K	≥ 80	142,8 lm/W	≤ 19	On/Off	Black
	FEDGE2-PD1500NDSI850-0400 0627631SI	1501 mm	4140 lm	5000 K	≥ 80	142,8 lm/W	≤ 19	On/Off	Silver
	FEDGE2-PD1200DAWS830-0300 0637626	1201 mm	3110 lm	3000 K	≥ 80	135,2 lm/W	≤ 19	DALI-2	White
	FEDGE2-PD1200DAFSW830-0300 0637626AQ	1201 mm	3110 lm	3000 K	≥ 80	135,2 lm/W	≤ 19	DALI-2	Black
	FEDGE2-PD1200DASI830-0300 0637626SI	1201 mm	3110 lm	3000 K	≥ 80	135,2 lm/W	≤ 19	DALI-2	Silver
	FEDGE2-PD1200DAWS840-0350 0637627	1201 mm	3270 lm	4000 K	≥ 80	142,2 lm/W	≤ 19	DALI-2	White
	FEDGE2-PD1200DAFSW840-0350 0637627AQ	1201 mm	3270 lm	4000 K	≥ 80	142,2 lm/W	≤ 19	DALI-2	Black
	FEDGE2-PD1200DASI840-0350 0637627SI	1201 mm	3270 lm	4000 K	≥ 80	142,2 lm/W	≤ 19	DALI-2	Silver
	FEDGE2-PD1200DAWS850-0350 0637628	1201 mm	3310 lm	5000 K	≥ 80	143,9 lm/W	≤ 19	DALI-2	White
	FEDGE2-PD1200DAFSW850-0350 0637628AQ	1201 mm	3310 lm	5000 K	≥ 80	143,9 lm/W	≤ 19	DALI-2	Black
	FEDGE2-PD1200DASI850-0350 0637628SI	1201 mm	3310 lm	5000 K	≥ 80	143,9 lm/W	≤ 19	DALI-2	Silver
	FEDGE2-PD1500DAWS830-0400 0637629	1501 mm	3890 lm	3000 K	≥ 80	134,1 lm/W	≤ 19	DALI-2	White
	FEDGE2-PD1500DAFSW830-0400 0637629AQ	1501 mm	3890 lm	3000 K	≥ 80	134,1 lm/W	≤ 19	DALI-2	Black
	FEDGE2-PD1500DASI830-0400 0637629SI	1501 mm	3890 lm	3000 K	≥ 80	134,1 lm/W	≤ 19	DALI-2	Silver

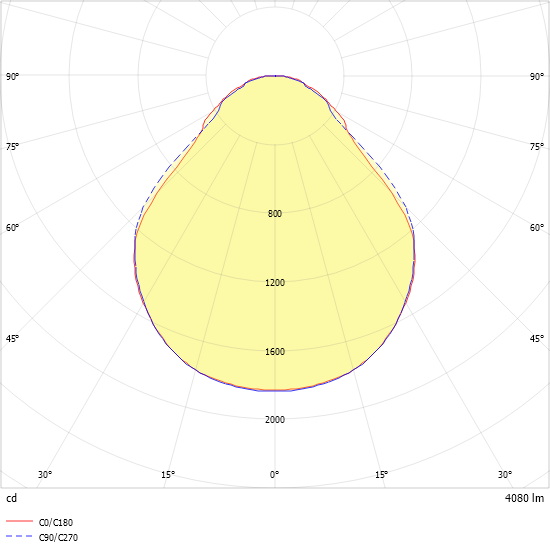

	FEDGE2-PD1500DAWS840-0400 0637630	1501 mm	4080 lm	4000 K	≥ 80	140,7 lm/W	≤ 19	DALI-2	White
	FEDGE2-PD1500DAFSW840-0400 0637630AQ	1501 mm	4080 lm	4000 K	≥ 80	140,7 lm/W	≤ 19	DALI-2	Black
	FEDGE2-PD1500DASI840-0400 0637630SI	1501 mm	4080 lm	4000 K	≥ 80	140,7 lm/W	≤ 19	DALI-2	Silver
	FEDGE2-PD1500DAWS850-0400 0637631	1501 mm	4140 lm	5000 K	≥ 80	142,8 lm/W	≤ 19	DALI-2	White
	FEDGE2-PD1500DAFSW850-0400 0637631AQ	1501 mm	4140 lm	5000 K	≥ 80	142,8 lm/W	≤ 19	DALI-2	Black
	FEDGE2-PD1500DASI850-0400 0637631SI	1501 mm	4140 lm	5000 K	≥ 80	142,8 lm/W	≤ 19	DALI-2	Silver
