EL-E

Low Glare Inset Optics

LEDs are housed behind an opal material which produces a soft, diffuse beam of light.

The frosted mini reflectors in front of the light emitting surface significantly reduce glare while maintaining excellent optical efficency.

Variety

Versions of every size for every ceiling type

Available with RIDI Resflex

Set the output onsite by adjusting the internal potentiometer to give just the right light level and just the right energy usage.

Product Selection

Product Filters

		Size (mm)	Mounting	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour
Image	Part Code Article Number	Size (mm)	Mounting	Lumen Output	Light Colour	CRI (Ra)	Lm/W	UGR Rating	Driver Type	Body Colour	Data	LDT	Polar	BIM
	EL-AE0622NDWS830MRM0175 0627653	630 mm	Surface	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-AE0622NDWS840MRM0200 0627654	630 mm	Surface	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-AE1247NDWS830MRM0350 0627655	1255 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-AE1247NDWS840MRM0350 0627656	1255 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-AE1247NDWS830MRM0700-RF 0627657	1255 mm	Surface	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-AE1247NDWS840MRM0700-RF 0627659	1255 mm	Surface	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 22	xFlex	White
	EL-AE1547NDWS830MRM0500 0627661	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-AE1547NDWS840MRM0550 0627663	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-AE1547NDWS830MRM1000-RF 0627665	1555 mm	Surface	10100 lm	3000 K	≥ 80	127,8 lm/W		xFlex	White
	EL-AE1547NDWS840MRM1100-RF 0627667	1555 mm	Surface	10500 lm	4000 K	≥ 80	132,9 lm/W		xFlex	White
	EL-AE0622DAWS830MRM0175 0637653	630 mm	Surface	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI-2	White
	EL-AE0622DAWS840MRM0200 0637654	630 mm	Surface	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI-2	White
	EL-AE1247DAWS830MRM0350 0637655	1255 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-AE1247DAWS840MRM0350 0637656	1255 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-AE1247DAWS830MRM0700 0637657	1255 mm	Surface	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-AE1247DAWS840MRM0700 0637659	1255 mm	Surface	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS830MRM0500 0637661	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS840MRM0550 0637663	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS830MRM1000 0637665	1555 mm	Surface	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS840MRM1100 0637667	1555 mm	Surface	10510 lm	4000 K	≥ 80	133,0 lm/W	≤ 19	DALI-2	White
	EL-AE1247DAWS830MRM0700-SEN 0637658	1255 mm	Surface	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-AE1247DAWS840MRM0700-SEN 0637660	1255 mm	Surface	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS830MRM0500-SEN 0637662	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS840MRM0550-SEN 0637664	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS830MRM1000-SEN 0637666	1555 mm	Surface	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI-2	White
	EL-AE1547DAWS840MRM1100-SEN 0637668	1555 mm	Surface	10510 lm	4000 K	≥ 80	133,0 lm/W	≤ 19	DALI-2	White
	EL-AN0622NDWS830MRM0175 0627639	630 mm	Surface	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-AN0622NDWS840MRM0200 0627640	630 mm	Surface	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-AN1247NDWS830MRM0350 0627641	1255 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-AN1247NDWS840MRM0350 0627642	1255 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-AN1547NDWS830MRM0500 0627643	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-AN1547NDWS840MRM0550 0627644	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-AN0622DAWS830MRM0175 0637639	630 mm	Surface	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI-2	White
	EL-AN0622DAWS840MRM0200 0637640	630 mm	Surface	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI-2	White
	EL-AN1247DAWS830MRM0350 0637641	1255 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-AN1247DAWS840MRM0350 0637642	1255 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-AN1547DAWS830MRM0500 0637643	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-AN1547DAWS840MRM0550 0637644	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-AQ0310NDWS830MRM0300-RF 0627716	318 mm	Surface	3100 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	xFlex	White
	EL-AQ0310NDWS840MRM0350-RF 0627717	318 mm	Surface	3300 lm	4000 K	≥ 80	122,2 lm/W	≤ 19	xFlex	White
	EL-AQ0483NDWS830MRM0300-RF 0627718	491 mm	Surface	3100 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	xFlex	White
	EL-AQ0483NDWS840MRM0350-RF 0627719	491 mm	Surface	3300 lm	4000 K	≥ 80	122,2 lm/W	≤ 19	xFlex	White
	EL-AQ0310DAWS830MRM0300 0637716	318 mm	Surface	3150 lm	3000 K	≥ 80	116,7 lm/W	≤ 19	DALI-2	White
	EL-AQ0310DAWS840MRM0350 0637717	318 mm	Surface	3280 lm	4000 K	≥ 80	121,5 lm/W	≤ 19	DALI-2	White
	EL-AQ0483DAWS830MRM0300 0637718	491 mm	Surface	3150 lm	3000 K	≥ 80	116,7 lm/W	≤ 19	DALI-2	White
	EL-AQ0483DAWS840MRM0350 0637719	491 mm	Surface	3280 lm	4000 K	≥ 80	121,5 lm/W	≤ 19	DALI-2	White
	EL-AQ0622NDWS830MRM0350 0627638	630 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-AQ0622NDWS840MRM0350 0627670	630 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-AQ0622NDWS830MRM0700-RF 0627672	630 mm	Surface	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-AQ0622NDWS840MRM0700-RF 0627674	630 mm	Surface	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-AQ0622DAWS830MRM0350 0637638	630 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS840MRM0350 0637670	630 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS830MRM0700 0637672	630 mm	Surface	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS840MRM0700 0637674	630 mm	Surface	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS830MRM0350-SEN 0637669	630 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS840MRM0350-SEN 0637671	630 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS830MRM0700-SEN 0637673	630 mm	Surface	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-AQ0622DAWS840MRM0700-SEN 0637675	630 mm	Surface	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-AS0622NDWS830MRM0175 0627645	630 mm	Surface	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-AS0622NDWS840MRM0200 0627646	630 mm	Surface	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-AS1247NDWS830MRM0350 0627647	1255 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-AS1247NDWS840MRM0350 0627648	1255 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-AS1547NDWS830MRM0500 0627649	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-AS1547NDWS840MRM0550 0627651	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-AS0622DAWS830MRM0175 0637645	630 mm	Surface	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI-2	White
	EL-AS0622DAWS840MRM0200 0637646	630 mm	Surface	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI-2	White
	EL-AS1247DAWS830MRM0350 0637647	1255 mm	Surface	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-AS1247DAWS840MRM0350 0637648	1255 mm	Surface	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-AS1547DAWS830MRM0500 0637649	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-AS1547DAWS840MRM0550 0637651	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-AS1547DAWS830MRM0500-SEN 0637650	1555 mm	Surface	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-AS1547DAWS840MRM0550-SEN 0637652	1555 mm	Surface	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-AS1547NDWS840LFA0550 0627802	1555 mm	Surface	5460 lm	4000 K	≥ 80	130,0 lm/W	≤ 25	On/Off	White
	EL-AS1247NDWS840LFA0450 0627803	1255 mm	Surface	4340 lm	4000 K	≥ 80	127,6 lm/W	≤ 25	On/Off	White
	EL-AS1547DAWS840LFA0550 0637802	1555 mm	Surface	5460 lm	4000 K	≥ 80	130,0 lm/W	≤ 25	DALI	White
	EL-AS1247DAWS840LFA0450 0637803	1255 mm	Surface	4340 lm	4000 K	≥ 80	127,6 lm/W	≤ 25	DALI	White
	EL-EE1497NDWS830MRM0500 0827817	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EE1497NDWS840MRM0550 0827818	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EE1197NDWS830MRM0350 0827819	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EE1197NDWS840MRM0350 0827820	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EE0597NDWS830MRM0175 0827821	597 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-EE0597NDWS840MRM0200 0827822	597 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-EE1497NDWS830MRM1000-RF 0827857	1497 mm	Recessed	10100 lm	3000 K	≥ 80	127,8 lm/W	≤ 19	xFlex	White
	EL-EE1497NDWS840MRM1100-RF 0827858	1497 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	xFlex	White
	EL-EE1197NDWS830MRM0700-RF 0827859	1197 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EE1197NDWS840MRM0700-RF 0827860	1197 mm	Recessed	6900 lm	4000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EE1497DAWS830MRM0500 0837817	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-EE1497DAWS840MRM0550 0837818	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-EE1197DAWS830MRM0350 0837819	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EE1197DAWS840MRM0350 0837820	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EE0597DAWS830MRM0175 0837821	597 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-EE0597DAWS840MRM0200 0837822	597 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-EE1497DAWS830MRM1000 0837857	1497 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI	White
	EL-EE1497DAWS840MRM1100 0837858	1497 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	DALI	White
	EL-EE1197DAWS830MRM0700 0837859	1197 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EE1197DAWS840MRM0700 0837860	1197 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EE1197DAWS830MRM0350-SEN 0837987	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-EE1197DAWS840MRM0350-SEN 0837988	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-EE1197DAWS830MRM0700-SEN 0837989	1197 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-EE1197DAWS840MRM0700-SEN 0837990	1197 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS830MRM0500-SEN 0837991	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS840MRM0550-SEN 0837992	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS830MRM1000-SEN 0837993	1497 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS840MRM1100-SEN 0837994	1497 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	DALI-2	White
	EL-EE1197NDWS830MRM0350-EDS3 0828007	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EE1197NDWS840MRM0350-EDS3 0828008	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EE1497NDWS830MRM0500-EDS3 0828009	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EE1497NDWS840MRM0500-EDS3 0828010	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EE1497NDWS830MRM1000RF-EDS3 0828011	1497 mm	Recessed	10100 lm	3000 K	≥ 80	127,8 lm/W	≤ 19	xFlex	White
	EL-EE1497NDWS840MRM1100RF-EDS3 0828012	1497 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	xFlex	White
	EL-EE1197DAWS830MRM0350-EDS3 0838007	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-EE1197DAWS840MRM0350-EDS3 0838008	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS830MRM0500-EDS3 0838009	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS840MRM0500-EDS3 0838010	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS830MRM1000-EDS3 0838011	1497 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI-2	White
	EL-EE1497DAWS840MRM1100-EDS3 0838012	1497 mm	Recessed	10500 lm	4000 K	≥ 80	136,4 lm/W	≤ 19	DALI-2	White
	EL-EE1547NDWS830MRM0500 0827801	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EE1547NDWS840MRM0550 0827802	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EE1247NDWS830MRM0350 0827803	1247 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EE1247NDWS840MRM0350 0827804	1247 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EE0622NDWS830MRM0175 0827805	622 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-EE0622NDWS840MRM0200 0827806	622 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-EE1547NDWS830MRM1000-RF 0827853	1547 mm	Recessed	10100 lm	3000 K	≥ 80	127,8 lm/W	≤ 19	xFlex	White
	EL-EE1547NDWS840MRM1100-RF 0827854	1547 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	xFlex	White
	EL-EE1247NDWS830MRM0700-RF 0827855	1247 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EE1247NDWS840MRM0700-RF 0827856	1247 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EE1547DAWS830MRM0500 0837801	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-EE1547DAWS840MRM0550 0837802	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-EE1247DAWS830MRM0350 0837803	1247 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EE1247DAWS840MRM0350 0837804	1247 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EE0622DAWS830MRM0175 0837805	622 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-EE0622DAWS840MRM0200 0837806	622 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-EE1547DAWS830MRM1000 0837853	1547 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI	White
	EL-EE1547DAWS840MRM1100 0837854	1547 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	DALI	White
	EL-EE1247DAWS830MRM0700 0837855	1247 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EE1247DAWS840MRM0700 0837856	1247 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EE1547DAWS830MRM0500-SEN 0837973	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EE1547DAWS840MRM0550-SEN 0837974	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EE1547DAWS830MRM1000-SEN 0837975	1547 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI-2	White
	EL-EE1547DAWS840MRM1100-SEN 0837976	1547 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	DALI-2	White
	EL-EE1247DAWS830MRM0700-SEN 0837981	1247 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-EE1247DAWS840MRM0700-SEN 0837982	1247 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-EE1547NDWS830MRM0500-EDS3 0827999	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EE1547NDWS840MRM0550-EDS3 0828000	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EE1547NDWS830MRM1000RF-EDS3 0828001	1547 mm	Recessed	10100 lm	3000 K	≥ 80	127,8 lm/W	≤ 19	xFlex	White
	EL-EE1547NDWS840MRM1100RF-EDS3 0828002	1547 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 22	xFlex	White
	EL-EE1547DAWS830MRM0500-EDS3 0837999	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EE1547DAWS840MRM0550-EDS3 0838000	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EE1547DAWS830MRM1000-EDS3 0838001	1547 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI-2	White
	EL-EE1547DAWS840MRM1100-EDS3 0838002	1547 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	DALI-2	White
	EL-EN1497NDWS830MRM0500 0827869	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EN1497NDWS840MRM0550 0827870	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EN1197NDWS830MRM0350 0827871	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EN1197NDWS840MRM0350 0827872	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EN0597NDWS830MRM0175 0827873	597 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-EN0597NDWS840MRM0200 0827874	597 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-EN1497DAWS830MRM0500 0837869	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-EN1497DAWS840MRM0550 0837870	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-EN1197DAWS830MRM0350 0837871	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EN1197DAWS840MRM0350 0837872	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EN0597DAWS830MRM0175 0837873	597 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-EN0597DAWS840MRM0200 0837874	597 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-EN1497NDWS830MRM0500-EDS3 0828003	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EN1497NDWS840MRM0550-EDS3 0828004	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EN1497DAWS830MRM0500-EDS3 0838003	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EN1497DAWS840MRM0550-EDS3 0838004	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EN1497DAWS830MRM0500-SEN 0837983	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EN1497DAWS840MRM0550-SEN 0837984	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EN1547NDWS830MRM0500 0827863	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EN1547NDWS840MRM0550 0827864	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EN1247NDWS830MRM0350 0827865	1247 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EN1247NDWS840MRM0350 0827866	1247 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EN0622NDWS830MRM0175 0827867	622 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-EN0622NDWS840MRM0200 0827868	622 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-EN1547DAWS830MRM0500 0837863	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-EN1547DAWS840MRM0550 0837864	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-EN1247DAWS830MRM0350 0837865	1247 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EN1247DAWS840MRM0350 0837866	1247 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EN0622DAWS830MRM0175 0837867	622 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-EN0622DAWS840MRM0200 0837868	622 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-EN1547NDWS830MRM0500-EDS3 0827995	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EN1547NDWS840MRM0550-EDS3 0827996	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EN1547DAWS830MRM0500-EDS3 0837995	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EN1547DAWS840MRM0550-EDS3 0837996	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EN1547DAWS830MRM0500-SEN 0837977	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-EN1547DAWS840MRM0550-SEN 0837978	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-EPE1548NDWS830MRM0500 0827833	1548 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EPE1548NDWS840MRM0550 0827834	1548 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EPE1248NDWS830MRM0350 0827835	1248 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EPE1248NDWS840MRM0350 0827836	1248 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EPE0624NDWS830MRM0175 0827837	624 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-EPE0624NDWS840MRM0200 0827838	624 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-EPS1548NDWS830MRM0500 0827839	1548 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-EPS1548NDWS840MRM0550 0827840	1548 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-EPS1248NDWS830MRM0350 0827841	1248 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EPS1248NDWS840MRM0350 0827842	1248 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EPS0624NDWS830MRM0175 0827843	624 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-EPS0624NDWS840MRM0200 0827844	624 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-EPE1548NDWS830MRM1000-RF 0827861	1548 mm	Recessed	10100 lm	3000 K	≥ 80	127,8 lm/W	≤ 19	xFlex	White
	EL-EPE1548NDWS840MRM1100-RF 0827862	1548 mm	Recessed	10500 lm	4000 K	≥ 80	132,9 lm/W	≤ 19	xFlex	White
	EL-EPE1248NDWS830MRM0700-RF 0827875	1248 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EPE1248NDWS840MRM0700-RF 0827876	1248 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EPE1548DAWS830MRM0500 0837833	1548 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-EPE1548DAWS840MRM0550 0837834	1548 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-EPE1248DAWS830MRM0350 0837835	1248 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EPE1248DAWS840MRM0350 0837836	1248 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EPE0624DAWS830MRM0175 0837837	624 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-EPE0624DAWS840MRM0200 0837838	624 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-EPS1548DAWS830MRM0500 0837839	1548 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-EPS1548DAWS840MRM0550 0837840	1548 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-EPS1248DAWS830MRM0350 0837841	1248 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EPS1248DAWS840MRM0350 0837842	1248 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EPS0624DAWS830MRM0175 0837843	624 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-EPS0624DAWS840MRM0200 0837844	624 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-EPE1548DAWS830MRM1000 0837861	1548 mm	Recessed	10080 lm	3000 K	≥ 80	127,6 lm/W	≤ 19	DALI	White
	EL-EPE1548DAWS840MRM1100 0837862	1548 mm	Recessed	10510 lm	4000 K	≥ 80	133,0 lm/W	≤ 19	DALI	White
	EL-EPE1248DAWS830MRM0700 0837875	1248 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EPE1248DAWS840MRM0700 0837876	1248 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EQ0483NDWS830MRM0300-RF 0827877	483 mm	Recessed	3100 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	xFlex	White
	EL-EQ0483NDWS840MRM0350-RF 0827878	483 mm	Recessed	3300 lm	4000 K	≥ 80	122,2 lm/W	≤ 19	xFlex	White
	EL-EQ0310NDWS830MRM0300-RF 0827879	310 mm	Recessed	3100 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	xFlex	White
	EL-EQ0310NDWS840MRM0350-RF 0827880	310 mm	Recessed	3300 lm	4000 K	≥ 80	122,2 lm/W	≤ 19	xFlex	White
	EL-EQ0483DAWS830MRM0300 0837877	483 mm	Recessed	3150 lm	3000 K	≥ 80	116,7 lm/W	≤ 19	DALI	White
	EL-EQ0483DAWS840MRM0350 0837878	483 mm	Recessed	3280 lm	4000 K	≥ 80	121,5 lm/W	≤ 19	DALI	White
	EL-EQ0310DAWS830MRM0300 0837879	310 mm	Recessed	3150 lm	3000 K	≥ 80	116,7 lm/W	≤ 19	DALI	White
	EL-EQ0310DAWS840MRM0350 0837880	310 mm	Recessed	3280 lm	4000 K	≥ 80	121,5 lm/W	≤ 19	DALI	White
	EL-EQ0597NDWS830MRM0350 0827815	597 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EQ0597NDWS840MRM0350 0827816	597 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EQ0597NDWS830MRM0700-RF 0827851	597 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EQ0597NDWS840MRM0700-RF 0827852	597 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EQ0597DAWS830MRM0350 0837815	597 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EQ0597DAWS840MRM0350 0837816	597 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EQ0597DAWS830MRM0700 0837851	597 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EQ0597DAWS840MRM0700 0837852	597 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EQ0597NDWS830MRM0350-EDS3 0827957	597 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EQ0597NDWS840MRM0350-EDS3 0827958	597 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EQ0597NDWS830MRM0700RF-EDS3 0827959	597 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EQ0597NDWS840MRM0700RF-EDS3 0827960	597 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EQ0597DAWS830MRM0350-EDS3 0837957	597 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS840MRM0350-EDS3 0837958	597 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS830MRM0700-EDS3 0837959	597 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS840MRM0700-EDS3 0837960	597 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS830MRM0350-SEN 0837899	597 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS840MRM0350-SEN 0837900	597 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS830MRM0700-SEN 0837901	597 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0597DAWS840MRM0700-SEN 0837902	597 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-EQ0622NDWS830MRM0350 0827797	622 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EQ0622NDWS840MRM0350 0827798	622 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EQ0622NDWS830MRM0700-RF 0827849	622 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EQ0622NDWS840MRM0700-RF 0827850	622 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EQ0622DAWS830MRM0350 0837797	622 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-EQ0622DAWS840MRM0350 0837798	622 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-EQ0622DAWS830MRM0700 0837849	622 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EQ0622DAWS840MRM0700 0837850	622 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EQ0622DAWS830MRM0350-SEN 0837895	622 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-EQ0622DAWS840MRM0350-SEN 0837896	622 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0622DAWS830MRM0700-SEN 0837897	622 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0622DAWS840MRM0700-SEN 0837898	622 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-EQ0622NDWS830MRM0350-EDS3 0827953	622 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-EQ0622NDWS840MRM0350-EDS3 0827954	622 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-EQ0622NDWS830MRM0700RF-EDS3 0827955	622 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EQ0622NDWS840MRM0700RF-EDS3 0827956	622 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EQ0622DAWS830MRM0350-EDS3 0837953	622 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI-2	White
	EL-EQ0622DAWS840MRM0350-EDS3 0837954	622 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0622DAWS830MRM0700-EDS3 0837955	622 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI-2	White
	EL-EQ0622DAWS840MRM0700-EDS3 0837956	622 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI-2	White
	EL-ES1497NDWS830MRM0500 0827823	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-ES1497NDWS840MRM0550 0827824	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-ES1197NDWS830MRM0350 0827825	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-ES1197NDWS840MRM0350 0827826	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	On/Off	White
	EL-ES0597NDWS830MRM0175 0827827	597 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-ES0597NDWS840MRM0200 0827828	597 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-ES1497DAWS830MRM0500 0837823	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-ES1497DAWS840MRM0550 0837824	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-ES1197DAWS830MRM0350 0837825	1197 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-ES1197DAWS840MRM0350 0837826	1197 mm	Recessed	3510 lm	4000 K	≥ 80	117,0 lm/W	≤ 19	DALI	White
	EL-ES0597DAWS830MRM0175 0837827	597 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-ES0597DAWS840MRM0200 0837828	597 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-ES1497DAWS830MRM0500-SEN 0837985	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-ES1497DAWS840MRM0550-SEN 0837986	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-ES1497NDWS830MRM0500-EDS3 0828005	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-ES1497NDWS840MRM0550-EDS3 0828006	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-ES1497DAWS830MRM0500-EDS3 0838005	1497 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-ES1497DAWS840MRM0550-EDS3 0838006	1497 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-ES1547NDWS830MRM0500 0827799	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-ES1547NDWS840MRM0550 0827800	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-ES1247NDWS830MRM0350 0827829	1247 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	On/Off	White
	EL-ES1247NDWS840MRM0350 0827830	1247 mm	Recessed	3510 lm	4000 K		117,0 lm/W	≤ 19	On/Off	White
	EL-ES0622NDWS830MRM0175 0827831	622 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	On/Off	White
	EL-ES0622NDWS840MRM0200 0827832	622 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	On/Off	White
	EL-ES1547DAWS830MRM0500 0837799	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI	White
	EL-ES1547DAWS840MRM0550 0837800	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI	White
	EL-ES1247DAWS830MRM0350 0837829	1247 mm	Recessed	3370 lm	3000 K	≥ 80	112,3 lm/W	≤ 19	DALI	White
	EL-ES1247DAWS840MRM0350 0837830	1247 mm	Recessed	3510 lm	4000 K		117,0 lm/W	≤ 19	DALI	White
	EL-ES0622DAWS830MRM0175 0837831	622 mm	Recessed	1690 lm	3000 K	≥ 80	112,7 lm/W	≤ 19	DALI	White
	EL-ES0622DAWS840MRM0200 0837832	622 mm	Recessed	1760 lm	4000 K	≥ 80	117,3 lm/W	≤ 19	DALI	White
	EL-ES1547NDWS830MRM0500-EDS3 0827997	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	On/Off	White
	EL-ES1547NDWS840MRM0550-EDS3 0827998	1574 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	On/Off	White
	EL-ES1547DAWS830MRM0500-EDS3 0837997	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-ES1547DAWS840MRM0550-EDS3 0837998	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White
	EL-ES1547DAWS830MRM0500-SEN 0837979	1547 mm	Recessed	5050 lm	3000 K	≥ 80	114,8 lm/W	≤ 19	DALI-2	White
	EL-ES1547DAWS840MRM0550-SEN 0837980	1547 mm	Recessed	5270 lm	4000 K	≥ 80	119,8 lm/W	≤ 19	DALI-2	White

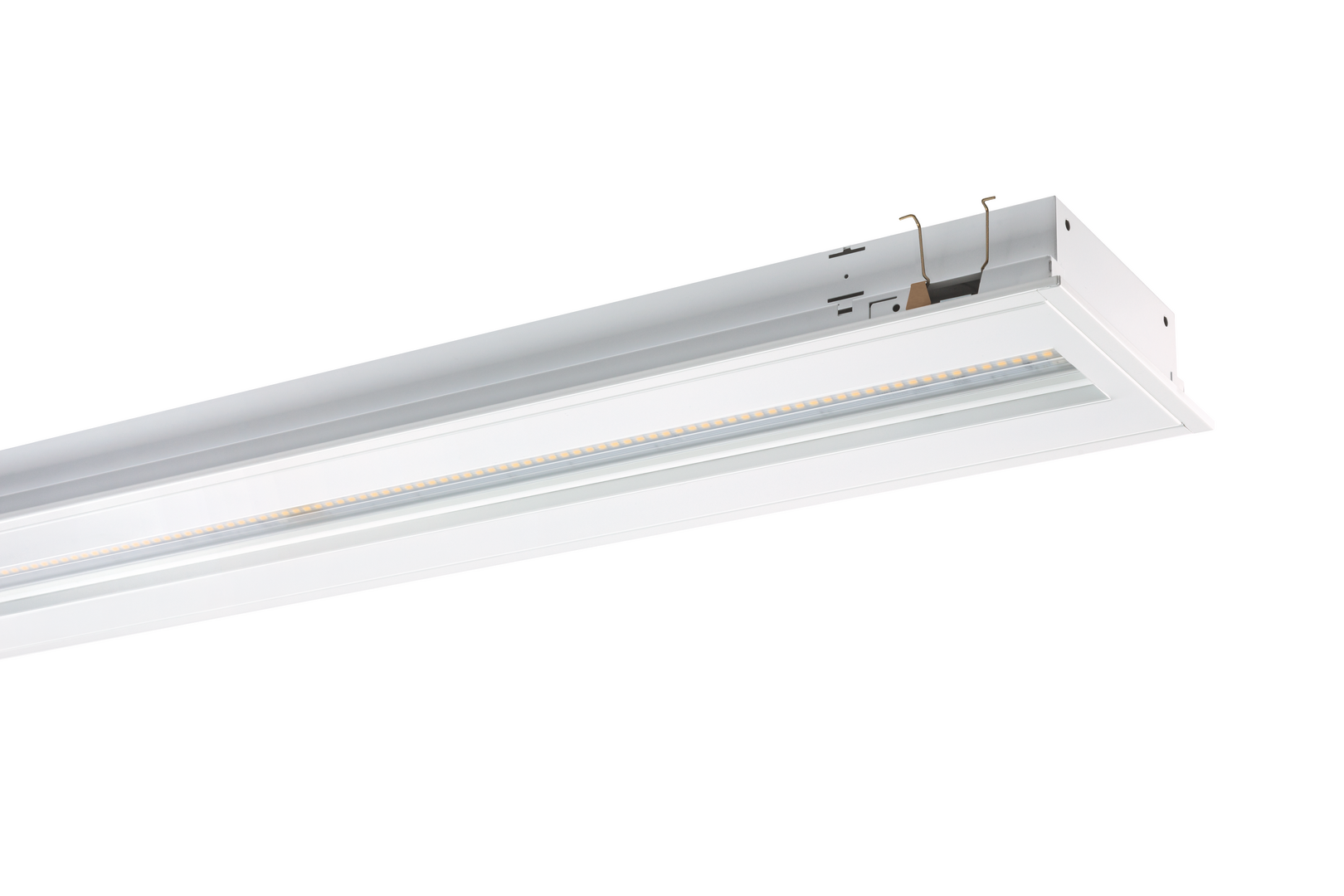

	EL-ES1547NDWS840LFA0550 0828052	1547 mm	Recessed	5460 lm	4000 K	≥ 80	130,0 lm/W	> 25	On/Off	White

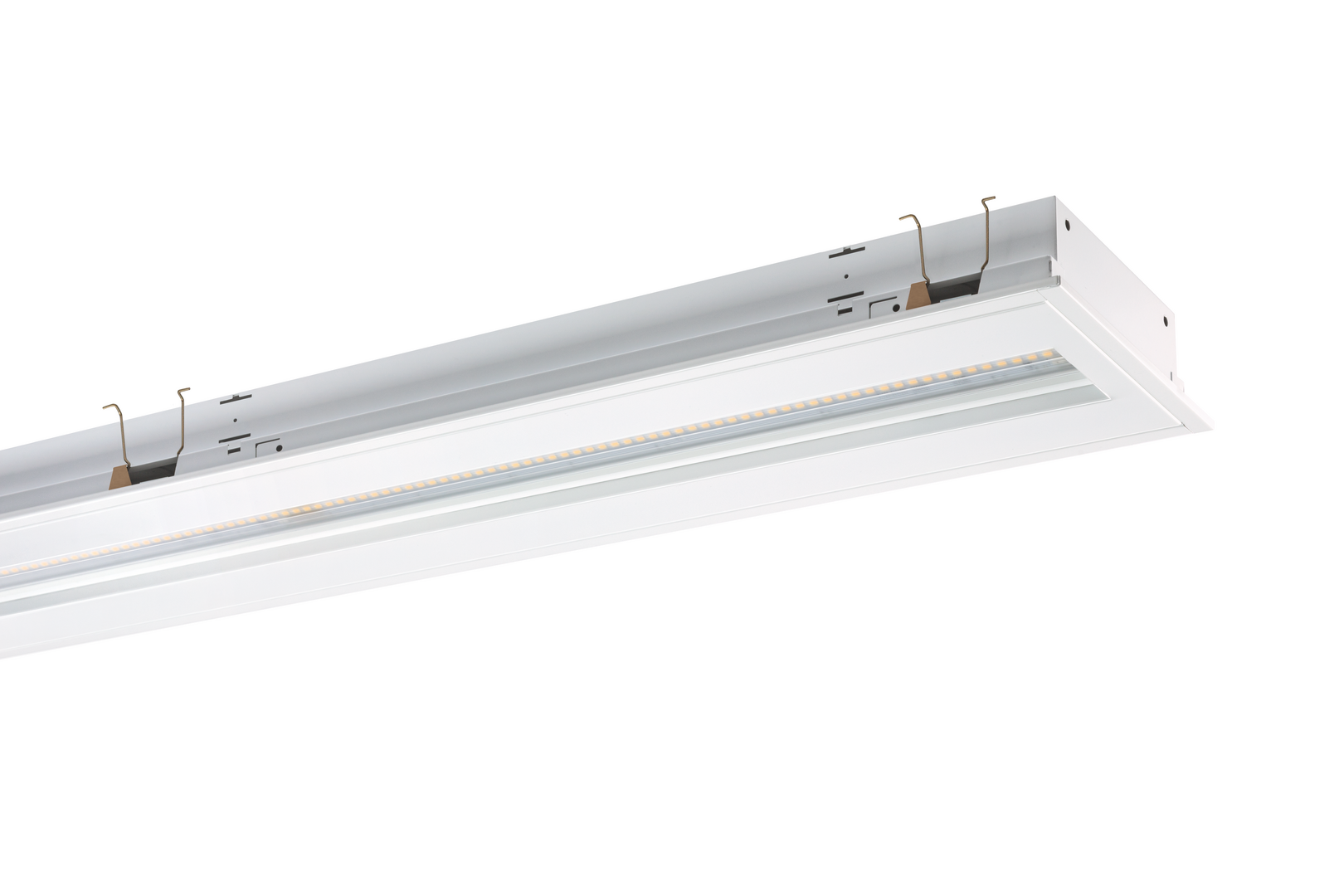

	EL-ES1247NDWS840LFA0450 0828053	1247 mm	Recessed	4340 lm	4000 K	≥ 80	127,6 lm/W	> 25	On/Off	White
	EL-ES1547DAWS840LFA0550 0838052	1547 mm	Recessed	5460 lm	4000 K	≥ 80	130,0 lm/W	> 25	DALI	White
	EL-ES1247DAWS840LFA0450 0838053	1247 mm	Recessed	4340 lm	4000 K	≥ 80	127,6 lm/W	> 25	DALI	White
	EL-EUQ0624NDWS830MRM0700-RF 0827885	624 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EUQ0624NDWS840MRM0700-RF 0827886	624 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EUE1249NDWS830MRM0700-RF 0827887	1249 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EUE1249NDWS840MRM0700-RF 0827888	1249 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EUQ0624DAWS830MRM0700 0837885	624 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EUQ0624DAWS840MRM0700 0837886	624 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EUE1249DAWS830MRM0700 0837887	1249 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EUE1249DAWS840MRM0700 0837888	1249 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EUQ0599NDWS830MRM0700-RF 0827881	599 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EUQ0599NDWS840MRM0700-RF 0827882	599 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EUE1199NDWS830MRM0700-RF 0827883	1199 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	xFlex	White
	EL-EUE1199NDWS840MRM0700-RF 0827884	1199 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	xFlex	White
	EL-EUQ0599DAWS830MRM0700 0837881	599 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EUQ0599DAWS840MRM0700 0837882	599 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
	EL-EUE1199DAWS830MRM0700 0837883	1199 mm	Recessed	6900 lm	3000 K	≥ 80	119,0 lm/W	≤ 19	DALI	White
	EL-EUE1199DAWS840MRM0700 0837884	1199 mm	Recessed	7200 lm	4000 K	≥ 80	124,1 lm/W	≤ 19	DALI	White
