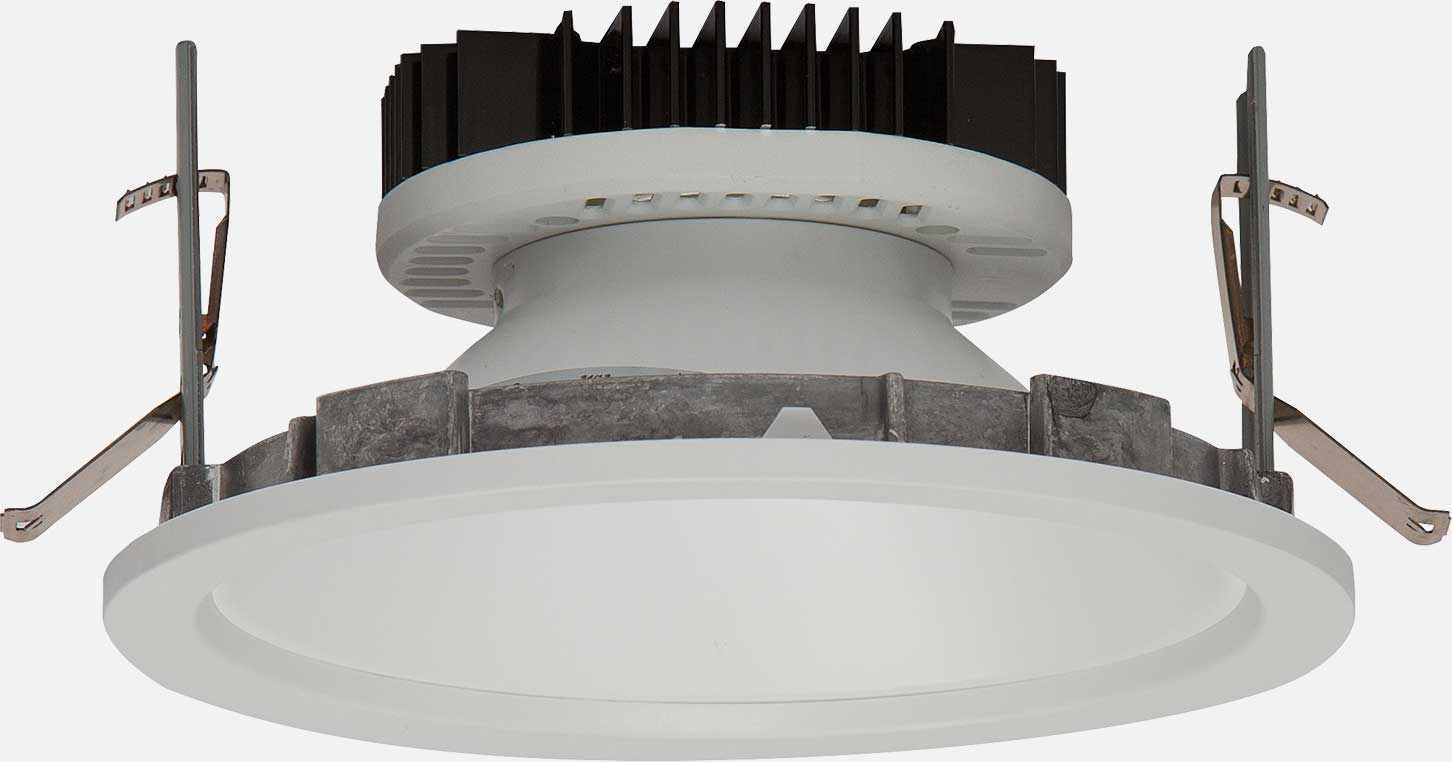

EDLR

Recessed Downlights

Simple, Modular

A broad range of circular recessed downlights offering a solution for all applications.

Replaceable LED module with bayonet fixing and plug and socket connection.

A range of reflectors, diffusers and attachments.



Six Diameters

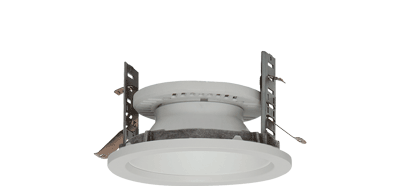

EDLR 150

150mm
1,100 or 2,000lm
White, Narrow or Broad distribution reflectors

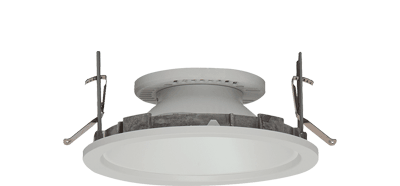

EDLR 195

195mm
1,100 2,000 or 3,000lm
White, Narrow or Broad distribution reflectors

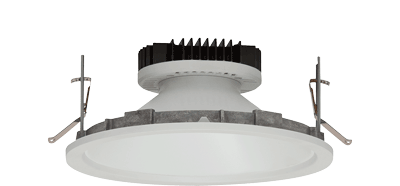

EDLR 235

∅235mm
2,000 3,000 4,000 or 5,000lm
White, Narrow or Broad distribution reflectors

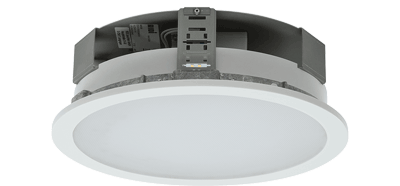

EDLR 275

∅275mm
3,000 or 4,000lm
Opal, Microprism, Opal+Microprism or Lucent+Microprism diffuser

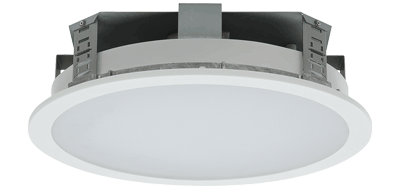

EDLR 340

∅340mm
4,000 or 5,000lm
Opal, Microprism, Opal+Microprism or Lucent+Microprism diffuser

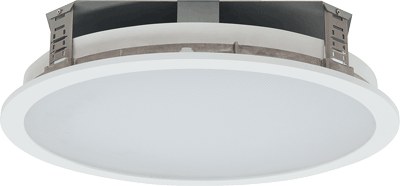

EDLR 410

∅410mm
5,000 or 6,000lm
Opal, Microprism, Opal+Microprism or Lucent+Microprism diffuser

Three Reflectors

For 150mm, 195mm and 235mm

W Reflector

High reflectivity white reflector with a wide distribution. Works well with additional diffusers or optics.

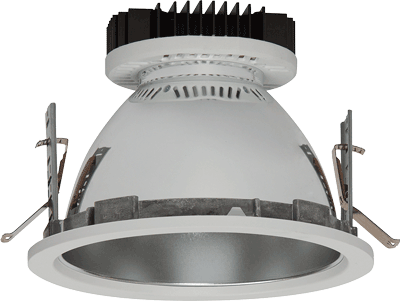

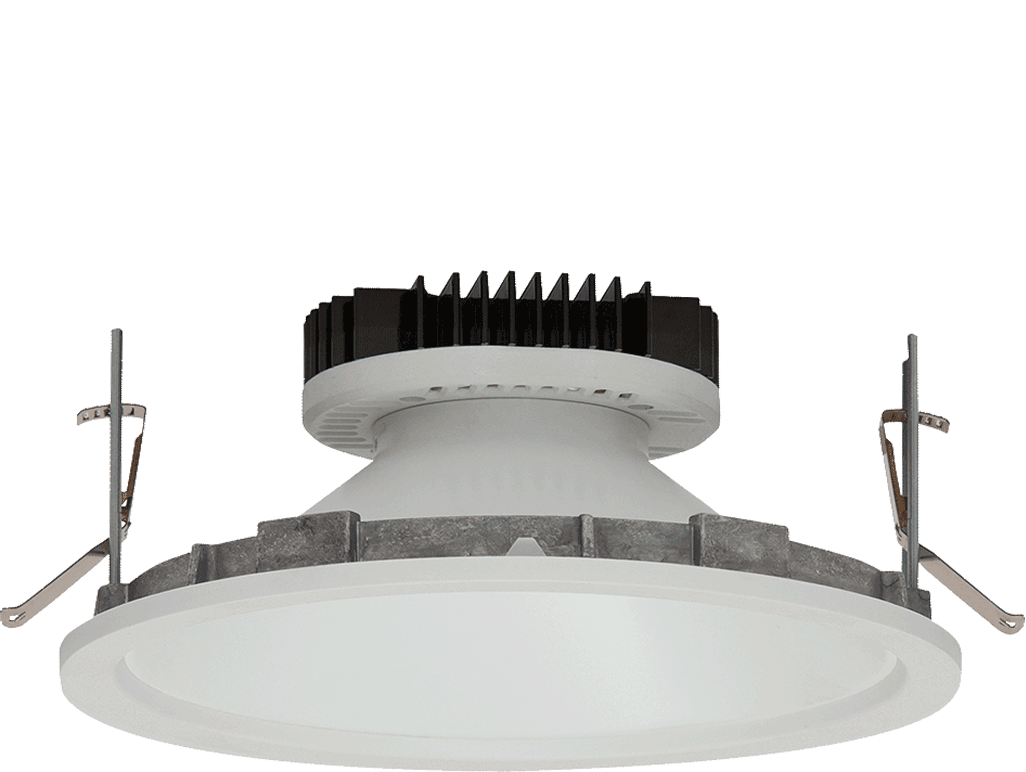

SMT Reflector

Satin Matt Aluminium reflector with narrow distribution and low glare even without additional optics or diffusers.

SMB Reflector

Satin Matt Aluminium reflector with broad distribution and low glare even without additional optics or diffusers.

Four Diffusers

For 275mm, 340mm and 410mm

DPO Diffuser

Diamond Prismatic panel for low glare with additional opal element to prevent imaging of the LEDs

DPS Diffuser

Diamond prismatic diffuser low glare.  LEDs appear as individual points of light.

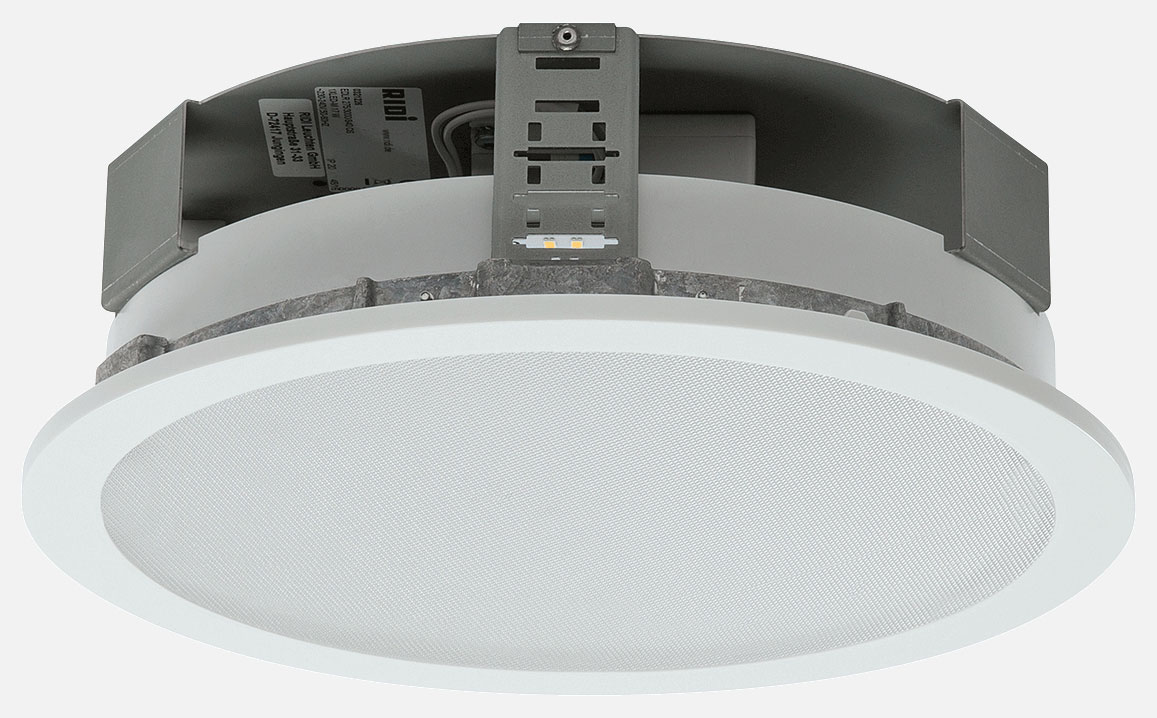

MPS Diffuser

Laser etched circular prisms for extreme low glare in all directions.  LEDs appear as circles of light.

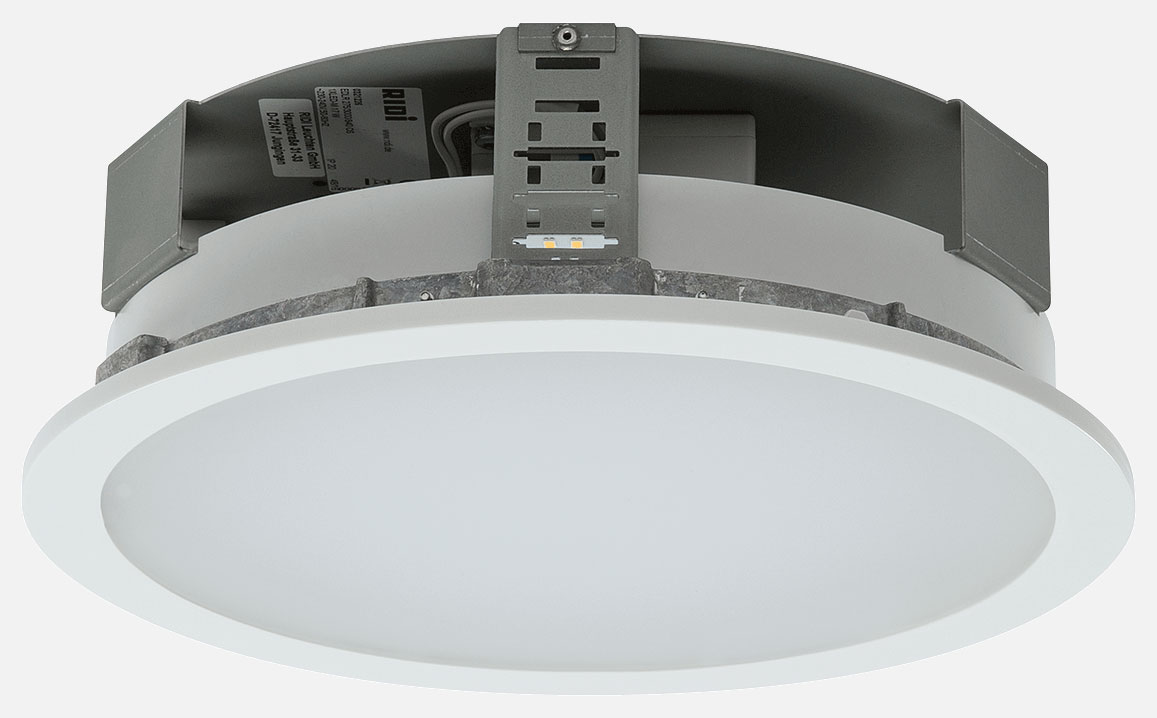

OS Diffuser

Opal panel provides bright, even illumination of the diffuser.  No visible LEDs.

Loads of Accessories

DR … DR-K
Decorative Rings

Silver, Grey, White or Gold

DR … SK
Clear Glass

150, 195 & 235
IP 44 With Attachment

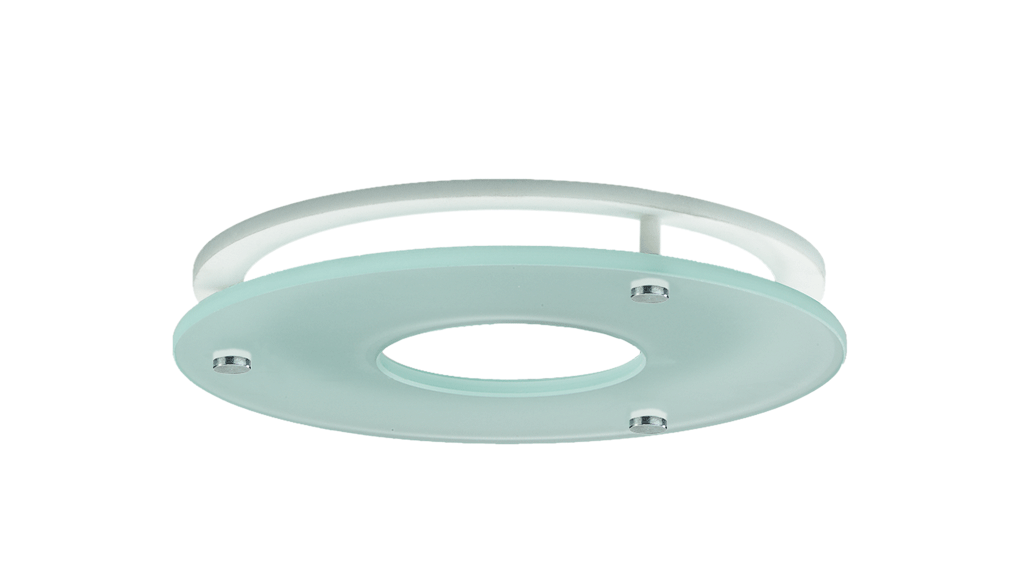

DR ..
Frosted Glass

150, 195 & 235
IP 44 With Attachment

DR … SO
Opal Glass

150, 195 & 235
IP 44 With Attachment

DR … HO
Drop Diffuser

150, 195 & 235
IP 44 With Attachment

DR … SPM
Matt Centre Glass

150, 195 & 235

DR .. RM
Frosted Glass

150, 195 & 235

DR … HWNR
Signage

150, 195 & 235

Technical Information

EDLR 150

Optical Distribution:
White Reflector – W
Satin Matt Silver Reflector Broad Distribution – SMB
Satin Matt Silver Reflector Narrow Distribution – SMT
Output (lm):
1040 – 2037 lm
Control:
DALI – DA
Non-Dimming – ND
Casambi Wireless – CAS

Colour Temperatures:
3,000K 4,000K
3,000 – 6,500K Tuneable White
Colour:
White
IP Rating:
IP20
IP44 With Attachments DR, DR..SK, DR..SO, DR..HO
Emergency Lighting
3HR Battery – EDS3

Specific Product Information and Downloads

Downloads - W Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 150/1100-830 W / 0321307 85 mm 150 mm 830 1148 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 W-DALI / 0331307 85 mm 150 mm 830 1148 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 W-DALI-EDS3 / 0331307//377 85 mm 150 mm 830 1148 lm 8 W PDF LDT IMG
EDLR 150/1100-830 W-EDS3 / 0321307//377 85 mm 150 mm 830 1148 lm 8 W PDF LDT IMG
EDLR 150/1100-840 W / 0321305 85 mm 150 mm 840 1148 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 W-DALI / 0331305 85 mm 150 mm 840 1148 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 W-DALI-EDS3 / 0331305//377 85 mm 150 mm 840 1148 lm 8 W PDF LDT IMG
EDLR 150/1100-840 W-EDS3 / 0321305//377 85 mm 150 mm 840 1148 lm 8 W PDF LDT IMG
EDLR 150/2000-830 W / 0321310 85 mm 150 mm 830 2037 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-830 W-DA-EDS3 / 0331310//377 85 mm 150 mm 830 2037 lm 16 W PDF LDT IMG
EDLR 150/2000-830 W-DALI / 0331310 85 mm 150 mm 830 2037 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-830 W-EDS3 / 0321310//377 85 mm 150 mm 830 2037 lm 16 W PDF LDT IMG
EDLR 150/2000-840 W / 0321309 85 mm 150 mm 840 2037 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-840 W-DA-EDS3 / 0331309//377 85 mm 150 mm 840 2037 lm 16 W PDF LDT IMG
EDLR 150/2000-840 W-DALI / 0331309 85 mm 150 mm 840 2037 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-840 W-EDS3 / 0321309//377 85 mm 150 mm 840 2037 lm 16 W PDF LDT IMG
Downloads - SMB Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 150/1100-830 SMB / 0321353 94 mm 150 mm 830 1040 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 SMB / 0321353 94 mm 150 mm 830 1040 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 SMB-DALI / 0331353 94 mm 150 mm 830 1040 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 SMB-EDS3 / 0321353//377 94 mm 150 mm 830 1040 lm 8 W PDF LDT IMG
EDLR 150/1100-840 SMB / 0321354 94 mm 150 mm 840 1040 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 SMB-DA-EDS3 / 0331354//377 94 mm 150 mm 840 1040 lm 8 W PDF LDT IMG
EDLR 150/1100-840 SMB-DALI / 0331354 94 mm 150 mm 840 1040 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 SMB-EDS3 / 0321354//377 94 mm 150 mm 840 1040 lm 8 W PDF LDT IMG
EDLR 150/2000-830 SMB / 0321355 111 mm 150 mm 830 1840 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-830 SMB-DA-EDS3 / 0331355//377 111 mm 150 mm 830 1840 lm 16 W PDF LDT IMG
EDLR 150/2000-830 SMB-DALI / 0331355 111 mm 150 mm 830 1840 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-830 SMB-EDS3 / 0321355//377 111 mm 150 mm 830 1840 lm 16 W PDF LDT IMG
EDLR 150/2000-840 SMB / 0321356 111 mm 150 mm 840 1840 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-840 SMB-DA-EDS3 / 0331356//377 111 mm 150 mm 840 1840 lm 16 W PDF LDT IMG
EDLR 150/2000-840 SMB-DALI / 0331356 111 mm 150 mm 840 1840 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-840 SMB-EDS3 / 0321356//377 111 mm 150 mm 840 1840 lm 16 W PDF LDT IMG
EDLR 150/2000-TW-SMB / 0336668 111 mm 150 mm 830-865 1840 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-TW-SMB-CAS / 0336668//408 111 mm 150 mm 830-865 1840 lm 16 W PDF LDT RFA IMG
Downloads - SMT Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 150/1100-830 SMT / 0321308 95 mm 150 mm 830 1063 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 SMT-DA-EDS3 / 0331308//377 95 mm 150 mm 830 1063 lm 8 W PDF LDT IMG
EDLR 150/1100-830 SMT-DALI / 0331308 95 mm 150 mm 830 1063 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-830 SMT-EDS3 / 0321308//377 95 mm 150 mm 830 1063 lm 8 W PDF LDT IMG
EDLR 150/1100-840 SMT / 0321306 95 mm 150 mm 840 1063 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 SMT / 0321306 95 mm 150 mm 840 1063 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 SMT-DALI / 0331306 95 mm 150 mm 840 1063 lm 8 W PDF LDT RFA IMG
EDLR 150/1100-840 SMT-EDS3 / 0321306//377 95 mm 150 mm 840 1063 lm 8 W PDF LDT IMG
EDLR 150/2000-830 SMT / 0321312 111 mm 150 mm 830 1877 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-830 SMT-DA-EDS3 / 0331312//377 111 mm 150 mm 830 1877 lm 16 W PDF LDT IMG
EDLR 150/2000-830 SMT-DALI / 0331312 111 mm 150 mm 830 1877 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-830 SMT-EDS3 / 0321312//377 111 mm 150 mm 830 1877 lm 16 W PDF LDT IMG
EDLR 150/2000-840 SMT / 0321311 111 mm 150 mm 840 1877 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-840 SMT-DA-EDS3 / 0331311//377 111 mm 150 mm 840 1877 lm 16 W PDF LDT IMG
EDLR 150/2000-840 SMT-DALI / 0331311 111 mm 150 mm 840 1877 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-840 SMT-EDS3 / 0321311//377 111 mm 150 mm 840 1877 lm 16 W PDF LDT IMG
EDLR 150/2000-TW-SMT / 0336669 111 mm 150 mm 830-865 1877 lm 16 W PDF LDT RFA IMG
EDLR 150/2000-TW-SMT-CAS / 0336669//408 111 mm 150 mm 830-865 1877 lm 16 W PDF LDT RFA IMG

EDLR 195

Optical Distribution:
White Reflector – W
Satin Matt Silver Reflector Broad Distribution – SMB
Satin Matt Silver Reflector Narrow Distribution – SMT
Output (lm):
1058 – 3247 lm
Control:
DALI – DA
Non-Dimming – ND
Casambi Wireless – CAS

Colour Temperatures:
3,000K 4,000K
3,000 – 6,500K Tuneable White
Colour:
White
IP Rating:
IP20
IP44 With Attachments DR, DR..SK, DR..SO, DR..HO
Emergency Lighting
3HR Battery – EDS3

Specific Product Information and Downloads

Downloads - W Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 195/1100-830 W / 0321314 85 mm 195 mm 830 1163 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 W-DA-EDS3 / 0331314//377 85 mm 195 mm 830 1163 lm 8 W PDF LDT IMG
EDLR 195/1100-830 W-DALI / 0331314 85 mm 195 mm 830 1163 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 W-EDS3 / 0321314//377 85 mm 195 mm 830 1163 lm 8 W PDF LDT IMG
EDLR 195/1100-840 W / 0321313 85 mm 195 mm 840 1163 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-840 W-DA-EDS3 / 0331313//377 85 mm 195 mm 840 1163 lm 8 W PDF LDT IMG
EDLR 195/1100-840 W-DALI / 0331313 85 mm 195 mm 840 1163 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-840 W-EDS3 / 0321313//377 85 mm 195 mm 840 1163 lm 8 W PDF LDT IMG
EDLR 195/2000-830 W / 0321318 85 mm 195 mm 830 2066 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-830 W-DA-EDS3 / 0331318//377 85 mm 195 mm 830 2066 lm 16 W PDF LDT IMG
EDLR 195/2000-830 W-DALI / 0331318 85 mm 195 mm 830 2066 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-830 W-EDS3 / 0321318//377 85 mm 195 mm 830 2066 lm 16 W PDF LDT IMG
EDLR 195/2000-840 W / 0321317 85 mm 195 mm 840 2066 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-840 W-DA-EDS3 / 0331317//377 85 mm 195 mm 840 2066 lm 16 W PDF LDT IMG
EDLR 195/2000-840 W-DALI / 0331317 85 mm 195 mm 840 2066 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-840 W-EDS3 / 0321317//377 85 mm 195 mm 840 2066 lm 16 W PDF LDT IMG
EDLR 195/2000-840 W-EDS3 / 0321317//377 85 mm 195 mm 840 2066 lm 16 W PDF LDT IMG
EDLR 195/3000-830 W-DA-EDS3 / 0331322//377 105 mm 195 mm 830 3247 lm 23 W PDF LDT IMG
EDLR 195/3000-830 W-DALI / 0331322 105 mm 195 mm 830 3247 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-830 W-EDS3 / 0321322//377 105 mm 195 mm 830 3247 lm 23 W PDF LDT IMG
EDLR 195/3000-840 W / 0321321 105 mm 195 mm 840 3247 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-840 W-DA-EDS3 / 0331321//377 105 mm 195 mm 840 3247 lm 23 W PDF LDT IMG
EDLR 195/3000-840 W-DALI / 0331321 105 mm 195 mm 840 3247 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-840 W-EDS3 / 0321321//377 105 mm 195 mm 840 3247 lm 23 W PDF LDT IMG

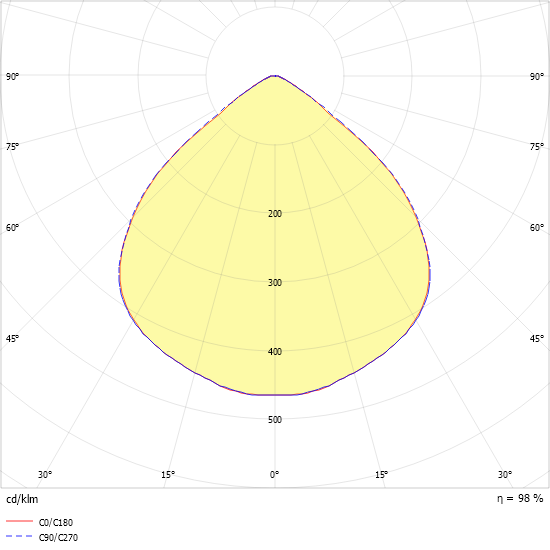

EDLR 195/3000-TW-W / 0336673 105 mm 195 mm 830-865 2814 lm 22 W PDF LDT RFA IMG
EDLR 195/3000-TW-W-CAS / 0336673//408 105 mm 195 mm 830-865 2814 lm 22 W PDF LDT RFA IMG
Downloads - SMB Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 195/1100-830 SMB / 0321357 103 mm 195 mm 830 1067 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 SMB-DA-EDS3 / 0331357//377 103 mm 195 mm 830 1067 lm 8 W PDF LDT IMG
EDLR 195/1100-830 SMB-DALI / 0331357 103 mm 195 mm 830 1067 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 SMB-EDS3 / 0321357//377 103 mm 195 mm 830 1067 lm 8 W PDF LDT IMG
EDLR 195/1100-840 SMB / 0321358 103 mm 195 mm 840 1067 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-840 SMB-DA-EDS3 / 0331358//377 103 mm 195 mm 840 1067 lm 8 W PDF LDT IMG
EDLR 195/1100-840 SMB-DALI / 0331358 103 mm 195 mm 840 1067 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-840 SMB-EDS3 / 0321358//377 103 mm 195 mm 840 1067 lm 8 W PDF LDT IMG
EDLR 195/2000-830 SMB / 0321359 120 mm 195 mm 830 1926 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-830 SMB-DA-EDS3 / 0331359//377 120 mm 195 mm 830 1926 lm 16 W PDF LDT IMG
EDLR 195/2000-830 SMB-DALI / 0331359 120 mm 195 mm 830 1926 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-830 SMB-EDS3 / 0321359//377 120 mm 195 mm 830 1926 lm 16 W PDF LDT IMG
EDLR 195/2000-840 SMB / 0321360 120 mm 195 mm 840 1926 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-840 SMB-DA-EDS3 / 0331360//377 120 mm 195 mm 840 1926 lm 16 W PDF LDT IMG
EDLR 195/2000-840 SMB-DALI / 0331360 120 mm 195 mm 840 1926 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-840 SMB-EDS3 / 0321360//377 120 mm 195 mm 840 1926 lm 16 W PDF LDT IMG
EDLR 195/3000-830 SMB / 0321361 143 mm 195 mm 830 3010 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-830 SMB-DA-EDS3 / 0331361//377 143 mm 195 mm 830 3010 lm 23 W PDF LDT IMG
EDLR 195/3000-830 SMB-DALI / 0331361 143 mm 195 mm 830 3010 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-830 SMB-EDS3 / 0321361//377 143 mm 195 mm 830 3010 lm 23 W PDF LDT IMG
EDLR 195/3000-840 SMB / 0321362 143 mm 195 mm 840 3010 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-840 SMB-DA-EDS3 / 0331362//377 143 mm 195 mm 840 3010 lm 23 W PDF LDT IMG
EDLR 195/3000-840 SMB-DALI / 0331362 143 mm 195 mm 840 3010 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-840 SMB-EDS3 / 0321362//377 143 mm 195 mm 840 3010 lm 23 W PDF LDT IMG

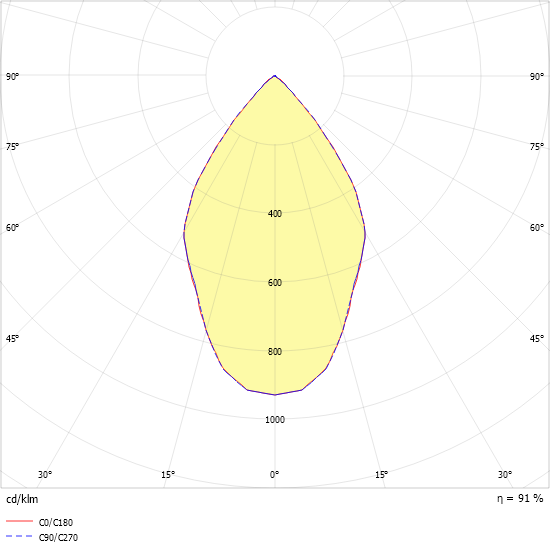

EDLR 195/3000-TW-SMB / 0336671 143 mm 195 mm 830-865 2608 lm 22 W PDF LDT RFA IMG
EDLR 195/3000-TW-SMB-CAS / 0336671//408 143 mm 195 mm 830-865 2608 lm 22 W PDF LDT RFA IMG
Downloads - SMT Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 195/1100-830 SMT / 0321316 120 mm 195 mm 830 1058 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 SMT / 0321316 120 mm 195 mm 830 1058 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 SMT-DALI / 0331316 120 mm 195 mm 830 1058 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-830 SMT-EDS3 / 0321316//377 120 mm 195 mm 830 1058 lm 8 W PDF LDT IMG
EDLR 195/1100-840 SMT / 0321315 120 mm 195 mm 840 1058 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-840 SMT-DA-EDS3 / 0331315//377 120 mm 195 mm 840 1058 lm 8 W PDF LDT IMG
EDLR 195/1100-840 SMT-DALI / 0331315 120 mm 195 mm 840 1058 lm 8 W PDF LDT RFA IMG
EDLR 195/1100-840 SMT-EDS3 / 0321315//377 120 mm 195 mm 840 1058 lm 8 W PDF LDT IMG
EDLR 195/2000-830 SMT / 0321320 137 mm 195 mm 830 1890 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-830 SMT-DA-EDS3 / 0331320//377 137 mm 195 mm 830 1890 lm 16 W PDF LDT IMG
EDLR 195/2000-830 SMT-DALI / 0331320 137 mm 195 mm 830 1890 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-830 SMT-EDS3 / 0321320//377 137 mm 195 mm 830 1890 lm 16 W PDF LDT IMG
EDLR 195/2000-840 SMT / 0321319 137 mm 195 mm 840 1890 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-840 SMT-DA-EDS3 / 0331319//377 137 mm 195 mm 840 1890 lm 16 W PDF LDT IMG
EDLR 195/2000-840 SMT-DALI / 0331319 137 mm 195 mm 840 1890 lm 16 W PDF LDT RFA IMG
EDLR 195/2000-840 SMT-EDS3 / 0321319//377 137 mm 195 mm 840 1890 lm 16 W PDF LDT IMG
EDLR 195/3000-830 SMT / 0321324 160 mm 195 mm 830 2957 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-830 SMT-DA-EDS3 / 0331324//377 160 mm 195 mm 830 2957 lm 23 W PDF LDT IMG
EDLR 195/3000-830 SMT-DALI / 0331324 160 mm 195 mm 830 2957 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-830 SMT-EDS3 / 0321324//377 160 mm 195 mm 830 2957 lm 23 W PDF LDT IMG
EDLR 195/3000-840 SMT / 0321323 160 mm 195 mm 840 2957 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-840 SMT-DA-EDS3 / 0331323//377 160 mm 195 mm 840 2957 lm 23 W PDF LDT IMG
EDLR 195/3000-840 SMT-DALI / 0331323 160 mm 195 mm 840 2957 lm 23 W PDF LDT RFA IMG
EDLR 195/3000-840 SMT-EDS3 / 0321323//377 160 mm 195 mm 840 2957 lm 23 W PDF LDT IMG

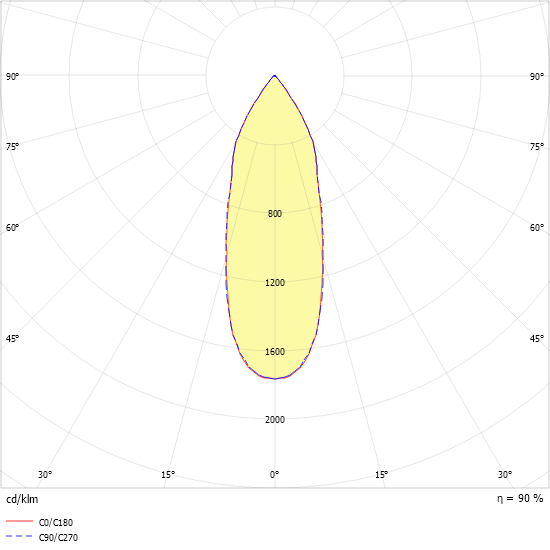

EDLR 195/3000-TW-SMT / 0336672 160 mm 195 mm 830-865 2563 lm 22 W PDF LDT RFA IMG
EDLR 195/3000-TW-SMT-CAS / 0336672//408 160 mm 195 mm 830-865 2563 lm 22 W PDF LDT RFA IMG

EDLR 235

Optical Distribution:
White Reflector – W
Satin Matt Silver Reflector Broad Distribution – SMB
Satin Matt Silver Reflector Narrow Distribution – SMT
Output (lm):
1880 – 5188 lm
Control:
DALI – DA
Non-Dimming – ND
Casambi Wireless – CAS

Colour Temperatures:
3,000K 4,000K
3,000 – 6,500K Tuneable White
Colour:
White
IP Rating:
IP20
IP44 With Attachments DR, DR..SK, DR..SO, DR..HO
Emergency Lighting
3HR Battery – EDS3

Specific Product Information and Downloads

Downloads - W Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 235/2000-830 W / 0321326 92 mm 235 mm 830 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 W-DA-EDS3 / 0331326//377 92 mm 235 mm 830 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 W-DALI / 0331326 92 mm 235 mm 830 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 W-EDS3 / 0321326//377 92 mm 235 mm 830 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 W / 0321325 92 mm 235 mm 840 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 W-DA-EDS3 / 0331325//377 92 mm 235 mm 840 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 W-DALI / 0331325 92 mm 235 mm 840 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 W-EDS3 / 0321325//377 92 mm 235 mm 840 2071 lm 16 W PDF LDT RFA IMG
EDLR 235/3000-830 W / 0321330 115 mm 235 mm 830 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-830 W / 0321330 115 mm 235 mm 830 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-830 W-DALI / 0331330 115 mm 235 mm 830 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-830 W-EDS3 / 0321330//377 115 mm 235 mm 830 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 W / 0321329 115 mm 235 mm 840 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 W-DA-EDS3 / 0331329//377 115 mm 235 mm 840 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 W-DALI / 0331329 115 mm 235 mm 840 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 W-EDS3 / 0321329//377 115 mm 235 mm 840 3260 lm 23 W PDF LDT RFA IMG
EDLR 235/3600-TW-W / 0336676 135 mm 235 mm 830-865 3170 lm 28 W PDF LDT RFA IMG
EDLR 235/3600-TW-W-CAS / 0336676//408 135 mm 235 mm 830-865 3170 lm 28 W PDF LDT RFA IMG
EDLR 235/4000-830 W / 0321334 135 mm 235 mm 830 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-830 W-DA-EDS3 / 0331334//377 135 mm 235 mm 830 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-830 W-DALI / 0331334 135 mm 235 mm 830 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-830 W-EDS3 / 0321334//377 135 mm 235 mm 830 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 W / 0321333 135 mm 235 mm 840 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 W-DA-EDS3 / 0331333//377 135 mm 235 mm 840 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 W-DALI / 0331333 135 mm 235 mm 840 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 W-EDS3 / 0321333//377 135 mm 235 mm 840 4046 lm 31 W PDF LDT RFA IMG
EDLR 235/5000-830 W / 0321461 155 mm 235 mm 830 5188 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-830 W-DA-EDS3 / 0331461//377 155 mm 235 mm 830 5188 lm 44 W PDF LDT IMG
EDLR 235/5000-830 W-DALI / 0331461 155 mm 235 mm 830 5188 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-830 W-EDS3 / 0321461//377 155 mm 235 mm 830 5188 lm 44 W PDF LDT IMG
EDLR 235/5000-840 W / 0321464 155 mm 235 mm 840 5188 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-840 W-DA-EDS3 / 0331464//377 155 mm 235 mm 840 5188 lm 44 W PDF LDT IMG
EDLR 235/5000-840 W-DALI / 0331464 155 mm 235 mm 840 5188 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-840 W-EDS3 / 0321464//377 155 mm 235 mm 840 5188 lm 44 W PDF LDT IMG
Downloads - SMB Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 235/2000-830 SMB / 0321363 172 mm 235 mm 830 1880 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 SMB-DALI / 0331363 172 mm 235 mm 830 1880 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 SMB-DALI-ED3 / 0331363//375 172 mm 235 mm 830 1880 lm 16 W PDF LDT IMG
EDLR 235/2000-830 SMB-EDS3 / 0321363//377 172 mm 235 mm 830 1880 lm 16 W PDF LDT IMG
EDLR 235/2000-840 SMB / 0321364 172 mm 235 mm 840 1880 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 SMB-DA-EDS3 / 0331364//377 172 mm 235 mm 840 1880 lm 16 W PDF LDT IMG
EDLR 235/2000-840 SMB-DALI / 0331364 172 mm 235 mm 840 1880 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 SMB-EDS3 / 0321364//377 172 mm 235 mm 840 1880 lm 16 W PDF LDT IMG
EDLR 235/3000-830 SMB / 0321365 195 mm 235 mm 830 2934 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-830 SMB-DA-EDS3 / 0331365//377 195 mm 235 mm 830 2934 lm 23 W PDF LDT IMG
EDLR 235/3000-830 SMB-DALI / 0331365 195 mm 235 mm 830 2934 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-830 SMB-EDS3 / 0321365//377 195 mm 235 mm 830 2934 lm 23 W PDF LDT IMG
EDLR 235/3000-840 SMB / 0321366 195 mm 235 mm 840 2934 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 SMB-DA-EDS3 / 0331366//377 195 mm 235 mm 840 2934 lm 23 W PDF LDT IMG
EDLR 235/3000-840 SMB-DALI / 0331366 195 mm 235 mm 840 2934 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 SMB-EDS3 / 0321366//377 195 mm 235 mm 840 2934 lm 23 W PDF LDT IMG
EDLR 235/3600-TW-SMB / 0336674 215 mm 235 mm 830-865 2904 lm 28 W PDF LDT RFA IMG
EDLR 235/3600-TW-SMB-CAS / 0336674//408 215 mm 235 mm 830-865 2904 lm 28 W PDF LDT RFA IMG
EDLR 235/4000-830 SMB / 0321367 215 mm 235 mm 830 3706 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-830 SMB-DA-EDS3 / 0331367//377 215 mm 235 mm 830 3706 lm 31 W PDF LDT IMG
EDLR 235/4000-830 SMB-DALI / 0331367 215 mm 235 mm 830 3706 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-830 SMB-EDS3 / 0321367//377 215 mm 235 mm 830 3706 lm 31 W PDF LDT IMG
EDLR 235/4000-840 SMB / 0321368 215 mm 235 mm 840 3706 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 SMB-DA-EDS3 / 0331368//377 215 mm 235 mm 840 3706 lm 31 W PDF LDT IMG
EDLR 235/4000-840 SMB-DALI / 0331368 215 mm 235 mm 840 3706 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 SMB-EDS3 / 0321368//377 215 mm 235 mm 840 3706 lm 31 W PDF LDT IMG
EDLR 235/5000-830 SMB / 0321459 235 mm 235 mm 830 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-830 SMB-DA-EDS3 / 0331459//377 235 mm 235 mm 830 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-830 SMB-DALI / 0331459 235 mm 235 mm 830 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-830 SMB-EDS3 / 0321459//377 235 mm 235 mm 830 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-840 SMB / 0321462 235 mm 235 mm 840 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-840 SMB-DA-EDS3 / 0331462//377 235 mm 235 mm 840 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-840 SMB-DALI / 0331462 235 mm 235 mm 840 4589 lm 44 W PDF LDT IMG
EDLR 235/5000-840 SMB-EDS3 / 0321462//377 235 mm 235 mm 840 4589 lm 44 W PDF LDT IMG
Downloads - SMT Reflector
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 235/2000-830 SMT / 0321328 172 mm 235 mm 830 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 SMT-DA-EDS3 / 0331328//377 172 mm 235 mm 830 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 SMT-DALI / 0331328 172 mm 235 mm 830 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-830 SMT-EDS3 / 0321328//377 172 mm 235 mm 830 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 SMT / 0321327 172 mm 235 mm 840 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 SMT-DA-EDS3 / 0331327//377 172 mm 235 mm 840 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 SMT-DA-EDS3 / 0331327//377 172 mm 235 mm 840 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/2000-840 SMT-EDS3 / 0321327//377 172 mm 235 mm 840 1835 lm 16 W PDF LDT RFA IMG
EDLR 235/3000-830 SMT / 0321332 195 mm 235 mm 830 2930 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-830 SMT-DA-EDS3 / 0331332//377 195 mm 235 mm 830 2930 lm 23 W PDF LDT IMG
EDLR 235/3000-830 SMT-DA-EDS3 / 0331332//377 195 mm 235 mm 830 2930 lm 23 W PDF LDT IMG
EDLR 235/3000-830 SMT-EDS3 / 0321332//377 195 mm 235 mm 830 2930 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 SMT / 0321331 195 mm 235 mm 840 2930 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 SMT-DA-EDS3 / 0331331//377 195 mm 235 mm 840 2930 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 SMT-DALI / 0331331 195 mm 235 mm 840 2930 lm 23 W PDF LDT RFA IMG
EDLR 235/3000-840 SMT-EDS3 / 0321331//377 195 mm 235 mm 840 2930 lm 23 W PDF LDT RFA IMG
EDLR 235/3600-TW-SMT / 0336675 215 mm 235 mm 830-865 2791 lm 28 W PDF LDT RFA IMG
EDLR 235/3600-TW-SMT-CAS / 0336675//408 215 mm 235 mm 830-865 2791 lm 28 W PDF LDT RFA IMG
EDLR 235/4000-830 SMT / 0321336 215 mm 235 mm 830 3562 lm 31 W PDF LDT RFA IMG

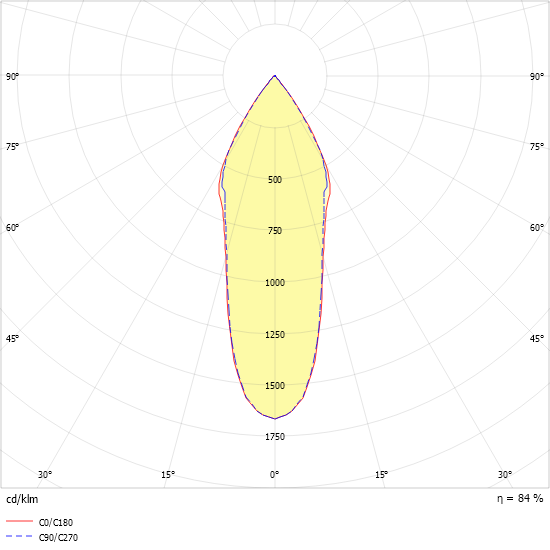

EDLR 235/4000-830 SMT-DA-EDS3 / 0331336//377 215 mm 235 mm 830 3562 lm 31 W PDF LDT IMG
EDLR 235/4000-830 SMT-DALI / 0331336 215 mm 235 mm 830 3562 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-830 SMT-EDS3 / 0321336//377 215 mm 235 mm 830 3562 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 SMT / 0321335 215 mm 235 mm 840 3562 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 SMT-DA-EDS3 / 0331335//377 215 mm 235 mm 840 3562 lm 31 W PDF LDT IMG
EDLR 235/4000-840 SMT-DALI / 0331335 215 mm 235 mm 840 3562 lm 31 W PDF LDT RFA IMG
EDLR 235/4000-840 SMT-EDS3 / 0321335//377 215 mm 235 mm 840 3562 lm 31 W PDF LDT RFA IMG
EDLR 235/5000-830 SMT / 0321460 235 mm 235 mm 830 4567 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-830 SMT-DA-EDS3 / 0331460//377 235 mm 235 mm 830 4567 lm 44 W PDF LDT IMG
EDLR 235/5000-830 SMT-DALI / 0331460 235 mm 235 mm 830 4567 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-830 SMT-EDS3 / 0321460//377 235 mm 235 mm 830 4567 lm 44 W PDF LDT IMG
EDLR 235/5000-840 SMT / 0321463 235 mm 235 mm 840 4567 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-840 SMT-DA-EDS3 / 0331463//377 235 mm 235 mm 840 4567 lm 44 W PDF LDT IMG
EDLR 235/5000-840 SMT-DALI / 0331463 235 mm 235 mm 840 4567 lm 44 W PDF LDT RFA IMG
EDLR 235/5000-840 SMT-EDS3 / 0321463//377 235 mm 235 mm 840 4567 lm 44 W PDF LDT IMG

EDLR 275

Optical Distribution:
Miscroprism and Opal – DPO
Diamond Microprism – DPS
Conical Miscroprism  – MPS
Opal  – OS
Output (lm):
2030 – 3090 lm
Control:
DALI – DA
Non-Dimming – ND

Colour Temperatures:
4,000K
Colour:
White
IP Rating:
IP20
IP44 With Attachments DR, DR..SK, DR..SO, DR..HO

Specific Product Information and Downloads

Downloads - DPO Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 275/3000-840 DPO / 0321223 75 mm 262 mm 840 2240 lm 18 W PDF LDT IMG
EDLR 275/3000-840 DPO-DALI / 0331223 75 mm 262 mm 840 2240 lm 18 W PDF LDT IMG
EDLR 275/4000-840 DPO / 0321227 75 mm 262 mm 840 2680 lm 24 W PDF LDT IMG
EDLR 275/4000-840 DPO-DALI / 0331227 75 mm 262 mm 840 2680 lm 24 W PDF LDT IMG
Downloads - DPS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 275/3000-840 DPS / 0321224 75 mm 262 mm 840 2580 lm 18 W PDF LDT IMG
EDLR 275/3000-840 DPS-DALI / 0331224 75 mm 262 mm 840 2580 lm 18 W PDF LDT IMG
EDLR 275/4000-840 DPS / 0321228 75 mm 262 mm 840 3090 lm 24 W PDF LDT IMG
EDLR 275/4000-840 DPS-DALI / 0331228 75 mm 262 mm 840 3090 lm 24 W PDF LDT IMG
Downloads - MPS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 275/3000-840 MPS / 0321225 75 mm 262 mm 840 2030 lm 18 W PDF LDT IMG
EDLR 275/3000-840 MPS-DALI / 0331225 75 mm 262 mm 840 2030 lm 18 W PDF LDT IMG
EDLR 275/4000-840 MPS / 0321229 75 mm 262 mm 840 2420 lm 24 W PDF LDT IMG
EDLR 275/4000-840 MPS-DALI / 0331229 75 mm 262 mm 840 2420 lm 24 W PDF LDT IMG
Downloads - OS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 275/3000-840 OS / 0321226 75 mm 262 mm 840 2460 lm 18 W PDF LDT IMG
EDLR 275/3000-840 OS-DALI / 0331226 75 mm 262 mm 840 2460 lm 18 W PDF LDT IMG
EDLR 275/4000-840 OS / 0321230 75 mm 262 mm 840 2940 lm 24 W PDF LDT IMG
EDLR 275/4000-840 OS-DALI / 0331230 75 mm 262 mm 840 2940 lm 24 W PDF LDT IMG

EDLR 340

Optical Distribution:
Miscroprism and Opal – DPO
Diamond Microprism – DPS
Conical Miscroprism  – MPS
Opal  – OS
Output (lm):
2640 – 4090 lm
Control:
DALI – DA
Non-Dimming – ND

Colour Temperatures:
4,000K
Colour:
White
IP Rating:
IP20
IP44 With Attachments DR, DR..SK, DR..SO, DR..HO

Specific Product Information and Downloads

Downloads - DPO Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 340/4000-840 DPO / 0321215 75 mm 320 mm 840 2940 lm 23 W PDF LDT IMG
EDLR 340/4000-840 DPO-DALI / 0331215 75 mm 320 mm 840 2940 lm 23 W PDF LDT IMG
EDLR 340/5000-840 DPO / 0321219 75 mm 320 mm 840 3640 lm 30 W PDF LDT IMG
EDLR 340/5000-840 DPO-DALI / 0331219 75 mm 320 mm 840 3640 lm 30 W PDF LDT IMG
Downloads - DPS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 340/4000-840 DPS / 0321216 75 mm 320 mm 840 3310 lm 23 W PDF LDT IMG
EDLR 340/4000-840 DPS-DALI / 0331216 75 mm 320 mm 840 3310 lm 23 W PDF LDT IMG
EDLR 340/5000-840 DPS / 0321220 75 mm 320 mm 840 4090 lm 30 W PDF LDT IMG
EDLR 340/5000-840 DPS-DALI / 0331220 75 mm 320 mm 840 4090 lm 30 W PDF LDT IMG
Downloads - MPS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 340/4000-840 MPS / 0321217 75 mm 320 mm 840 2640 lm 23 W PDF LDT IMG
EDLR 340/4000-840 MPS-DALI / 0331217 75 mm 320 mm 840 2640 lm 23 W PDF LDT IMG
EDLR 340/5000-840 MPS / 0321221 75 mm 320 mm 840 3260 lm 30 W PDF LDT IMG
EDLR 340/5000-840 MPS-DALI / 0331221 75 mm 320 mm 840 3260 lm 30 W PDF LDT IMG
Downloads - OS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 340/4000-840 OS / 0321218 75 mm 320 mm 840 3130 lm 23 W PDF LDT IMG
EDLR 340/4000-840 OS-DALI / 0331218 75 mm 320 mm 840 3130 lm 23 W PDF LDT IMG
EDLR 340/5000-840 OS / 0321222 75 mm 320 mm 840 3860 lm 30 W PDF LDT IMG
EDLR 340/5000-840 OS-DALI / 0331222 75 mm 320 mm 840 3860 lm 30 W PDF LDT IMG

EDLR 410

Optical Distribution:
Miscroprism and Opal – DPO
Diamond Microprism – DPS
Conical Miscroprism  – MPS
Opal  – OS
Output (lm):
3550 – 5280 lm
Control:
DALI – DA
Non-Dimming – ND

Colour Temperatures:
4,000K
Colour:
White
IP Rating:
IP20
IP44 With Attachments DR, DR..SK, DR..SO, DR..HO

Specific Product Information and Downloads

Downloads - DPO Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 410/5000-840 DPO / 0320249 85 mm 395 mm 840 3900 lm 30 W PDF LDT RFA IMG
EDLR 410/5000-840 DPO-DALI / 0330249 85 mm 395 mm 840 3900 lm 30 W PDF LDT RFA IMG
EDLR 410/6000-840 DPO / 0321211 82 mm 395 mm 840 4710 lm 37 W PDF LDT RFA IMG
EDLR 410/6000-840 DPO-DALI / 0331211 82 mm 395 mm 840 4710 lm 37 W PDF LDT RFA IMG
Downloads - DPS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 410/5000-840 DPS / 0320250 85 mm 395 mm 840 4390 lm 30 W PDF LDT IMG
EDLR 410/5000-840 DPS-DALI / 0330250 85 mm 395 mm 840 4390 lm 30 W PDF LDT IMG
EDLR 410/6000-840 DPS / 0321212 82 mm 395 mm 840 5280 lm 37 W PDF LDT IMG
EDLR 410/6000-840 DPS-DALI / 0331212 82 mm 395 mm 840 5280 lm 37 W PDF LDT IMG
Downloads - MPS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 410/5000-840 MPS / 0320251 85 mm 395 mm 840 3550 lm 30 W PDF LDT IMG
EDLR 410/5000-840 MPS-DALI / 0330251 85 mm 395 mm 840 3550 lm 30 W PDF LDT IMG
EDLR 410/6000-840 MPS / 0321213 82 mm 395 mm 840 4270 lm 37 W PDF LDT IMG
EDLR 410/6000-840 MPS-DALI / 0331213 82 mm 395 mm 840 4270 lm 37 W PDF LDT IMG
Downloads - OS Optic
Product Code H
mm
Ø
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
BIM / Revit
File
Product
EDLR 410/5000-840 OS / 0320252 85 mm 395 mm 840 4090 lm 30 W PDF LDT RFA IMG
EDLR 410/5000-840 OS-DALI / 0330252 85 mm 395 mm 840 4090 lm 30 W PDF LDT IMG
EDLR 410/6000-840 OS / 0321214 82 mm 395 mm 840 4930 lm 37 W PDF LDT IMG
EDLR 410/6000-840 OS-DALI / 0331214 82 mm 395 mm 840 4930 lm 37 W PDF LDT IMG

Projects Featuring EDLR

Robins and Day Peugeot Dealership, Godalming

Robins and Day Peugeot Dealership, Godalming

As part of Peugeot UK‘s refurbishment program to modernise its dealership network, the old Stag Hill Motors site in
Pinewood School, Fleet, Hampshire

Pinewood School, Fleet, Hampshire

Pinewood School was the first of a phase of new school designs which featured energy efficient lighting as well as ...
Leeds Station

Leeds Station

Completed in early 2020, Leeds central station features tuneable white Venice with a Control 3 human centric lighting system to match the local natural light.
Space Woking

Space Woking

Space Woking is a new 7 storey office development in the heart of Woking designed to a market-leading specification
1

Pin It on Pinterest

Share This
