EDLR-E2
Excellent Value standard downlight.
- IP44 Ceiling Side
- Remote Gear
- Open Reflector (W) or with Opal Panel (WS)
- DALI Option
- 3Hr Emergecy Battery Option (ED3)
- Emergency Central Battery option (EL)
Three Sizes
EDLR-E2 150 ..
∅150mm
1060 – 1900lm
3,000K or 4,000K
Fixed Output or DALI
3hr EM Battery or Central Battery
EDLR-E2 195 ..
∅195mm
1060 – 2745lm
3,000K or 4,000K
Fixed Output or DALI
3hr EM Battery or Central Battery
EDLR-E2 235 ..
∅150mm
1070 – 3313lm
3,000K or 4,000K
Fixed Output or DALI
3hr EM Battery or Central Battery
Technical Information
EDLR-E2
Optical Distribution:
Open Downlight – W
Sealed Diffuser Panel – WS
Output (lm):
1060 – 3313 lm
Control:
Fixed Output, DALI
Emergency Lighting:
3 Hour Self Test – EDS3
For Central Battery – EL
Colour Temperatures:
3,000K 4,000K
Colour:
White
IP Rating:
IP20
IP44 Ceiling Side
Specific Product Information and Downloads
EDLR-E2 150 ..
| Product Code | H mm |
Ø mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|
| EDLR-E2 150/1100-830 W / 0321508 | 55 mm | 150 mm | 830 | 1060 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-830 W-DALI / 0331508 | 55 mm | 150 mm | 830 | 1060 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 W / 0321507 | 55 mm | 150 mm | 840 | 1115 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 W-DALI / 0331507 | 55 mm | 150 mm | 840 | 1115 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/2000-830 W / 0321510 | 55 mm | 150 mm | 830 | 1810 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-830 W-DALI / 0331510 | 55 mm | 150 mm | 830 | 1810 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 W / 0321509 | 55 mm | 150 mm | 840 | 1900 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 W-DALI / 0331509 | 55 mm | 150 mm | 840 | 1900 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/1100-830 WS / 0326633 | 55 mm | 150 mm | 830 | 1000 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-830 WS-DALI / 0336633 | 55 mm | 150 mm | 830 | 1000 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 WS / 0326632 | 55 mm | 150 mm | 840 | 1048 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 WS-DALI / 0336632 | 55 mm | 150 mm | 840 | 1050 lm | 9 W | LDT | IMG | |

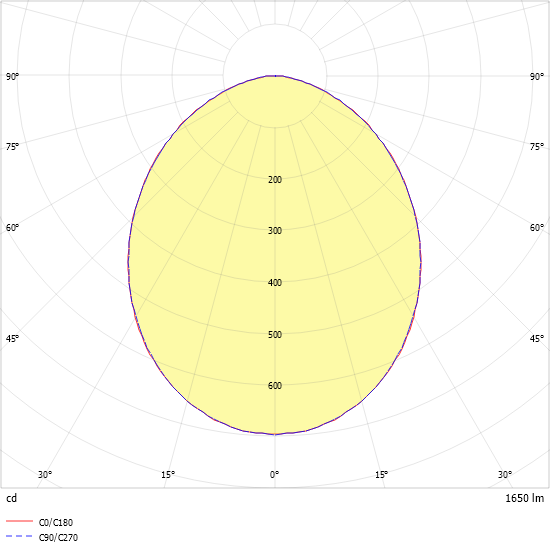

| EDLR-E2 150/2000-830 WS / 0326635 | 55 mm | 150 mm | 830 | 1697 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-830 WS-DALI / 0336635 | 55 mm | 150 mm | 830 | 1700 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 WS / 0326634 | 55 mm | 150 mm | 840 | 1780 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 WS-DALI / 0336634 | 55 mm | 150 mm | 840 | 1780 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/1100-830 W-EDS3 / 0321508//377 | 55 mm | 150 mm | 830 | 1058 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 W-EDS3 / 0321507//377 | 55 mm | 150 mm | 840 | 1113 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/2000-830 W-EDS3 / 0321510//377 | 55 mm | 150 mm | 830 | 1806 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 W-EDS3 / 0321509//377 | 55 mm | 150 mm | 840 | 1896 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/1100-830 WS-EDS3 / 0326633//377 | 55 mm | 150 mm | 830 | 998 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 WS-EDS3 / 0326632//377 | 55 mm | 150 mm | 840 | 1048 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/2000-830 WS-EDS3 / 0326635//377 | 55 mm | 150 mm | 830 | 1697 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 WS-EDS3 / 0326634//377 | 55 mm | 150 mm | 840 | 1776 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/1100-830 W-EL / 0326607 | 55 mm | 150 mm | 830 | 1058 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 W-EL / 0326606 | 55 mm | 150 mm | 840 | 1113 lm | 9 W | LDT | IMG | |

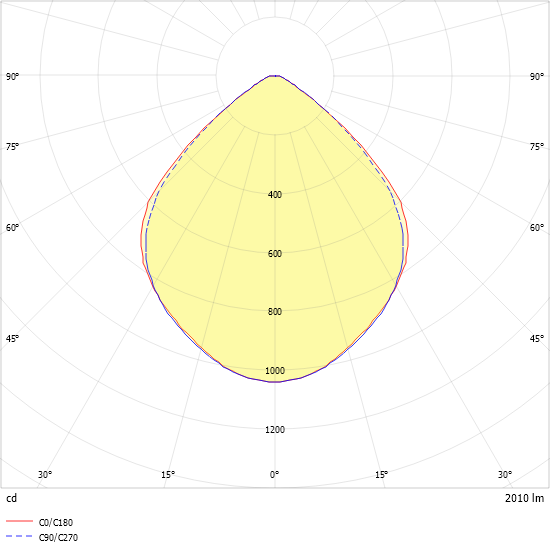

| EDLR-E2 150/2000-830 W-EL / 0326609 | 55 mm | 150 mm | 830 | 1806 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 W-EL / 0326608 | 55 mm | 150 mm | 840 | 1896 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/1100-830 WS-EL / 0326645 | 55 mm | 150 mm | 830 | 998 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/1100-840 WS-EL / 0326644 | 55 mm | 150 mm | 840 | 1048 lm | 9 W | LDT | IMG | |
| EDLR-E2 150/2000-830 WS-EL / 0326647 | 55 mm | 150 mm | 830 | 1697 lm | 16 W | LDT | IMG | |
| EDLR-E2 150/2000-840 WS-EL / 0326646 | 55 mm | 150 mm | 840 | 1776 lm | 16 W | LDT | IMG |
EDLR-E2 195 ..
| Product Code | H mm |
Ø mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|
| EDLR-E2 195/1100-830 W / 0321512 | 65 mm | 195 mm | 830 | 1060 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-830 W-DALI / 0331512 | 65 mm | 195 mm | 830 | 1058 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 W / 0321511 | 65 mm | 195 mm | 840 | 1115 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 W-DALI / 0331511 | 65 mm | 195 mm | 840 | 1115 lm | 9 W | LDT | IMG | |

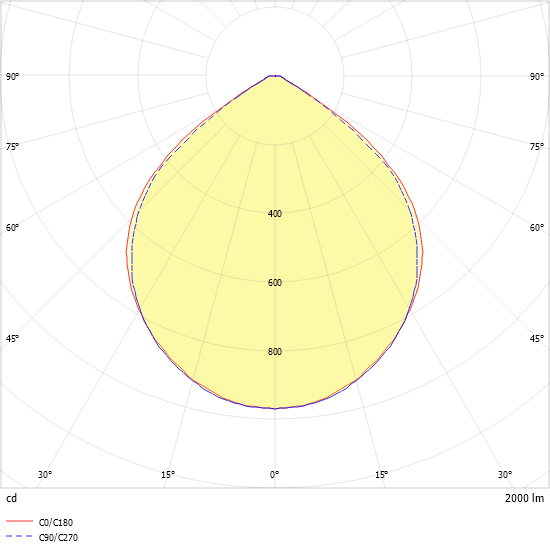

| EDLR-E2 195/2000-830 W / 0321514 | 65 mm | 195 mm | 830 | 1840 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-830 W-DALI / 0331514 | 65 mm | 195 mm | 830 | 1840 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 W / 0321513 | 65 mm | 195 mm | 840 | 1930 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 W-DALI / 0331513 | 65 mm | 195 mm | 840 | 1930 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/3000-830 W-DALI / 0336618 | 85 mm | 195 mm | 830 | 2610 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/3000-840 W-DALI / 0336619 | 85 mm | 195 mm | 840 | 2745 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/1100-830 WS / 0326637 | 65 mm | 195 mm | 830 | 1010 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-830 WS-DALI / 0336637 | 65 mm | 195 mm | 830 | 1010 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 WS / 0326636 | 65 mm | 195 mm | 840 | 1060 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 WS-DALI / 0336636 | 65 mm | 195 mm | 840 | 1060 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/2000-830 WS / 0326639 | 65 mm | 195 mm | 830 | 1720 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-830 WS-DALI / 0336639 | 65 mm | 195 mm | 830 | 1720 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 WS / 0326638 | 65 mm | 195 mm | 840 | 1810 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 WS-DALI / 0336638 | 65 mm | 195 mm | 840 | 1810 lm | 16 W | LDT | IMG | |

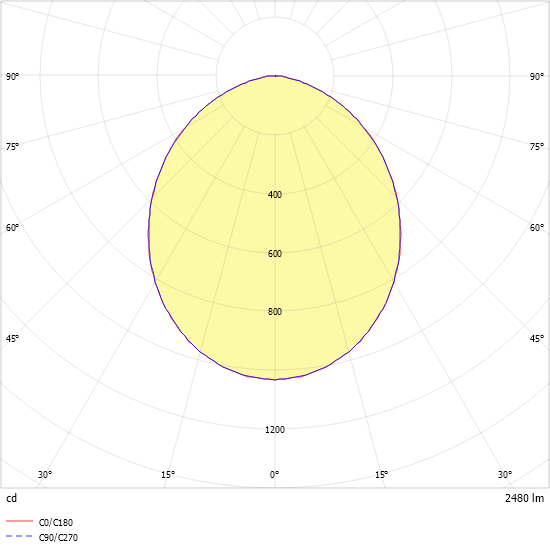

| EDLR-E2 195/3000-830 WS-DALI / 0336620 | 85 mm | 195 mm | 830 | 2510 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/3000-840 WS-DALI / 0336621 | 85 mm | 195 mm | 840 | 2640 lm | 23 W | LDT | IMG | |

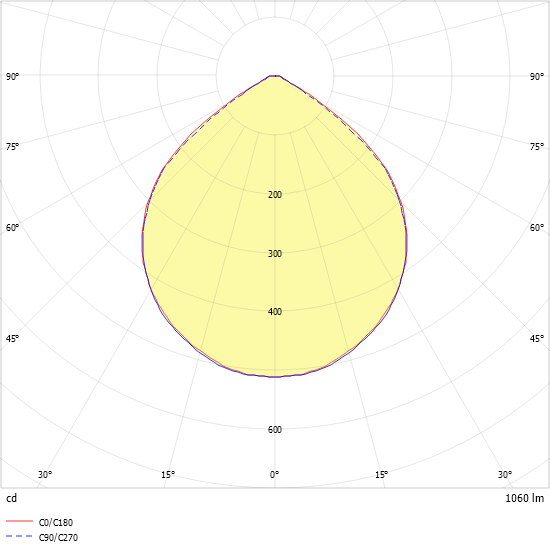

| EDLR-E2 195/1100-830 W-EDS3 / 0321512//377 | 65 mm | 195 mm | 830 | 1058 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 W-EDS3 / 0321511//377 | 65 mm | 195 mm | 840 | 1113 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/2000-830 W-EDS3 / 0321514//377 | 65 mm | 195 mm | 830 | 1836 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 W-EDS3 / 0321513//377 | 65 mm | 195 mm | 840 | 1926 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/3000-830 W-EDS3 / 0326618//377 | 85 mm | 195 mm | 830 | 2745 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/3000-840 W-EDS3 / 0326619//377 | 85 mm | 195 mm | 840 | 2745 lm | 23 W | LDT | IMG | |

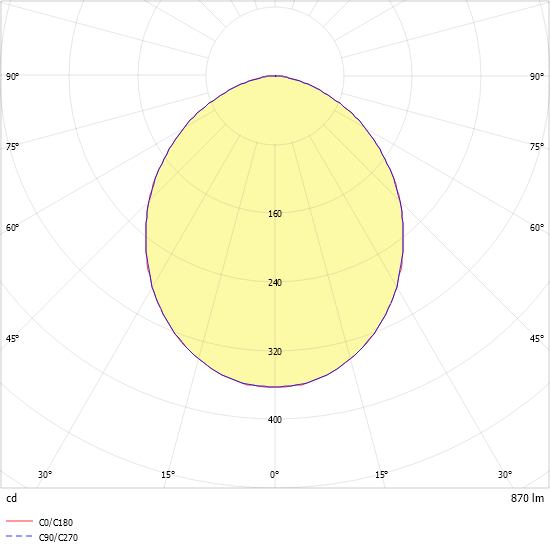

| EDLR-E2 195/1100-830 WS-EDS3 / 0326637//377 | 65 mm | 195 mm | 830 | 1008 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 WS-EDS3 / 0326636//377 | 65 mm | 195 mm | 840 | 1058 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/2000-830 WS-EDS3 / 0326639//377 | 65 mm | 195 mm | 830 | 1717 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 WS-EDS3 / 0326638//377 | 65 mm | 195 mm | 840 | 1806 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/3000-830 WS-EDS3 / 0326620//377 | 85 mm | 195 mm | 830 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/3000-840 WS-EDS3 / 0326621//377 | 85 mm | 195 mm | 840 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/1100-830 W-EL / 0326611 | 65 mm | 195 mm | 830 | 1058 lm | 9 W | LDT | IMG | |

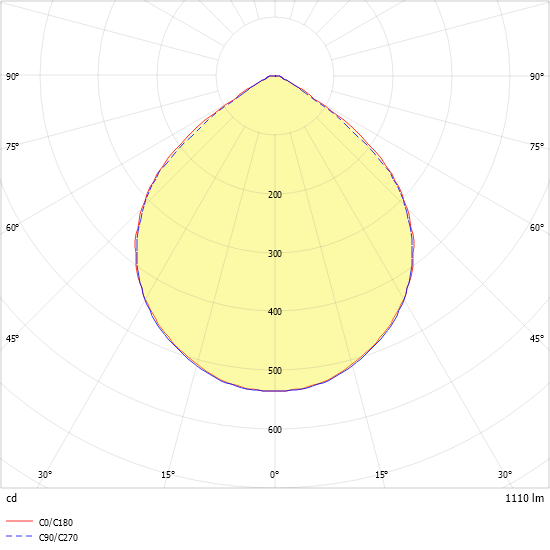

| EDLR-E2 195/1100-840 W-EL / 0326610 | 65 mm | 195 mm | 840 | 1113 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/2000-830 W-EL / 0326613 | 65 mm | 195 mm | 830 | 1836 lm | 16 W | LDT | IMG | |

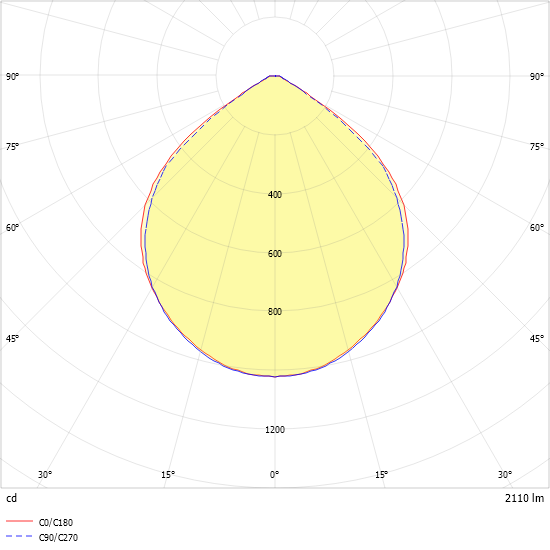

| EDLR-E2 195/2000-840 W-EL / 0326612 | 65 mm | 195 mm | 840 | 1926 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/3000-830 W-EL / 0326622 | 85 mm | 195 mm | 830 | 2745 lm | 23 W | LDT | IMG | |

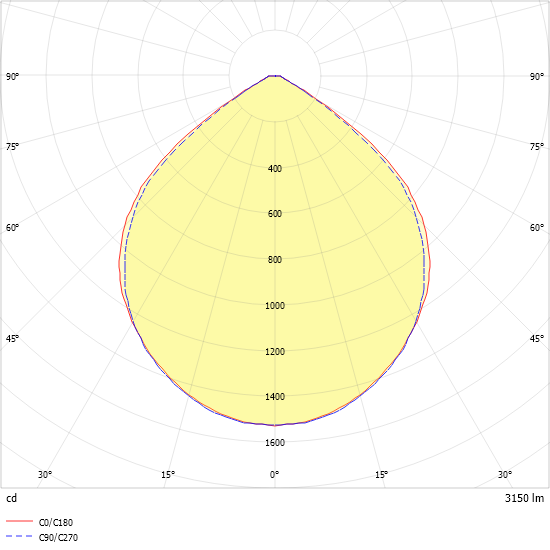

| EDLR-E2 195/3000-840 W-EL / 0326623 | 85 mm | 195 mm | 840 | 2745 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/1100-830 WS-EL / 0326649 | 65 mm | 195 mm | 830 | 1008 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/1100-840 WS-EL / 0326648 | 65 mm | 195 mm | 840 | 1058 lm | 9 W | LDT | IMG | |
| EDLR-E2 195/2000-830 WS-EL / 0326651 | 65 mm | 195 mm | 830 | 1717 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/2000-840 WS-EL / 0326650 | 65 mm | 195 mm | 840 | 1806 lm | 16 W | LDT | IMG | |
| EDLR-E2 195/3000-830 WS-EL / 0326624 | 85 mm | 195 mm | 830 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 195/3000-840 WS-EL / 0326625 | 85 mm | 195 mm | 840 | 2640 lm | 23 W | LDT | IMG |
EDLR-E2 235 ..
| Product Code | H mm |
Ø mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
Product Image |
|---|---|---|---|---|---|---|---|---|
| EDLR-E2 235/1100-830 W / 0321516 | 75 mm | 235 mm | 830 | 1070 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-830 W-DALI / 0331516 | 75 mm | 235 mm | 830 | 1070 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 W / 0321515 | 75 mm | 235 mm | 840 | 1120 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 W-DALI / 0331515 | 75 mm | 235 mm | 840 | 1120 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/2000-830 W / 0321518 | 75 mm | 235 mm | 830 | 1860 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-830 W-DALI / 0331518 | 75 mm | 235 mm | 830 | 1860 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 W / 0321517 | 75 mm | 235 mm | 840 | 1950 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 W-DALI / 0331517 | 75 mm | 235 mm | 840 | 1950 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/3000-830 W-DALI / 0336626 | 95 mm | 235 mm | 830 | 2605 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/3000-840 W-DALI / 0336627 | 95 mm | 235 mm | 840 | 2769 lm | 23 W | LDT | IMG | |

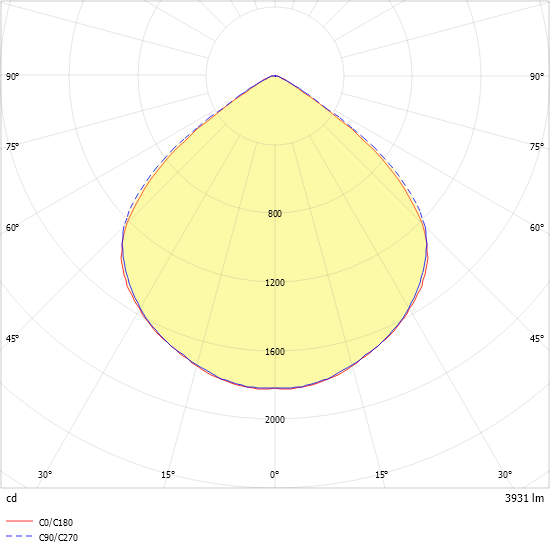

| EDLR-E2 235/4000-830 W-DALI / 0336660 | 115 mm | 235 mm | 830 | 3151 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/4000-840 W-DALI / 0336661 | 115 mm | 235 mm | 840 | 3313 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/1100-830 WS / 0326641 | 75 mm | 235 mm | 830 | 1030 lm | 9 W | LDT | IMG | |

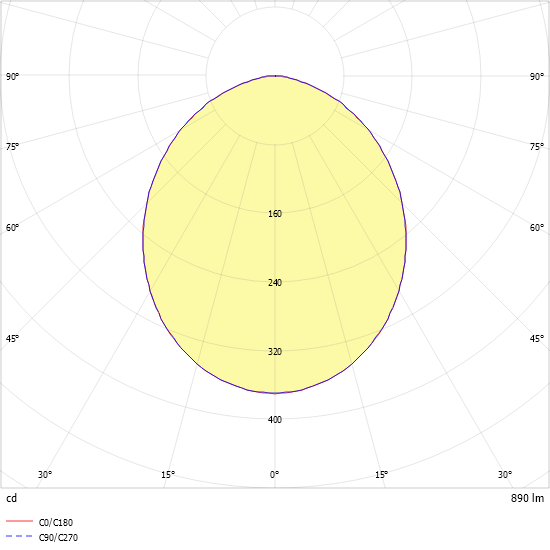

| EDLR-E2 235/1100-830 WS-DALI / 0336641 | 75 mm | 235 mm | 830 | 1030 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 WS / 0326640 | 75 mm | 235 mm | 840 | 1080 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 WS-DALI / 0336640 | 75 mm | 235 mm | 840 | 1080 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/2000-830 WS / 0326643 | 75 mm | 235 mm | 830 | 1780 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-830 WS-DALI / 0336643 | 75 mm | 235 mm | 830 | 1780 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 WS / 0326642 | 75 mm | 235 mm | 840 | 1870 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 WS-DALI / 0336642 | 75 mm | 235 mm | 840 | 1870 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/3000-830 WS-DALI / 0336628 | 95 mm | 235 mm | 830 | 2510 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/3000-840 WS-DALI / 0336629 | 95 mm | 235 mm | 840 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/4000-830 WS-DALI / 0336662 | 115 mm | 235 mm | 830 | 3150 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/4000-840 WS-DALI / 0336663 | 115 mm | 235 mm | 840 | 3310 lm | 31 W | LDT | IMG | |

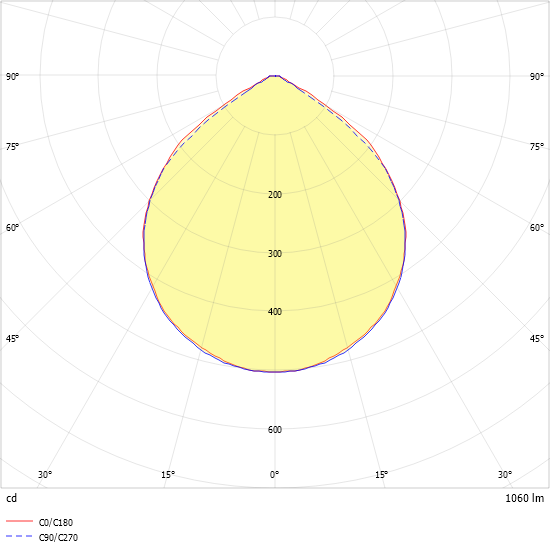

| EDLR-E2 235/1100-830 W-EDS3 / 0321516//377 | 75 mm | 235 mm | 830 | 1068 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 W-EDS3 / 0321515//377 | 75 mm | 235 mm | 840 | 1118 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/2000-830 W-EDS3 / 0321518//377 | 75 mm | 235 mm | 830 | 1856 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 W-EDS3 / 0321517//377 | 75 mm | 235 mm | 840 | 1946 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/3000-830 W-EDS3 / 0326626//377 | 95 mm | 235 mm | 830 | 2769 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/3000-840 W-EDS3 / 0326627//377 | 95 mm | 235 mm | 840 | 2769 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/4000-830 W-EDS3 / 0326660//377 | 115 mm | 235 mm | 830 | 3313 lm | 31 W | LDT | IMG | |

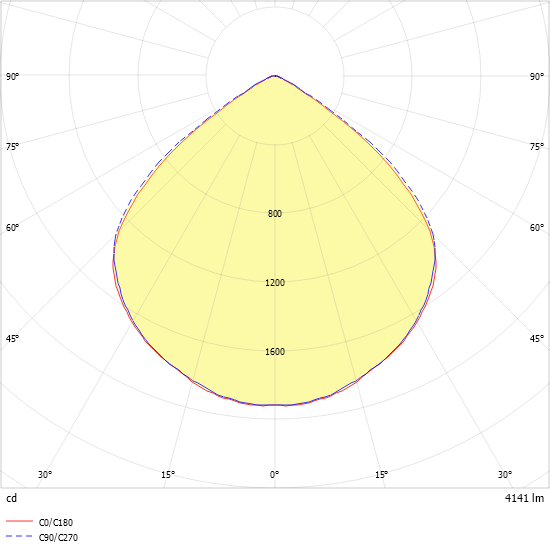

| EDLR-E2 235/4000-840 W-EDS3 / 0326661//377 | 115 mm | 235 mm | 840 | 3313 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/1100-830 WS-EDS3 / 0326641//377 | 75 mm | 235 mm | 830 | 1028 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 WS-EDS3 / 0326640//377 | 75 mm | 235 mm | 840 | 1078 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/2000-830 WS-EDS3 / 0326643//377 | 75 mm | 235 mm | 830 | 1776 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 WS-EDS3 / 0326642//377 | 75 mm | 235 mm | 840 | 1866 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/3000-830 WS-EDS3 / 0326628//377 | 95 mm | 235 mm | 830 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/3000-840 WS-EDS3 / 0326629//377 | 95 mm | 235 mm | 840 | 2640 lm | 23 W | LDT | IMG | |

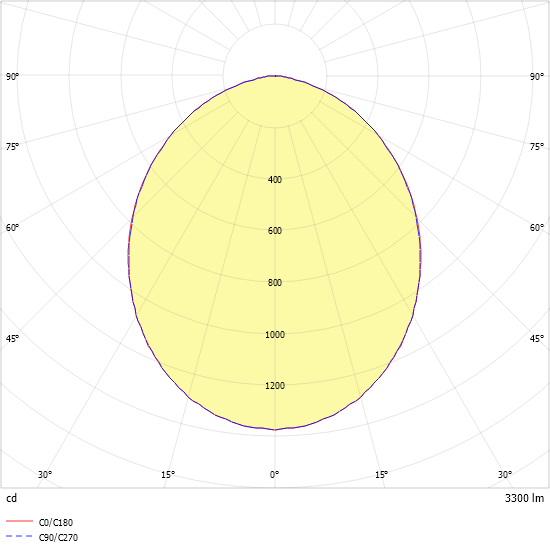

| EDLR-E2 235/4000-830 WS-EDS3 / 0326662//377 | 115 mm | 235 mm | 830 | 3310 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/4000-840 WS-EDS3 / 0326663//377 | 115 mm | 235 mm | 840 | 3310 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/1100-830 W-EL / 0326615 | 75 mm | 235 mm | 830 | 1068 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 W-EL / 0326614 | 75 mm | 235 mm | 840 | 1118 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/2000-830 W-EL / 0326617 | 75 mm | 235 mm | 830 | 1856 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 W-EL / 0326616 | 75 mm | 235 mm | 840 | 1946 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/3000-830 W-EL / 0326656 | 95 mm | 235 mm | 830 | 2769 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/3000-840 W-EL / 0326657 | 95 mm | 235 mm | 840 | 2769 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/4000-830 W-EL / 0326664 | 115 mm | 235 mm | 830 | 3313 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/4000-840 W-EL / 0326665 | 115 mm | 235 mm | 840 | 3313 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/1100-830 WS-EL / 0326653 | 75 mm | 235 mm | 830 | 1028 lm | 9 W | LDT | IMG | |
| EDLR-E2 235/1100-840 WS-EL / 0326652 | 75 mm | 235 mm | 840 | 1078 lm | 9 W | LDT | IMG | |

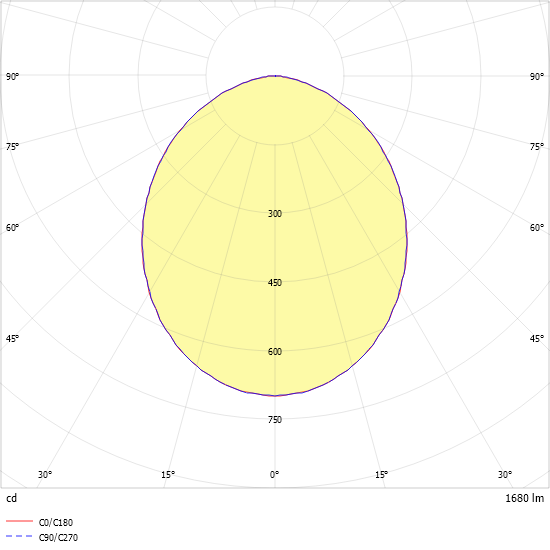

| EDLR-E2 235/2000-830 WS-EL / 0326655 | 75 mm | 235 mm | 830 | 1776 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/2000-840 WS-EL / 0326654 | 75 mm | 235 mm | 840 | 1866 lm | 16 W | LDT | IMG | |
| EDLR-E2 235/3000-830 WS-EL / 0326658 | 95 mm | 235 mm | 830 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/3000-840 WS-EL / 0326659 | 95 mm | 235 mm | 840 | 2640 lm | 23 W | LDT | IMG | |
| EDLR-E2 235/4000-830 WS-EL / 0326666 | 115 mm | 235 mm | 830 | 3400 lm | 31 W | LDT | IMG | |
| EDLR-E2 235/4000-840 WS-EL / 0326667 | 115 mm | 235 mm | 840 | 3400 lm | 31 W | LDT | IMG |
