EDLQ
Square Recessed
LED Downlights
Downlights, Squarerer
Effective LED downlights featuring the same replaceable RIDI LED light engines as our round downlights – just square.
Three Sizes
EDLQ 150
150 x 150mm
1,100 or 2,000lm
White or Semi Matt Aluminium Reflectors
EDLQ 195
195 x 195mm
1,100 2,000 or 3,000lm
White or Semi Matt Aluminium Reflectors
EDLQ 235
235 x 235mm
2,000 3,000 or 4,000lm
White or Semi Matt Aluminium Reflectors
Two Reflectors
W Reflector
High reflectivity white reflector with a wide distribution. Works well with additional diffusers or optics.
SM Reflector
Satin Matt Aluminium reflector with low glare even without additional optics or diffusers.
Accessories
DQ … SK
Clear Glass
DR … SM
Frosted Glass
DQ .. MPS
Microprism
DQ … SO
Opal Glass
DR … SPM
Matt Centre Glass
DQ .. DR
Decorative Frame
Black or White
Technical Information
EDLQ 150
Optical Distribution:
White Reflector – W
Satin Matt Silver Reflector – SM
Output (lm):
1143 – 2035 lm
Control:
DALI – DA
Non-Dimming – ND
Colour Temperatures:
3,000K 4,000K
Colour:
White
IP Rating:
IP40 Room Side
IP20 Ceiling Side
Emergency Lighting
3 Hour Battery Self Test – EDS3
Specific Product Information and Downloads
Downloads - W Reflector
| Product Code | H mm | L mm |
W mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
BIM File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|
| EDLQ 150/1100-830 W / 0321338 | 70 mm | 150 mm | 151 mm | 830 | 1138 lm | 8 W | LDT | RFA |  |
|
| EDLQ 150/1100-830 W-DA-EDS3 / 0331338//377 | 70 mm | 150 mm | 151 mm | 830 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-830 W-DALI / 0331338 | 70 mm | 150 mm | 151 mm | 830 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-830 W-EDS3 / 0321338//377 | 70 mm | 150 mm | 151 mm | 830 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 W / 0321337 | 70 mm | 150 mm | 151 mm | 840 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 W-DA-EDS3 / 0331337//377 | 70 mm | 150 mm | 151 mm | 840 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 W-DALI / 0331337 | 70 mm | 150 mm | 151 mm | 840 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 W-EDS3 / 0321337//377 | 70 mm | 150 mm | 151 mm | 840 | 1138 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/2000-830 W / 0321340 | 70 mm | 150 mm | 151 mm | 830 | 2024 lm | 16 W | LDT | RFA |  |
|
| EDLQ 150/2000-830 W-DA-EDS3 / 0331340//377 | 70 mm | 150 mm | 151 mm | 830 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-830 W-DALI / 0331340 | 70 mm | 150 mm | 151 mm | 830 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-830 W-EDS3 / 0321340//377 | 70 mm | 150 mm | 151 mm | 830 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 W / 0321339 | 70 mm | 150 mm | 151 mm | 840 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 W-DA-EDS3 / 0331339//377 | 70 mm | 150 mm | 151 mm | 840 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 W-DALI / 0331339 | 70 mm | 150 mm | 151 mm | 840 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 W-EDS3 / 0321339//377 | 70 mm | 150 mm | 151 mm | 840 | 2024 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-TW-W / 0336729 | 70 mm | 150 mm | 151 mm | 830-865 | 2024 lm | 16 W | LDT | |
Downloads - SM Reflector
| Product Code | H mm | L mm |
W mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
BIM File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|
| EDLQ 150/1100-830 SM / 0321370 | 80 mm | 150 mm | 151 mm | 830 | 1143 lm | 8 W | LDT | RFA |  |
|
| EDLQ 150/1100-830 SM-DA-EDS3 / 0331370//377 | 80 mm | 150 mm | 151 mm | 830 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-830 SM-DALI / 0331370 | 80 mm | 150 mm | 151 mm | 830 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-830 SM-EDS3 / 0321370//377 | 80 mm | 150 mm | 151 mm | 830 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 SM / 0321369 | 80 mm | 150 mm | 151 mm | 840 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 SM-DA-EDS3 / 0331369//377 | 80 mm | 150 mm | 151 mm | 840 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 SM-DALI / 0331369 | 80 mm | 150 mm | 151 mm | 840 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/1100-840 SM-EDS3 / 0321369//377 | 80 mm | 150 mm | 151 mm | 840 | 1143 lm | 8 W | LDT | RFA | |
|
| EDLQ 150/2000-830 SM / 0321372 | 97 mm | 150 mm | 151 mm | 830 | 2035 lm | 16 W | LDT | RFA |  |
|
| EDLQ 150/2000-830 SM-DA-EDS3 / 0331372//377 | 97 mm | 150 mm | 151 mm | 830 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-830 SM-DALI / 0331372 | 97 mm | 150 mm | 151 mm | 830 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-830 SM-EDS3 / 0321372//377 | 97 mm | 150 mm | 151 mm | 830 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 SM / 0321371 | 97 mm | 150 mm | 151 mm | 840 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 SM-DA-EDS3 / 0331371//377 | 97 mm | 150 mm | 151 mm | 840 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 SM-DALI / 0331371 | 97 mm | 150 mm | 151 mm | 840 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-840 SM-EDS3 / 0321371//377 | 97 mm | 150 mm | 151 mm | 840 | 2035 lm | 16 W | LDT | RFA | |
|
| EDLQ 150/2000-TW-SM / 0336728 | 97 mm | 150 mm | 151 mm | 830-865 | 2035 lm | 16 W | LDT | |
EDLQ 195
Optical Distribution:
White Reflector – W
Satin Matt Silver Reflector – SM
Output (lm):
1125 – 32775 lm
Control:
DALI – DA
Non-Dimming – ND
Colour Temperatures:
3,000K 4,000K
Colour:
White
IP Rating:
IP40 Room Side
IP20 Ceiling Side
Emergency Lighting
3 Hour Battery Self Test – EDS3
Specific Product Information and Downloads
Downloads - W Reflector
| Product Code | H mm | L mm |
W mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
BIM File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|
| EDLQ 195/1100-830 W / 0321342 | 75 mm | 195 mm | 196 mm | 830 | 1172 lm | 8 W | LDT | RFA |  |
|
| EDLQ 195/1100-830 W-DA-EDS3 / 0331342//377 | 75 mm | 195 mm | 196 mm | 830 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-830 W-DALI / 0331342 | 75 mm | 195 mm | 196 mm | 830 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-830 W-EDS3 / 0321342//377 | 75 mm | 195 mm | 196 mm | 830 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 W / 0321341 | 75 mm | 195 mm | 196 mm | 840 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 W-DA-EDS3 / 0331341//377 | 75 mm | 195 mm | 196 mm | 840 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 W-DALI / 0331341 | 75 mm | 195 mm | 196 mm | 840 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 W-EDS3 / 0321341//377 | 75 mm | 195 mm | 196 mm | 840 | 1172 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/2000-830 W / 0321344 | 77 mm | 195 mm | 196 mm | 830 | 2085 lm | 16 W | LDT | RFA |  |
|
| EDLQ 195/2000-830 W-DA-EDS3 / 0331344//377 | 77 mm | 195 mm | 196 mm | 830 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-830 W-DALI / 0331344 | 77 mm | 195 mm | 196 mm | 830 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-830 W-EDS3 / 0321344//377 | 77 mm | 195 mm | 196 mm | 830 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 W / 0321343 | 77 mm | 195 mm | 196 mm | 840 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 W-DA-EDS3 / 0331343//377 | 77 mm | 195 mm | 196 mm | 840 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 W-DALI / 0331343 | 77 mm | 195 mm | 196 mm | 840 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 W-EDS3 / 0321343//377 | 77 mm | 195 mm | 196 mm | 840 | 2085 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/3000-830 W / 0321346 | 100 mm | 195 mm | 196 mm | 830 | 3277 lm | 23 W | LDT | RFA |  |
|
| EDLQ 195/3000-830 W-DA-EDS3 / 0331346//377 | 100 mm | 195 mm | 196 mm | 830 | 3277 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-830 W-DALI / 0331346 | 100 mm | 195 mm | 196 mm | 830 | 3277 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-830 W-EDS3 / 0321346//377 | 100 mm | 195 mm | 196 mm | 830 | 3277 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 W / 0321345 | 100 mm | 195 mm | 196 mm | 840 | 3277 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 W-DA-EDS3 / 0331345//377 | 100 mm | 195 mm | 196 mm | 840 | 3277 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 W-DALI / 0331345 | 100 mm | 195 mm | 196 mm | 840 | 3277 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 W-EDS3 / 0321345//377 | 100 mm | 195 mm | 196 mm | 840 | 3277 lm | 23 W | LDT | RFA | |
|

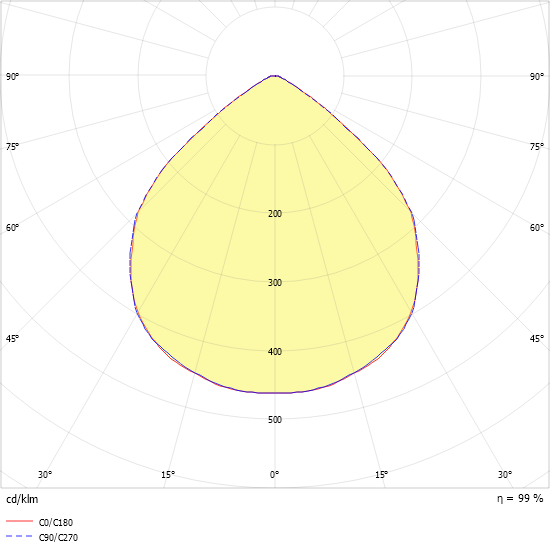

| EDLQ 195/3000-TW-W / 0336731 | 100 mm | 195 mm | 196 mm | 830-865 | 3277 lm | 23 W | LDT | |
Downloads - SM Reflector
| Product Code | H mm | L mm |
W mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
BIM File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|
| EDLQ 195/1100-830 SM / 0321374 | 110 mm | 195 mm | 196 mm | 830 | 1125 lm | 8 W | LDT | RFA |  |
|
| EDLQ 195/1100-830 SM-DA-EDS3 / 0331374//377 | 110 mm | 195 mm | 196 mm | 830 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-830 SM-DALI / 0331374 | 110 mm | 195 mm | 196 mm | 830 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-830 SM-EDS3 / 0321374//377 | 110 mm | 195 mm | 196 mm | 830 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 SM / 0321373 | 110 mm | 195 mm | 196 mm | 840 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 SM-DA-EDS3 / 0331373//377 | 110 mm | 195 mm | 196 mm | 840 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 SM-DALI / 0331373 | 110 mm | 195 mm | 196 mm | 840 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/1100-840 SM-EDS3 / 0321373//377 | 110 mm | 195 mm | 196 mm | 840 | 1125 lm | 8 W | LDT | RFA | |
|
| EDLQ 195/2000-830 SM / 0321376 | 127 mm | 195 mm | 196 mm | 830 | 2001 lm | 16 W | LDT | RFA |  |
|
| EDLQ 195/2000-830 SM-DA-EDS3 / 0331376//377 | 127 mm | 195 mm | 196 mm | 830 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-830 SM-DALI / 0331376 | 127 mm | 195 mm | 196 mm | 830 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-830 SM-EDS3 / 0321376//377 | 127 mm | 195 mm | 196 mm | 830 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 SM / 0321375 | 127 mm | 195 mm | 196 mm | 840 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 SM-DA-EDS3 / 0331375//377 | 127 mm | 195 mm | 196 mm | 840 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 SM-DALI / 0331375 | 127 mm | 195 mm | 196 mm | 840 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/2000-840 SM-EDS3 / 0321375//377 | 127 mm | 195 mm | 196 mm | 840 | 2001 lm | 16 W | LDT | RFA | |
|
| EDLQ 195/3000-830 SM / 0321378 | 150 mm | 195 mm | 196 mm | 830 | 3145 lm | 23 W | LDT | RFA |  |
|
| EDLQ 195/3000-830 SM-DA-EDS3 / 0331378//377 | 150 mm | 195 mm | 196 mm | 830 | 3145 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-830 SM-DALI / 0331378 | 150 mm | 195 mm | 196 mm | 830 | 3145 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-830 SM-EDS3 / 0321378//377 | 150 mm | 195 mm | 196 mm | 830 | 3145 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 SM / 0321377 | 150 mm | 195 mm | 196 mm | 840 | 3145 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 SM-DA-EDS3 / 0331377//377 | 150 mm | 195 mm | 196 mm | 840 | 3145 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 SM-DALI / 0331377 | 150 mm | 195 mm | 196 mm | 840 | 3145 lm | 23 W | LDT | RFA | |
|
| EDLQ 195/3000-840 SM-EDS3 / 0321377//377 | 150 mm | 195 mm | 196 mm | 840 | 3145 lm | 23 W | LDT | RFA | |
|

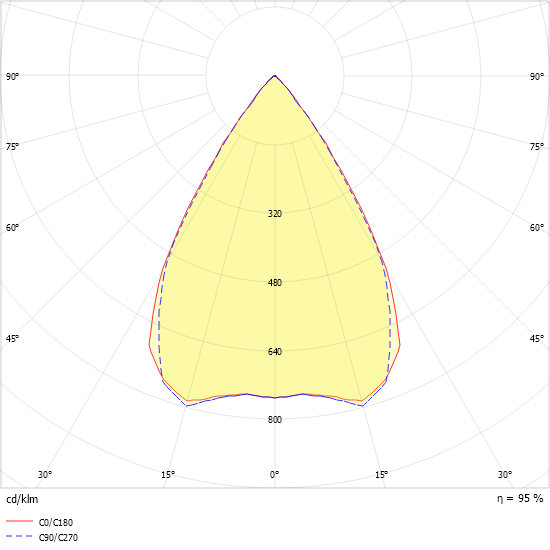

| EDLQ 195/3000-TW-SM / 0336730 | 150 mm | 195 mm | 196 mm | 830-865 | 3145 lm | 23 W | LDT | |
EDLQ 235
Optical Distribution:
White Reflector – W
Satin Matt Silver Reflector – SM
Output (lm):
1125 – 32775 lm
Control:
DALI – DA
Non-Dimming – ND
Colour Temperatures:
3,000K 4,000K
Colour:
White
IP Rating:
IP40 Room Side
IP20 Ceiling Side
Emergency Lighting
3 Hour Battery Self Test – EDS3
Specific Product Information and Downloads
Downloads - W Reflector
| Product Code | H mm | L mm |
W mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
BIM File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|
| EDLQ 235/2000-830 W / 0321348 | 92 mm | 235 mm | 236 mm | 830 | 2077 lm | 16 W | LDT | RFA |  |
|
| EDLQ 235/2000-830 W-DA-EDS3 / 0331348//377 | 92 mm | 235 mm | 236 mm | 830 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-830 W-DALI / 0331348 | 92 mm | 235 mm | 236 mm | 830 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-830 W-EDS3 / 0321348//377 | 92 mm | 235 mm | 236 mm | 830 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 W / 0321347 | 92 mm | 235 mm | 236 mm | 840 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 W-DA-EDS3 / 0331347//377 | 92 mm | 235 mm | 236 mm | 840 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 W-DALI / 0331347 | 92 mm | 235 mm | 236 mm | 840 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 W-EDS3 / 0321347//377 | 92 mm | 235 mm | 236 mm | 840 | 2077 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/3000-830 W / 0321350 | 110 mm | 235 mm | 236 mm | 830 | 3264 lm | 23 W | LDT | RFA |  |
|
| EDLQ 235/3000-830 W-DA-EDS3 / 0331350//377 | 110 mm | 235 mm | 236 mm | 830 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-830 W-DALI / 0331350 | 110 mm | 235 mm | 236 mm | 830 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-830 W-EDS3 / 0321350//377 | 110 mm | 235 mm | 236 mm | 830 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 W / 0321349 | 110 mm | 235 mm | 236 mm | 840 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 W-DA-EDS3 / 0331349//377 | 110 mm | 235 mm | 236 mm | 840 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 W-DALI / 0331349 | 110 mm | 235 mm | 236 mm | 840 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 W-EDS3 / 0321349//377 | 110 mm | 235 mm | 236 mm | 840 | 3264 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3600-TW-W / 0336733 | 130 mm | 235 mm | 236 mm | 830-865 | 3293 lm | 28 W | LDT |  |
||
| EDLQ 235/4000-830 W / 0321352 | 130 mm | 235 mm | 236 mm | 830 | 4203 lm | 31 W | LDT | RFA |  |
|
| EDLQ 235/4000-830 W-DA-EDS3 / 0331352//377 | 130 mm | 235 mm | 236 mm | 830 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-830 W-DALI / 0331352 | 130 mm | 235 mm | 236 mm | 830 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-830 W-EDS3 / 0321352//377 | 130 mm | 235 mm | 236 mm | 830 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 W / 0321351 | 130 mm | 235 mm | 236 mm | 840 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 W-DA-EDS3 / 0331351//377 | 130 mm | 235 mm | 236 mm | 840 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 W-DALI / 0331351 | 130 mm | 235 mm | 236 mm | 840 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 W-EDS3 / 0321351//377 | 130 mm | 235 mm | 236 mm | 840 | 4203 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/5000-830 W / 0321468 | 170 mm | 235 mm | 236 mm | 830 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-830 W-DA-EDS3 / 0331468//377 | 170 mm | 235 mm | 236 mm | 830 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-830 W-DALI / 0331468 | 170 mm | 235 mm | 236 mm | 830 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-830 W-EDS3 / 0321468//377 | 170 mm | 235 mm | 236 mm | 830 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 W / 0321467 | 170 mm | 235 mm | 236 mm | 840 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 W-DA-EDS3 / 0331467//377 | 170 mm | 235 mm | 236 mm | 840 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 W-DALI / 0331467 | 170 mm | 235 mm | 236 mm | 840 | 5336 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 W-EDS3 / 0321467//377 | 170 mm | 235 mm | 236 mm | 840 | 5336 lm | 44 W | LDT | RFA | |
Downloads - SM Reflector
| Product Code | H mm | L mm |
W mm |
CCT | Delivered Lumens |
Power W |
Data Sheet |
Photometric Data |
BIM File |
Product Image |
|---|---|---|---|---|---|---|---|---|---|---|
| EDLQ 235/2000-830 SM / 0321380 | 137 mm | 235 mm | 236 mm | 830 | 2022 lm | 16 W | LDT | RFA |  |
|
| EDLQ 235/2000-830 SM-DA-EDS3 / 0331380//377 | 137 mm | 235 mm | 236 mm | 830 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-830 SM-DALI / 0331380 | 137 mm | 235 mm | 236 mm | 830 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-830 SM-EDS3 / 0321380//377 | 137 mm | 235 mm | 236 mm | 830 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 SM / 0321379 | 137 mm | 235 mm | 236 mm | 840 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 SM-DA-EDS3 / 0331379//377 | 137 mm | 235 mm | 236 mm | 840 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 SM-DALI / 0331379 | 137 mm | 235 mm | 236 mm | 840 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/2000-840 SM-EDS3 / 0321379//377 | 137 mm | 235 mm | 236 mm | 840 | 2022 lm | 16 W | LDT | RFA | |
|
| EDLQ 235/3000-830 SM / 0321382 | 160 mm | 235 mm | 236 mm | 830 | 3178 lm | 23 W | LDT | RFA |  |
|
| EDLQ 235/3000-830 SM-DA-EDS3 / 0331382//377 | 160 mm | 235 mm | 236 mm | 830 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-830 SM-DALI / 0331382 | 160 mm | 235 mm | 236 mm | 830 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-830 SM-EDS3 / 0321382//377 | 160 mm | 235 mm | 236 mm | 830 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 SM / 0321381 | 160 mm | 235 mm | 236 mm | 840 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 SM-DA-EDS3 / 0331381//377 | 160 mm | 235 mm | 236 mm | 840 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 SM-DALI / 0331381 | 160 mm | 235 mm | 236 mm | 840 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3000-840 SM-EDS3 / 0321381//377 | 160 mm | 235 mm | 236 mm | 840 | 3178 lm | 23 W | LDT | RFA | |
|
| EDLQ 235/3600-TW-SM / 0336732 | 180 mm | 235 mm | 236 mm | 830-865 | 3207 lm | 28 W | LDT |  |
||
| EDLQ 235/4000-830 SM / 0321384 | 180 mm | 235 mm | 236 mm | 830 | 4093 lm | 31 W | LDT | RFA |  |
|
| EDLQ 235/4000-830 SM-DA-EDS3 / 0331384//377 | 180 mm | 235 mm | 236 mm | 830 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-830 SM-DALI / 0331384 | 180 mm | 235 mm | 236 mm | 830 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-830 SM-EDS3 / 0321384//377 | 180 mm | 235 mm | 236 mm | 830 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 SM / 0321383 | 180 mm | 235 mm | 236 mm | 840 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 SM-DA-EDS3 / 0331383//377 | 180 mm | 235 mm | 236 mm | 840 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 SM-DALI / 0331383 | 180 mm | 235 mm | 236 mm | 840 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/4000-840 SM-EDS3 / 0321383//377 | 180 mm | 235 mm | 236 mm | 840 | 4093 lm | 31 W | LDT | RFA | |
|
| EDLQ 235/5000-830 SM / 0321466 | 220 mm | 235 mm | 236 mm | 830 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-830 SM-DA-EDS3 / 0331466//377 | 220 mm | 235 mm | 236 mm | 830 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-830 SM-DALI / 0331466 | 220 mm | 235 mm | 236 mm | 830 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-830 SM-EDS3 / 0321466//377 | 220 mm | 235 mm | 236 mm | 830 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 SM / 0321465 | 220 mm | 235 mm | 236 mm | 840 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 SM-DA-EDS3 / 0331465//377 | 220 mm | 235 mm | 236 mm | 840 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 SM-DALI / 0331465 | 220 mm | 235 mm | 236 mm | 840 | 5199 lm | 44 W | LDT | RFA | |
|
| EDLQ 235/5000-840 SM-EDS3 / 0321465//377 | 220 mm | 235 mm | 236 mm | 840 | 5199 lm | 44 W | LDT | RFA | |
Projects Featuring EDLQ
Calthorpe Park School, Fleet, Hampshire
The new extension to the original 1970‘s Calthorpe Park School was designed in-house by architectural services ...
Bedford Modern School
A new science block at Bedford Modern school to replace the existing building that had been largely unchanged since
