LIKE A FLOATING TABLET

Dome was co-developed with architectural designers Blocher partners from Stuttgart. For high end office applications, Dome is a family of floor standing and pendant luminaires. It offers highly adjustable light and combines precise direct illumination of the surface as well as indirect illumination on the ceiling.

PRODUCT DESIGN AND LIGHT CONTROL

The core component is a single die-cast aluminium body with a glass optical edgeless glass. Exemplary optical design means the glare is minimised with Unified Glare factor of only <16. For the floor standing version there are various mounting orientations of the sleek head to tailor illumination of the workstation. For the pendant version you can select single or twin headed versions.

AUTOMATIC OR MANUAL LIGHT CONTROL

If you opt for the subtly integrated sensor version, then daylight and presence detection enable completely self-sufficient control and maximise energy efficiency. If you prefer to manually control the luminaire, then the standard version allows the user to finely adjust the direct and indirect light via a touch panel built into the stem. A USP charging port is built into the touch panel.

Technical Information

Dome Pendant

Dimensions:
L680 x W350 x H35mm
L1384 x W350 x H35mm
Optics:
Microprismatic
Output (lm):
4,220 – 8,430 lm
Control:
DALI, Integrated Sensor

Colour Temperatures:
3,000K 4,000K
Colours:
Black & White
IP Rating:
IP20

Specific Product Information & Downloads
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
DOME-P-K1 6000-840 MPS-DA 680 mm 350 mm 35 mm 840 4220 lm 35 W PDF LDT IMG

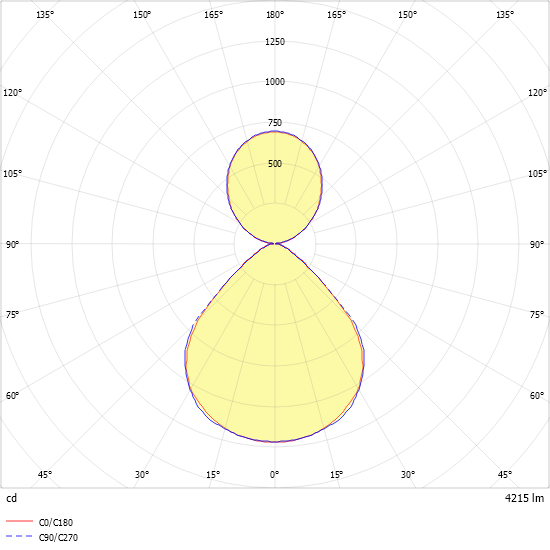

DOME-P-K1 6000-840 MPS-SEN 680 mm 350 mm 35 mm 840 4220 lm 35 W PDF LDT IMG
DOME-P-K2 12000-840 MPS-DA 1384 mm 350 mm 45 mm 840 8430 lm 70 W PDF LDT IMG

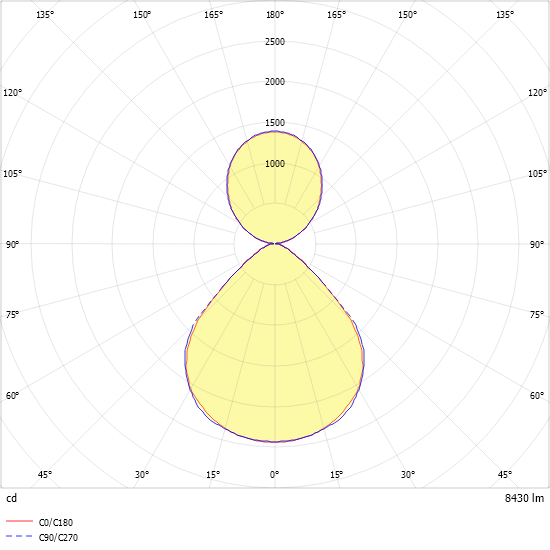

DOME-P-K2 12000-840 MPS-SEN 1384 mm 350 mm 45 mm 840 8430 lm 70 W PDF LDT IMG

Dome Floorstanding

Dimensions:
L742 x W450 x H1945mm
L499 x W680 x H1945mm
Optics:
Microprismatic
Output (lm):
11,8800 lm
Control:
DALI,Integrated Sensor

Colour Temperatures:
3,000K 4,000K
Colours:
Black & White
IP Rating:
IP20

Specific Product Information & Downloads
Product Code L
mm
W
mm
H
mm
CCT Delivered
Lumens
Power
W
Data
Sheet
Photometric
Data
Product
DOME-S-KG 14800-840 MPS-DA 742 mm 450 mm 1945 mm 840 11880 lm 90 W PDF LDT IMG
DOME-S-KG 14800-840 MPS-DA-SEN 742 mm 450 mm 1945 mm 840 11880 lm 90 W PDF LDT IMG

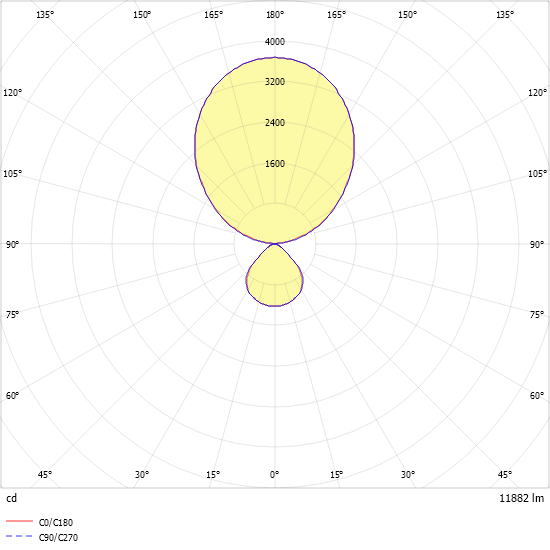

DOME-S-KL 14800-840 MPS-DA 499 mm 680 mm 1945 mm 840 11880 lm 90 W PDF LDT IMG
DOME-S-KL 14800-840 MPS-DA-SEN 499 mm 680 mm 1945 mm 840 11880 lm 90 W PDF LDT IMG
DOME-S-KR 14800-840 MPS-DA 499 mm 680 mm 1945 mm 840 11880 lm 90 W PDF LDT IMG
DOME-S-KR 14800-840 MPS-DA-SEN 499 mm 680 mm 1945 mm 840 11880 lm 90 W PDF LDT IMG
