CIRQUA
LED Track Spot

Circling the square:  Designed in association with Blocher partners of Stuttgart. CIRQUA is a beautifully realised, efficient and sustainable track spot.

Four Beam Angles

A single point COB source for smooth and defined illumination pattern and Spot to Super-Flood distributions for ultimate flexibility

CIRQUA-LI
Super Compact

A special ultra low profile driver allows all the ‘gubbins’ to go inside the track adaptor.  An ultra sleek and refined result.



Freedom to be Flexible

One or two heads, Spot, Medium, Flood or Super Flood and 350° rotation with 90° of tilt.  Don’t forget the high colour rendering option for brilliant displays.

Technical Information

CIRQUA-L

Track spot with visible gear housing

Optics:
Spot – S
Medium – M
Flood – F
Super-Flood – SF
Output (lm):
2650 -7000lm
Control:
DALI – DA
Non-Dimming – ND

Colour Temperatures:
3,000K 4,000K
Colour Rendering:
Ra > 90
Colour:
White, Silver, Black
IP Rating:
IP20

Specific Product Information and Downloads

Downloads - S - Spot
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product

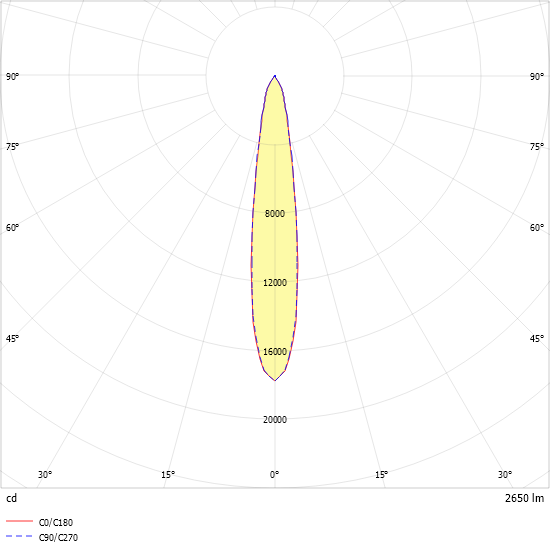

CIRQUA-L 1X2600-930 S / 0321974AH 310 mm 171 mm 100 mm 930 2650 lm 26 W PDF LDT

RFA
CIRQUA-L 1X2600-930 S-FSW (black) / 0321974AQ 310 mm 171 mm 100 mm 930 2650 lm 26 W PDF LDT

RFA

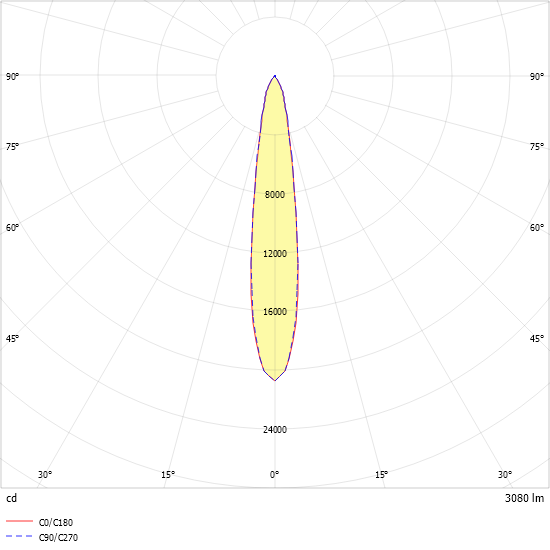

CIRQUA-L 1X3000-830 S / 0321962AH 310 mm 171 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3000-830 S-FSW (black) / 0321962AQ 310 mm 171 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA

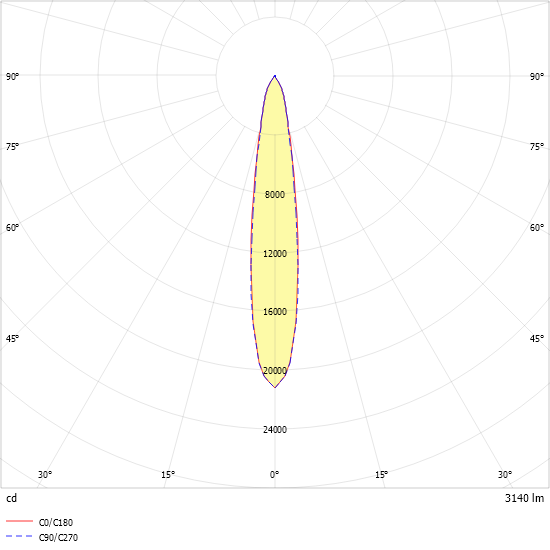

CIRQUA-L 1X3100-930 S / 0321978AH 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 S-DA / 0331978AH 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 S-DA-FSW (black) / 0331978AQ 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 S-FSW (black) / 0321978AQ 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3200-840 S / 0321950AH 310 mm 171 mm 100 mm 840 3250 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3200-840 S-FSW (black) / 0321950AQ 310 mm 171 mm 100 mm 840 3250 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3600-830 S / 0321966AH 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 S-DA / 0331966AH 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 S-DA-FSW (black) / 0331966AQ 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 S-FSW (black) / 0321966AQ 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 S / 0321954AH 310 mm 171 mm 100 mm 840 3880 lm 34 W PDF LDT

RFA

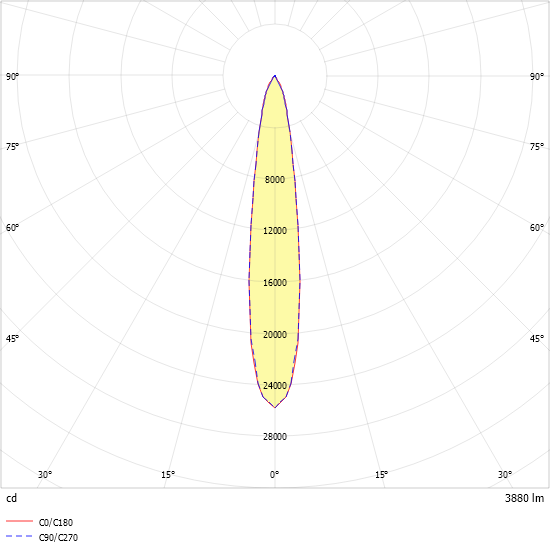

CIRQUA-L 1X3800-840 S-DA / 0331954AH 310 mm 171 mm 100 mm 840 3880 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 S-DA-FSW (black) / 0331954AQ 310 mm 171 mm 100 mm 840 3880 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 S-FSW (black) / 0321954AQ 310 mm 171 mm 100 mm 840 3880 lm 34 W PDF LDT

RFA
CIRQUA-L 2X2600-930 S / 0321982AH 386 mm 171 mm 100 mm 930 5300 lm 52 W PDF LDT

RFA
CIRQUA-L 2X2600-930 S-FSW (black) / 0321982AQ 386 mm 171 mm 100 mm 930 5300 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3000-830 S / 0321970AH 386 mm 171 mm 100 mm 830 6160 lm 52 W PDF LDT

RFA

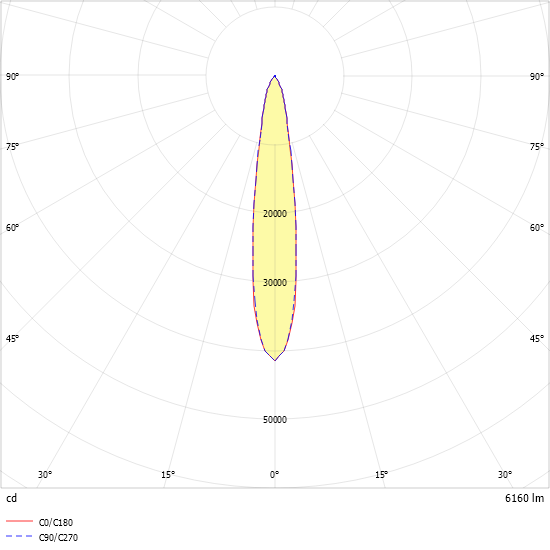

CIRQUA-L 2X3000-830 S-FSW (black) / 0321970AQ 386 mm 171 mm 100 mm 830 6160 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3200-840 S / 0321958AH 386 mm 171 mm 100 mm 840 6500 lm 52 W PDF LDT

RFA
Downloads - M - Medium
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
CIRQUA-L 2X3200-840 S-FSW (black) / 0321958AQ 386 mm 171 mm 100 mm 840 6500 lm 52 W PDF LDT

RFA
CIRQUA-L 1X2600-930 M / 0321975AH 310 mm 171 mm 100 mm 930 2600 lm 26 W PDF LDT

RFA
CIRQUA-L 1X2600-930 M-FSW (black) / 0321975AQ 310 mm 171 mm 100 mm 930 2600 lm 26 W PDF LDT

RFA

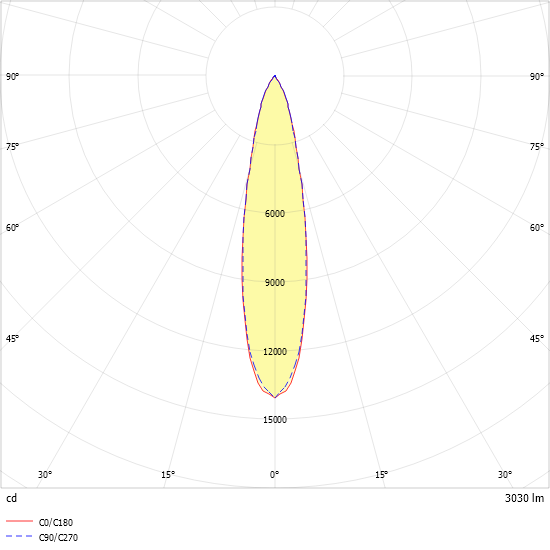

CIRQUA-L 1X3000-830 M / 0321963AH 310 mm 171 mm 100 mm 830 3030 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3000-830 M-FSW (black) / 0321963AQ 310 mm 171 mm 100 mm 830 3030 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3100-930 M / 0321979AH 310 mm 171 mm 100 mm 930 3090 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 M-DA / 0331979AH 310 mm 171 mm 100 mm 930 3090 lm 34 W PDF LDT

RFA

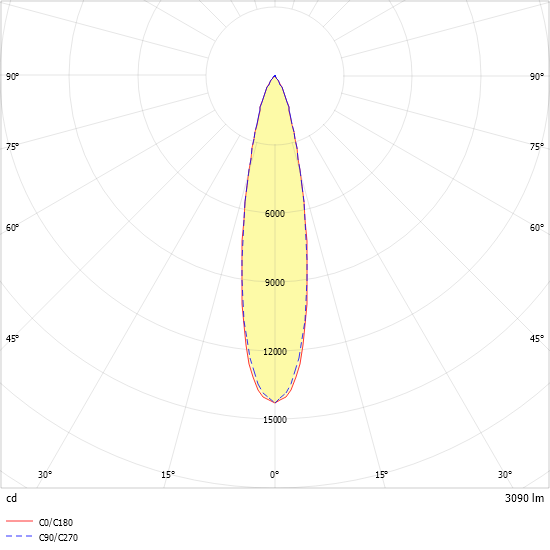

CIRQUA-L 1X3100-930 M-DA-FSW (black) / 0331979AQ 310 mm 171 mm 100 mm 930 3090 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 M-FSW (black) / 0321979AQ 310 mm 171 mm 100 mm 930 3090 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3200-840 M / 0321951AH 310 mm 171 mm 100 mm 840 3190 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3200-840 M-FSW (black) / 0321951AQ 310 mm 171 mm 100 mm 840 3190 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3600-830 M / 0321967AH 310 mm 171 mm 100 mm 830 3580 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 M-DA / 0331967AH 310 mm 171 mm 100 mm 830 3580 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 M-DA-FSW (black) / 0331967AQ 310 mm 171 mm 100 mm 830 3580 lm 34 W PDF LDT

RFA

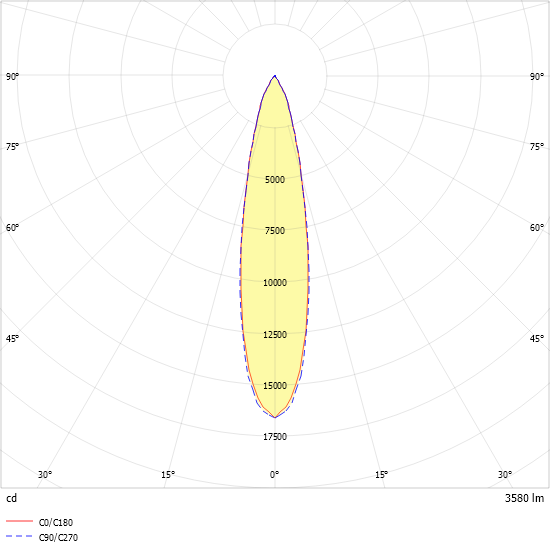

CIRQUA-L 1X3600-830 M-FSW (black) / 0321967AQ 310 mm 171 mm 100 mm 830 3580 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 M / 0321955AH 310 mm 171 mm 100 mm 840 3790 lm 34 W PDF LDT

RFA

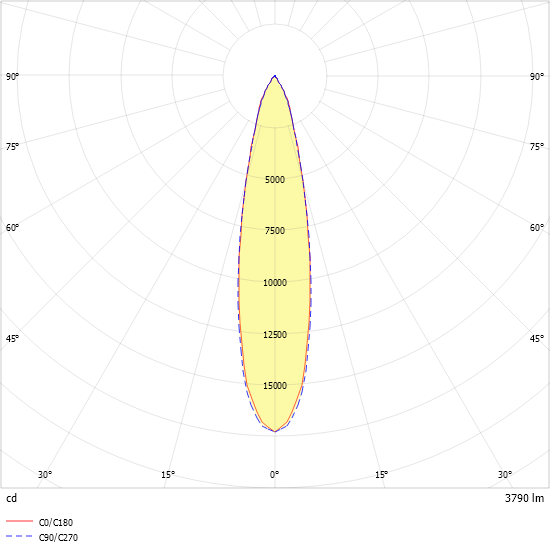

CIRQUA-L 1X3800-840 M-DA / 0331955AH 310 mm 171 mm 100 mm 840 3790 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 M-DA-FSW (black) / 0331955AQ 310 mm 171 mm 100 mm 840 3790 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 M-FSW (black) / 0321955AQ 310 mm 171 mm 100 mm 840 3790 lm 34 W PDF LDT

RFA
CIRQUA-L 2X2600-930 M / 0321983AH 386 mm 171 mm 100 mm 930 5200 lm 52 W PDF LDT

RFA
CIRQUA-L 2X2600-930 M-FSW (black) / 0321983AQ 386 mm 171 mm 100 mm 930 5200 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3000-830 M / 0321971AH 386 mm 171 mm 100 mm 830 6060 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3000-830 M-FSW (black) / 0321971AQ 386 mm 171 mm 100 mm 830 6060 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3200-840 M / 0321959AH 386 mm 171 mm 100 mm 840 6380 lm 52 W PDF LDT

RFA

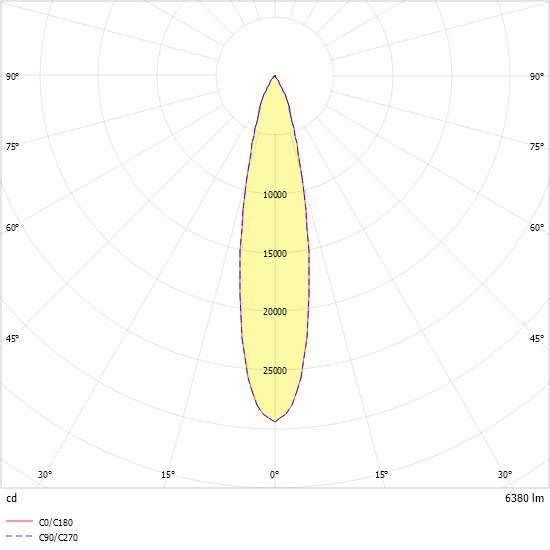

CIRQUA-L 2X3200-840 M-FSW (black) / 0321959AQ 386 mm 171 mm 100 mm 840 6380 lm 52 W PDF LDT

RFA
Downloads - F - Flood
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product

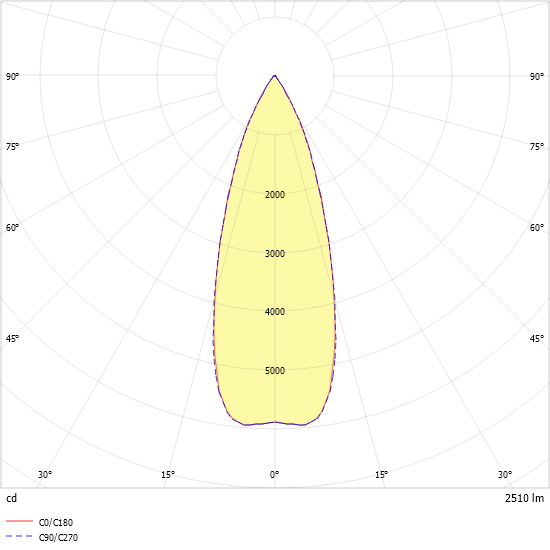

CIRQUA-L 1X2600-930 F / 0321976AH 310 mm 171 mm 100 mm 930 2510 lm 26 W PDF LDT

RFA
CIRQUA-L 1X2600-930 F-FSW (black) / 0321976AQ 310 mm 171 mm 100 mm 930 2510 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3000-830 F / 0321964AH 310 mm 171 mm 100 mm 830 2940 lm 26 W PDF LDT

RFA

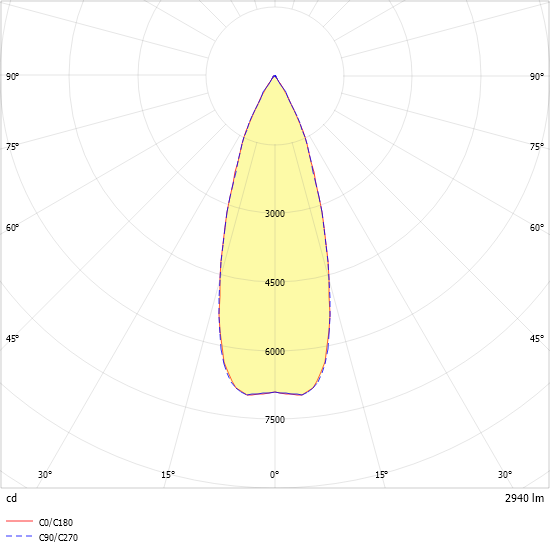

CIRQUA-L 1X3000-830 F-FSW (black) / 0321964AQ 310 mm 171 mm 100 mm 830 2940 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3100-930 F / 0321980AH 310 mm 171 mm 100 mm 930 2990 lm 34 W PDF LDT

RFA

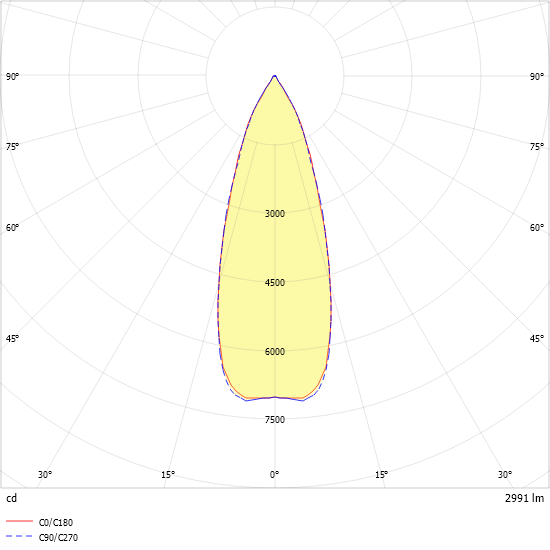

CIRQUA-L 1X3100-930 F-DA / 0331980AH 310 mm 171 mm 100 mm 930 2990 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 F-DA-FSW (black) / 0331980AQ 310 mm 171 mm 100 mm 930 2990 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 F-FSW (black) / 0321980AQ 310 mm 171 mm 100 mm 930 2990 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3200-840 F / 0321952AH 310 mm 171 mm 100 mm 840 3070 lm 26 W PDF LDT

RFA

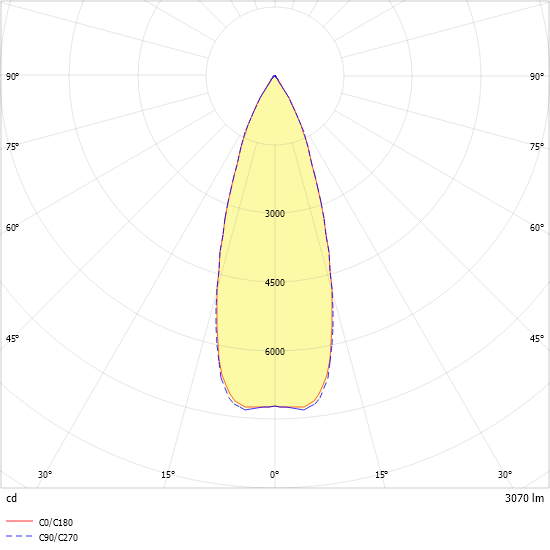

CIRQUA-L 1X3200-840 F-FSW (black) / 0321952AQ 310 mm 171 mm 100 mm 840 3070 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3600-830 F / 0321968AH 310 mm 171 mm 100 mm 830 3470 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 F-DA / 0331968AH 310 mm 171 mm 100 mm 830 3470 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 F-DA-FSW (black) / 0331968AQ 310 mm 171 mm 100 mm 830 3470 lm 34 W PDF LDT

RFA

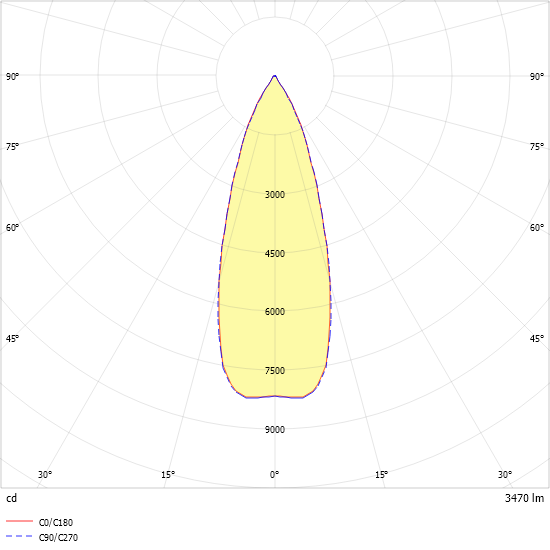

CIRQUA-L 1X3600-830 F-FSW (black) / 0321968AQ 310 mm 171 mm 100 mm 830 3470 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 F / 0321956AH 310 mm 171 mm 100 mm 840 3690 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 F-DA / 0331956AH 310 mm 171 mm 100 mm 840 3690 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 F-DA-FSW (black) / 0331956AQ 310 mm 171 mm 100 mm 840 3690 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 F-FSW (black) / 0321956AQ 310 mm 171 mm 100 mm 840 3690 lm 34 W PDF LDT

RFA
CIRQUA-L 2X2600-930 F / 0321984AH 386 mm 171 mm 100 mm 930 5200 lm 52 W PDF LDT

RFA
CIRQUA-L 2X2600-930 F-FSW (black) / 0321984AQ 386 mm 171 mm 100 mm 930 5020 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3000-830 F / 0321972AH 386 mm 171 mm 100 mm 830 5880 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3000-830 F-FSW (black) / 0321972AQ 386 mm 171 mm 100 mm 830 5880 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3200-840 F / 0321960AH 386 mm 171 mm 100 mm 840 6140 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3200-840 F-FSW (black) / 0321960AQ 386 mm 171 mm 100 mm 840 6140 lm 52 W PDF LDT

RFA
Downloads - SF - Super Flood
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product

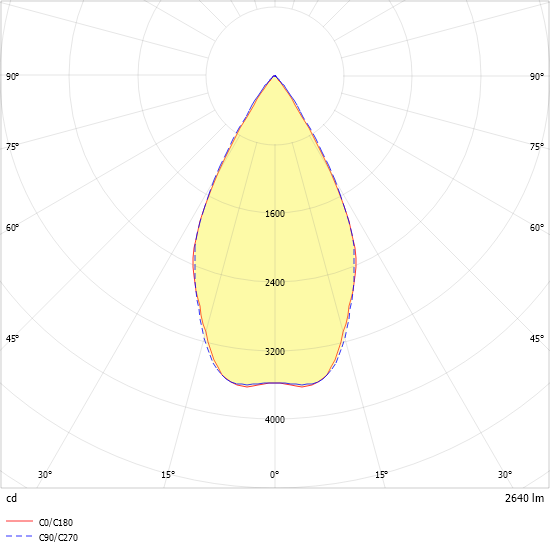

CIRQUA-L 1X2600-930 SF / 0321977AH 310 mm 171 mm 100 mm 930 2640 lm 26 W PDF LDT

RFA
CIRQUA-L 1X2600-930 SF-FSW (black) / 0321977AQ 310 mm 171 mm 100 mm 930 2640 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3000-830 SF / 0321965AH 310 mm 171 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA

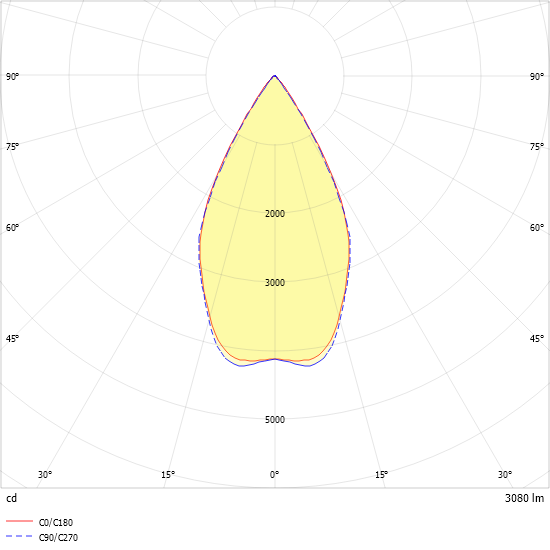

CIRQUA-L 1X3000-830 SF-FSW (black) / 0321965AQ 310 mm 171 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3100-930 SF / 0321981AH 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 SF-DA / 0331981AH 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 SF-DA-FSW (black) / 0331981AQ 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3100-930 SF-FSW (black) / 0321981AQ 310 mm 171 mm 100 mm 930 3140 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3200-840 SF / 0321953AH 310 mm 171 mm 100 mm 840 3270 lm 26 W PDF LDT

RFA
CIRQUA-L 1X3200-840 SF-FSW (black) / 0321953AQ 310 mm 171 mm 100 mm 840 3270 lm 26 W PDF LDT

RFA

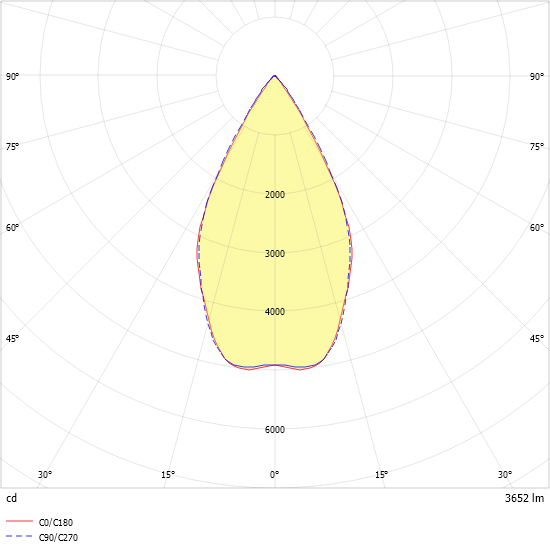

CIRQUA-L 1X3600-830 SF / 0321969AH 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 SF-DA / 0331969AH 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 SF-DA-FSW (black) / 0331969AQ 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3600-830 SF-FSW (black) / 0321969AQ 310 mm 171 mm 100 mm 830 3650 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 SF / 0321957AH 310 mm 171 mm 100 mm 840 3890 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 SF-DA / 0331957AH 310 mm 171 mm 100 mm 840 3890 lm 34 W PDF LDT

RFA

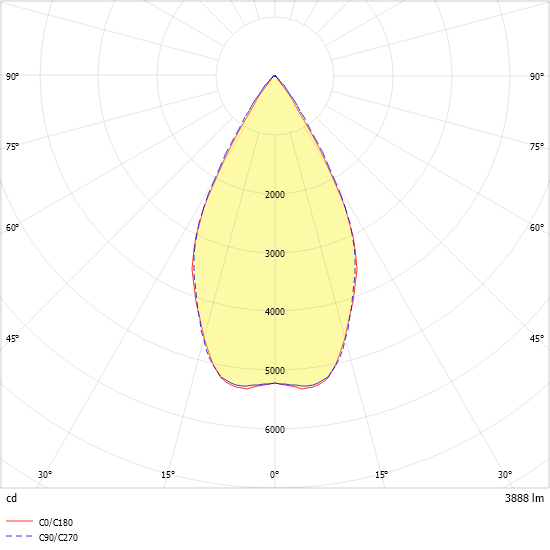

CIRQUA-L 1X3800-840 SF-DA-FSW (black) / 0331957AQ 310 mm 171 mm 100 mm 840 3890 lm 34 W PDF LDT

RFA
CIRQUA-L 1X3800-840 SF-FSW (black) / 0321957AQ 310 mm 171 mm 100 mm 840 3890 lm 34 W PDF LDT

RFA
CIRQUA-L 2X2600-930 SF / 0321985AH 386 mm 171 mm 100 mm 930 5280 lm 52 W PDF LDT

RFA
CIRQUA-L 2X2600-930 SF-FSW (black) / 0321985AQ 386 mm 171 mm 100 mm 930 5280 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3000-830 SF / 0321973AH 386 mm 171 mm 100 mm 830 6160 lm 52 W PDF LDT

RFA

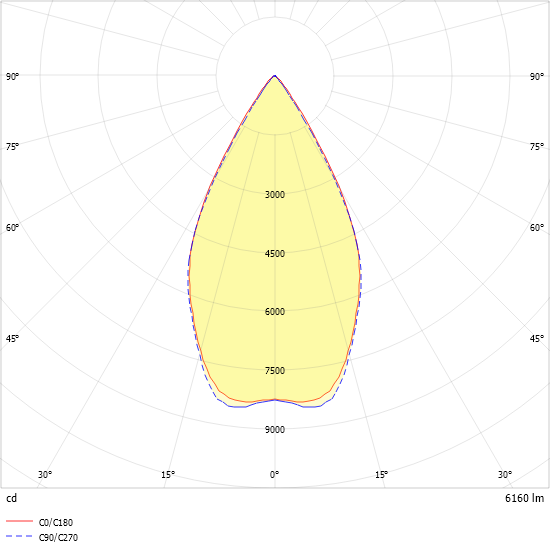

CIRQUA-L 2X3000-830 SF-FSW (black) / 0321973AQ 386 mm 171 mm 100 mm 830 6160 lm 52 W PDF LDT

RFA

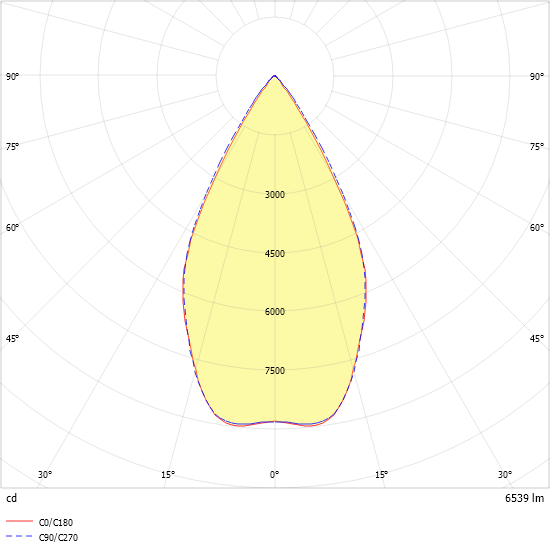

CIRQUA-L 2X3200-840 SF / 0321961AH 386 mm 171 mm 100 mm 840 6540 lm 52 W PDF LDT

RFA
CIRQUA-L 2X3200-840 SF-FSW (black) / 0321961AQ 386 mm 171 mm 100 mm 840 6540 lm 52 W PDF LDT

RFA

CIRQUA-LI

Track spot with gear housing hidden within the track

Optics:
Spot – S
Medium – M
Flood – F
Super-Flood – SF
Output (lm):
2650 -3270lm
Control:
DALI – DA
Non-Dimming – ND

Colour Temperatures:
3,000K 4,000K
Colour Rendering:
Ra > 90
Colour:
White, Silver, Black
IP Rating:
IP20

Specific Product Information and Downloads

Downloads - S - Spot
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
CIRQUA-LI 1X2600-930 S / 0321994AH 250 mm 160 mm 100 mm 930 2650 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X2600-930 S-FSW (black) / 0321994AQ 250 mm 160 mm 100 mm 930 2650 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 S / 0321990AH 250 mm 160 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 S-FSW (black) / 0321990AQ 250 mm 160 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3100-930 DA-S / 0332090AH 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 DA-S-FSW (black) / 0332090AQ 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT

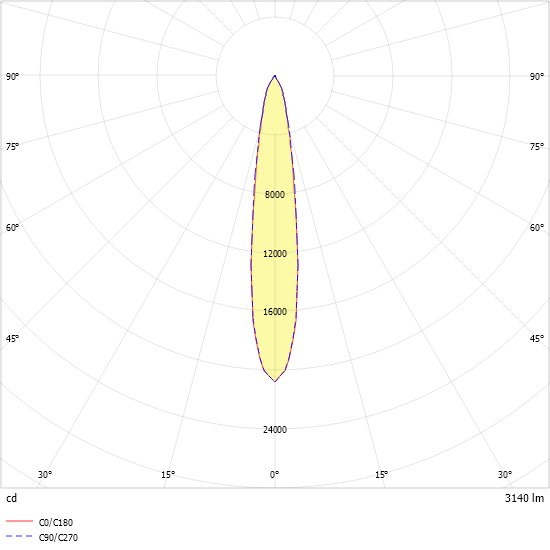

CIRQUA-LI 1X3100-930 S / 0322090AH 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 S-FSW (black) / 0322090AQ 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT
CIRQUA-LI 1X3200-840 S / 0321986AH 250 mm 160 mm 100 mm 840 3250 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3200-840 S-FSW (black) / 0321986AQ 250 mm 160 mm 100 mm 840 3250 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3600-830 DA-S / 0332086AH 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 DA-S-FSW (black) / 0332086AQ 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 S / 0322086AH 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 S-FSW (black) / 0322086AQ 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-S / 0332082AH 250 mm 100 mm 162 mm 840 3880 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-S-FSW (black) / 0332082AQ 250 mm 100 mm 162 mm 840 3880 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 S / 0322082AH 250 mm 100 mm 162 mm 840 3880 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 S-FSW (black) / 0322082AQ 250 mm 100 mm 162 mm 840 3880 lm 34 W PDF LDT
Downloads - M - Medium
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
CIRQUA-LI 1X2600-930 M / 0321995AH 250 mm 160 mm 100 mm 930 2600 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X2600-930 M-FSW (black) / 0321995AQ 250 mm 160 mm 100 mm 930 2600 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 M / 0321991AH 250 mm 160 mm 100 mm 830 3030 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 M-FSW (black) / 0321991AQ 250 mm 160 mm 100 mm 830 3030 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3100-930 DA-M / 0332091AH 250 mm 100 mm 162 mm 930 3090 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 DA-M-FSW (black) / 0332091AQ 250 mm 100 mm 162 mm 930 3090 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 M / 0322091AH 250 mm 100 mm 162 mm 930 3090 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 M-FSW (black) / 0322091AQ 250 mm 100 mm 162 mm 930 3090 lm 34 W PDF LDT
CIRQUA-LI 1X3200-840 M / 0321987AH 250 mm 160 mm 100 mm 840 3190 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3200-840 M-FSW (black) / 0321987AQ 250 mm 160 mm 100 mm 840 3190 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3600-830 DA-M / 0332087AH 250 mm 100 mm 162 mm 830 3580 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 DA-M-FSW (black) / 0332087AQ 250 mm 100 mm 162 mm 830 3580 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 M / 0322087AH 250 mm 100 mm 162 mm 830 3580 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 M-FSW (black) / 0322087AQ 250 mm 100 mm 162 mm 830 3580 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-M / 0332083AH 250 mm 100 mm 162 mm 840 3790 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-M-FSW (black) / 0332083AQ 250 mm 100 mm 162 mm 840 3790 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 M / 0322083AH 250 mm 100 mm 162 mm 840 3790 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 M-FSW (black) / 0322083AQ 250 mm 100 mm 162 mm 840 3790 lm 34 W PDF LDT
Downloads - F - Flood
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
CIRQUA-LI 1X2600-930 F / 0321996AH 250 mm 160 mm 100 mm 930 2510 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X2600-930 F-FSW (black) / 0321996AQ 250 mm 160 mm 100 mm 930 2510 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 F / 0321992AH 250 mm 160 mm 100 mm 830 2940 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 F-FSW (black) / 0321992AQ 250 mm 160 mm 100 mm 830 2940 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3100-930 DA-F / 0332092AH 250 mm 100 mm 162 mm 930 2990 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 DA-F-FSW (black) / 0332092AQ 250 mm 100 mm 162 mm 930 2990 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 F / 0322092AH 250 mm 100 mm 162 mm 930 2990 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 F-FSW (black) / 0322092AQ 250 mm 100 mm 162 mm 930 2990 lm 34 W PDF LDT
CIRQUA-LI 1X3200-840 F / 0321988AH 250 mm 160 mm 100 mm 840 3070 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3200-840 F-FSW (black) / 0321988AQ 250 mm 160 mm 100 mm 840 3070 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3600-830 DA-F / 0332088AH 250 mm 100 mm 162 mm 830 3470 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 DA-F-FSW (black) / 0332088AQ 250 mm 100 mm 162 mm 830 3470 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 F / 0322088AH 250 mm 100 mm 162 mm 830 3470 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 F-FSW (black) / 0322088AQ 250 mm 100 mm 162 mm 830 3470 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-F / 0332084AH 250 mm 100 mm 162 mm 840 3690 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-F-FSW (black) / 0332084AQ 250 mm 100 mm 162 mm 840 3690 lm 34 W PDF LDT

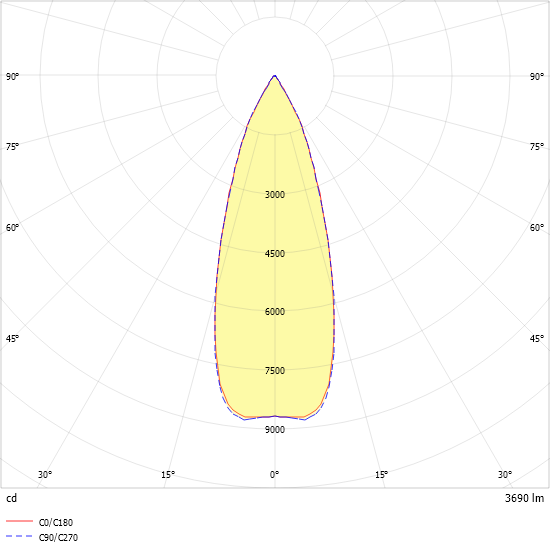

CIRQUA-LI 1X3800-840 F / 0322084AH 250 mm 100 mm 162 mm 840 3690 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 F-FSW (black) / 0322084AQ 250 mm 100 mm 162 mm 840 3690 lm 34 W PDF LDT
Downloads - SF - Super Flood
Product Code L
mm 		W
mm		 D
mm		 CCT Delivered
Lumens		 Power
W		 Data
Sheet		 Photometric
Data		 BIM
File		 Product
CIRQUA-LI 1X2600-930 SF / 0321997AH 250 mm 160 mm 100 mm 930 2640 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X2600-930 SF-FSW (black) / 0321997AQ 250 mm 160 mm 100 mm 930 2640 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 SF / 0321993AH 250 mm 160 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3000-830 SF-FSW (black) / 0321993AQ 250 mm 160 mm 100 mm 830 3080 lm 26 W PDF LDT

RFA

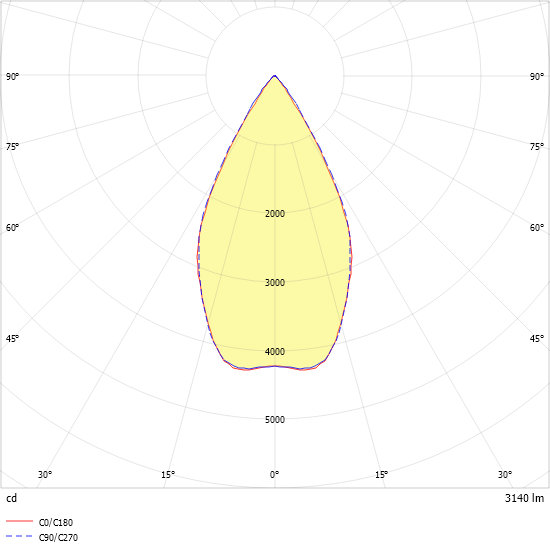

CIRQUA-LI 1X3100-930 DA-SF / 0332093AH 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 DA-SF-FSW (black) / 0332093AQ 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 SF / 0322093AH 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT
CIRQUA-LI 1X3100-930 SF-FSW (black) / 0322093AQ 250 mm 100 mm 162 mm 930 3140 lm 34 W PDF LDT

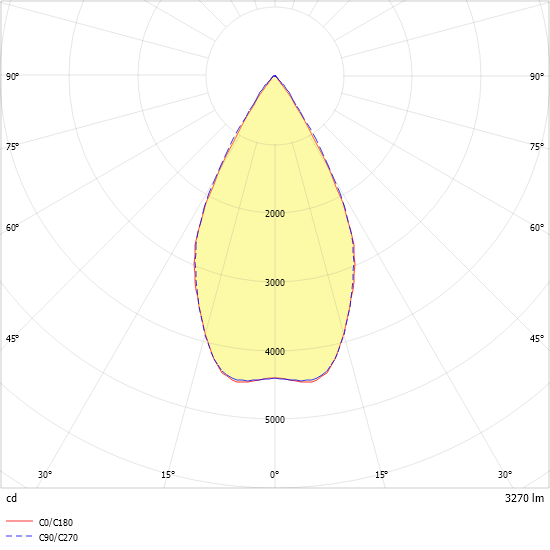

CIRQUA-LI 1X3200-840 SF / 0321989AH 250 mm 160 mm 100 mm 840 3270 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3200-840 SF-FSW (black) / 0321989AQ 250 mm 160 mm 100 mm 840 3270 lm 26 W PDF LDT

RFA
CIRQUA-LI 1X3600-830 DA-SF / 0332089AH 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT

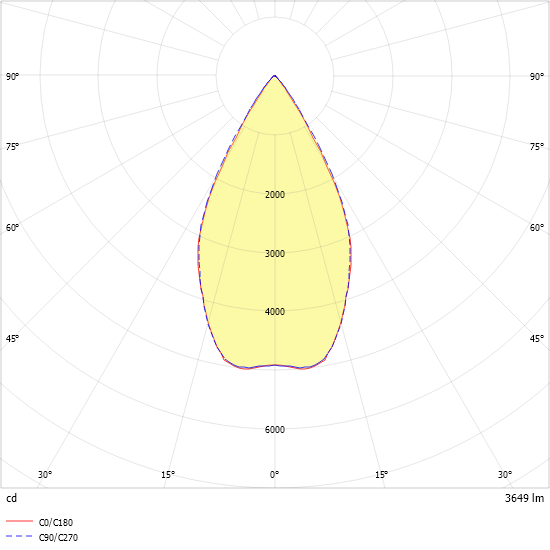

CIRQUA-LI 1X3600-830 DA-SF-FSW (black) / 0332089AQ 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 SF / 0322089AH 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3600-830 SF-FSW (black) / 0322089AQ 250 mm 100 mm 162 mm 830 3650 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-SF / 0332085AH 250 mm 100 mm 162 mm 840 3890 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 DA-SF-FSW (black) / 0332085AQ 250 mm 100 mm 162 mm 840 3890 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 SF / 0322085AH 250 mm 100 mm 162 mm 840 3890 lm 34 W PDF LDT
CIRQUA-LI 1X3800-840 SF-FSW (black) / 0322085AQ 250 mm 100 mm 162 mm 840 3890 lm 34 W PDF LDT

TRACK MOUNTED LUMINAIRES

CIRQUA

CIRQUA

Single or Dual head LED spotlight for track mounting with four beam angles
KARO

KARO

3x3 or 4x4 multipoint spotlight for track mounting with three beam angles
REY

REY

Single or Dual head LED luminaire for supermarket shelf lighting or wall washing
TINO

TINO

Cylindrical LED trackmounted spotlight with driver electronics recessed into track adaptor.

PROJECTS WITH RIDI SPOTLIGHTS

Stadion An der Alten Försterei, Köpenick

Stadion An der Alten Försterei, Köpenick

The ‘An der Alten Försterei’ stadium is located in the neighbourhood of Köpenick to the south-east of Berlin, and ...
Mediterranean market hall, Krefeld

Mediterranean market hall, Krefeld

Encompassing a total area of 11,500 square meters, the new Real Market Hall in Krefeld which opened at the end of ...
00 Architecture

00 Architecture

Architecture 00 have recently moved into their new studios in Mare Street, Hackney.
1

Pin It on Pinterest

Share This
