ARKTIK-SIGN

Wall Mounted LED Exit Sign

Technical:



Light Source Battery Input Voltage Ip rating
16 x White LED 3 Cell 2Ah NiCd 220-240V 50-60Hz IP20

Design:

Wall mounted LED Exit sign with a ‘box’ design, it offers much better aesthetics when compared to conventional exit-boxes, featuring an attractive Polycarbonate enclosure with a sloping front opal panel and screen printed safety sign legends to ensure even illumination.

Measuring 333×134 mm, the LED exit sign provides a viewing distance of 30 metres. Configured for maintained operation as standard. Non maintained operation is available by excluding a switched live supply.

Self Test or DALI operation available.

Dimensions:

Order Codes:



ARK/NM3/WH Wall Mounted, Maintained LED Exit Sign Luminaire
Options /230/WH Mains Only LED Exit Sign Luminaire
/DALI Self-Test or DALI operation
Legends /ECAR EC Format – Arrow Right
/ECAL EC Format – Arrow Left
/ECAD EC Format – Arrow Down
/ISOAR ISO Format – Arrow Right
/ISOAL ISO Format – Arrow Left
/ISOAU U ISO Format – Arrow Up

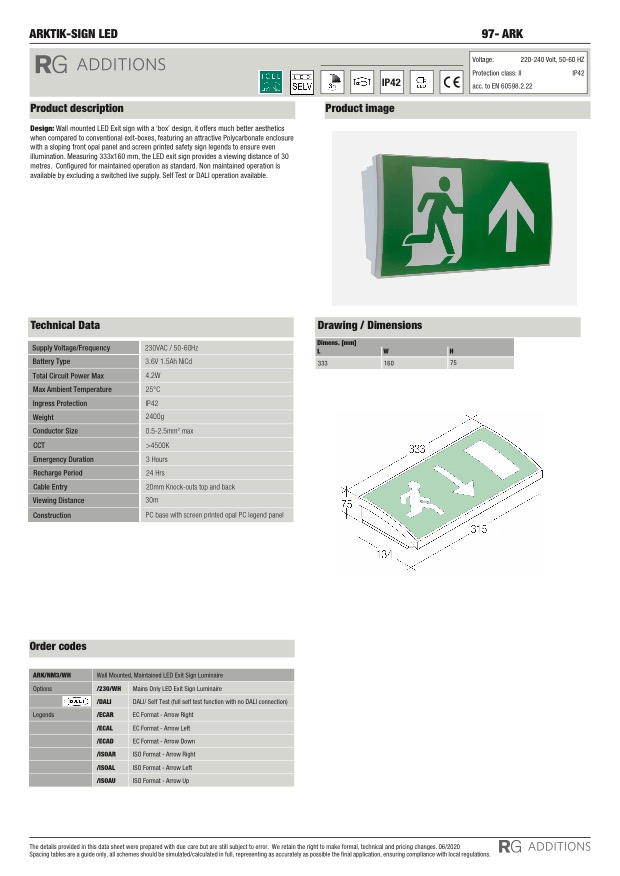

Data Sheet:
