ARKTIK

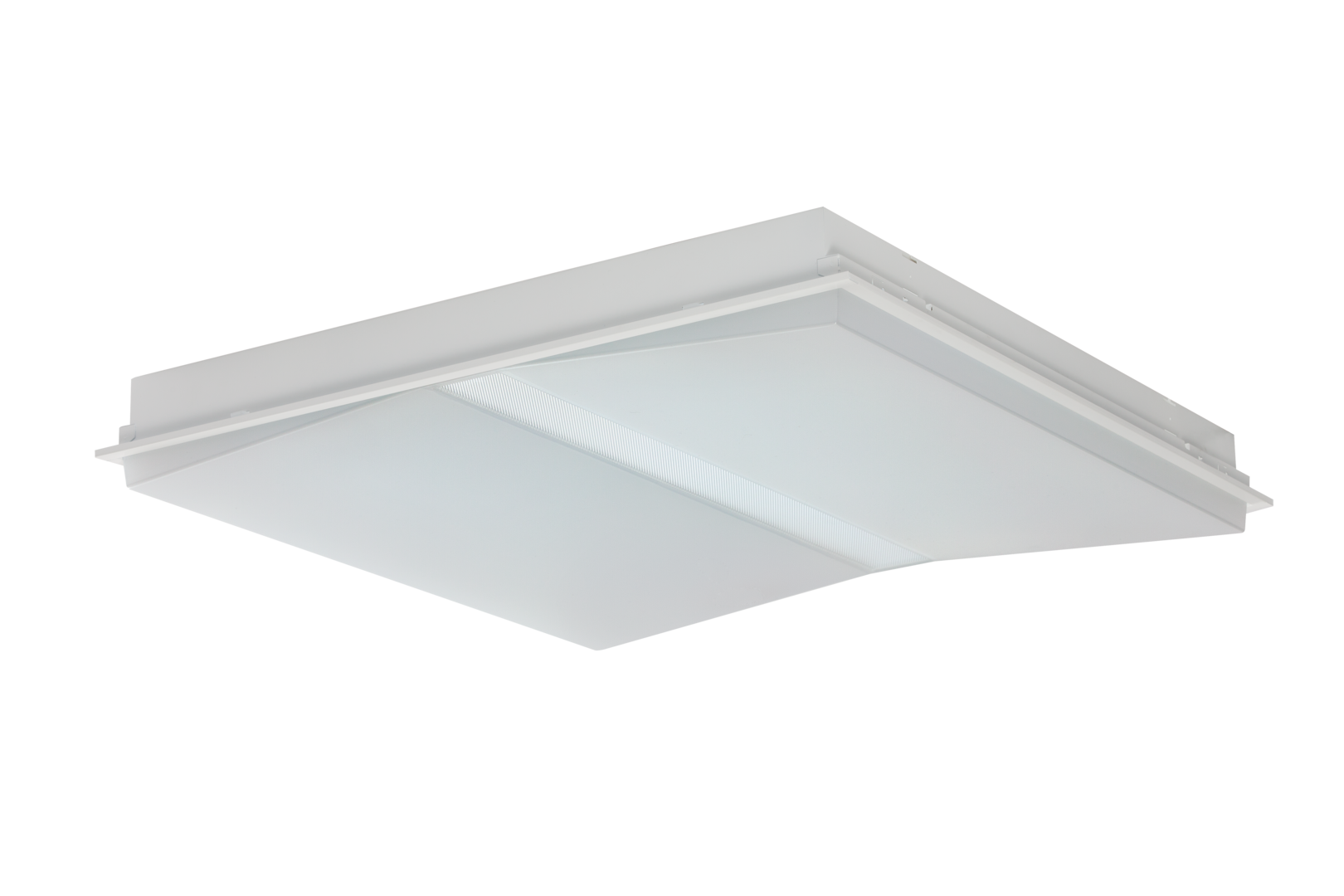

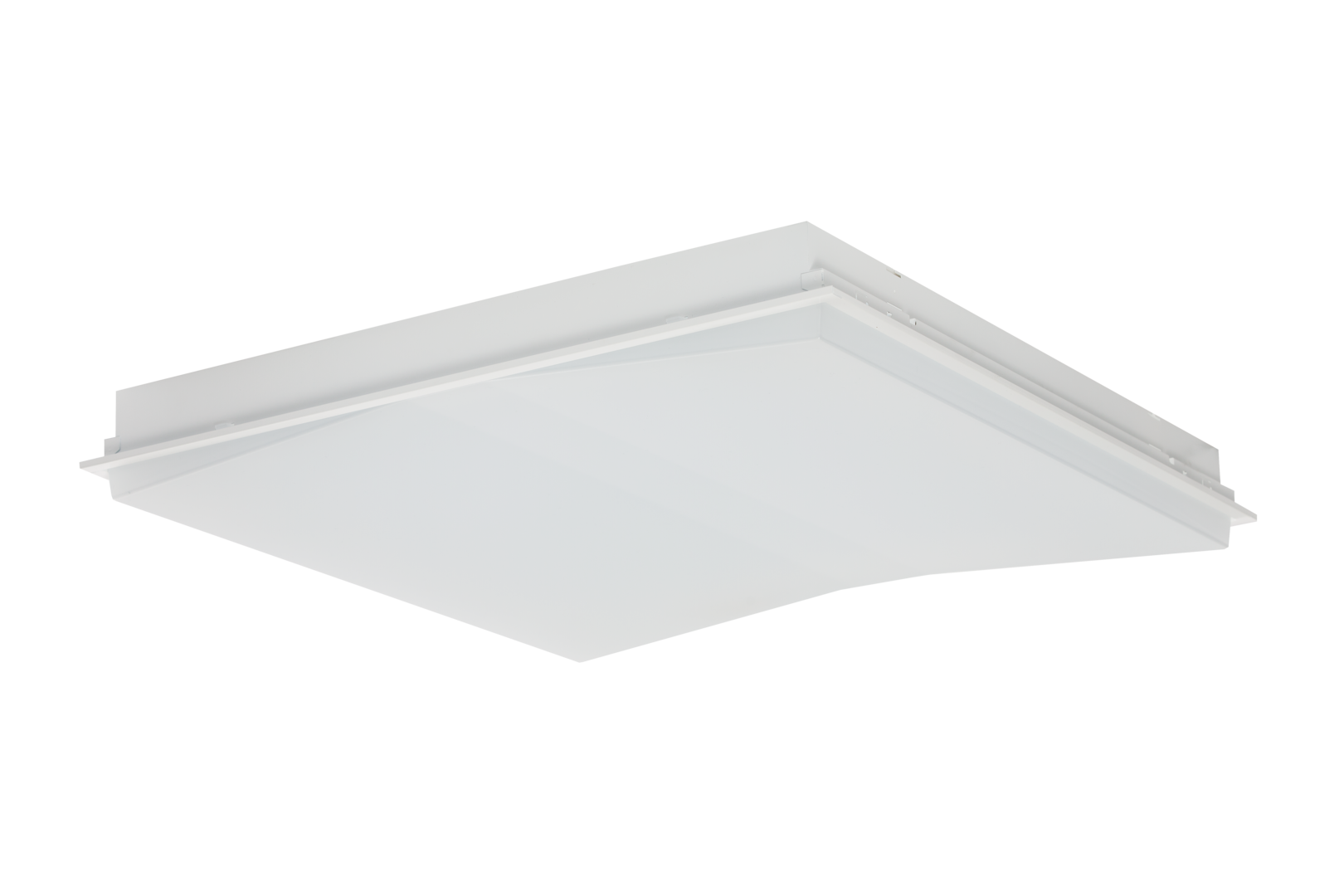

Frameless semi-recessed luminaire
DESIGN
The moulded single piece diffuser sits directly within the luminaire body for a seamless frameless look in standard grid ceilings.
Light from the drop diffuser bleeds onto the ceiling for a soft and light appearance. The shallow body design makes it easier to co-ordinate with other services.
Performance & Sustainability
We make our own LED boards in house, which allows us to tune the characteristics to suit our products. In Arktik we use MID Power LEDs for even flashing and high efficiency.
Sustainability means many thing to many people. At RIDI Group it means local production, ultra high efficiency and the ability to replace LED Boards at the end of their long life.
Quality and Value
The combination of high performance optics, LED boards and chips and direct illumination instead of edge-lit provides excellent efficiency and wide spacings.
By using fewer luminaires per room, install point costs are reduced and the overall scheme costs compare favourably with cheaper edge-lit panel options.
Product Selection
Product Filters
| Size (mm) | Lumen Output | Light Colour | CRI (Ra) | Lm/W | UGR Rating | Driver Type | Body Colour | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

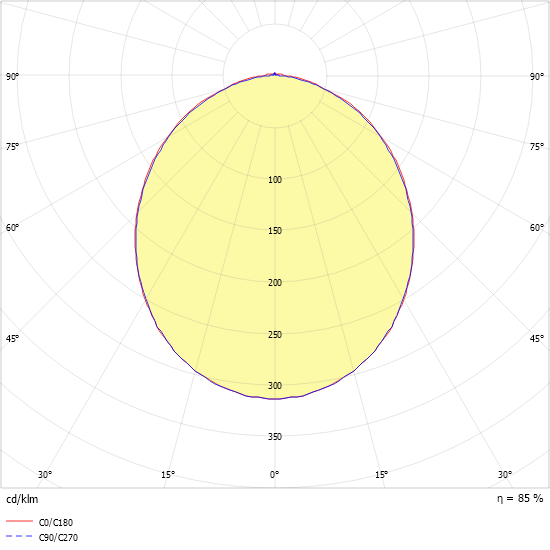

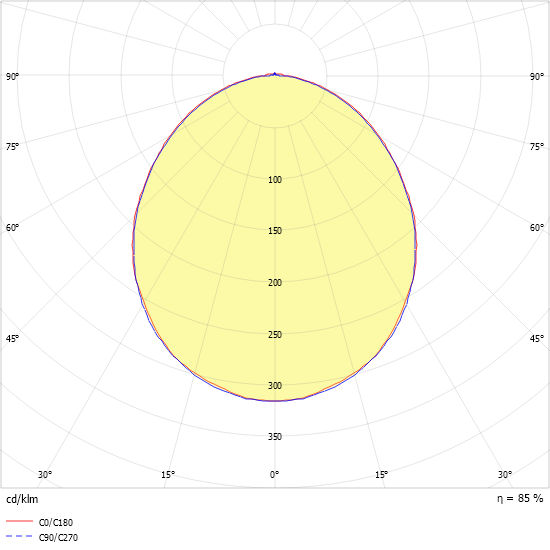

| Image | Part Code Article Number | Size (mm) | Lumen Output | Light Colour | CRI (Ra) | Lm/W | UGR Rating | Driver Type | Body Colour | Data | LDT | Polar | BIM |
 |
ARKTIK-ME-LED 5200-840 0822949 | 597 mm | 4400 lm | 4000 K | ≥ 80 | 137,5 lm/W | ≤ 22 | On/Off | White |  |
 |
 |
 |
|
ARKTIK-ME-LED 5200-840-DA 0832949 | 597 mm | 4400 lm | 4000 K | ≥ 80 | 137,5 lm/W | ≤ 22 | DALI-2 | White | |
|
|
|
|
ARKTIK-ME-LED 5200-8TW-DA 0832962 | 597 mm | 4400 lm | 3000–6500 K | ≥ 80 | 137,5 lm/W | ≤ 22 | DALI | White | |
|
 |
|
 |
ARKTIK-ME-S-LED 5200-840 0822951 | 597 mm | 4410 lm | 4000 K | ≥ 80 | 137,8 lm/W | ≤ 22 | On/Off | White | |
|
 |
|
|
ARKTIK-ME-S-LED 5200-840-DA 0832951 | 597 mm | 4410 lm | 4000 K | ≥ 80 | 137,8 lm/W | ≤ 22 | DALI-2 | White | |
|
|
|
|
ARKTIK-ME-S-LED 5200-8TW-DA 0832963 | 597 mm | 4410 lm | 3000–6500 K | ≥ 80 | 137,8 lm/W | ≤ 22 | DALI | White | |
|
 |
|
